TOA AT-603AP Attenuator Volume Control

TOA AT-603AP Attenuator Volume Control

Attenuator Volume Control

Chat Penjual
Category: Tag: Brand:
TOA
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

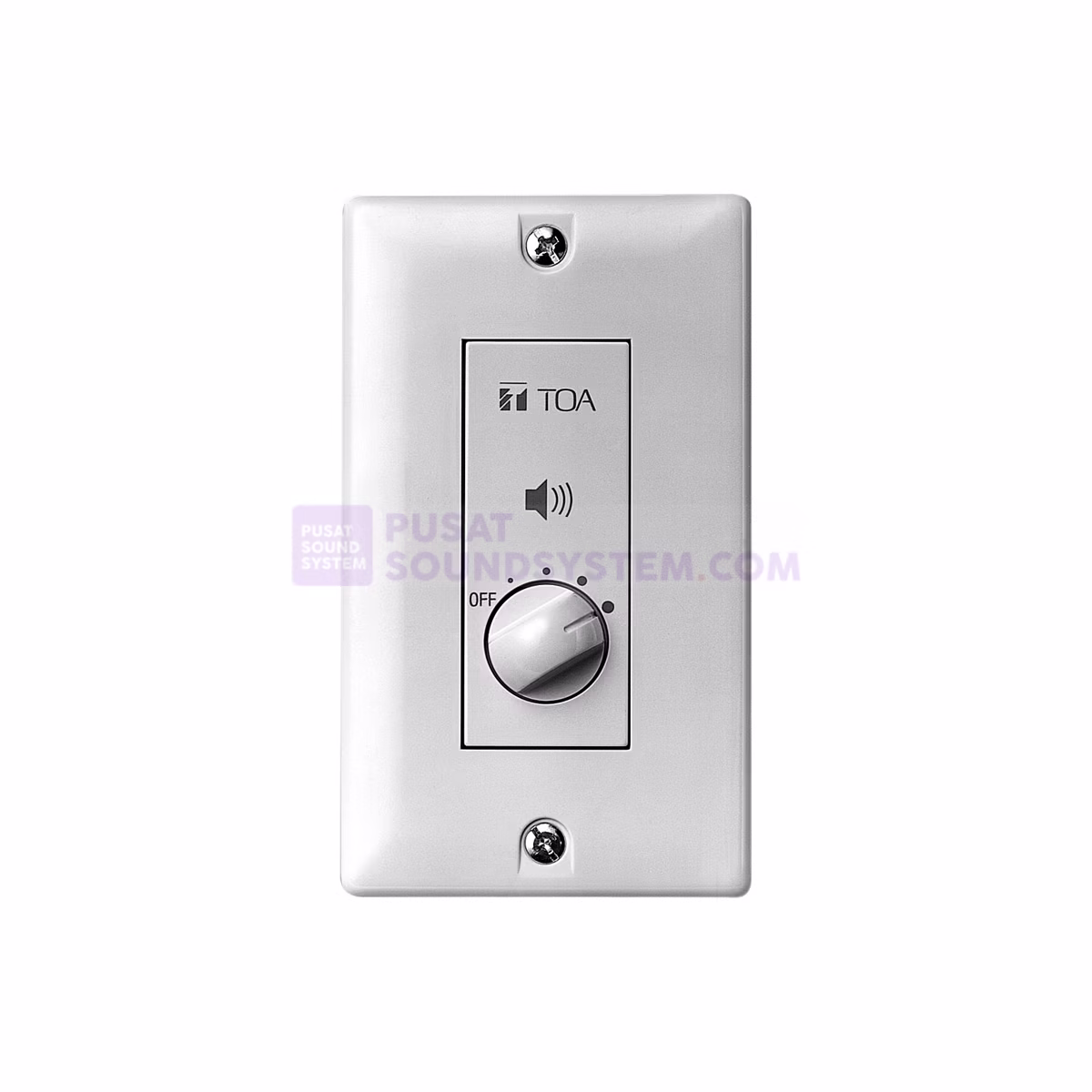

The AT-603AP is a flush-mounted wall attenuator and uses a transformer which allows connection of a wide range of loads (60 W or less). Volume can be adjusted in five steps. The AT-603AP features push-in terminal block for easy connection.

  • Attenuators with 5 step attenuation: „OFF“ -18 dB, -12 dB, -6 dB, 0 dB
  • Push-in connector allows quick terminalcableconnection
  • Knob, panel, plate: ABS resin, white (RAL 1013 or equivalent), case: ABS resin, black
  • 60 W



Input Range 0.5 W – 60 W
Attenuation 5 steps (0 dB, -6 dB, -12 dB, -18 dB, OFF)
Applicable Cable 600 V vinyl-insulated cable (Indoor Vinyl or Heat-resistant Indoor Vinyl cable)
Solid cable: φ0.8 (0.03″) – φ1.6 (0.06″) mm
Terminal Push-in connector
Operating Temperature -10 ℃ to +50 ℃
Finish Knob, panel, plate: ABS resin, white (RAL 1013 equivalent)
Case: ABS resin, black
Dimensions 70 (W) × 120 (H) × 52.4 (D) mm (2.76″ × 4.72″ × 2.06″) (with plate)
41 (W) × 108 (H) × 52.4 (D) mm (1.61″ × 4.25″ × 2.06″) (attenuator only)
Weight 210 g (0.46 lb) (unit only)
Accessory Plate …1, Plate mounting screw …2, Box mounting screw …2
Applicable Plate YP-1AF (option)
Applicable Box YS-11A (option)
