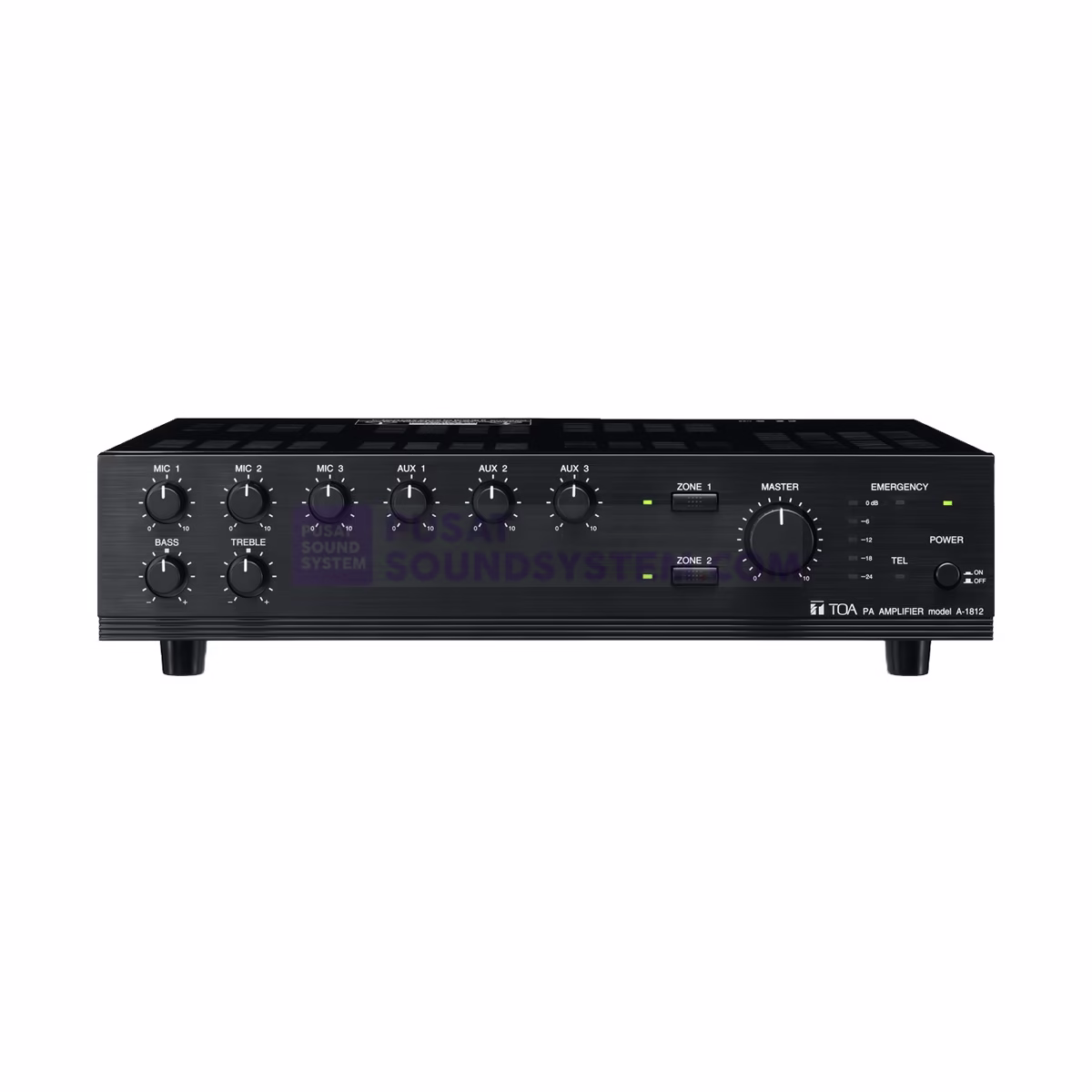

TOA A 1812 Mixer Amplifier PA System 120 Watt

Mixer Amplifier PA System 120 Watt

Cek Harga
Share atau Bagikan :

Description

Dilengkapi dengan fungsi Prioritas, fungsi Berpadu, dan 2 sakelar pemilih Zona, Amplifier A-1812 PA dari 120 W dirancang agar sesuai dengan aplikasi sistem PA berikut: pengumuman paging, interkomunikasi, BGM, dan penyiaran di sekolah, kantor, dan toko. Fungsi remote control daya, yang disediakan khusus untuk digunakan bersama dengan P-1812 (opsional), akan menghidupkan atau mematikan daya P-1812.

Fitur TOA A 1812

  • 3 versions available: 30 W, 60 W or 120 W
  • User-friendly front panel for easy operation
  • Individual zone speaker selection buttons enable broadcasting to 2 separate zones
  • 3 MIC inputs with MIC 1 priority override
  • One of 3 different program sources can be broadcasted
  • High-quality circuitry enables wide frequency response (e.g. for CD music sources and for FGM/BGM speakers)
  • Recording output
  • Built-in MIC 1 chime for use with optional remote microphone
  • Remote-in terminal for emergency control with automatic setting of default output level for the emergency input

Spesifikasi

SPECIFICATION

Power Source 220 – 230 V AC, 50/60 Hz
24 V DC (M4 screw terminal)
Rated Output 120 W
Power/Current Consumption AC operation: 260 W (rated output), 110 W (EN60065),
24 V DC operation: 7.0 A (rated output), 2.8 A (EN60065)
Frequency Response 50 Hz – 20 kHz (±3 dB)
Distortion 2 % or less at 1 kHz, rated power
Input MIC 1: -60 dB(*1), 600 Ω, electronically-balanced,
combined type of XLR-3-31 equivalent and phone jack, DIN socket (5 pins)
MIC 2 – 3: -60 dB(*1), 600 Ω, electronically-balanced,
combined type of XLR-3-31 equivalent and phone jack
AUX 1 (MOH): -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack
AUX 2: -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack
AUX 3: -20 dB(*1), 10 kΩ, unbalanced, combined type of XLR-3-31 and phone jack
TEL(*2): -20 dB(*1), 10 kΩ, electronically-balanced, M3 screw terminal
EMERGENCY: 0 dB(*1), 600 Ω, unbalanced, M3 screw terminal
Output REC: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack
LINE 1, 2 (*3): 0 dB(*1), 600 Ω, unbalanced, RCA pin jack
MOH: 0 dB(*1), 600 Ω, transformer balanced, M3 screw terminal
SPEAKER SELECTOR: 2 zone, high impedance (100 V line/83 Ω), individual selector switch,
M4 screw terminal
DIRECT SPEAKER OUT: High impedance (100 V line/83 Ω), M4 screw terminal
Low impedance (4 – 16 Ω), M4 screw terminal
(Both Low and High impedance terminals cannot be used at the same time.)
Phantom Power ON or OFF for each MIC1 – 3 with switch setting (+17 V DC)
S/N Ratio (Band Pass : 20 Hz – 20 kHz) 100 dB or more (Master volume: min)
76 dB or more (Master volume: max)
60 dB or more (MIC 1 – MIC 3)
76 dB or more (AUX 1 – AUX 3)
90 dB or more (TEL)
96 dB or more (EMERGENCY)
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Control Input TEL: No-voltage make contact input, open voltage: 24 V DC, short-circuit: 5 mA or less,
M3 screw terminal
EMERGENCY(*4): No-voltage make contact input, open voltage: 24 V DC,
short-circuit: 10 mA or less, M3 screw terminal
Control Output Power remote: Open collector output, withstand voltage: 35 V DC,
control current: 50 mA or less, M3 screw terminal
Chime 1-tone, 2-tone, or ascending 4-tone chime, or None selectable with switch setting,
activated at MIC 1’s DIN or CONTROL TEL terminal.
Indicator 5 point LED output level meter, Power indicator LED, Zone indicator LED, Emergency LED,
TEL LED
Priority EMERGENCY: Overrides other inputs
TEL: Overrides other inputs except ‘EMERGENCY’, ON/OFF selectable with switch setting
MIC 1: Overrides other inputs except ‘EMERGENCY & TEL’,
ON/OFF selectable with switch setting
Operating Temperature -10 ℃ to +40 ℃
Finish Panel: ABS resin, black, hairline
Case: Steel plate, black
Dimensions 420 (W) × 107.7 (H) × 367 (D) mm
Weight 12.6 kg
Accessory Power cord ……1, Terminal block cover ……1, Terminal block cover mounting screw ……2
Option Rack mounting bracket: MB-25B
Volume control cover: YA-920
Input transformer: IT-453A
