Description

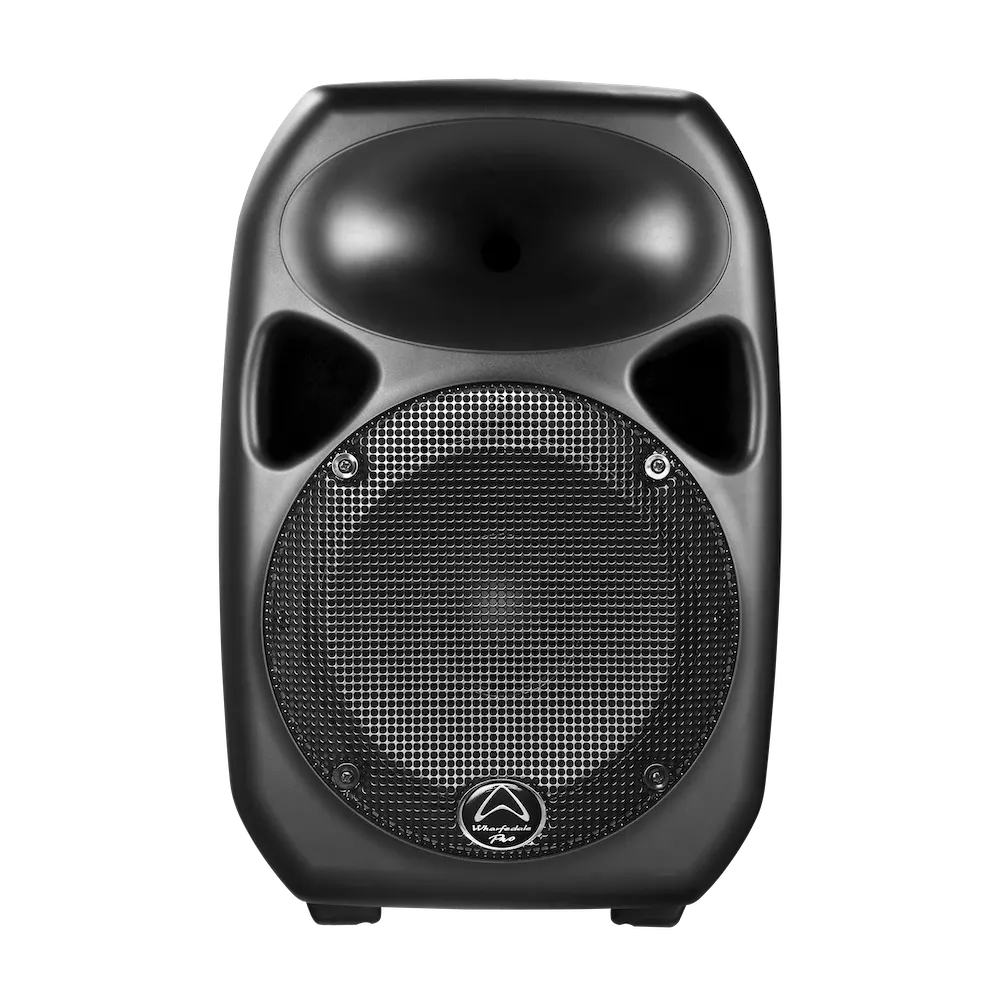

The Titan 8 MKII active PA speaker combines the Titan technology, materials and design topology, including a titanium compression driver and heavy-duty cast-frame woofer, to ensure absolute accuracy, high output and the smooth, wide dispersion of the critical mid and high frequency ranges. Whilst being ultra-compact and light weight it lends itself to a whole host of audio applications from gym installations, DJ booth monitors and public address.
Fitur
- 180W RMS / 360W Peak
- 119dB Max SPL
- 70Hz – 20kHz frequency response
- Custom Heavy duty moisture-proof 8″ LF driver
- Proprietary 90° x 60° Elliptical Wave Guide Horn design
- High-end Titanium HF Compression Driver
- Tough, yet lightweight Polypropylene molded cabinet with rubber padded handles
- Multiple M6, M8 & M10 rigging points and integral tripod stand adapter
- Rugged protective grille and top-stacking receptacles
- Trapezoid shape for arrays as well as stage monitor applications
- 2-band Hi / Low shelf EQ
Spesifikasi
| Model Name | Titan 8A MKII |
|---|---|
| System Type | Active 8” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 70 Hz-20 KHz |
| Frequency Range (-10 dB) | 65 Hz-20 KHz |
| Calculated Maximum SPL @1 m | 124 dB |
| LF Transducer Size (mm / inches) | 205 mm / 8” |
| Coil Size (mm / inches) | 38.86 mm / 1.53” |
| HF Transducer Type | Compression Driver |
| Coil Size (mm / inches) | 25 mm / 1” |
| Exit Size (mm / inches) | 30 mm / 1.2” |
| Diaphragm Material | Mylar |
| Nominal Coverage (H x V) | Elliptical waveguide 90° x 60° |
| Amplifiers | |
| Low-Frequency Power Amplifier RMS/Peak Watts | 150/300 W (Class D) |
| High-Frequency Power Amplifier RMS/Peak Watts | 30/60 W (Class D) |
| Controls—EQ | High (±10 dB)10 KHz Shelving Low (±10 dB) 100 Hz Shelving |
| DSP | None |
| Hi Pass switch | |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF and HF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Turns on ~150 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |

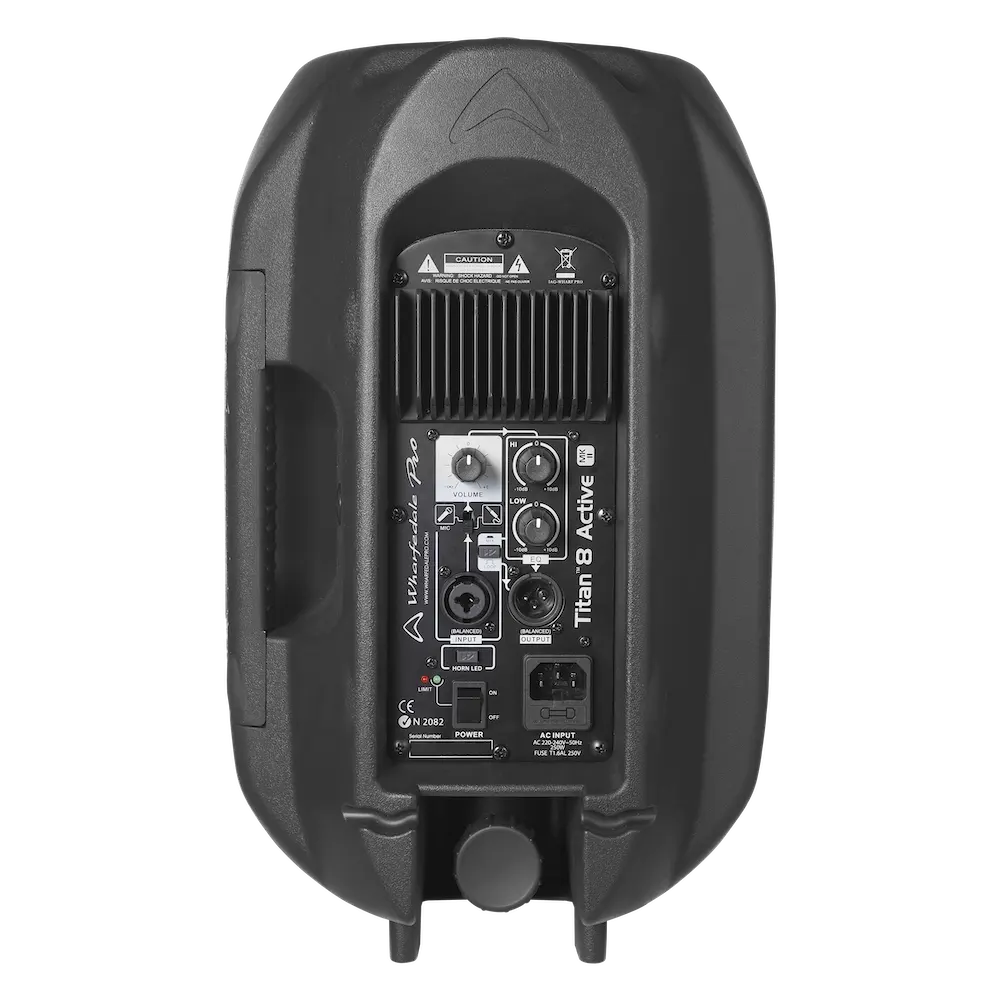

| Connectors | |
| Input – type | Switchable balanced mic/line level |
| Input Connector | XLR 1/4”Combo Jack |
| Line Output Connector | Switchable LOOP/MIX Balanced Female XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V~/220-240 V~,50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 8 M6 threaded inserts inc 4 M6 threaded inserts on base in OmniMount 30.0-type footprint |
| 35 mm with lock screw | |
| 1 carry handle on side | |
| Optional wall-mount bracket | |
| LED Horn lighting (On/Off switch) | Yes |
| Enclosure Material and finish | Injection Moulded Polypropylene |
| Colour Options | Grey / White / Black |
| Grille Material & Finish | 1.2 mm steel |
| Dimensions – Unpacked – Height | 396 mm / 15.59” |
| Width Front | 266 mm / 10.47” |
| Depth | 221 mm / 8.7” |
| Dimensions – packed – Height | 463 mm / 18.2” |
| Width Front | 325 mm / 12.8” |
| Depth | 282 mm / 11.1” |
| Net Weight (kg / lbs) | 6.25 kg / 13.75 lbs |
| Gross Weight (kg / lbs) | 8.75 kg / 17.94 lbs |
