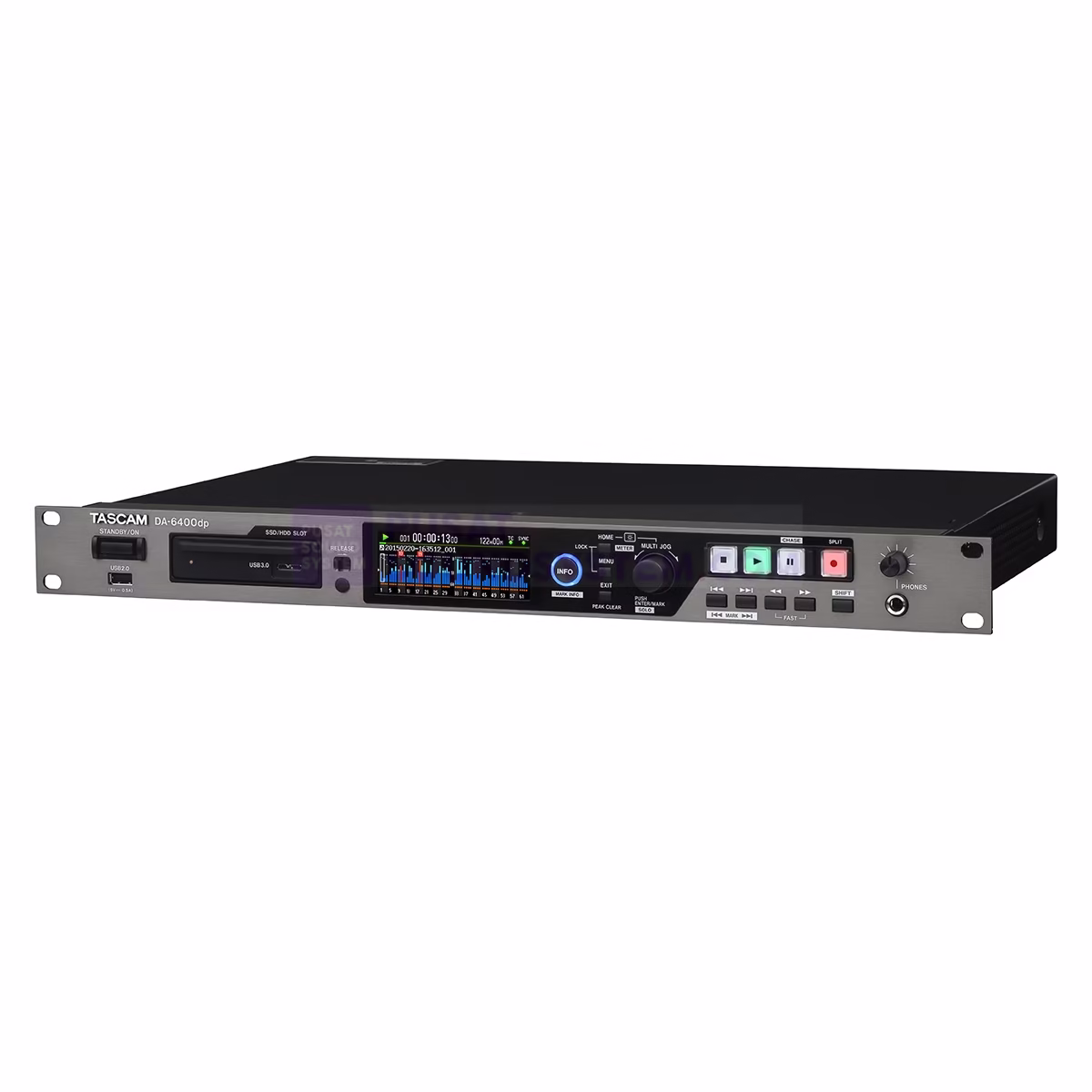

Tascam DA-6400DP 64-channel Audio Recorder

• Supports recording/playback in PCM format of 64 channels at 48 kHz/24-bit or 32 channels at 96 kHz/24-bit
• Capable of backup recording with operation synchronized to ProTools systems
• 2.5-inch Tascam SSDs used as recording media featuring excellent vibration and environmental resistance as well as maintenance-free operation (more information below)
• With BWF support, time information can be stored in files
• With two slots, audio interface cards (sold separately) can be used for flexible input and output options
  • MADI input/output/thru support when IF-MA64/EX interface card (sold separately) installed
  • MADI input/output support when IF-MA64/BN interface card (sold separately) installed
  • Dante and AES67 input/output support when IF-DA64 interface card (sold separately) installed
  • AES/EBU input/output support when IF-AE16 interface card (sold separately) installed
  • AVB support planned for the future
• Stand-alone use possible with simple operations for startup, recording and playback
• Usable as a timecode synchronization master device
• Parallel remote control supported
• RS-422 serial remote control supported (9-pin serial protocol compliant)
• LAN (1000Base-T Ethernet) built-in, allowing file transfer, remote control and monitoring over a network
• SNTP server functions supported for automatic adjustment of the internal clock over a network
• Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
• Remote control applications for iPad and computer
• Firmware upload possible using USB port
• Colour LCD with high legibility (320×120 pixels)
• IEC 3-pin inlet
• AC power redundancy built in (DA-6400dp only)

• EIA 1U rackmount size

New functions with firmware version 2.00

• Playlist are supported to allow takes to be assigned in any order and playback areas for each take to be set
• A theatre play function allows to mark playback starting and ending points for each take and to play these set parts of multiple takes in order
• An AUTO READY function can put the unit into playback standby at the beginning of the next take after a take completes playback
• Timecode-synchronized playback of all takes in the current folder
• Playback of WAV files in 32-bit PCM and 32-bit floating formats
• Sorting functions allow the take list to be ordered by take timecode or take name
• Pressing SHIFT+MENU on the homescreen now opens a menu with operations for the current take or playlist
• The menu can be user-configured to show only selected menu pages
• A network connection with the DA-6400 can now be achieved easily from macOS and Telnet as well as VNC and FTP apps that support mDNS
• The built-in VNC server now supports two types of compressed transmission formats
• The SNTP menu page now shows the current date and time
• The INFORMATION screen now shows the current folder name
• A mark is now set automatically when a buffer overflow occurs during recording
• Change in display when master clock is not locked
• Track names and other meta data will now be added to the BEXT chunk data of BWF files
• The iXML chunk data of track names and other meta data will now be added to BWF files

New functions with firmware version 2.10

• A cascade function allows simultaneous recording/playback operations on two units
• The INFORMATION screen now shows the cascade status
