SPL Madicon MADI to USB Audio Interface

Description

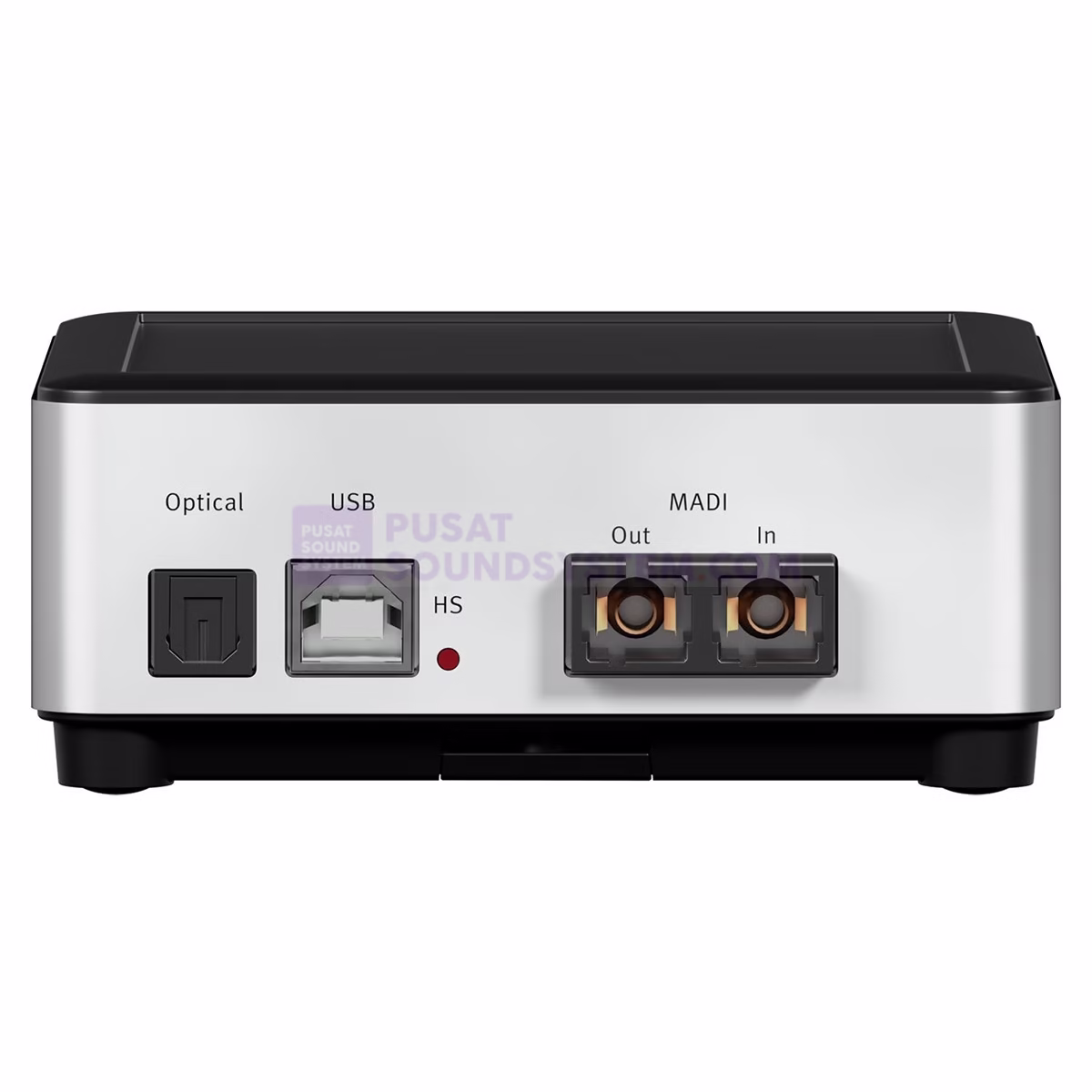

The SPL Madicon is a USB digital interface connecting up to 64 inputs and 64 outputs via USB to the computer. Madicon introduces SmartMADI, which allows daisy chaining Madison 16-ch AD/DA converters and communicating sample rate changes through the MADI stream. It features an additional optical Toslink output for channels 1/2 to allow connection to a DAC in the control room while the Madisons operate in the recording rooms. Instead of many analog wires with expensive wall connectors only two tiny MADI cables are required.

MADICON:

• USB audio interface
• Up to 64 input & output channels via MADI
• Additional optical TOSLINK stereo output (Ch1/2)
• 24-bit, up to 192 kHz
• Hi-Speed USB with detector-LED
• USB bus powered
• Internal/external clock switch
• External clock Lock-LED
• Windows & Mac
• Zero-latency monitoring (FPGA Monitoring Mixer)

MONITOR MIXER:

• World-class monitor mixer with innovative features
• Control room mixer and six headphones mixers
• Intuitive and fast workflow
• Talkback
• Activity Monitor: 128 channels MADI stream metering and routing display
• MADI-Splitter – one signal can distributed to up to 63 channels
• Plus many game-changing features

64-TRACK RECORDER:

• Recording without DAW – direct to drive
• Automatic Rec Enable
• Display of remaining recording time
• Automatic file labelling
• Solo pre listen

SMARTMADI:

• MADI becomes more user friendly, easier to setup and more modern
• SPL’s Madicon and Madisons can be daisy-chained like Audio-Over-IP products, but are much easier to configure and more reliable in operation
• No additional MADI router required
• Sample rate changes are now communicated over MADI and Madison follow automatically – very convenient
