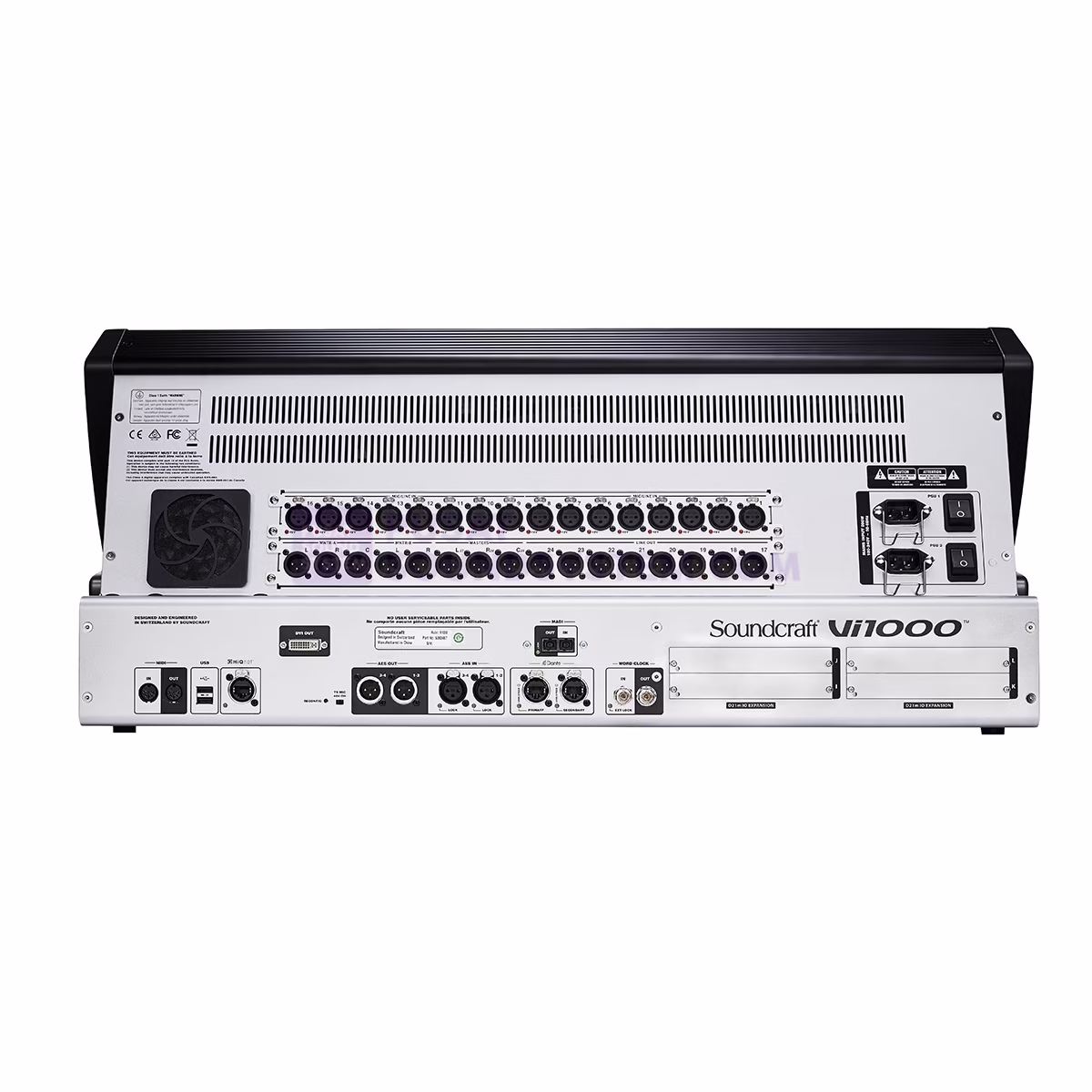

Soundcraft Vi1000 96-Channel Digital Mixer

96-channel Compact Digital Mixing Console

Cek Harga
Share atau Bagikan :

Description

The Soundcraft Vi1000 digital mixing console represents the culmination of the groundbreaking achievements and rich feature set offered by Soundcraft’s acclaimed Vi Seriesnow in a more compact form factor.

The reduced footprint of the Vi1000 makes it ideal for smaller touring projects, rental companies, corporate AV applications, as well as music venue, theater and HOW installations in search of a versatile digital mixer. Among its many features, the Vi1000 incorporates Vistonics II ‘knobs-on-glass’ functionality, making it easy to see and access the power and versatility of the mixing environment; along with Soundcraft Faderglow™ colour coding, which illuminates the fader slots according to function using clearly defined colours. Offering pristine audio quality, a wealth of functionality, an intuitive user interface for streamlined operation, and the roadworthy reliability that Soundcraft’s Vi Series consoles are known for, the new Vi1000 delivers space saving, world-class audio mixing capability.

Soundcraft Vi1000 Features

  • 96 input channels with 24 mono/stereo mix busses, plus LRC master busses
  • Vistonics II proprietary ‘knobs-on-glass’ functionality; key to the console’s streamlined, intuitiveoperational interface and widely praised as the easiest-to-use digital console on the market
  • SpiderCore™ integrated DSP engine ensures superior audio performance
  • Soundcraft Faderglow color coding illuminates the fader slots according to function
  • Integrated Dante™ interface facilitates instant connection to industry standard Dante audio
    networks
  • Two double-slot expansion slots for Stagebox connection or option card installation
  • Built-in Lexicon world-class reverb, delay, and pitch effects from the industry’s leading brand
  • Onboard BSS DPR901ii dynamic EQ digitally modelled after the original, industry-standard BSSanalog unit
  • Integrated microphone monitoring for AKG, Shure®, and Sennheiser wireless systems
  • Included vMIX automatic microphone mixing for two groups of up to 16 mics in conference ortheatrical applications
  • Proven electronic and mechanical design delivers the performance and reliability Vi Seriesconsoles are known for

Spesifikasi

Audio Processing
Input Channels 96
Busses 24 mono or stereo, group/aux/matrix
Groups VCA Groups: 16
Inserts Insert Points: 64 external / 8 BSS DEQ / 4 x Lexicon
Tie Lines 128
Equalizer Dynamic EQ: 16 x BSS DPR901ii
FX Lexicon FX: 4 x stereo multi-FX units
Automatic Mic Mixing 2 x Studer vMIX, maximum 16 channels each
I/O
Capacity I/O Capacity: 212 input / 212 output
Mic/Line Inputs 16 x XLR
16 x preamps
Line Outputs 16 x XLR
AES Audio AES/EBU Input/Output: 2 x stereo inputs / 2 x stereo outputs
MADI I/O Optical MADI and/or Dante I/O: 64 inputs / 64 outputs
Expansion Slots 2 x 64 inputs / 64 outputs
Audio Specification
Sample Rate 48 kHz
Internal Clock Accuracy: ±50 ppm Jitter: ±10 ns
Latency <2 ms, (stagebox input to local output)
Internal DSP Resolution 40-bit floating point
Frequency Response 20 Hz to 20 kHz (+0/-1, mic in to line out)
THD+N 0.004%, (mic in to line out, 20 Hz to 20 kHz)
EIN Mic Input EIN: -128 dBu (150 Ohms source, 20 Hz to 20 kHz)
Residual Output Noise -95 dBu (Vi-Stagebox output, 20 Hz to 20 kHz)
General Specifications
Power Mains Voltage Operating Range: 90 to 264 VAC, 47 / 63 Hz, auto-ranging
Main Power Consumption: 200 W (both PSUs operating)
Dimensions ( H x D x W) 13.8 x 31.6 x 33.2″ / 351 x 803 x 843 mm
Weight 55.0 lb / 24.9 kg
