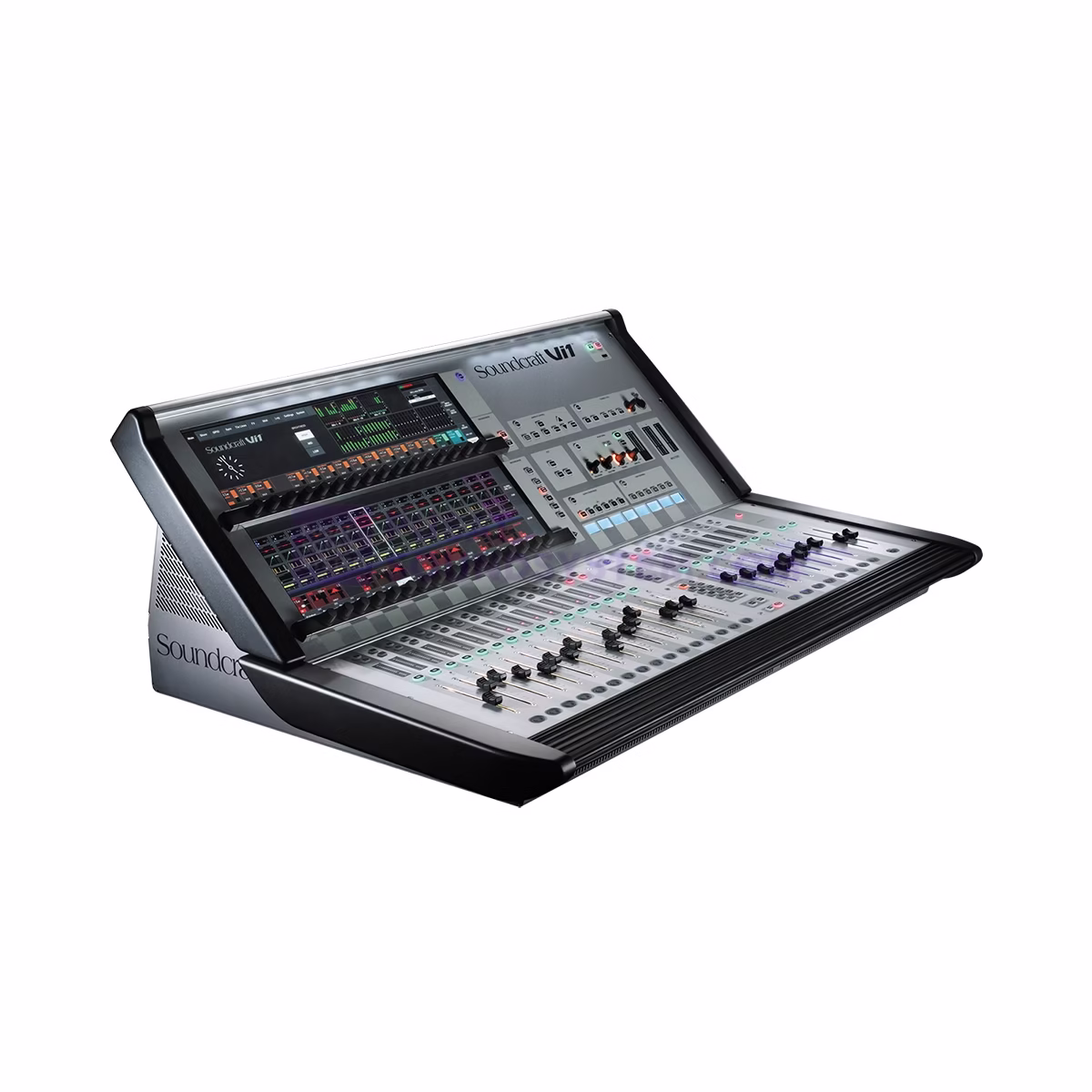

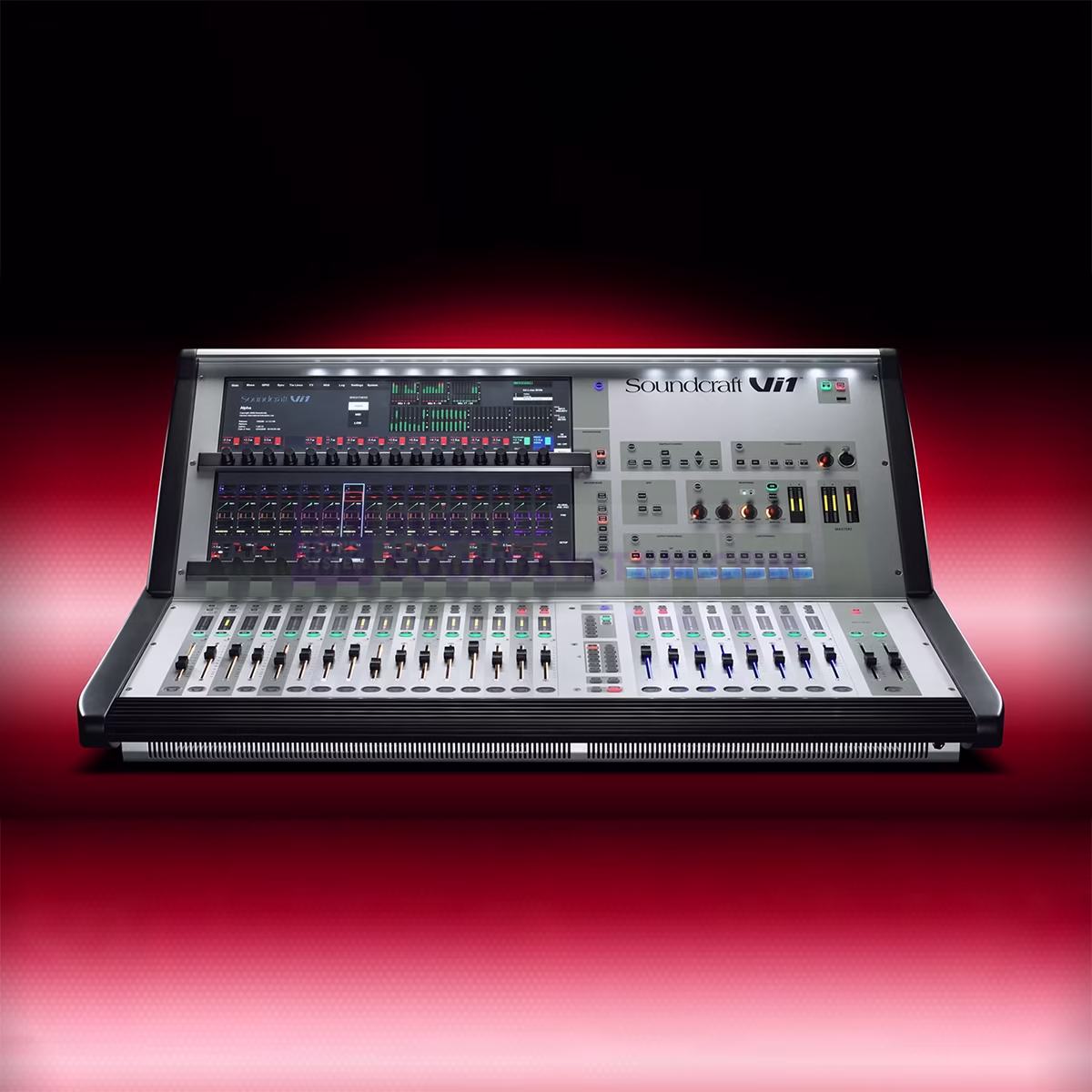

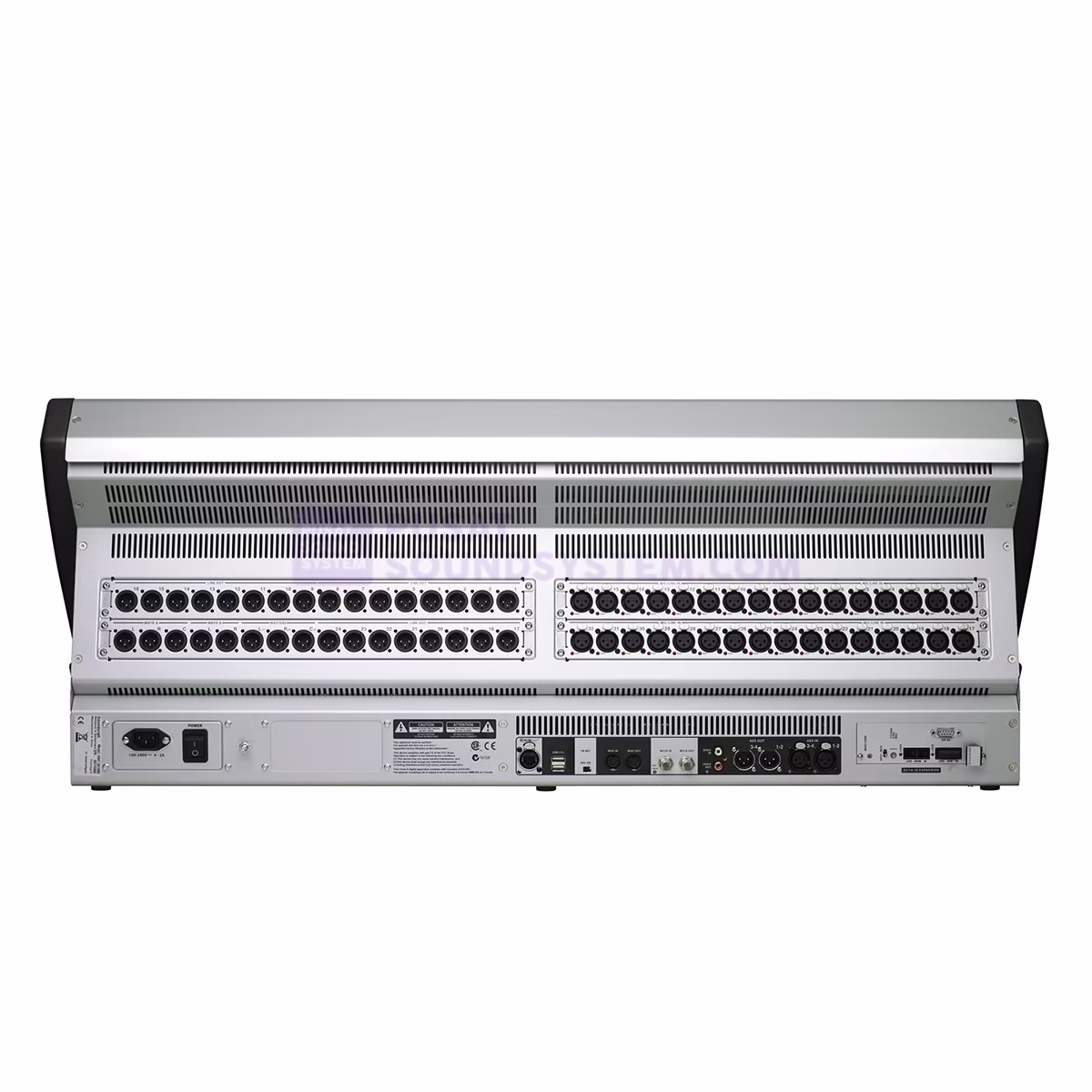

Soundcraft Vi1 32-Channel Digital Mixer

Digital Live Sound Mixing Console with Monitor and Headphones Output Levels

Cek Harga
Share atau Bagikan :

Description

So here it is, the Soundcraft Vi1™.

A complete standalone console package with 32 channels of analogue input to 27 analogue outputs, plus 6 digital inputs, 4 Stereo FX Returns and 6 digital outputs in one chassis. As standard, Input to mix capacity is 46chs, but by adding a stagebox (compatible with the existing Vi racks), simultaneous channel count increases to 64. Channels are routable to 24 multifunction busses, plus LR and Mono Mix busses.

Soundcraft Vi1 Features

  • Input faders, mutes and solos
  • Bus, master LR and VCA master faders, mutes and solos
  • Monitor and headphones output levels
  • Graphic equalizer on all bus outs
  • Aux send levels to each bus from all channels (monitor mixes)
  • Matrix contribution level to each matrix bus
  • Optimise front of house mix from anywhere in room
  • Adjust monitor levels while standing next to artist
  • Use multiple iPad devices on one console so artists can mix their own monitors
  • Use to extend fader count of an existing control surface
  • Use in standalone mode for familiarisation with console functions or training

Spesifikasi

Frequency Response – Local Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
THD+Noise 22Hz-22kHz
THD & Noise – Local Mic In (min gain) to Local Line Out <0.003% @ 1kHz
THD & Noise – Local Mic In (max gain) to Local Line Out <0.020% @ 1kHz
Mic Input E.I.N <-125dBu (150Ω source), 22Hz-22kHz bandwidth, unweighted
Residual Noise -95dBu – Local line output; no inputs routed, Mix fader @0dB
CMRR 80dB @ 1kHz Local Mic Input
Sampling Frequency 48kHz
Latency – Local Mic Input to Local Line output < 2ms @48kHz
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy < +/- 50ppm
Internal Clock Jitter < +/- 5ns
External Sync BNC Wordclock
Input & Output Levels – Mic Inputs +23dBu max
Input & Output Levels – Line Outputs +22dBu max
Input & Output Levels – Nominal Operating Level 0dBu (-18dBFS)
Input & Output Impedances – Mic Inputs 2k7Ω
Input & Output Impedances – All other analogue Inputs >10kΩ
Input & Output Impedances – Line Outputs <75Ω
Input & Output Impedances – AES/EBU Outputs 110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Channel HP filter 20Hz-600Hz, 18dB per octave
Channel LP filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) – HF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) – Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) – Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) – LF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, autoranging
Mains Power Consumption Control Surface – 100W
Internal Mass Storage 4GB Compact Flash Card
Operating Temperature 0°C – 45°C (32°F – 113°F)
Relative Humidity 0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Height 394mm (15.5″)
Width 1034mm (40.7″)
Depth 711mm (28.0″)
Weight 37kg* (82lb)
