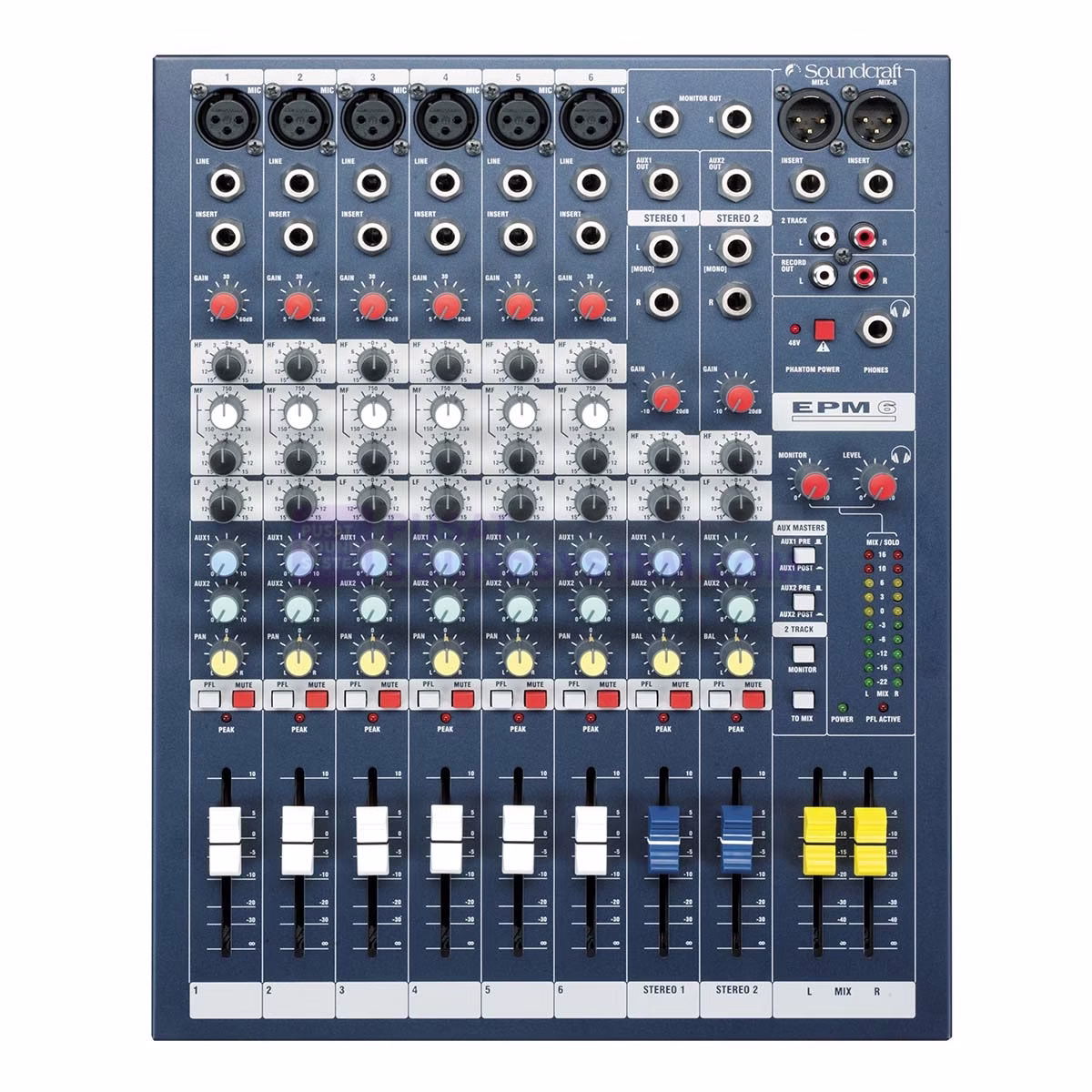

Soundcraft EPM6 6-Channel Analog Mixer

Description

The Soundcraft EPM6 is a 6×2 frame size mixer that places emphasizes on quality, audio performance, and an easy to understand, uncluttered control surface. Surface mount technology is used throughout the 6-channel mixer, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly transparent GB30 mic preamps–designed by Graham Blyth and used on the larger LX7ii and GB Series consoles–feature high-resolution adjustment over a wide gain range of 55dB, and provide a stunning +22dB headroom through the console. The Soundcraft mixer’s true professional 48-volt phantom power caters to condenser microphones of all types. Unique signal monitoring watches for overload in several channel strip locations and illuminates the LED more brightly as the signal approaches peak. 60mm high-quality faders are used. The monitor and headphone outputs work in parallel so that performers can listen on phones while an engineer listens to studio monitors.

Quality audio performance with premium preamps
The emphasis with the Soundcraft EPM Series is very firmly on quality audio performance, with an easy-to-understand control surface uncluttered by unnecessary features. The EPM6 features Soundcraft’s premium GB30 mic preamp (as used on the large-format LX7ii and GB Series desks) to provide high headroom and
precision control of mic signals.

Balanced inputs with inserts
Mic and line inputs are provided on balanced XLR and 1/4″ jack connectors, with the main stereo outputs on balanced XLRs for best integration with other professional equipment. There are also insert points on every mono channel and the mix outputs for external signal processing.

Unique Peak LEDs monitor the entire signal path
Because levels are constantly changing throughout the signal path – from the preamp stage, through filtering and EQ – the EPM mixers provide peak LEDs on all input channels. These monitoring LEDs are fed from multiple points in the signal path to ensure nothing is overlooked. The LEDs also employ proportional illumination to show signal level when approaching peaks, allowing you to maximize the quality of any signal by utilizing all the available headroom. The main stereo mix has 10-segment LED meters, with a PFL Active
indicator to show whether any channels are being soloed.

• 6×2 frame size
• 2 configurable auxiliary buses
• XLR-type and 1/4″ metal jack connector sockets
• RCA phono stereo playback inputs and record outputs
• 3-band EQ with a swept mid on mono inputs
• 2-band EQ on stereo inputs
• TRS insert sockets and inserts on all mono inputs and mix output
• 10-segment LED output metering
• Intuitive and comprehensive solo system
• Headphone output
• Easily rack mountable
