Shure BLX14/P98H Wireless Instrument System

Optimised for woodwind and brass performance and recording, the PGA98H is the most accessible wireless Shure gooseneck instrument microphone for elevating sound quality. BLX offers a simple setup and an intuitive interface for performance you can trust.

BLX1 Bodypack Transmitter

The transmitter included within this Shure wireless system is both lightweight and durable. The compact transmitter fits comfortably in hand and features adjustable gain control, quick and easy frequency matching and a power/battery status LED. The BLX1 can run up to 14 hours of continuous use with AA batteries (included with the system) and has an operating range of up to 100 metres.

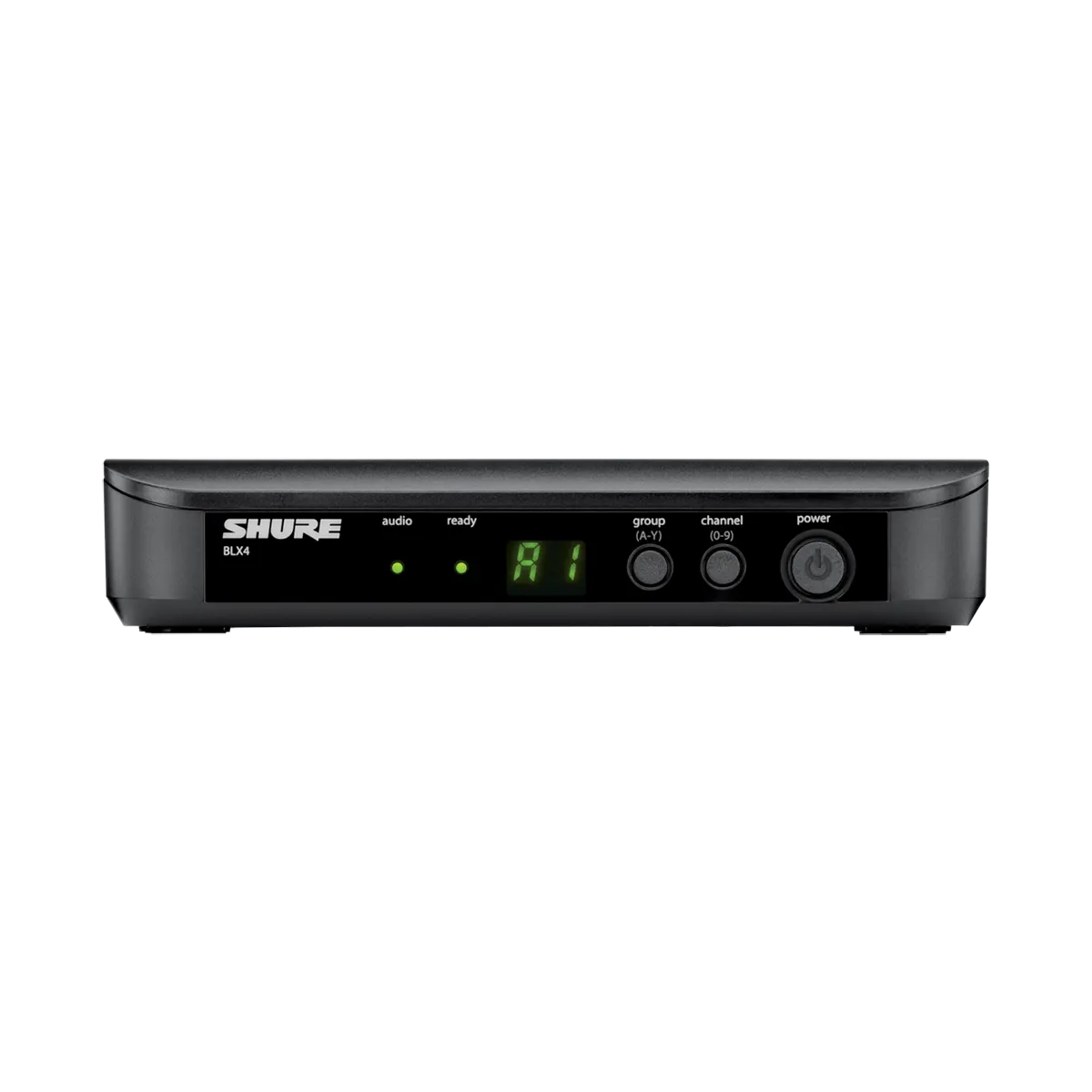

BLX4 Wireless Receiver

The BLX4 receiver has been designed for a quick setup, with user friendly intuitive controls making operation easy. Microprocessor controlled internal antenna diversity provides rock solid and dependable communication to the transmitter whilst the ‘One touch-QuickScan’ frequency selection system quickly locates the best open frequency to battle any potential interference.

Premium Condenser Instrument Microphone

The Shure PGA98H TGQ Condenser Instrument Microphone is a high performance and affordable brass and woodwind instrument microphone that provides a detailed and lively tone. Featuring a cardioid pickup pattern to avoid feedback and noise leakage, tailored 60Hz – 20kHz frequency response and a robust design, the PGA98H is a perfect choice for both studio and live applications.

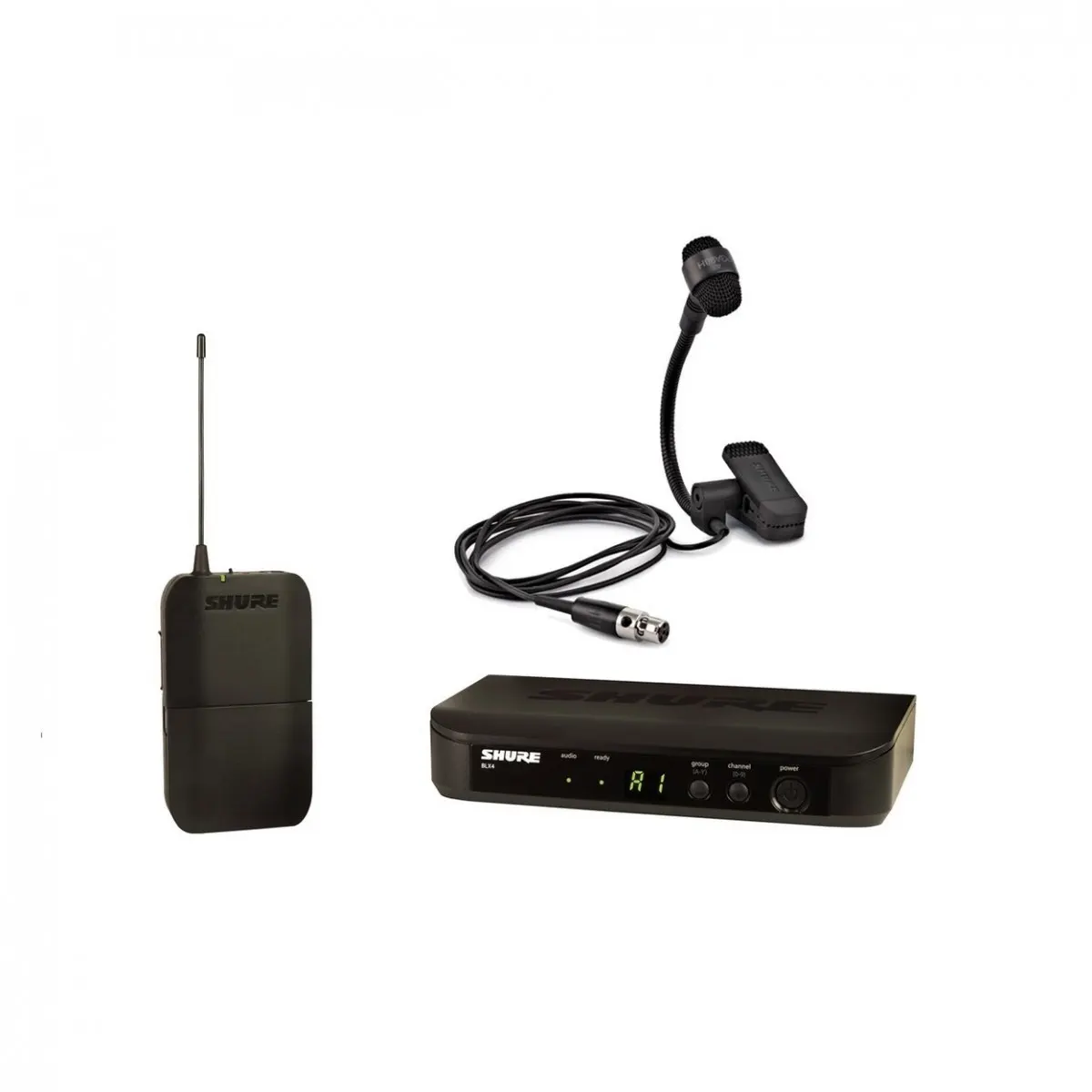

Included Within The System

• 1 x BLX4 Wireless Receiver
• 1 x BLX1 Bodypack Transmitter
• 1 x PGA98H Instrument Microphone
• 1 x UK Power Supply

Features

PGA98H Condenser Mic

• Tailored frequency response for brass and woodwind
• Position your mic with precision thanks to a flexible gooseneck design
• Quick, easy attachment to your instrument with an integrated horn clamp
• Rejects unwanted background noise with a cardioid polar pattern
• Legendary Shure durability with a tough construction and metallic grille
• Includes TA4F connector for use with Shure wireless bodypacks (no preamplifier required)

BLX1 Body Pack Transmitter

• 14-hour run time and a 100 meter range from one pair of AA batteries
• Quick and easy frequency matching
• Continuously adjustable gain dial
• Easily accessible on/off switch
• Power & battery status LED
• Clip-on design easily attaches to performer
• Lightweight, comfortable and discrete build
• Rugged and robust – built for rigorous live performances
• TA4F (TQG) connection for use with Shure headset, lavalier, instrument mics and guitar cables

BLX4 Single Channel Receiver

• User friendly and intuitive design – no complicated setup options
• One touch QuickScan finds the best open frequency for uninterrupted signal
• Internal microprocessor-controlled antenna keeps the unit discrete and compact
• Two colour LED for monitoring signal level
• Compatible with up to 12 other systems
• XLR & 1/4″ audio outputs

Specifications

BLX14/P98 Wireless System

• Available Transmitter Form Factors: Bodypack
• Operating Range (Up To): 100m
• Wireless Frequency: 823 MHz – 832 MHz

PGA98H Instrument Microphone

• Transducer Type: Condenser
• Frequency Response: Tailored, 60Hz – 20kHz
• Output Impedance: 600Ω
• Sensitivity: -52.00dBV/Pa – 2.51mV/Pa
• Equivalent Selfnoise: 27 dB(A)
• Sound Pressure: 130dB SPL
• Polar Pattern: Cardioid
• Connectors: TA4F
• Main Functionality: Performance
• Cartridge: Fixed
• Housing: Cast Zinc
• Weight: 210g

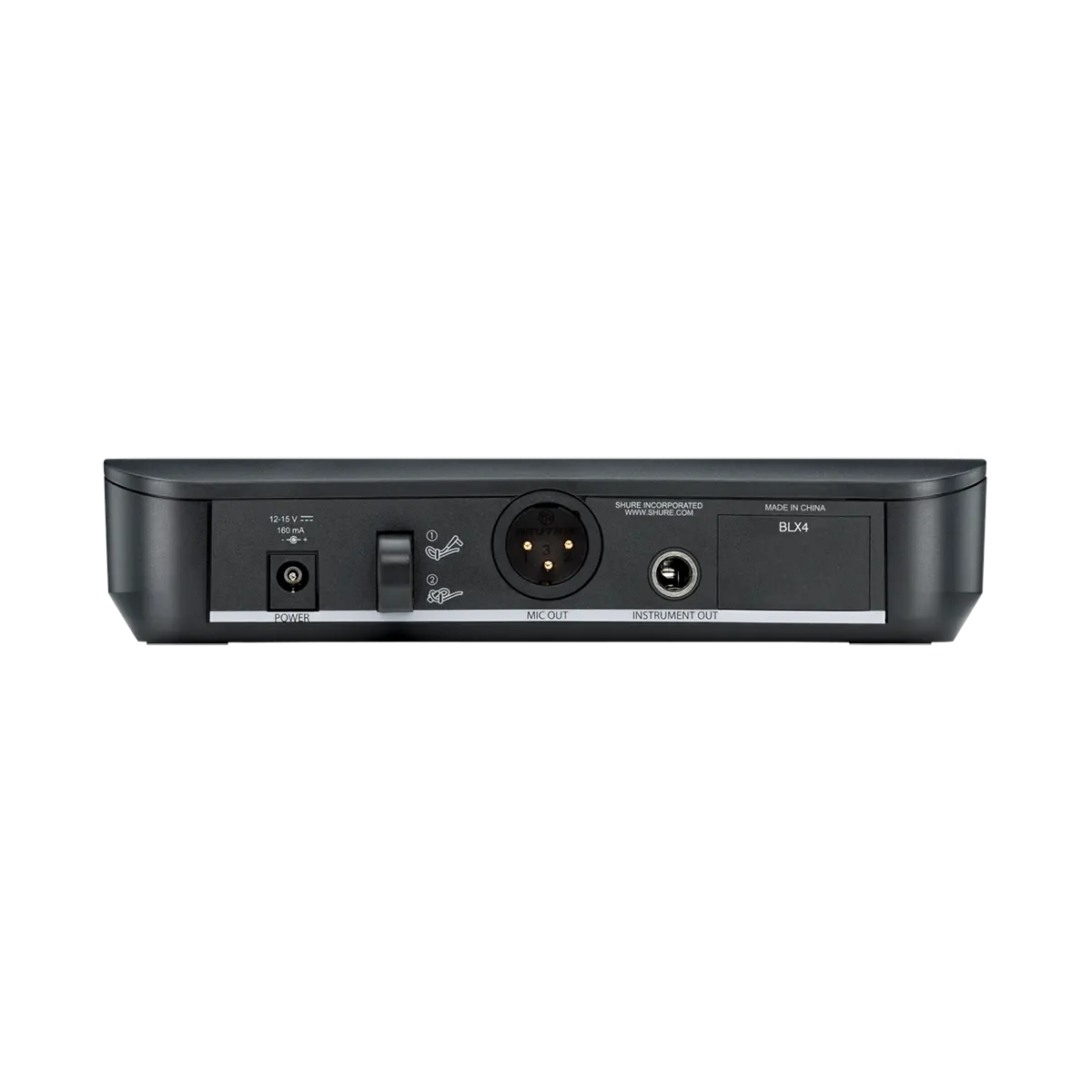

BLX4 Wireless Receiver

• Transmission: Analogue
• Type of Power Supply: External
• Receiver Housings: Moulded ABS
• Number Of Compatible Systems Per Frequency Band: 12
• Scan Features: Quick Scan
• Rack Hardware: Optional URT2
• Receiver Displays: LEDs
• Receiver Type: Single
• Image Rejection: 50 dB, Typical
• RF Sensitivity: -105 dBm, For 12dB SINAD, Typical
• Weight: 241 g
• Dimensions
  • Height: 40 mm
  • Width: 188 mm
  • Depth: 103 mm

BLX1 Wireless Bodypack Transmitter

• Form Factor: Bodypack
• Operating Range (Up To): 100 m
• Battery Life Alkaline: 14 h
• Transmitter Housings: Moulded ABS
• Batteries: AA
• Battery Status: Multi-Colour LED
• Connectors: TQG
• Functionality: Transmitter
• Gain Adjustment Range: 26 dB
• Included Antenna: 1/4 Wave
• Input Impedance: 1 MΩ
• Weight: 75 g
• Dimensions:
  • Height: 110 mm
  • Width: 64 mm
  • Depth: 21 mm
