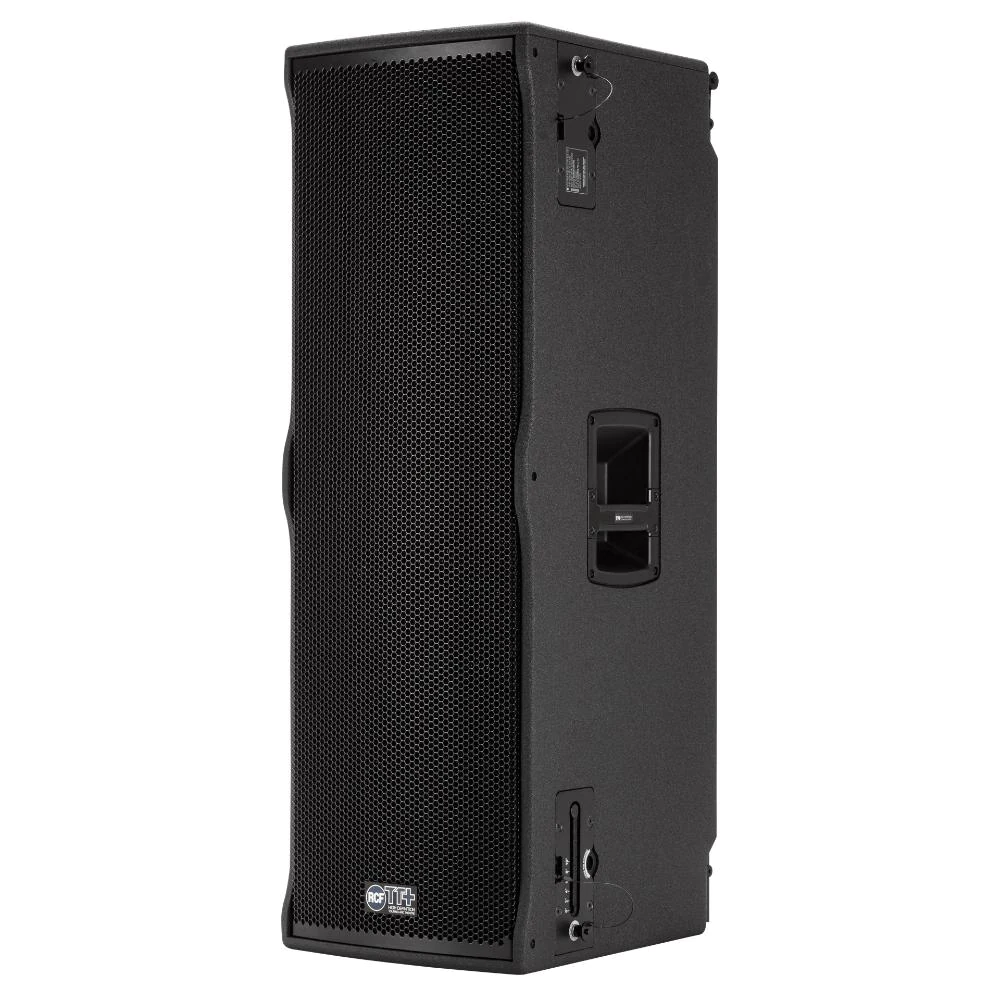

RCF TTL 6-A Speaker Line Array Aktif 2×12 Inch 3 Way 2200 Watt

Description

The TTL6-A is a high power, three way, active line source engineered to deliver high fidelity output for use indoors and outdoors, for medium to large spaces. TTL6-A provides all the advantages of line array technology, such as high direct sound, increased range and a uniform level distribution, with additional ease of use. It is the preferred sound set-up for stacked systems and when a wider dispersion is required. The 3-way TTL6-A line source is equipped with 2 x 12” low frequencies woofers, 4 x 6.5” midranges and a 3.0” voice coil compression driver with wave-guide for distinctive homogenous directivity. The integration of four channels of digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

FEATURES

• RDNet remote control
• 4 x Class D amplifier, 2200 Watt total power
• Premium-quality DSP with optimized phase response
• 1.4″ neo compression driver, 3.0″ voice coil with a waveguide
• 4 x 6.0″ neo midranges
• 2 x 12″ neo woofers
• 139 dB max SPL
• Maximum output, perfect audio fidelity
• Tour grade cabinet and mechanics
• 90°x 30°

SPECIFICATIONS

• ACOUSTICAL SPECIFICATIONS
  • Frequency Response: 45 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 139 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 30°
• TRANSDUCERS
  • Compression Driver: 1 x 1.4” neo, 3.0” v.c
  • Midrange: 4 x 6.0” neo, 2.0” v.c
  • Woofer: 2 x 12” neo, 3.0” v.c
• INPUT/OUTPUT SECTION
  • Input signal: bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu
• PROCESSOR SECTION
  • Crossover Frequencies: 200 Hz – 800 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Close, Linear, Far, 2x Presets
  • RDNet: Yes
• POWER SECTION
  • Total Power: 4400 W Peak, 2200 W RMS
  • High frequencies: 800 W Peak, 400 W RMS
  • Mid frequencies: 1400 W Peak, 700 W RMS
  • Low frequencies: 2200 W Peak, 1100 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
• STANDARD COMPLIANCE
• • Safety agency: CE compliant
• PHYSICAL SPECIFICATIONS
  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: Pole Mount, integrated
  • Handles: 2 side, 2 back
  • Grille: Steel
  • Color: Black
• SIZE
  • Height: 1100 mm / 43.31 inches
  • Width: 378 mm / 14.88 inches
  • Depth: 468 mm / 18.43 inches
  • Weight: 53 kg / 116.84 lbs
• SHIPPING INFORMATION
  • Package Height: 430 mm / 16.93 inches
  • Package Width: 1140 mm / 44.88 inches
  • Package Depth: 520 mm / 20.47 inches
  • Package Weight: 56 kg / 123.46 lbs
