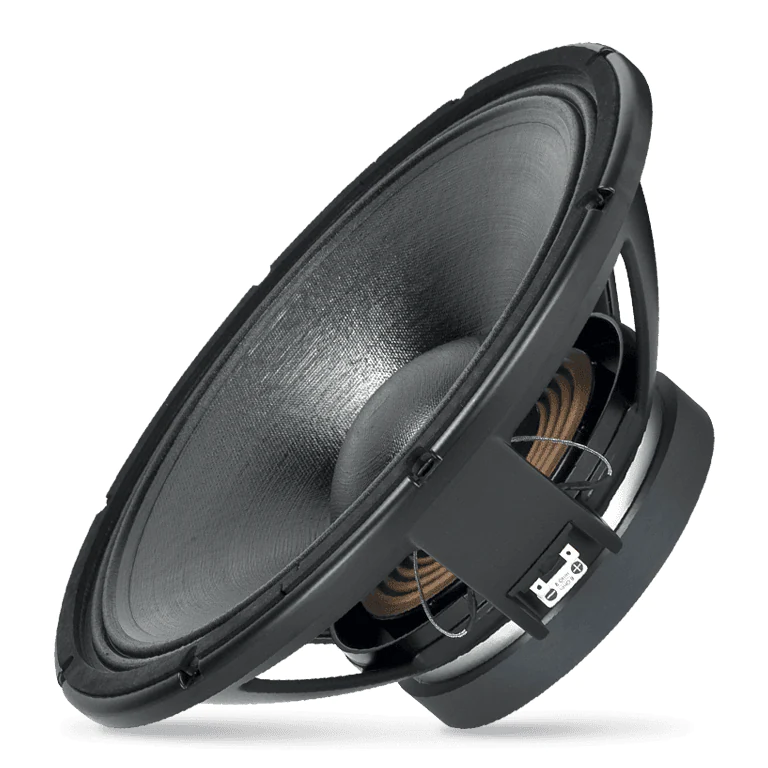

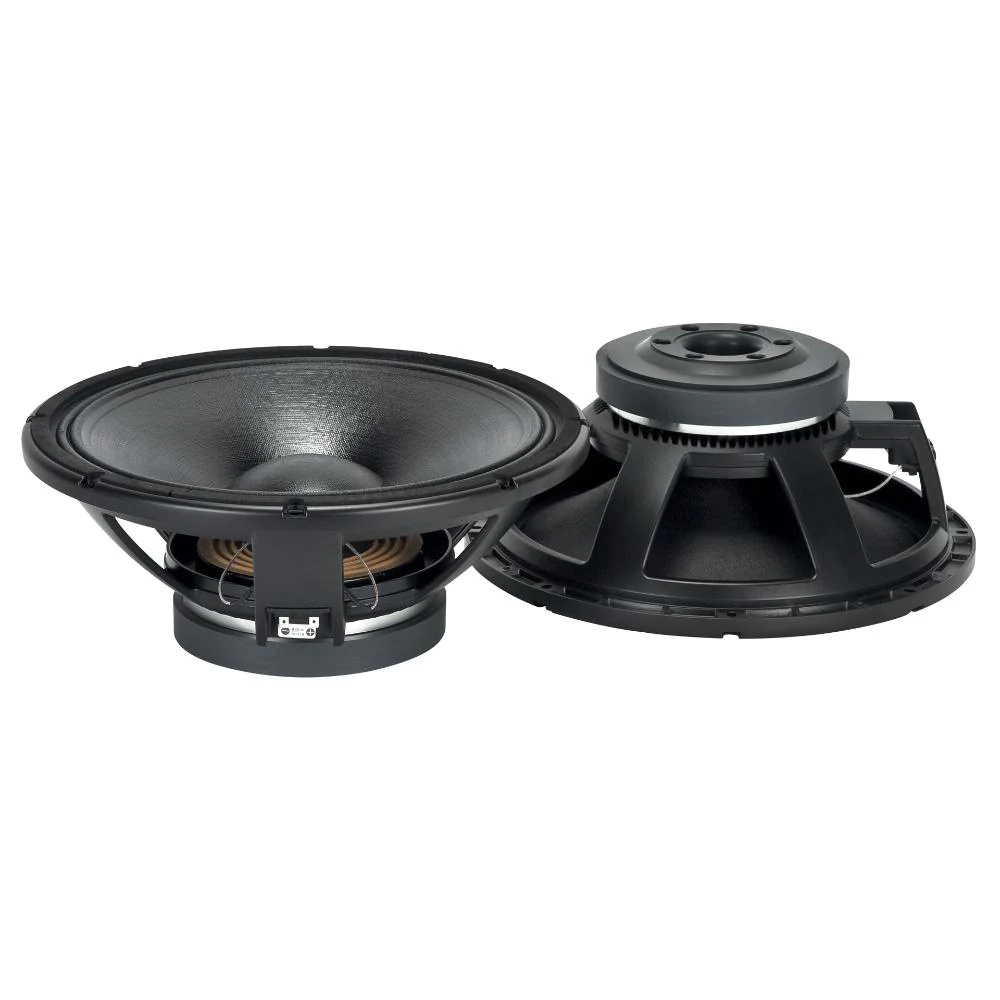

RCF MB15X351 Speaker Mid Bass 15 Inch 8 Ohm 1400 Watt

Description

The MB15N351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3,5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3” voice coil. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.

FEATURES

• 3.5-inch, fiberglass inside/outside copper voice coil
• 1400W continuous program power handling
• 99 dB Sensitivity
• 40 Hz – 2.5 kHz Frequency range
• Dual Forced Hyperventing System
• Dual spider design with silicon based dampening control
• M-roll surround and corrugated straight cone geometry

SPECIFICATIONS

• GENERAL SPECIFICATIONS
  • Nominal Diameter: 15 inch / 381 mm
  • Rated Impedance: 8 ohm
  • Program Power (watt): 1400 W
  • Power handling capacity: 700 W
  • Sensitivity: 99.0 dB
  • Frequency range:40 – 2500 Hz
  • Effective piston diameter: 330 mm / 12.99 inch
  • Max. Excursion Before Damage: 40 mm / 1.57 inch
  • Minimum Impedance (ohm): 6.5 ohm
  • Voice Coil Diameter: 3.5 inch / 89 mm
  • Voice Coil Winding Material: Copper
  • Voice Coil Length: 19 mm / 0.75 inch
  • Number of layers: 2
  • Kind of layers: inside/outside
  • Top Plate Thickness: 10 mm / 0.39 inch
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: M-roll
  • Magnets: Ceramic
  • Dual-force air ventilation: Yes
  • Spider: Dual with silicon based damping control
• THIELE – SMALL PARAMETERS
  • Resonance frequency (Fs): 46 Hz
  • DC resistance (Re) (ohm): 5.40 ohm
  • Mechanical factor: 6.70 Qms
  • Electrical factor: 0.33 Qes
  • Total factor: 0.31 Qts
  • Bl factor (Bl) (T x m): 22.80 T x m
  • Effective moving mass (Mms): 106.0 g
  • Equivalent Cas air loaded (Vas): 114.0 liters
  • Effective piston area (Sd): 0.090 m2
  • Max. linear excursion (Xmax): 7 mm
  • Voice coil inductance @ 1kHz (Le1k): 0.90 mH
  • Half-space efficency (Eff): 3.20%
• MOUNTING INFORMATION
  • Overall diameter: 393 mm / 15.47 inches
  • Bolt circle diameter: 371-376 mm / 14.61-14.8 inch
  • Bolt hole diameter: 7 mm / 0.28 inch
  • Front mount baffle cut-out: 354 mm / 13.94 inch
  • Rear mount baffle cut-out: 354 mm / 13.94 inch
  • Volume occupied by the driver: 4.5 liters / 0.18 ft3
• SIZE
  • Height: 167 mm / 6.57 inches
  • Diameter: 393 mm / 15.47 inches
  • Weight: 8.2 kg / 18.08 lbs
• SHIPPING INFORMATION
  • Package Height: 209 mm / 8.23 inches
  • Package Width: 439 mm / 17.28 inches
  • Package Depth: 434 mm / 17.09 inches
  • Package Weight: 9.5 kg / 20.94 lbs
