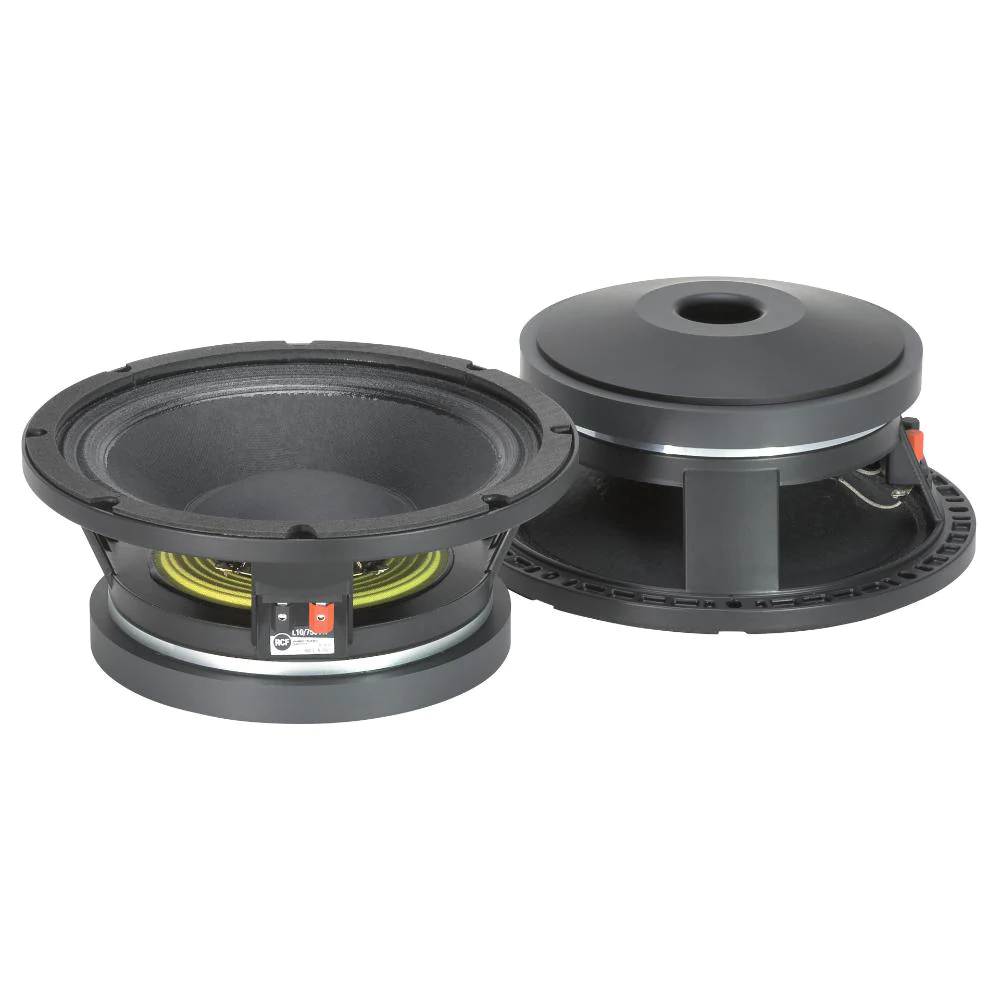

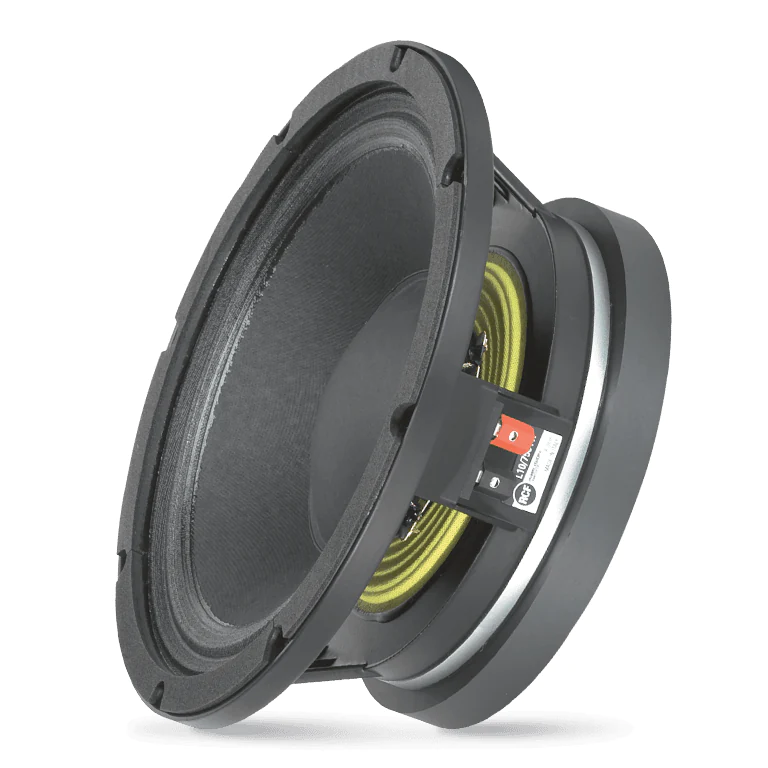

RCF L10-750 YK Speaker Mid Bass 10 Inch 8 Ohm 700 Watt

Description

The L10-750YK is a professional mid-bass woofer featuring very high output and dynamics. The mobile equipment, used a 3″ coil, fiberglass former and copper wire winding, has enable considerable improvement in transient peak response and has allowed good extension on mid-high frequencies. A specially designed M-roll surround guarantee a very low midrange distortion and perfect damping of the spurious resonances.

FEATURES

• 3-inch, fiberglass inside/outside copper voice coil
• 700W continuous program power handling
• 100 dB Sensitivity
• 70 Hz – 3 kHz Frequency range
• Shaped M-roll damped surround

SPECIFICATIONS

• GENERAL SPECIFICATIONS
  • Nominal Diameter: 10 inch / 254 mm
  • Rated Impedance: 8 ohm
  • Program Power (watt): 700 W
  • Power handling capacity: 350 W
  • Sensitivity: 100.0 dB
  • Frequency range: 70 – 3000 Hz
  • Effective piston diameter: 210 mm / 8.27 inch
  • Max. Excursion Before Damage: 40 mm / 1.57 inch
  • Minimum Impedance (ohm): 7.0 ohm
  • Voice Coil Diameter: 3.0 inch / 76 mm
  • Voice Coil Winding Material: Copper
  • Voice Coil Length: 9 mm / 0.35 inch
  • Number of layers: 2
  • Kind of layers: inside/outside
  • Top Plate Thickness: 9 mm / 0.35 inch
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: M-roll
  • Magnets: Ceramic
  • Spider: Single
• THIELE – SMALL PARAMETERS
  • Resonance frequency (Fs): 68 Hz
  • DC resistance (Re) (ohm): 5.10 ohm
  • Mechanical factor: 4.20 Qms
  • Electrical factor: 0.25 Qes
  • Total factor: 0.24 Qts
  • Bl factor (Bl) (T x m): 17.50 T x m
  • Effective moving mass (Mms): 36.0 g
  • Equivalent Cas air loaded (Vas): 26.0 liters
  • Effective piston area (Sd): 0.040 m2
  • Max. linear excursion (Xmax): 3 mm
  • Voice coil inductance @ 1kHz (Le1k): 0.50 mH
  • Half-space efficency (Eff): 3.15%
• MOUNTING INFORMATION
  • Overall diameter: 260 mm / 10.24 inches
  • Bolt circle diameter: 242-247 mm / 9.53-9.72 inch
  • Bolt hole diameter: 6 mm / 0.24 inch
  • Front mount baffle cut-out: 230 mm / 9.06 inch
  • Rear mount baffle cut-out: 229 mm / 9.02 inch
  • Volume occupied by the driver: 1.2 liters / 0.05 ft3
• STANDARD COMPLIANCE
  • Safety agency: CE compliant
• PHYSICAL SPECIFICATIONS
  • Color: Black
• SIZE
• • Height: 117 mm / 4.61 inches
  • Diameter: 260 mm / 10.24 inches
  • Weight: 7 kg / 15.43 lbs
• SHIPPING INFORMATION
  • Package Height: 185 mm / 7.28 inches
  • Package Width: 290 mm / 11.42 inches
  • Package Depth: 285 mm / 11.22 inches
  • Package Weight: 7.9 kg / 17.42 lbs
