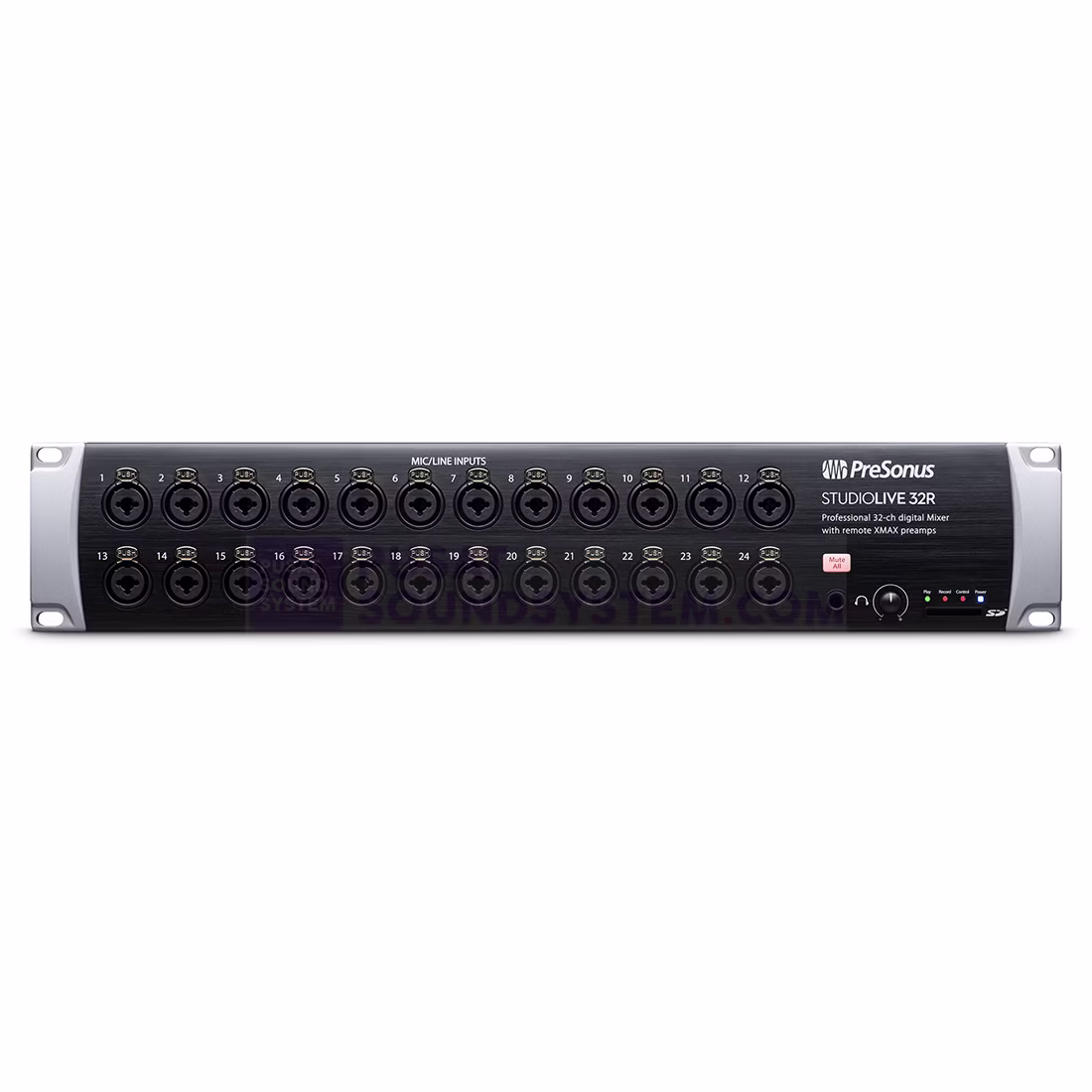

PreSonus StudioLive 32R Mixer Digital Wifi Wireless 32 Channel

Description

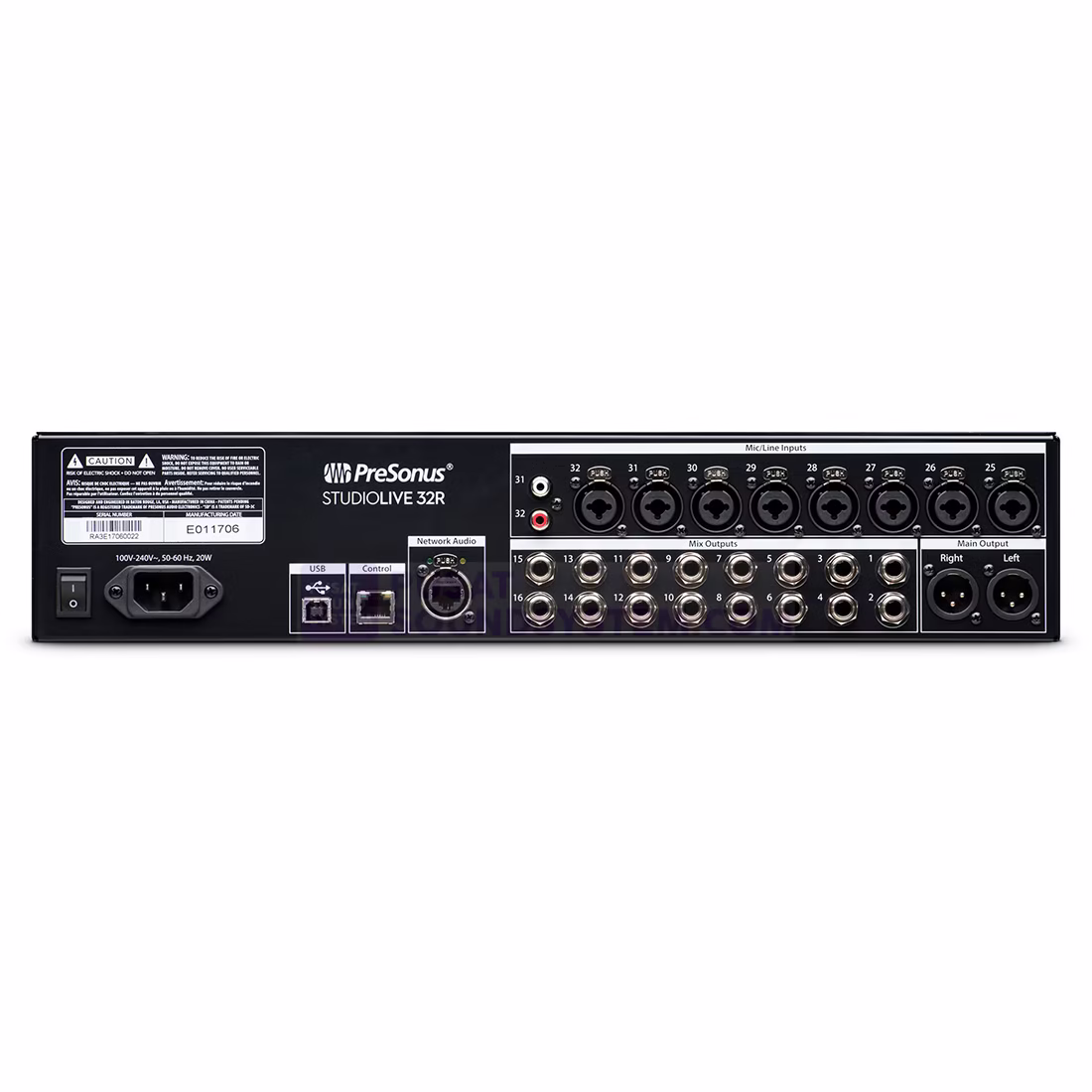

Local Inputs and Outputs

• 34 total inputs
  • 32 min/line channel inputs + 2 RCA inputs
• 16 ¼-inch TRS FlexMix outputs
• 2 XLR (L/R) Main outputs
• Stereo headphone output

Channels and Buses

• 32 input channels
• 2 stereo aux inputs (AVB or USB)
• 1 stereo digital return (SD Card, AVB, or USB)
• 26 buses:
  • 16 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
  • 4 dedicated subgroups
  • 4 internal effects sends
  • Stereo main bus
• 24 Filter DCAs for easily and flexibly controlling groups of channels

Networking Connections

• 1 Ethernet control network port
  • Dynamic, Self Assigned, and Manual IP address modes
• 1 Locking XLR Ethernet AVB audio network port

Recording

• Onboard stereo SD recorder
• 40×40 USB recording interface
• 55×55 AVB recording interface

Signal Processing

• Intuitive Fat Channel signal processing on every channel with:
  • A/B settings comparison
  • Highpass filter and polarity reverse
  • Gate/expander with sidechain
  • Compressor with sidechain
  • 4-band parametric EQ on inputs
  • 6-band parametric EQ on outputs
  • Limiter
  • Delay on every input
  • Delay on every output
  • Professionally programmed library of presets
• Vintage EQ and compressor models available on every input
  • Passive EQ
  • Vintage EQ
  • Tube compressor
  • FET compressor
• 8 31-band graphic EQs
• 4 internal effects buses: combination of reverbs and delays with modern and vintage options
• Built-in real-time analyzer

Scenes and Presets

• Create, save, and edit up to 100 scenes
• Scene management with:
  • Scene Safe—prevents a scene change from affecting designated “safe” channels
• Create, save, and edit channel settings and copy/paste between channels
• Advanced channel preset options can save and recall:
  • Channel type and name
  • Input settings (preamp, +48V phantom power, polarity, pan)
  • Fat Channel A & B settings
  • Bus assignments
  • Aux and effects send levels and pan
  • Select button color
• 8 Quick Scenes
• 8 Mute groups

Digital

• Studio-quality converters with 115 dB dynamic range
• 48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)

Actively Integrated Software

• UC Surface touch control software for Mac^®, Windows^®, iPad^®, and Android ^™
• Studio One^® Artist digital audio workstation software for Mac and Windows
• Capture™ multitrack recording software for Mac and Windows
• QMix^®-UC aux-control software for iOS^® and Android™ available free from Apple App Store and Google Play
