NUX B-7PSM
Wireless In Ear monitor
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description

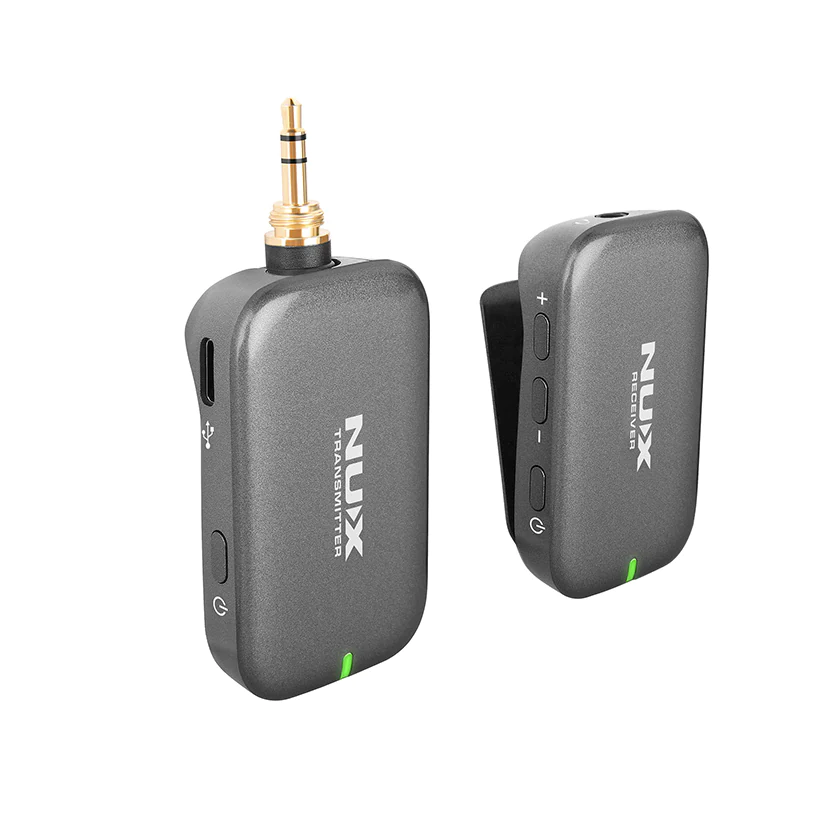

It quickly finds a clean wireless channel and automatically assigns it. The B-7PSM offers a super low latency of less than 5.5ms and has an operation range of 100 feet (30m) when unobstructed between the Receiver (RX) and Transmitter (TX). (The operation range is around 32 feet (10m) when obstructed). It’s a super light-weight wireless, mini-compact system designed to clip on & go. The TX features a 1/8” TRS plug (you can use the included adaptor to convert to 1/4”), broadcaster-grade audio via 5.8GHz digital transmission to the compact RX. The RX’s clip design can easily fit to your shirt, belt, or guitar strap. And, with our newest automatic frequency hopping technology, B-7PSM is reliable and stable while you perform on stage.
Note: When coupling multiple B-7PSM systems, please turn on 1 set first, pair it, and then turn on the other sets sequentially.
Note: For best results the TX should be at least 1 meter above the ground, 2 meters away from Wi-Fi routers and wall or metal surfaces to minimize reflections.
Spesifikasi
- Output Volume Adjustment
- -64dB~0dB (0.5dB step)
- Operating Frequency Band
- 5.8 GHz
- Operation Length
- < 100 feet (30m) outdoor unobstructed, < 33 feet (10m) outdoor with obstructions
- Sampling Rate
- 24bit / 40 kHz
- Frequency Response
- 20~19kHz
- Latency
- < 5.5ms
- Dynamic Range
- 92 dB
- THD+ Noise
- <0.6%@1kHz
- Built-in Battery Capacity (TX & RX)
- 450mAh / 3.7V
- Battery Running Time
- > 4 hours
- Battery Charging Time
- around 1.5 hours
- Power Consumption
- TX <90mA，RX < 45mA
- TX Impedance
- 3.5kΩ
- Maximum Input Level
- 7.6Vpp (8.6dBV or 2.7Vrms)
- RX Suggestion Phone Impedance
- 16~32Ω
- Maximum Output Power
- 57mWrms (RLOAD =16Ω, 1 kHz).
