NUX B-10 Vlog

Description

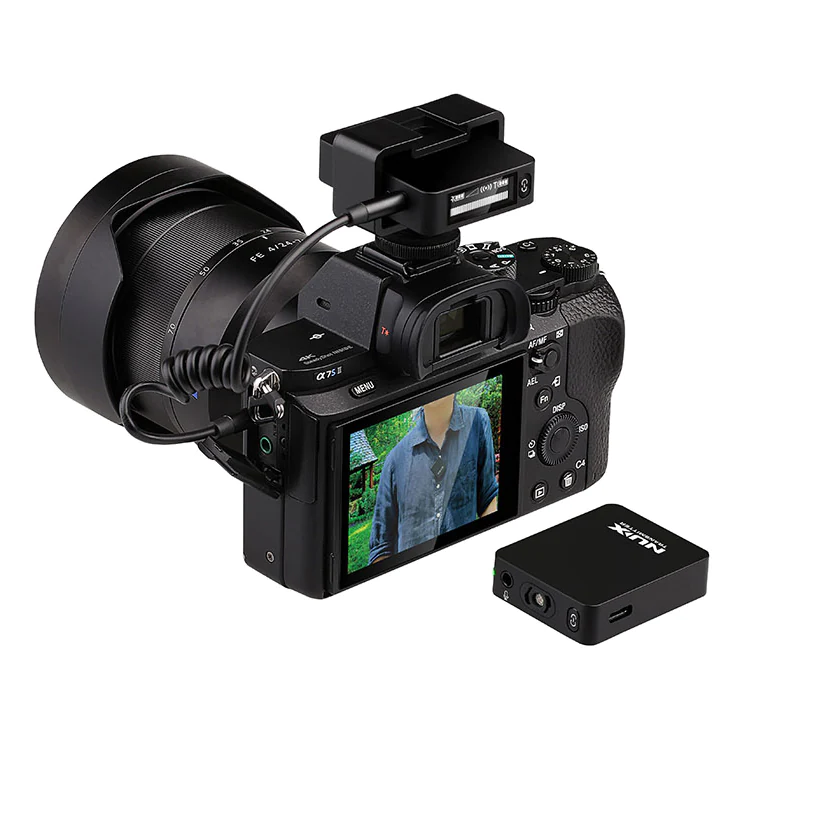

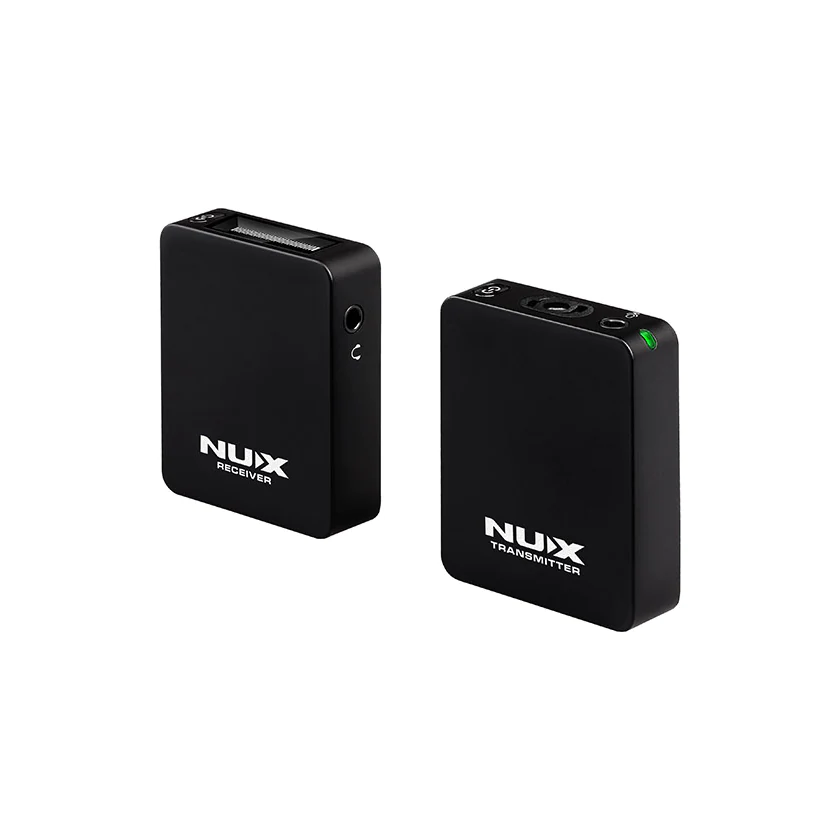

NUX B-10 Vlog wireless Vlog system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 44.1 khz high-quality audio transmitting. The signal atency is super low and les than 5 ms. The operation range is around 30 meters (90-feet). I’s a super light-weight wireless, mini-compact designed clip & go. The TX features a builtin omnidirectional electret microphone sending clear, broadcaster-grade audio via 2.4GHz digital transmission to the on- camera RX. The additional hot-shoe mount can stack 2 RXS on the camera, 50 you can use 2 B-10 Vlog systems for
interview. (We offer a Y-cable for 2 vs 2 application.)

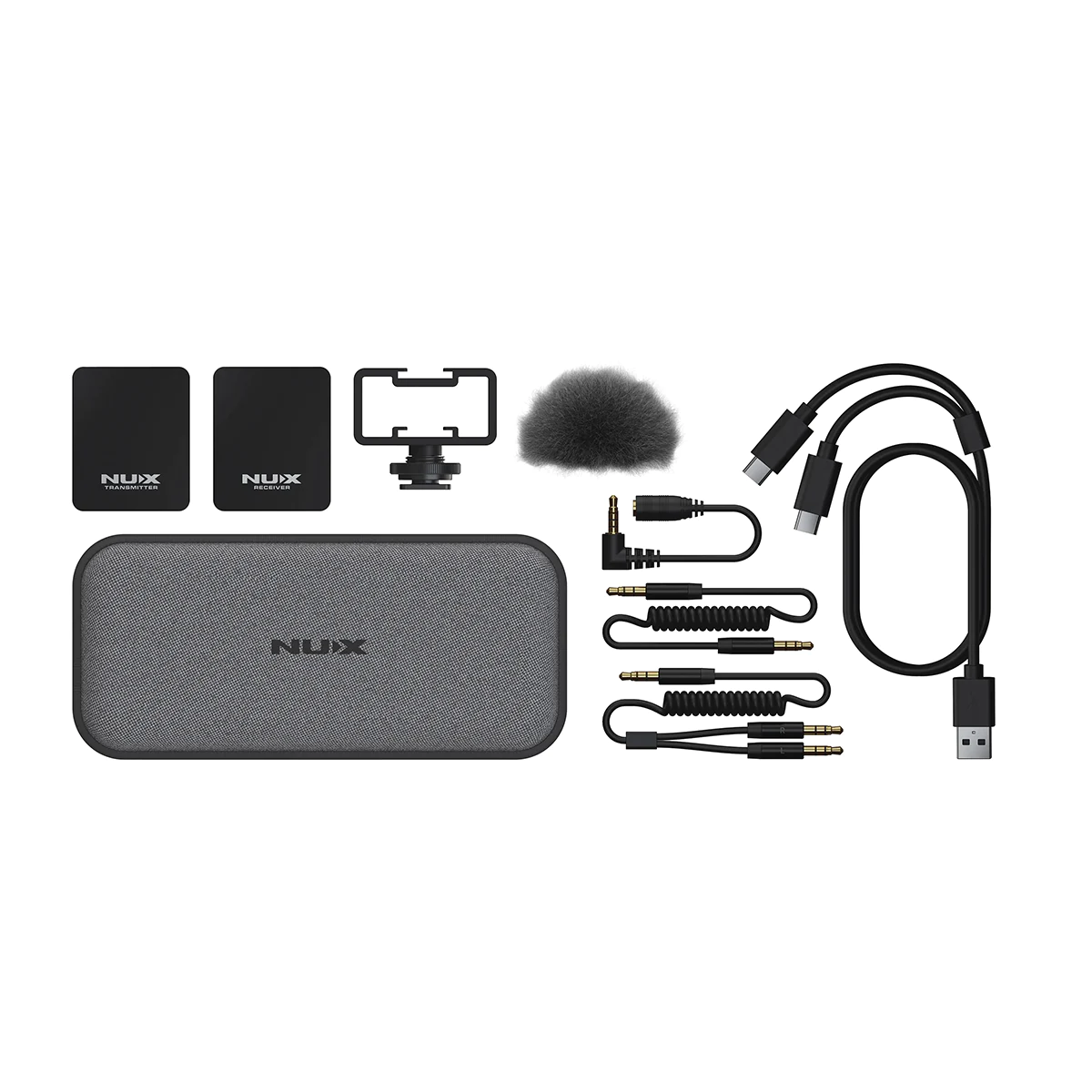

Included Accessories

1 x fur windshield, 1 x USB-C Y-cable, 1 x TRS(female) to TRRS(male) adaptor cable for Mobile Phone(CTIA), 1 x 3.5mm TRS cable for RX to Camera, 1x 3.5mm TRS Y-cable for 2 RXs to Camera, 1 x Cold-shoe RX mount

Fitur

• Operating Frequency Band
  • 2.4 GHz
• Operation Length
  • < 100 feet (30m)
• Sampling Rate
  • 24bit / 44.1 kHz
• Frequency Response
  • 50Hz-20kHz
• Latency
  • < 5ms
• Dynamic Range
  • 96dB
• THD+ Noise
  • <0.2%@1 kHz
• Built-in Battery Capacity (TX & RX)
  • 400mAh/3.7V
• Maximum Input Level(3.5mm TRS)
  • 100mVrms(-20dBV)
• Battery Running Time
  • 4 hours for TX，6 hours for RX
• Microphone on TX
  • Omnidirectional Electret Condenser Microphone
• Maximum Sound Pressure Level
  • 110dB SPL
• Dimensions(TX/RX)
  • 51 mm(L) × 42mm(W) x 13mm(H)
• Weight(TX/RX)
  • each 28g
• Included Accessories 1
  • 1 x fur windshield, 1 x USB-C Y-cable, 1 x TRS(female) to TRRS(male) adaptor cable for Mobile Phone(CTIA)
• Included Accessories 2
  • 1 x 3.5mm TRS cable for RX to Camera, 1x 3.5mm TRS Y-cable for 2 RXs to Camera, 1 x Cold-shoe RX mount

Spesifikasi

• Operating Frequency Band: 2.4 GHz
• Operation Length: < 100 feet (30m)
• Sampling Rate: 24bit/ 44.1 kHz
• Frequency response: 50Hz-20kHz
• latency: < 5ms
• Dynamic Range: 96dB
• TH+ Noise: <0.2%@1kHz
• Built-in Battery Capacity (<& RX): 400mAH3.7V
• Maximum Input Level(3.5mm TRS): 100mVrms(-20dBV)
• Battery Running Time: 4 hours
• Microphone on TX: Omnidirectional Electret Condenser Microphone
• Maximum Sound Pressure Level: 110dB SPL
• Dimensions
• TX/RX: 51mm(L) x 42mm(W) x 13mm(H)
• Weight TX/RX: each 28g
