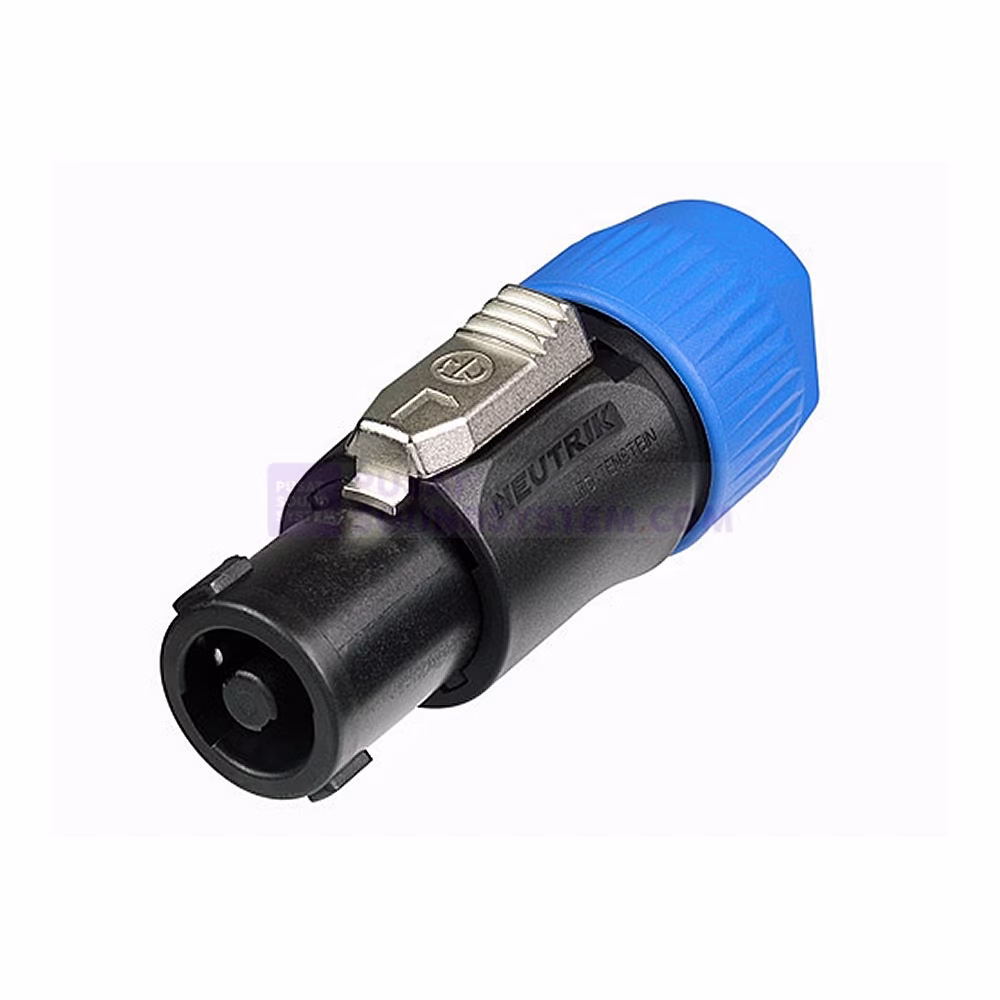

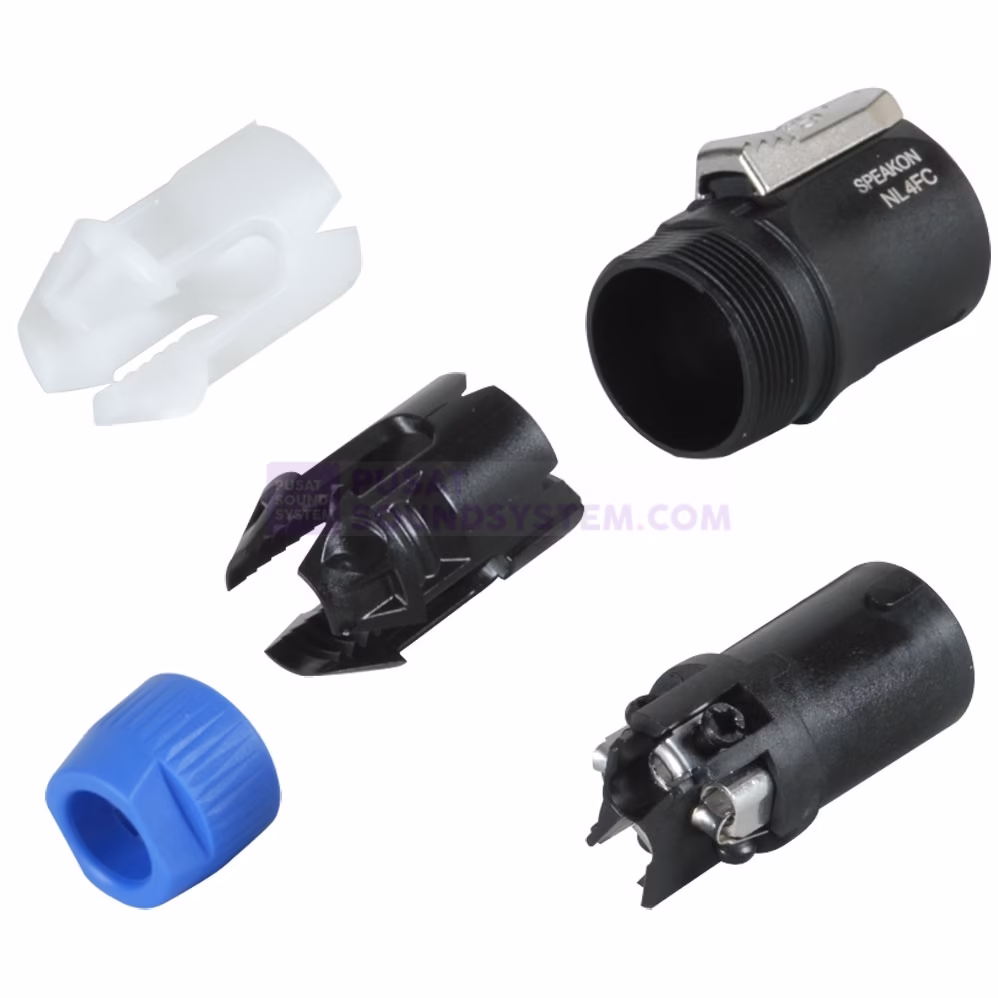

Neutrik NL4FC Jack Speakon

4 pole cable connector, chuck type strain relief

Category: Tag:
Cek Harga
Share atau Bagikan :

Description

  • Up to 30 A rms current rating
  • Reliable and robust, easy and fast to assemble
  • Cable strain relief for 6 – 15 mm cable O.D.
  • Accurate and dependable twist lock latching system “Quick Lock”
  • Glass reinforced material for insert and housing, long-lasting and dependable
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • Branded with unique hologram – guarantees genuine and authentic Neutrik product

Spesifikasi

Contact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V (Insulation)
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 6 – 15 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 4 mm²
Wiresize 12 AWG
Wiring screw type terminals or soldering
Locking device Quick Lock (latch)
Material
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Insert PBTP 20 % GR
Locking element Zinc diecast (ZnAl4Cu1)
Shell Polyamide (PA 6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
