Neutrik NC5MXX Jack Konektor Canon XLR Male Kaki 5 / 5 Pin

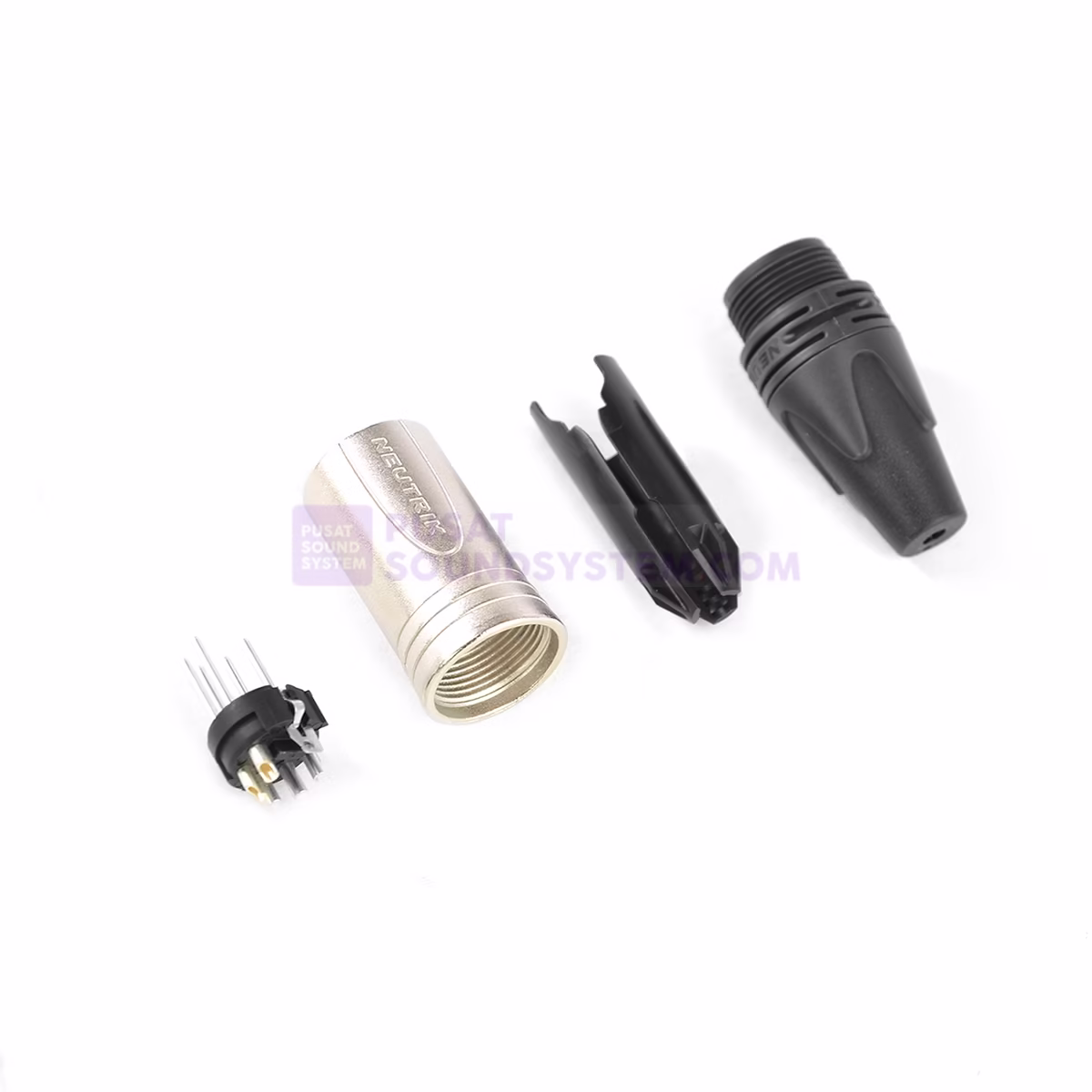

5 pole male cable connector with Nickel housing and silver contacts.
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Features & Benefits
- Male connector with improved locking recess without “window”, more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design – valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
- Branded with unique hologram – guarantees genuine and authentic Neutrik product
Spesifikasi
| Product | |
| Connection Type | XLR |
| Gender | Male |
| Electrical | |
| Capacitance | ≤ 7 pF |
| Contact Resistance | ≤3 MOhms (inner) |
| Dielectric Strength | 1,5 kVdc |
| Insulation Resistance | >10 GOhms (initial) |
| Rated Current Per Contact | 7.5 A |
| Rated Voltage | 50 V |
| Mechanical | |
| Cable O.D. | 3.5 to 8 mm |
| Insertion Force | ≤20 N |
| Withdrawal Force | ≤20 N |
| Lifetime | >1000 mating cycles |
| Wire Size | Maximum 1.0 mm² Maximum 18 AWG |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Construction | |
| Boot | Polyurethane |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Locking Mechanism | Zinc die-cast (ZnAl4Cu1) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30% GR) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Black chromium |
| Strain Relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Dimensions | Diameter: 0.75″ (19 mm) Length: 2.68 to 2.76″ (68.1 to 70.1 mm) |
Packaging Info
| Package Weight | 0.07 lb |
| Box Dimensions (LxWxH) | 3.6 x 2.45 x 0.7″ |
