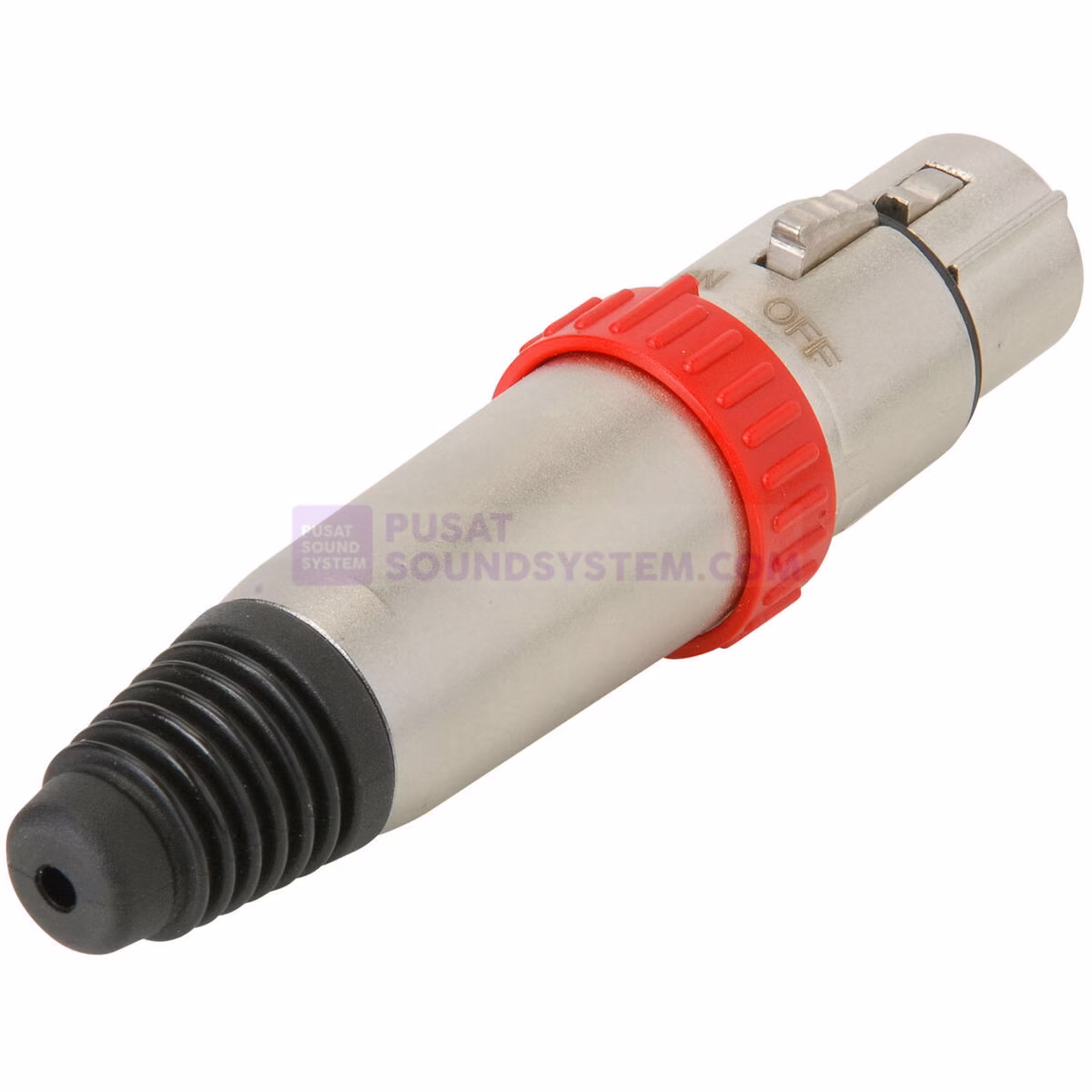

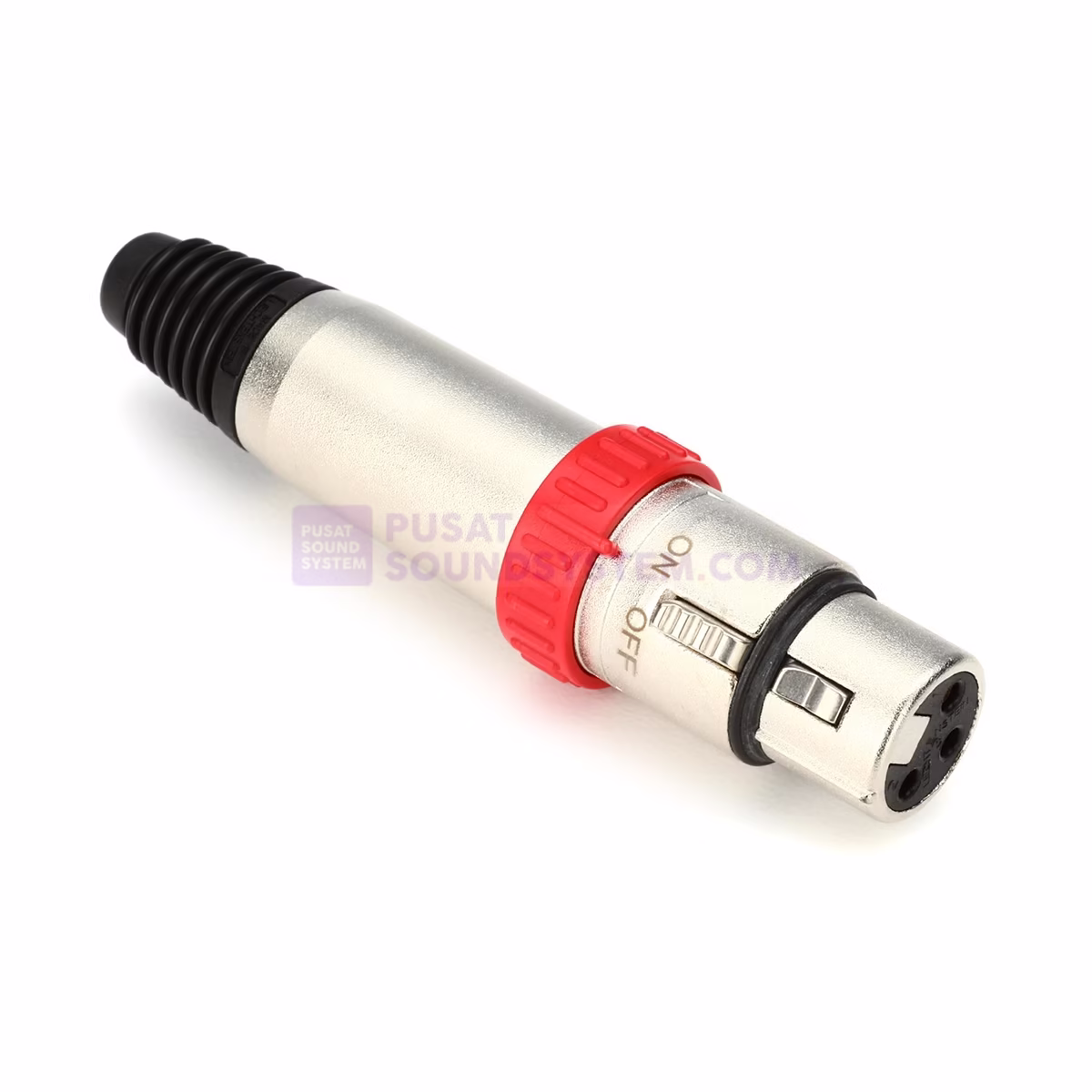

Neutrik NC3FXS Jack Konektor Canon XLR Female Kaki 3 / 3 Pin
3-pin Female XLR Connector with On-Off Switch
Description
Features & Benefits
- Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3
- For use on a microphone without switch
- Rugged zinc diecast shell, long lasting and durable
- Rugged metal boot
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
Spesifikasi
| Connection Type | XLR female |
| Capacitance | Between Contacts: ≤4 pF |
| Contact Resistance | ≤3 mΩ (inner) |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | >2 GΩ (initial) |
| Rated Current Per Contact | 16 A |
| Rated Voltage | 50 V |
| Cable O.D. | 0.14 to 0.28″ (3.5 to 7 mm) |
| Insertion Force | ≤20 N |
| Withdrawal Force | ≤20 N |
| Lifetime | >1,000 mating cycles |
| Wire Size | 2.5 mm2, 14 AWG, maximum |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Boot | Polyurethane |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6.6 30% GR) |
| Locking Element | St3K32 (latch) Ck 67 (spring) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Nickel |
| Strain Relief | Polyacetal (POM) |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Dimensions | Length: 3.46 to 3.54″ (88 to 90 mm) Diameter: 0.75″ (19 mm) |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 4 x 4 x 0.6″ |
