Neumann TLM 49 Large-diaphragm Condenser Microphone

Description

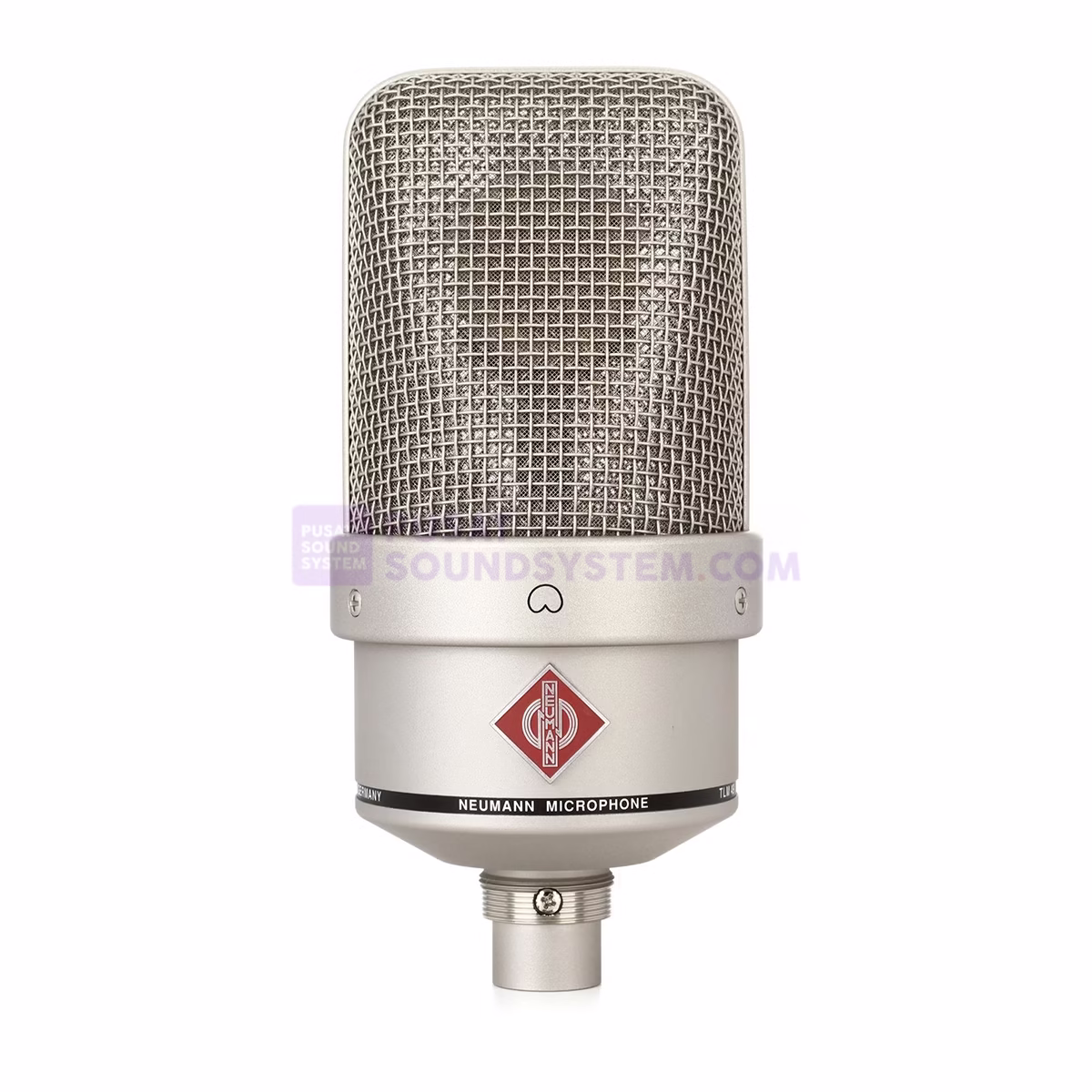

The TLM 49 is a large-diaphragm studio microphone with a cardioid directional characteristic and a warm sound which is especially optimized for vocal performance. It is supplied as a set, with an elastic suspension. The TLM 49 design is inspired by that of the legendary M 49 and M 50 microphones of the 1950s. Naturally the TLM 49 has the typical Neumann fine matte nickel finish. The “sound design” is also oriented toward that of the M 49 and the U 47. By combining its retro look with proven Neumann transformerless circuit technology, this microphone ensures low self-noise and the use of high gain levels.

Ideal mic for vocal applications

During the development phase, the TLM 49’s sound was adjusted in extensive practical tests, so as to make it ideal particularly for vocal and speech recording. However, in addition, it is also suitable for instrumental applications in professional production studios and demanding home recordings.

Linear frequency response with slight boost above 2kHz

The TLM 49 uses the famous K 47 capsule, which was also used in the M 49 and the U 47. The capsule has a linear frequency response up to the upper midrange. Above 2kHz there is a gentle presence boost up to 3dB. The large-diaphragm capsule of the TLM 49 provides a cardioid directional characteristic with a tendency toward supercardioid, due to the special capsule construction. Following the example of the M 49, high frequencies are more directional. The capsule diameter is 34 mm.

Transformerless design for low noise

The letters TLM stand for “transformerless microphone”. With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal. Noise signals which affect the balanced modulation line are therefore effectively suppressed. The TLM 49 can operate at sound pressure levels of up to 114dB without distortion, and provides a dynamic range of 102dB (A-weighted).

Acoustically neutral headgrille and elastic inner mountings

The TLM 49 capsule is enclosed by a large microphone headgrille, which is acoustically very open and is hence neutral with regard to the sound. The entire interior structure is mounted elastically, to prevent the transmission of structure-borne noise. In addition, the TLM 49 capsule is mounted with a rubber shock mount.

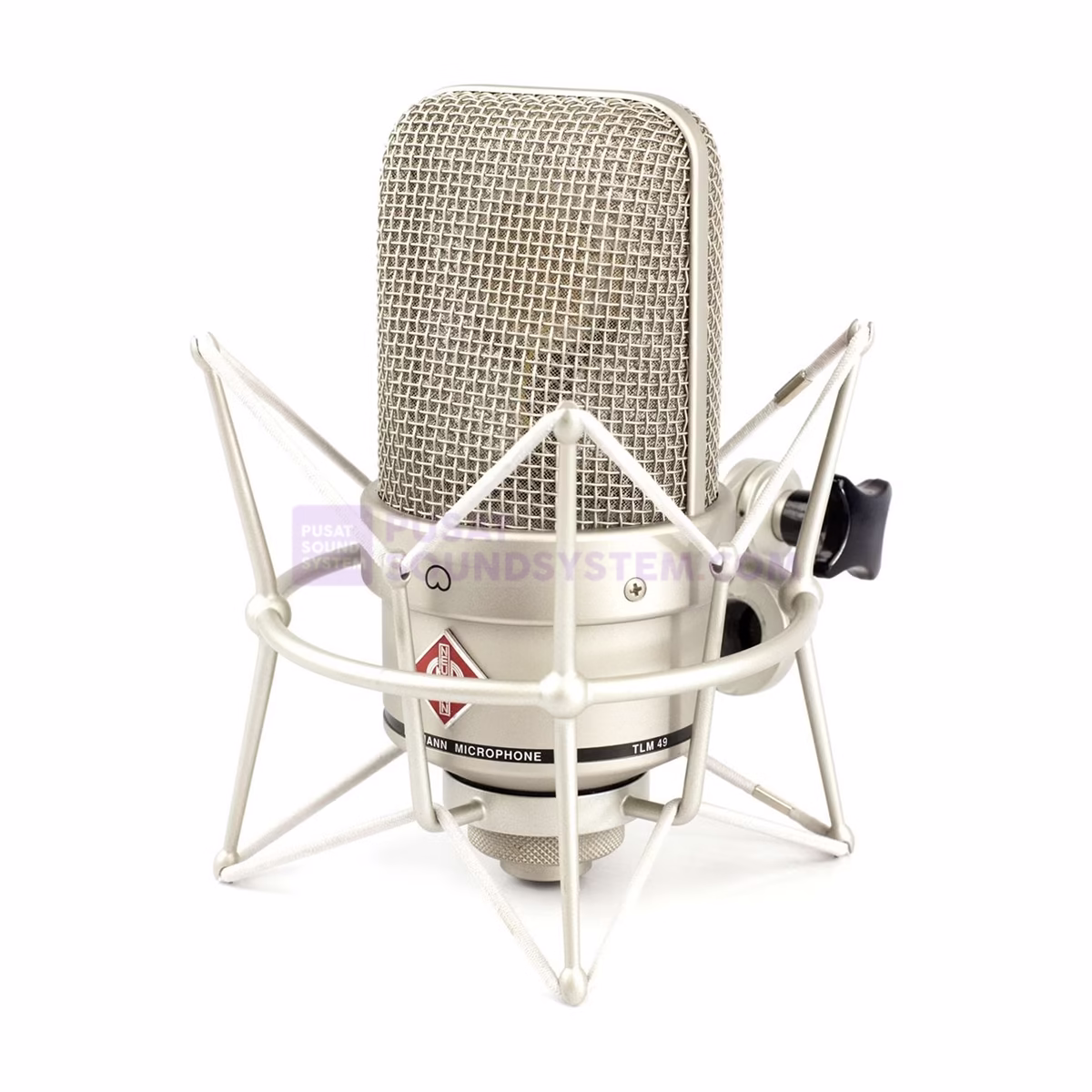

Includes EA 3 shock mount

Due to the wide frequency response, the TLM 49 can also transmit extremely low-frequency signals without coloration. Of course this means that the microphone is also sensitive to noise signals such as vibration noise and wind noise in this frequency range. The TLM 49 is therefore supplied with the elastic suspension EA 3, which effectively protects the microphone from structure-borne noise. If the microphone is addressed at extremely close range, pop screen PS 15 or PS 20 a can be used in front of the microphone to provide protection against plosive sounds.

Neumann TLM 49 Large-diaphragm Condenser Microphone Features:

• Transformerless large-diaphragm cardioid condenser mic
• 34mm capsule diameter
• Polar pattern has a tendency toward supercardioid for excellent rejection
• K 47 capsule is a proven performer
• Gentle presence boost above 2kHz captures “air”
• Excellent common mode rejection
• Can operate at SPL up to 114dB
• Dynamic range 102dB (A-weighted)
• Interior structure mounted elastically
• Rubber shock mount for capsule
• Includes EA 3 shock mount
• Requires +48V phantom power

APPLICATIONS

The TLM 49 has a fixed cardioid pattern and is designed mainly as a microphone for vocalists, but its clear bass and superb midrange with a gentle presence boost above 2 kHz will produce excellent results with various instruments, too, such as acoustic guitar and upright bass.

• Same capsule as legendary Neumann U 47 and M 49 microphones
• Cardioid pattern
• Classic sound for silky vocals
• Large, acoustically open headgrille
• Transformerless solid state circuit with tube sound characteristics
• Very low self-noise
