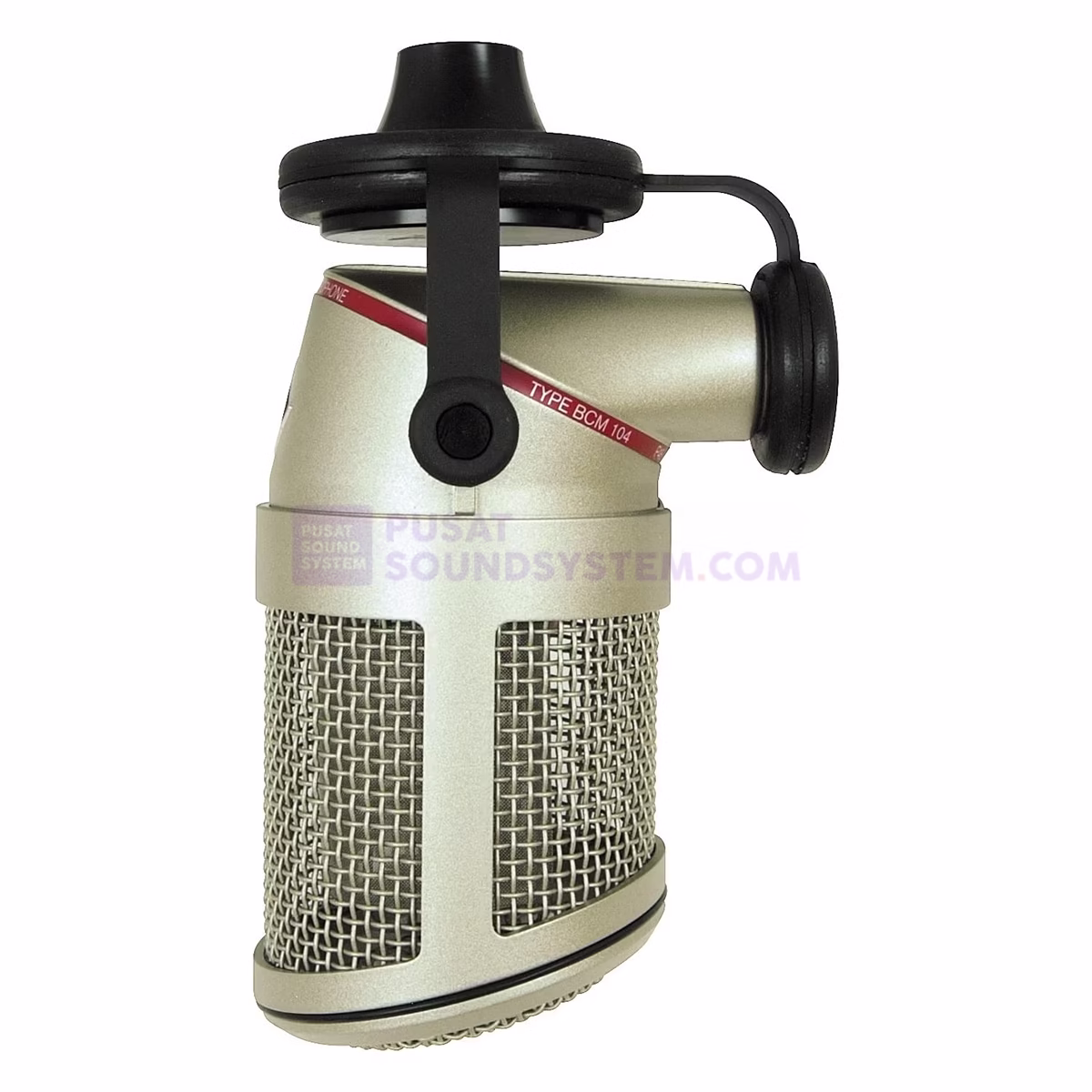

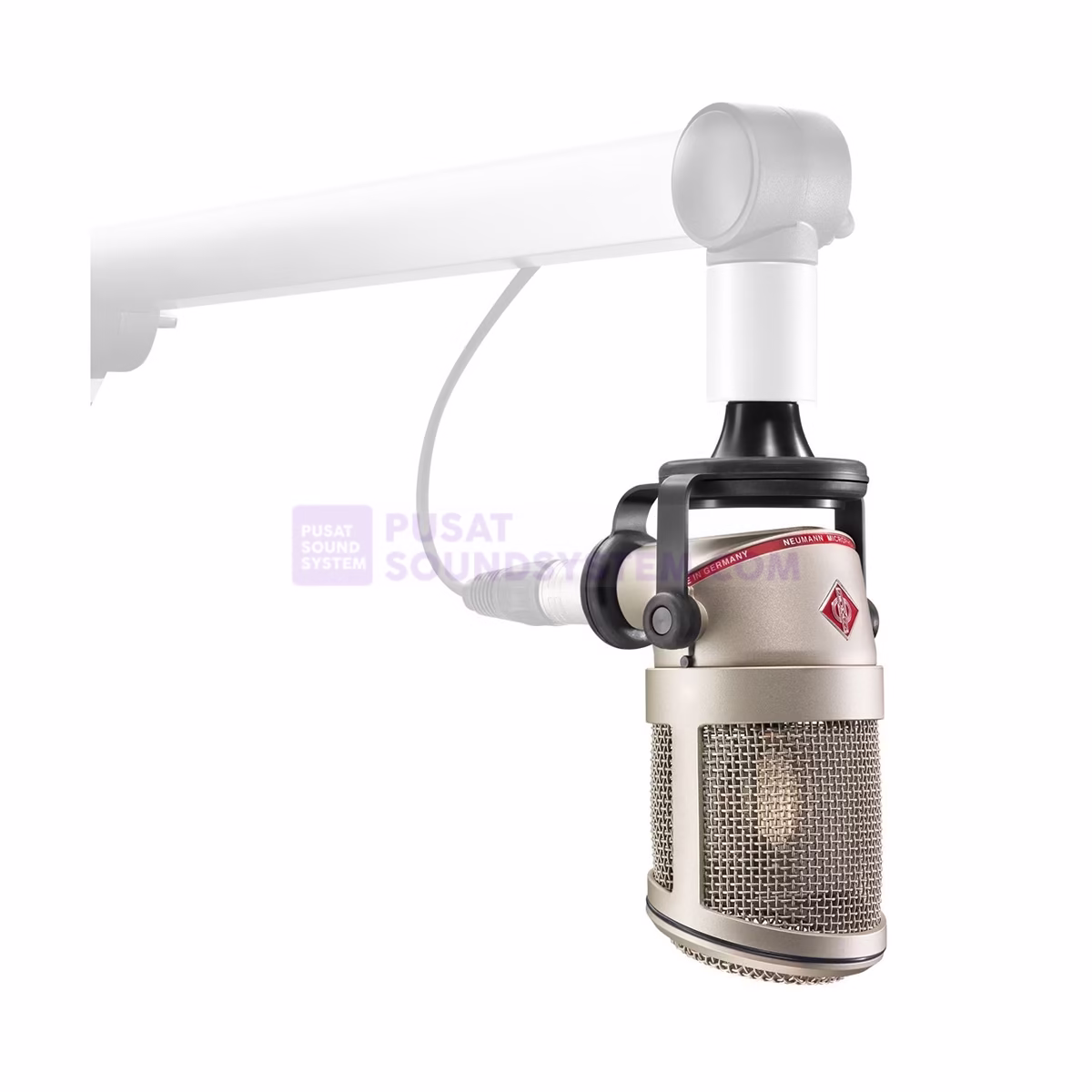

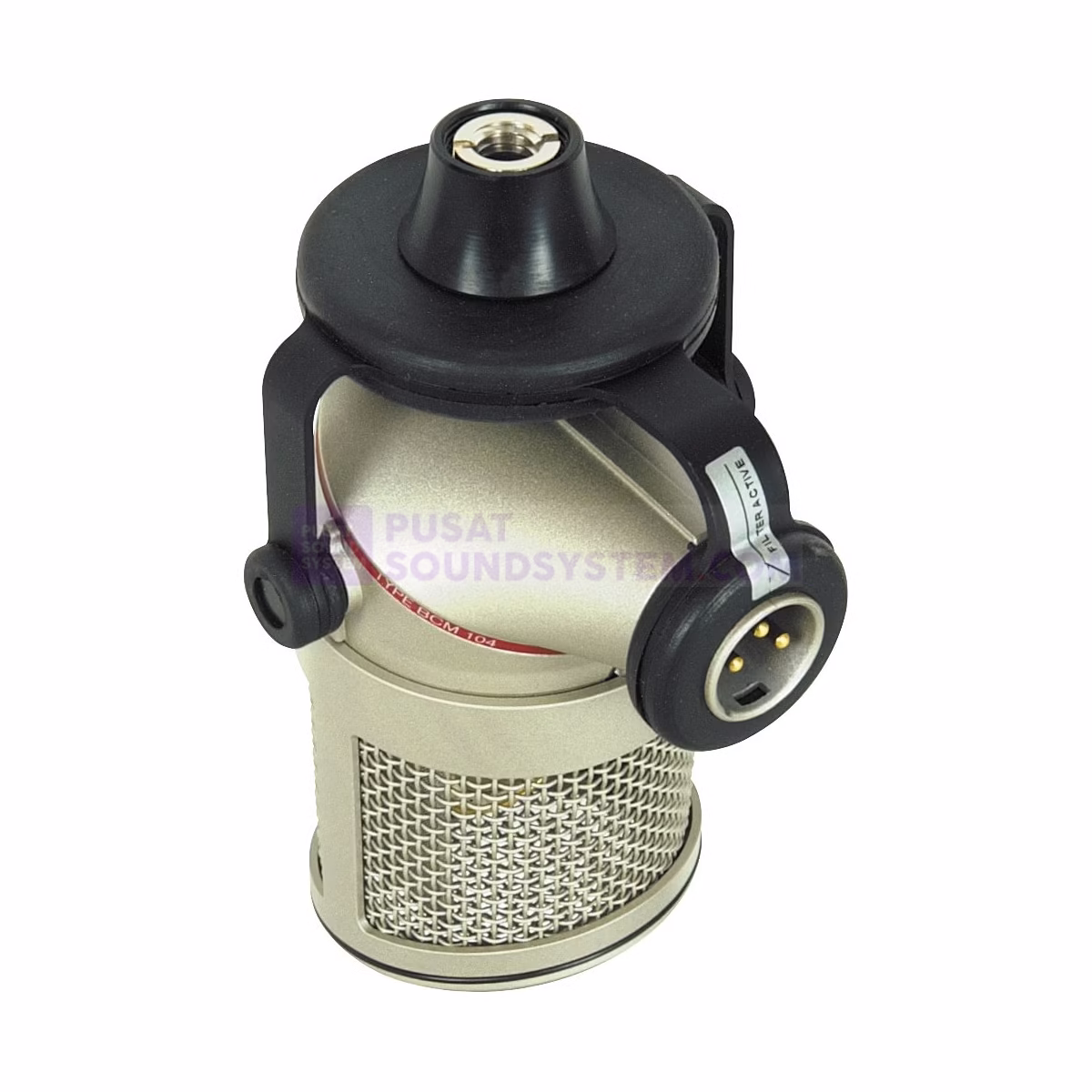

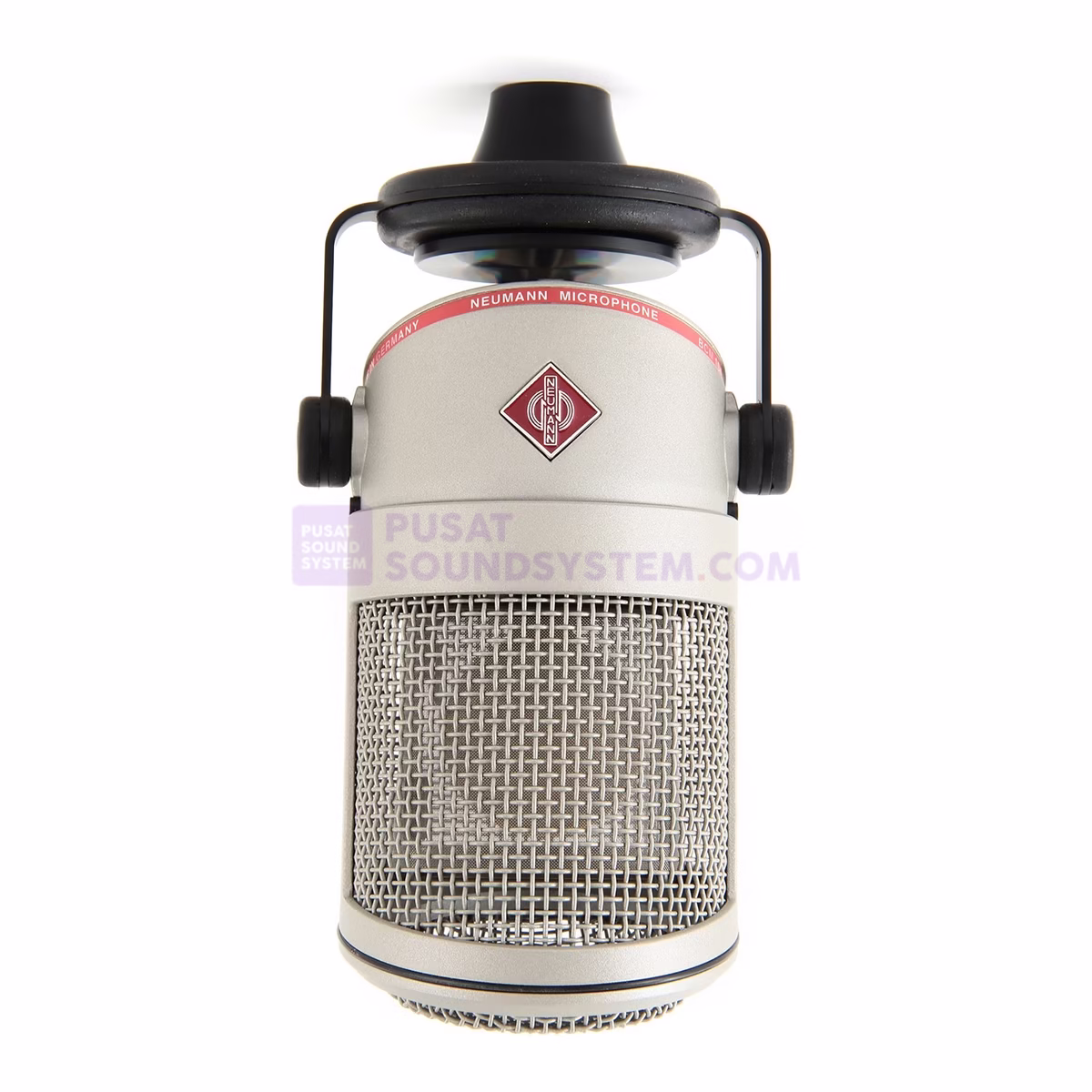

NEUMANN BCM 104 Condenser Broadcast Microphone

Large-diaphragm Cardioid Condenser Broadcast Microphone

Chat Penjual
Category: Tags: , Brand:
Neumann
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The BCM 104 has a fixed cardioid pattern with excellent rejection of rearward sound. Its frequency response is very linear with a gentle presence boost around 4 kHz and a slight treble lift above 10 kHz for enhanced speech intelligibility. Due to its outstanding transient response, the BCM 104 captures each nuance of the human voice with stunning detail. Because of its wide frequency response, the BCM 104 can be used for much more than speech applications, e.g. sung vocals and a wide variety of instruments.

Features

  • Functionally optimized design
  • Specially designed large diaphragm condenser capsule
  • Tight cardioid pattern
  • Integrated pop screen and shock mount
  • Headgrille twists off easily for quick cleaning
  • Internal pad and low cut switches



Spesifikasi

Acoustical operating principle Pressure gradient transducer
Directional Pattern Cardioid
Frequency Range 20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm 22 mV/Pa = –33.1 dBV ± 1 dB
Sensitivity at –14 dB attenuation 4.4 mV/Pa
Rated Impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR 1 18 dB
Equivalent noise level, A-weighted 2 7 dB-A
Maximum SPL for THD 0.5% 3 138 dB
Maximum SPL for THD 0.5% with preattenuation 4 152 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 5 76 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 6 87 dB
Maximum output voltage 10 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Current consumption (P48, IEC 61938) 3.2 mA
Matching connector XLR 3 F
Weight 500 g
Diameter 64 mm
Length 85 mm
Height 110 mm (without suspension)
