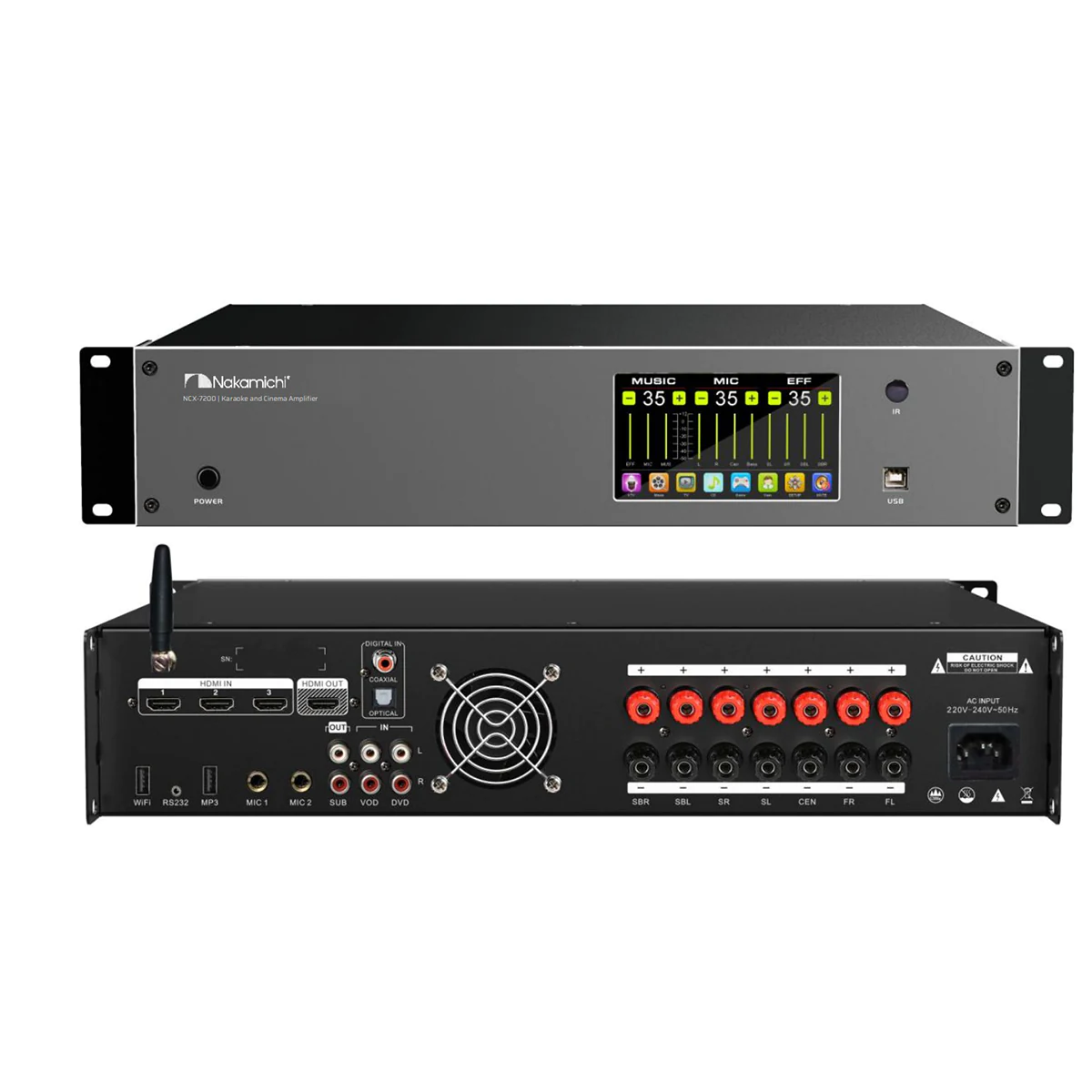

Nakamichi NCX7200 Amplifier karaoke & home theater 7.1 ch

Description

Nakamichi NCX 7200 Karaoke dan Home Theater amplifier, dapat digunakan pakai karaoke dan home theater. Terdapat 7 channel speaker dan 1 subwoofer

Spesifikasi

• 5″ IPS Capacitive Touch Screen (854 x 480 pixel)
• 3 in 1 out HDMI 4K HD decoding interface, support optical fiber, coaxial input
• DOLBY，DTS-HD DTS 7.1 cinema decoding function
• Support Bluetooth / MP3 playing function
• 2 MIC inputs and 2 SUB outputs
• Music and MIC input have high and low pass, 16 independent parameter equalization, overhead filtering, low frame filtering and other functions
• Main output has five functions of PEQ, X-over input selection and mixing ratio, polarity, delay, voltage limit and gain
• echo and reverberation have 3 – band PEQ, high – pass filtering and low – pass filtering
• Subwoofer, center and surround are equipped with 5 -band PEQ, and the music, microphone, reverberation and echo ratio entering each channel can be independently controlled
• Professional Karaoke effect，ADI DSP audio processing chip, 450MHz main frequency, 32-bit floating
  point calculation, 24bit AD/DA
• The machine can be operated by connecting PC software via USB
• Support WIFI debugging, RS232 central control interface and infrared control
• Support Apple and Android APP controlling through Wi-Fi
• 7-channel 200W, with 2-channel SUB output interface
• 10-group system memory storage functions
• 2 level panel lock, maximum volume limit and set online password specially
• All functions are switched by infrared with one key
• Product standard: host, Wi-Fi debugging module, remote control, manual, power line

Output channel

• Main output
  • (left/right) / Center / Subwoofer / Surround / (left/right) /
    Rear Surround (left/right)
• Output Power
  • 8Ω @ 200W / single channel ±10%
  • 4Ω @ 350W / single channel ±10%
• S/NR > 85dB
• THD < 0.3%
• Sensitivity 0.5V / DVD 0.3V/VOD
• Input Impedance > 7.5KΩ（AC impedance）
• Damping Factor > 70
• Frequency 20Hz-20KHz(1.5dB)
• Crosstalk of channels > 60dB
