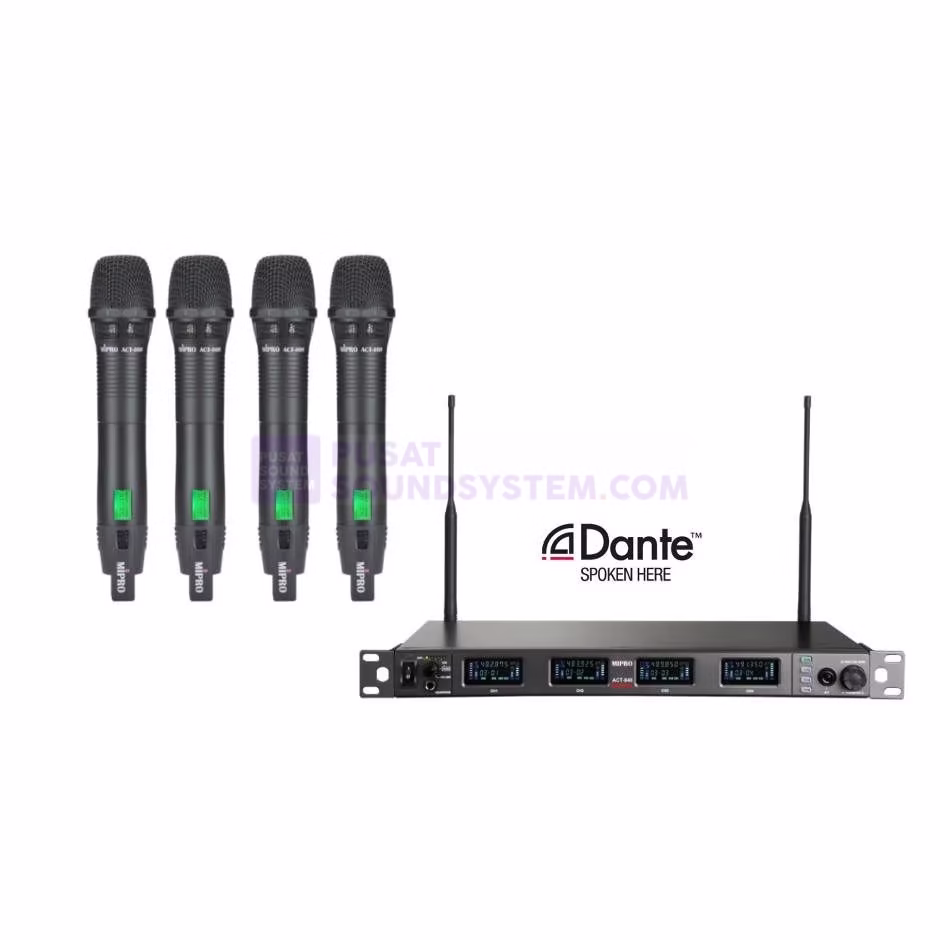

Mipro ACT-848/ACT-80H Mic Vokal Wireless Handheld 4 Channel

Description

The MIPRO ACT-848 Dante is a four channel wideband digital wireless receiver. An expanded 64MHz bandwidth ensures optimal flexibility, allowing more interference-free compatible channels to select from. The ACT-848 Dante features full-color Vacuum Florescent Display for clear viewing and one touch ACTT setup. A single rotary control easily controls all system functions. MIPRO’s ACT systems are built to handle tough conditions, delivering superb RF reliability and transparent audio performance in a wide variety of professional venues and applications. This unit comes with 4 MiPro MP-80 3-in-1 dual slot Transmitter Charging Stations.

Each receiver has the same size of EIA standard 1U metal case as other series for excellent heat dissipation and RF shielding, and a newly designed VFD screen, headphone monitor jack, buttons and a rotary control knob on the front panel, and AES/EBU digital output and Dante interface on the rear panel. Both receivers also have the same operating method and display mode as all other series models.
The RF receiving circuit is upgraded to 72 MHz wideband design, which is the same as that of the ACT-7 Series, and greatly increased stable receiving range of signal dropout-free and interference-free compatible channels.

MIPRO’s digital ACT-8 Series is now available with Dante interface. Dante is the most popular Ethernet-based digital audio transmission interface in the audio industry. Digital transmission ensures less environmental interference and less signal attenuation due to distance where maximum transmitting distance of 100 meters under normal speed of 100 Mb/s. Through packet and TDM technology, a Dante signal network cable can now transmit multiple channels of audio signal. In addition, with a Dante Controller, audio stream routing and monitoring is now an easy task.

• 1U metal chassis, equipped with a new VFD screen, monitor headphone jack, a rotary control knob and buttons on the control panel, also, a new AES/EBU digital output and optional Dante or AVB interface on the rear panel. Operation and display mode is consistent with other series.
• Upgrades the bandwidth to 72 MHz new circuit design for greatly improving the receiving range and increasing interference-free compatible channels.
• Digital diversity receiving ensures full-range sound quality will not worsen by distance.
• Proprietary 256-bit encryption prevents unauthorized listening.
• MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
• There are 7 preset groups with a total of 224 pre-saved channels. Group 1 & 2 each allows 16 channels of interference-free operation without any restriction. Group 3 ~ 6 each allows 48 channels of interference-free operation with restriction applied. Group 7 user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
• Each channel has separate AF signal output and presets the output level equal to the sensitivity of the microphone capsule. Switchable three levels ensure the microphone to operate within proper sensitivity and dynamic range, free from distortion.
• The proprietary DSP audio processor and A/D converter make the sound quality almost the same as the wired system.
• The antenna TNC female connectors provide bias for the MIPRO antenna systems to increase the receiving range and improve the signal stability.
• Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring of up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
• External 100~240V AC switching power supply.
• Designed and made in Taiwan ensures high quality and value.

ACT-80HC Rechargeable Wideband Digital Handheld Transmitter

• Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
• Standard champagne-color housing. Optional custom-made colors are available.
• Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
• The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
• Patented capsule suspension design virtually eliminates vibration and handling noises.
• Backlit LCD displays all operational parameter information.
• Three selectable gain settings: 0 dB (same as microphone sensitivity), +3 dB, +6 dB.
• Three selectable mute settings: Auto, Manual & Disabled. “Auto” mute activates automatically when handheld transmitter points down towards the ground.
• The bottom housing with built-in high-efficiency antenna features power switch, mute and setup buttons for programmable gain, limiter, low-cut and RF output power.
• Patented end-cap cover with color-coded channel identification clips onto the mic and can be reversed to allow shielding of power on/off or mute switches during performance. Detach the end-cap cover for parameters set-up.
