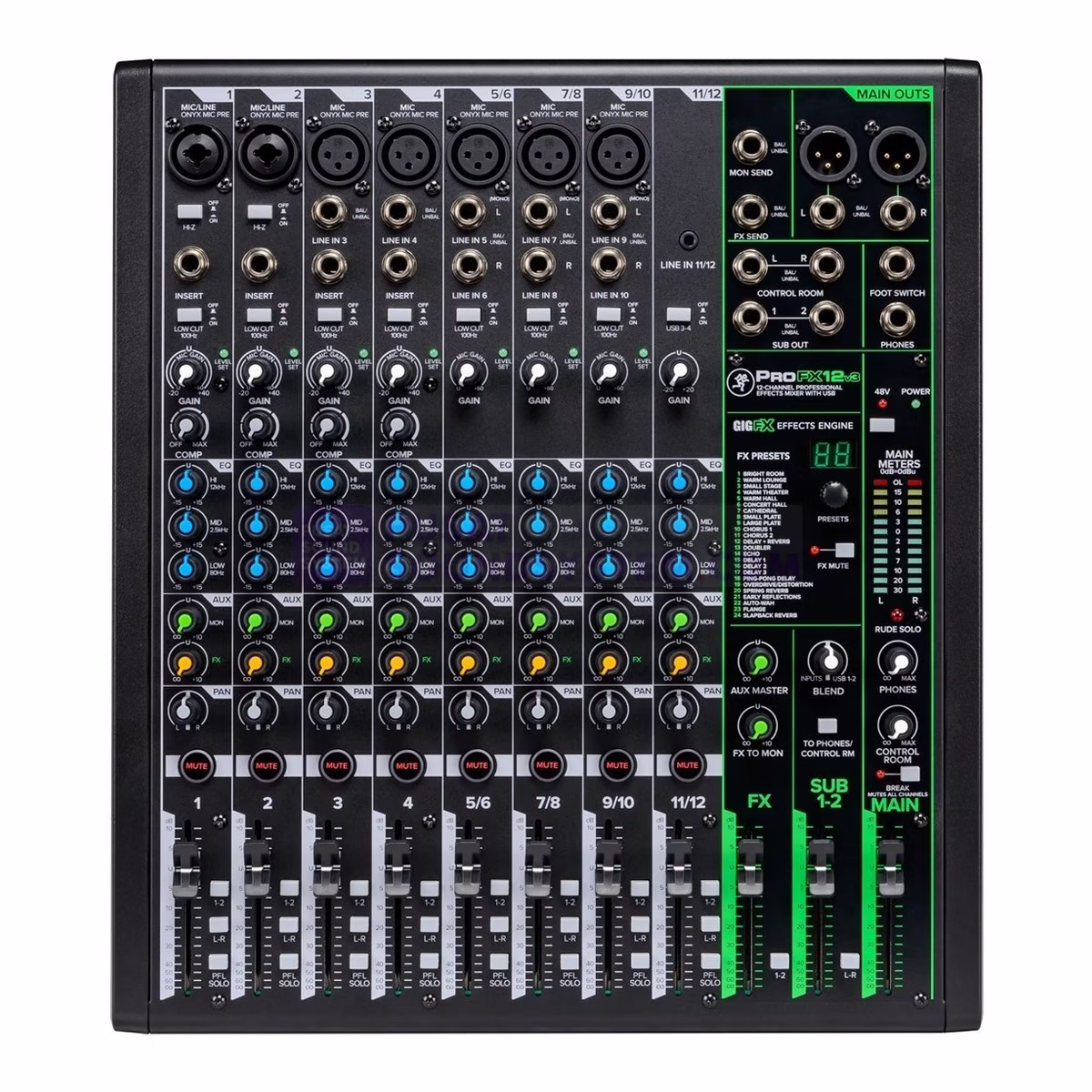

Mackie ProFX12v3 12-channel Mixer with USB and Effects
Description
Mackie ProFXv3 Series mixers are the ultimate affordable solution for live, home recording, and content creators. Everything you love about the series has been dialed up to 11. Best-in-class sound quality, versatility, and reliability that will have you hugging your mixer on a regular basis.
Now with Onyx mic preamps that offer 60db of headroom, 24 built-in FX, and more. Record your tracks in 24-Bit/192kHz quality with 2×4 USB I/O and zero-latency hardware monitoring. Both Pro Tools® | First and Waveform™ OEM recording software/plug-in packages are included.
Legendary performance for stage, studio, and beyond – ProFXv3 Series Mixers.
The Mackie ProFX12v3 is everything you need in one device
At Sweetwater, we want to make sure that your gig sounds the way you want it to. That’s why we’re excited to tell you more about what the Mackie ProFX12v3 can really do. Each channel starts with Mackie’s Onyx preamp. Then you can use the 100Hz low cut control to keep your sound clean. Next, you can dial up to 60dB of gain before sending it through onboard compression and 3-band EQ. Every channel on the Mackie ProFX12v3 is equipped with FX level controls and a mute button. What’s more, every mic input is equipped with 48-volt phantom power.
Improved digital effects
To make sure that you sound perfect, the Mackie ProFX12v3 has an onboard effects processor. The effects processor has a blend function, FX level control, and a quick mute switch. The GigFX effects engine offers up to 24 different effects ranging from delays, reverbs, choruses, distortion, and even an auto-wah feature. All of these effects are accessed by a simple twist of the Presets knob.
Exceptional build quality on the Mackie ProFX12v3
Mackie mixers have been a mainstay for studio and live sound for many reasons. Chief among these reasons is durability and build quality. You’ll find these mixers in venues across the country covered in years of dust and grime. But when you power them up, they deliver top-notch sound and reliability. If you’ve never owned a Mackie before, you’ll be surprised by its sturdy construction. Seriously, your Mackie Mixer will stand up to whatever punishment you give it without batting an eye.
Mackie ProFX12v3 Professional Effects USB Mixer Features:
- GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
- 7 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
- Rugged design will stand up to the wear and tear of the road
- 3 Band EQ and 100Hz low-cut filter on all channels
- Built-in channel compression
- 48-volt phantom power on all mic channels
- 24-bit/192kHz A/D for unmatched audio quality
- USB for playback music and recording into your computer
- Balanced XLR and balanced/unbalanced outputs
- Headphone output has separate volume control for comfortable monitoring
Spesifikasi
| Equivalent Input Noise | 150-Ohm Source Impedance, 20 Hz to 20 kHz: Mic In to Insert Send Out, Max Gain -126 dBu |
| Residual Output Noise | All Outputs, Master Levels Off, All Channel Levels Off: -95 dBu All Outputs, Master Levels Unity, One Channel Level Unity: -80 dBu |
| Frequency Response | Mic Input to Any Output (Gain at Unity, +0 dB / -1 dB): 20 Hz to 30 kHz |
| THD+N | 22 Hz to 80 kHz Bandwidth: Mic In to Main Out (+4 dBu Output): |
| Attenuation and Crosstalk | Adjacent Inputs at 1 kHz: -90 dB Inputs to Outputs at 1 kHz: -80 dB Fader Off at 1 kHz: -75 dB Mute Switch / Break Switch Mute at 1 kHz: -90 dB |
| Common Mode Rejection Ratio | Mic In to Main Out, Max Gain, 1 kHz: 70 dB |
| Maximum Level | All Inputs: +22 dB Main Out XLR: +28 dBu All other Outputs: +22 dBu |
| Impedance | Mic In: 3.3 Kilohms Channel Insert Return: 10 Kilohms All Other Inputs: ≥20 Kilohms Phones Output: 25 Ohms All Other Outputs: 120 Ohms Unbalanced, 240 Ohms Balanced |
| Equalization | Low ±15 dB at 80 Hz Mid ±15 dB at 2.5 kHz High ±15 dB at 12 kHz Low Cut Filter 18 dB/octave at 100 Hz |
| Maximum Voltage Gain | Mic Input Channel to: Insert Output: 60 dB 1/4″ Main Output: 80 dB XLR Main Output: 86 dB 1/4″ Sub Output: 80 dB Aux Output (Pre-Fader): 80 dB FX Send: 90 dB USB Output: 70 dB Mono Line Input Channel to: Stereo Line Input Channel to: 3.5mm Input to: USB Input to XLR Main Output: 46 dB |
| Digital Effects | Number of Presets: 24 |
| Meters | Main L/R Mix: Two Columns of 12 Segments Each: OL, +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 |
| USB | Format: USB 2.0 I/O: 1 Stereo Input, 2 Stereo Outputs A/D/A: 24-Bit / 44.1, 48, 96, 192 kHz |
| Phantom Power | 48 VDC to All Mic Channels Simultaneously |
| Power | Universal AC Power Supply: 100 – 240 VAC, 50 – 60 Hz Power Consumption: 30W |
| Dimensions (H x W x D) | 3.9 x 13.0 x 14.8″ / 8.1 x 33.0 x 37.5 cm |
| Weight | 7.9 lb / 3.6 kg |
| Package Weight | 11.3 lb |
| Box Dimensions (LxWxH) | 18.6 x 15.11 x 5.1″ |
