Description
Combining high-resolution 24-bit/192kHz converters with premium Mackie analog circuitry and Built-Like-A-Tank™ hardware design, the bus-powered Onyx Series USB Audio Interfaces give you the power to capture your best performance and experience media with pristine fidelity at home or on the go.

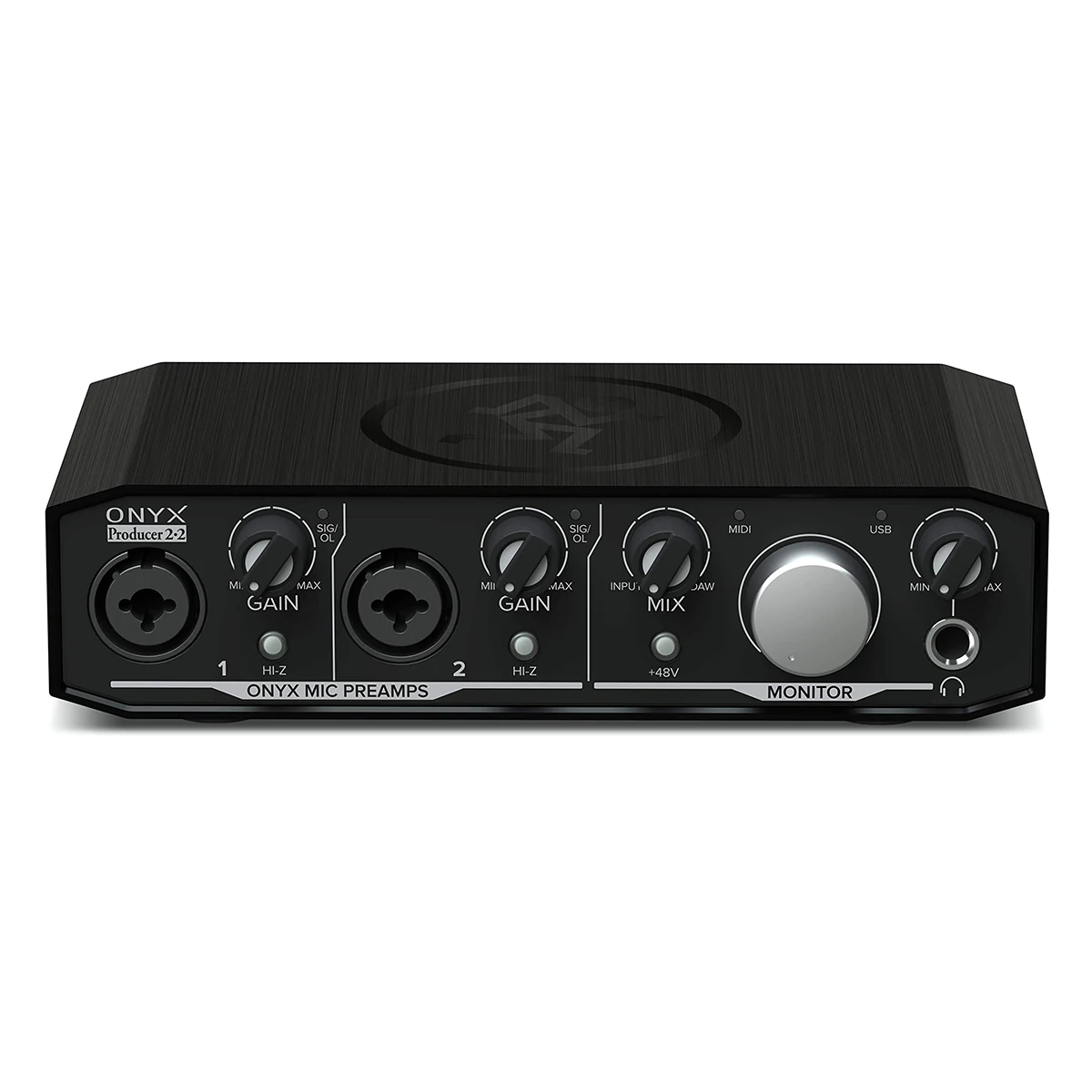

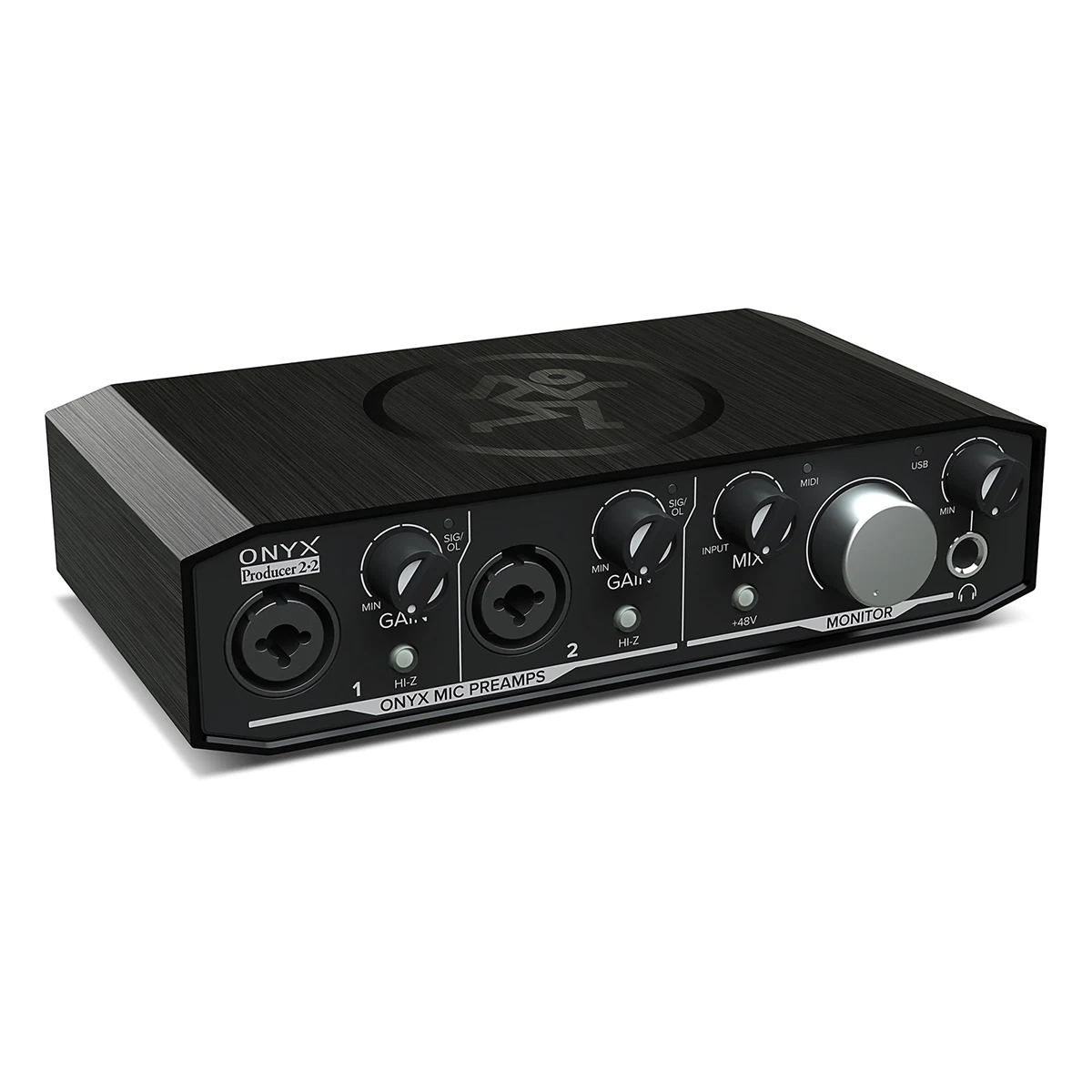

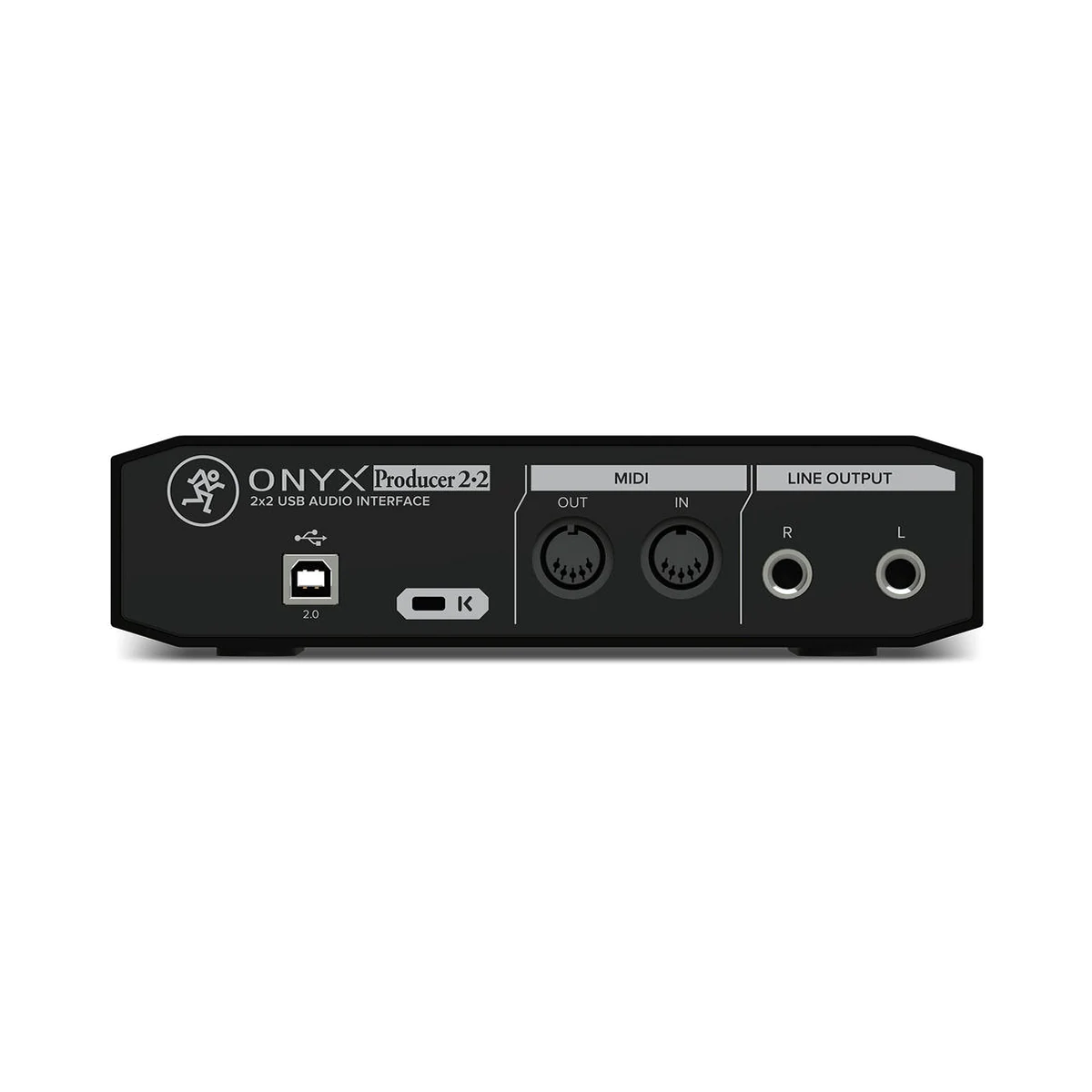

Perfect for singer-songwriters and content creators, the Onyx Artist 1•2 ™ features an Onyx mic pre plus a ¼” input with Hi-Z switch for quick and easy recording. The Onyx Producer 2•2™ expands the versatility with dual Onyx mic pres and MIDI I/O for controllers, synthesizers and more.
Both models offer zero-latency direct monitoring plus a headphone output, L/R line-output and +48v phantom power.
Fitur
- Two boutique-quality Onyx™ mic preamps with class-leading fidelity and dynamic range
- XLR/TRS combo inputs accept mic, line and instrument sources
- Hi-Z switch per channel
- +48v Phantom Power for use with studio condenser mics
- High-resolution 2 in x 2 out 24-Bit/192kHz recording
- Zero-latency direct monitoring of analog inputs
- Dedicated 1/4″ TRS outputs for connecting studio monitors
- MIDI I/O for connecting synths, controllers and more
- Powerful headphone output
- Bus-powered for easy mobile recording with no power adapter needed
- USB 2.0 connectivity for fast transfer speed and low latency
- Built-Like-A-Tank™ design to survive day-to-day abuse
- Waveform OEM™ Music Production Software included
- Compatible with all major DAWs on Mac or PC
- 1.35 lbs / .68 kg
Spesifikasi
Frequency Response | |
At minimum gain, +4 dBu / –6 dBFS input | |
All inputs: | ±0.5 dB, 20 Hz – 20 kHz |
All outputs: | ±0.5 dB, 20 Hz – 20 kHz |
Noise Characteristics (RMS, 10 Hz – 22 kHz) | |
Mic inputs: | <–100 dBFS |
Line inputs: | <–100 dBFS |
Instrument input: | <–100 dBFS |
Line outputs, balanced: | <–85 dBu |
Headphone outputs: | <–75 dBu |
Distortion (THD) | |
+4 dBu / –6 dBFS, 1 kHz input, minimum gain | |
Mic input: | <0.001% |
Line input: | <0.005% |
Instrument input: | <0.005% |
Line outputs, balanced: | <0.001% |
Headphone outputs: | <0.002% |
Maximum Levels (0 dBFS, 1 kHz) | |
Mic input, gain at minimum: | +11 dBu |
Line input, gain at minimum: | +24 dBu |
Instrument input, gain at minimum: | +24 dBu |
Line outputs, volume at maximum: | +10 dBu |
Headphone outputs, volume at maximum: | +10 dBu |
Input Type | |
Input type: | Female XLR balanced/ unbalanced Female 1/4″ balanced / unbalanced MIDI [Onyx Producer 2•2] |
Output type: | Female 1/4″ balanced / unbalanced MIDI [Onyx Producer 2•2] |
USB | |
Format: | USB 2.0, 24-bit, 192 kHz |
Power Requirements | |
USB Bus Powered: | High-power device (5V, up to 500mA) |
Physical Dimensions and Weight | |
Height: | 2.0 in / 51 mm |
Width: | 7.4 in / 188 mm |
Depth: | 4.5 in / 114 mm |
Weight: | 1.4 lb / 0.6 kg |
Additional information
Phantom Power | Ada |
---|---|
Sample Rate | 192KHz |
Bit Depth | 24-bit |
