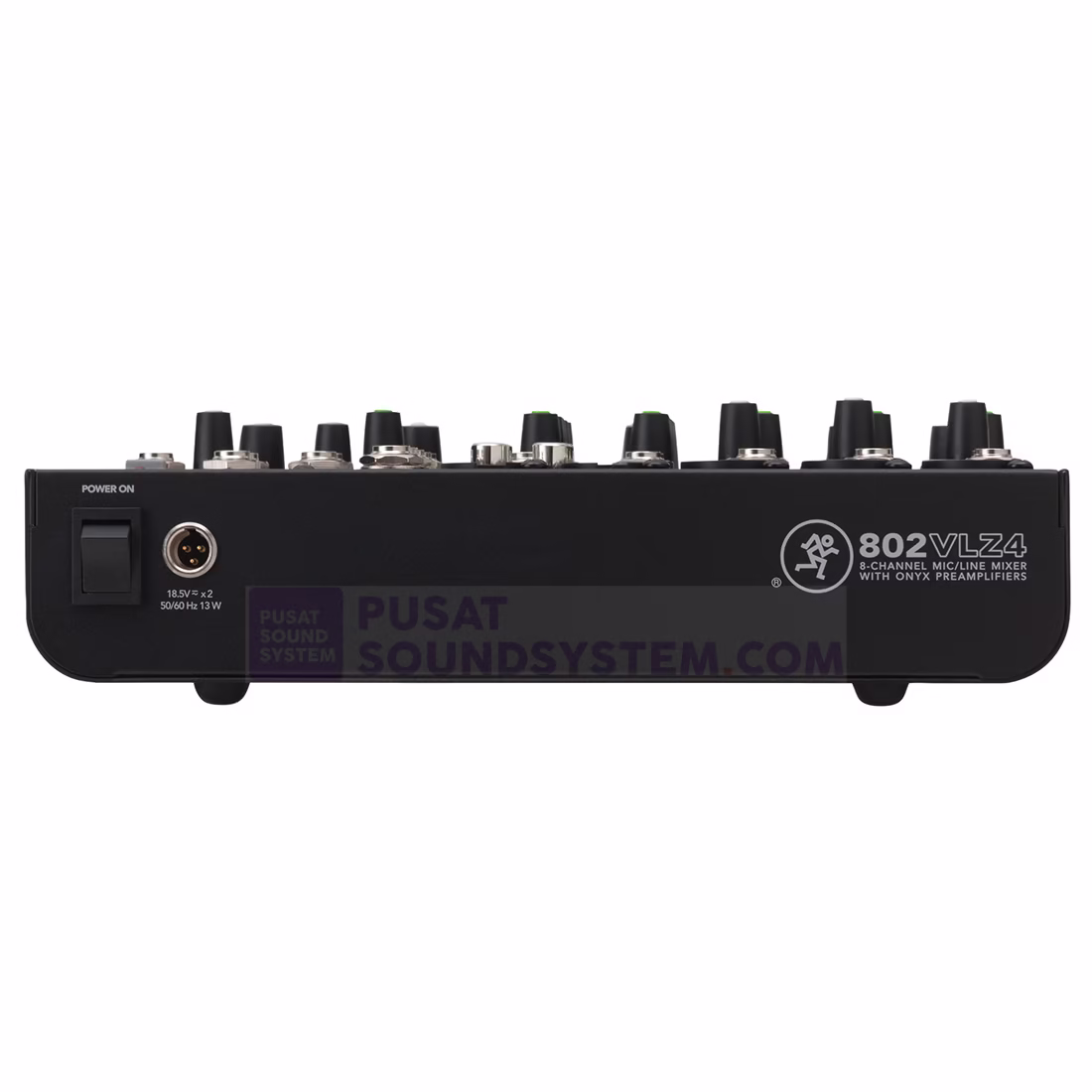

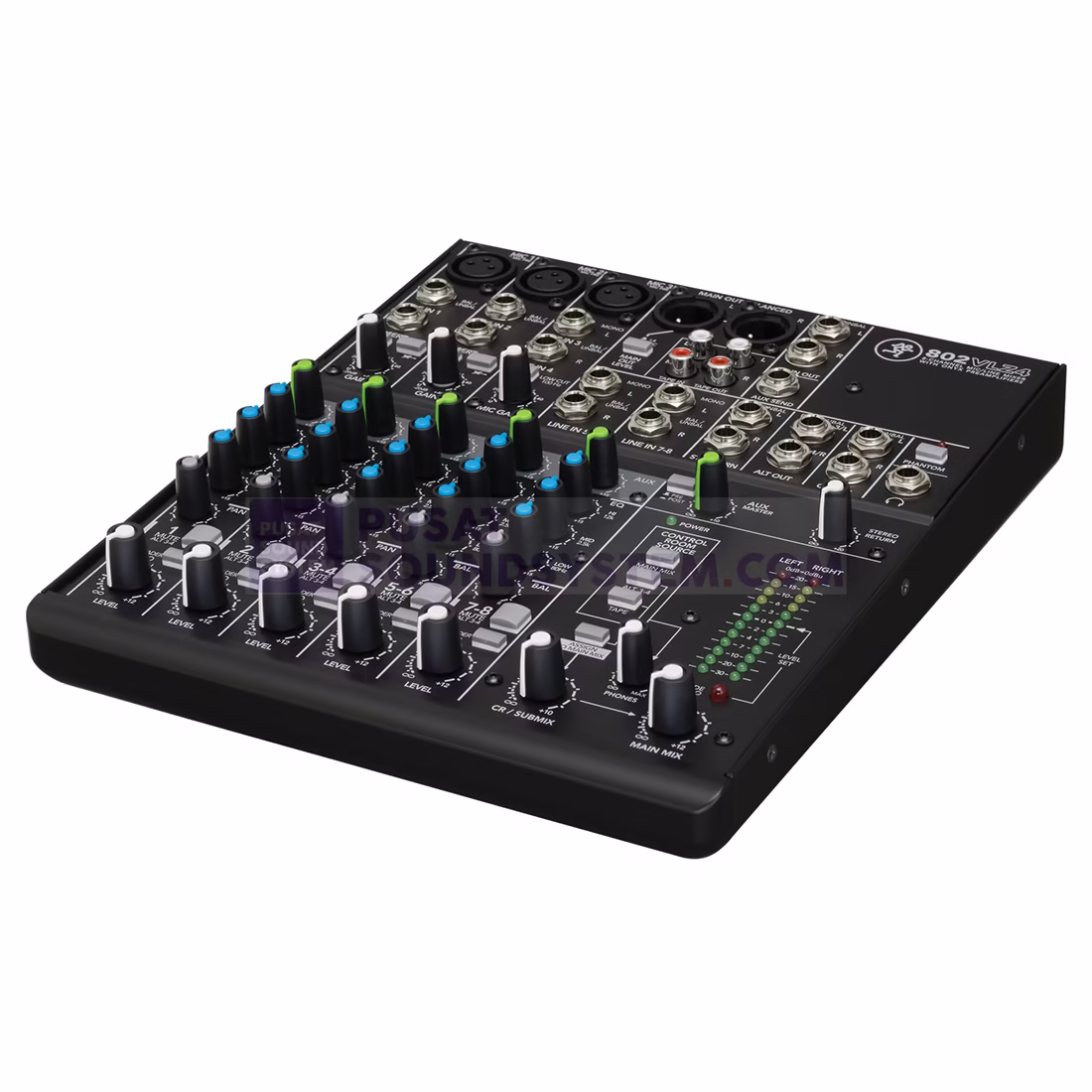

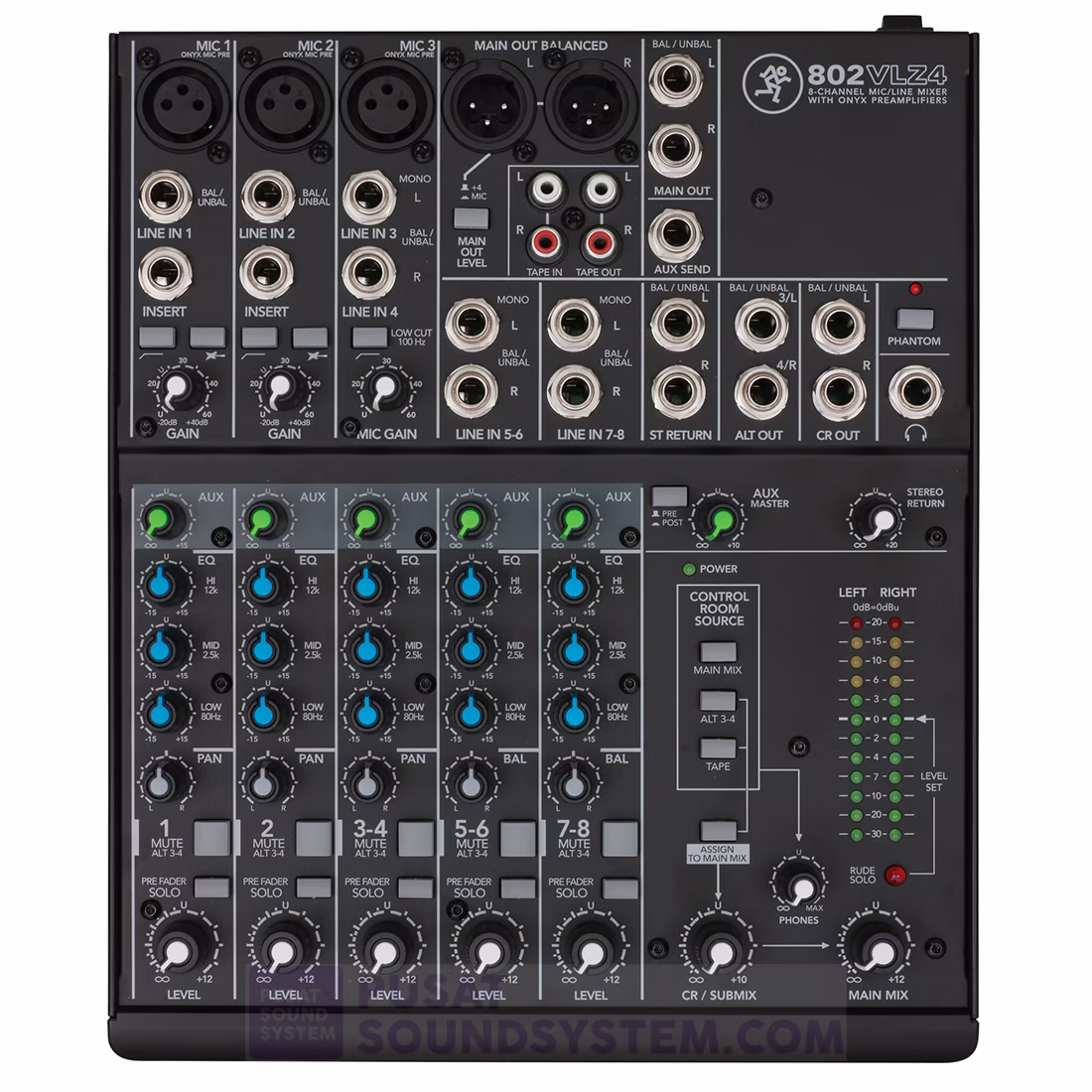

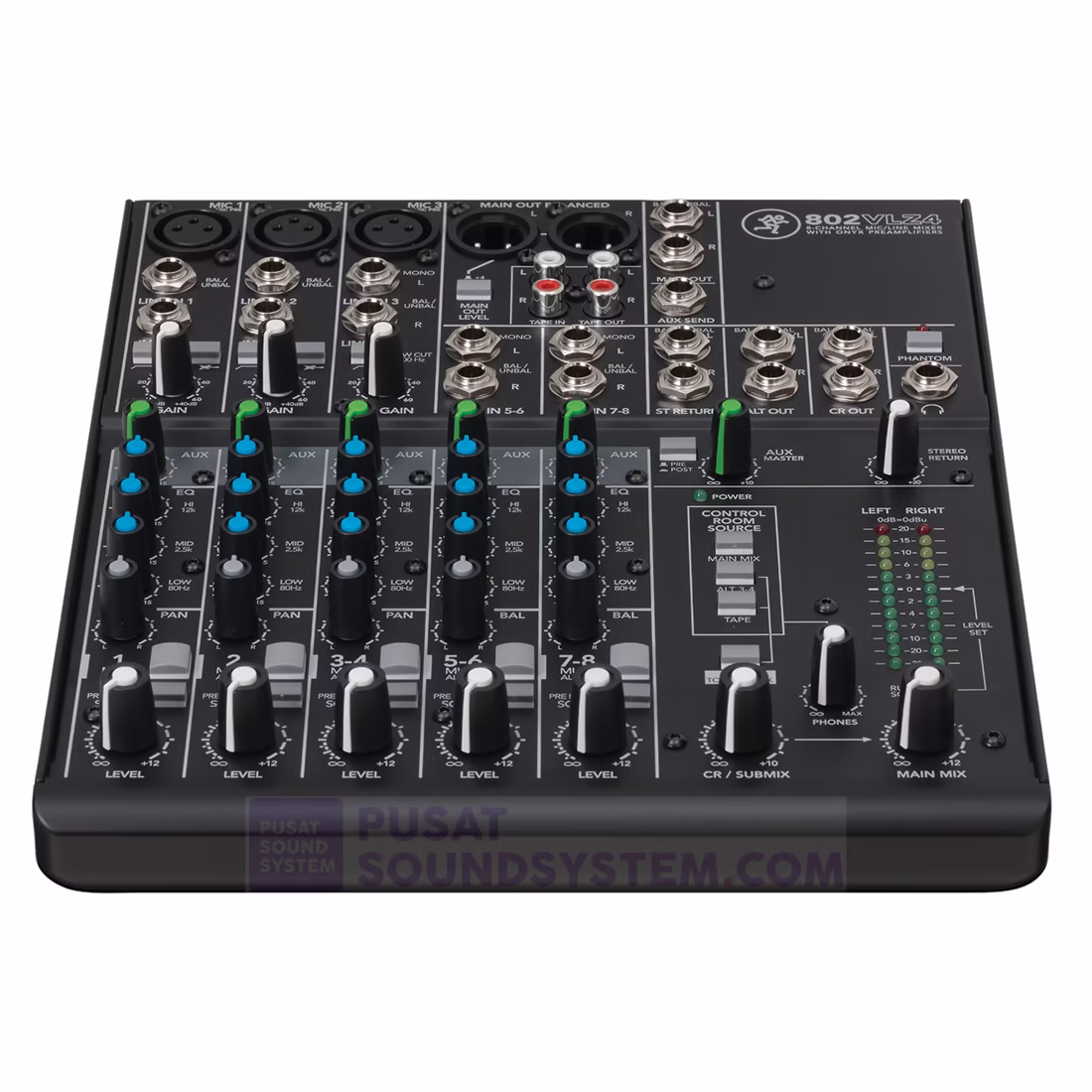

Mackie 802VLZ4 Mixer Analog 8 Channel
8-ch Analog Mixer with 3 Onyx Mic Preamps, 3 x Stereo Channels, and 1 x Aux Sends Per Channel
the Mackie 802VLZ4 mixer is one piece of gear you can truly rely on. It continues the VLZ Series’ trend for rock-solid construction, while taking your sound quality to a new level. You’ve got an amazingly wide dynamic range, incredible 60dB gain range on the Onyx microphone preamplifiers, and ultra-low-noise performance. The 802VLZ4 also boasts better-than-ever RF rejection for prime performance in broadcast situations. And with high-resolution meters, generous I/O, and sealed rotary controls that keep out dust and grime, the Mackie 802VLZ4 is one of Mackie’s best mixers ever.
Now featuring Mackie’s flagship Onyx mic preamps, the comprehensive Mackie 1402VLZ delivers the proven feature set, high-headroom/low-noise design and “Built-Like-A-Tank” construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.
Each generation of VLZ mixers benefits from a reinvestment in performance, all without raising prices. By continuing to ignore the “race to the bottom,” VLZ4 benefits from generations of performance improvements like transparent EQ, class-leading negative summing bus architecture and custom-designed op-amps to ensure signal integrity from every input to every output. The result is a mixer that is at the peak of performance and is the obvious go-to compact analog mixer for engineers who demand professional results.
The performance of Mackie’s Onyx mic preamps is more than proven. Just check all the amazing reviews and customer testimonials. Their boutique quality sound and unmatched performance rival any high-priced, boutique preamp on the market. Adding these flagship preamps to our VLZ4 Series compact mixers underlines our commitment to continually improving the performance of the VLZ line with each generation.
The VLZ4 design goal was simple: every VLZ4 mixer must have the highest headroom and lowest noise possible. Strict attention to component quality and tolerances has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture that add yet another level of assurance that a Mackie VLZ4 mixer is the right choice for your professional audio application.
Mackie VLZ mixers are truly “Built-Like-A-Tank.” From beer spills to drops from moving vehicles, the testimonials are as endless as the applications Mackie mixers serve. The VLZ4 series is certainly no exception. With a nearly indestructible steel wrap-around chassis and features like grime-resistant rotary sealed pots, you can be sure that buying a Mackie VLZ4 mixer is a solid investment.
VLZ4’s new black powder coat finish, cockpit-inspired controls and high-contrast knobs not only optimize your mixer’s usability in low-light scenarios, it also means your mixer looks as good as it performs.
- Boutique-quality Onyx mic preamps
- High-headroom, low-noise
- Rugged steel chassis
- Phantom power for condenser mics
- High-resolution 8-segment stereo meters
- Sealed rotary controls resist dust and grime
|Noise||Main Mix Noise:
Main Mix Knob Down, Channel Level Knobs Down:
XLR: -95 dBu
TRS: -101 dBu
Main Mix Knob at Unity, Channel Level Knobs Down:
Main Mix Knob at Unity, Channel Level Knobs at Unity:
(20 Hz to 20 kHz bandwidth, channels 1 to 3 gain at unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3 to 8 centered)
|Total Harmonic Distortion (THD)||Microphone Pre at Insert: <0.001%
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
|Crosstalk / Attenuation||Main Mix Knob Down: -75 dBu
Channel Alt / Mute Switch Engaged: -100 dBu
Channel Level Knob Down: -100 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4″ main out, gain at unity)
|Frequency Response||Microphone Input to Main Output (Gain at Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz
|Equivalent Input Noise||150 Ohms; Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain
|Common Mode Rejection Ratio||Better than -70 dB at 1 kHz|
|Maximum Level||Microphone In: +21 dBu
Tape In: +22 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu
|Impedance||Microphone In: 2.55 kOhms
Channel Insert Return: 5 kOhms
All Other Inputs: 17 kOhms or greater
Tape Out: 1 kOhm
Phones Out: 60 Ohms
All Other Outputs: 120 Ohms
|Equalizer||High Shelving: ±15 dB at 12 kHz
Mid Peaking ±15 dB at 2.5 kHz
Low Shelving: ±15 dB at 80 Hz
|Power Consumption||13 W, 100 to 120 VAC, 50 to 60 Hz|
|Power Supply||External (AC Connector): 2-Pin IEC 250 VAC|
|Operating Temperature||32 to 104°F (0 to 40°C)|
|Dimensions (H x W x D)||10.7 x 8.9 x 1.8″ (273.0 x 227.0 x 47.0 mm)|
|Weight||5.5 lb (2.5 kg) with power supply
4.5 lb (2.0 kg) without power supply
|Package Weight||6.3 lb|
|Box Dimensions (LxWxH)||15.8 x 12.2 x 4.3″|
