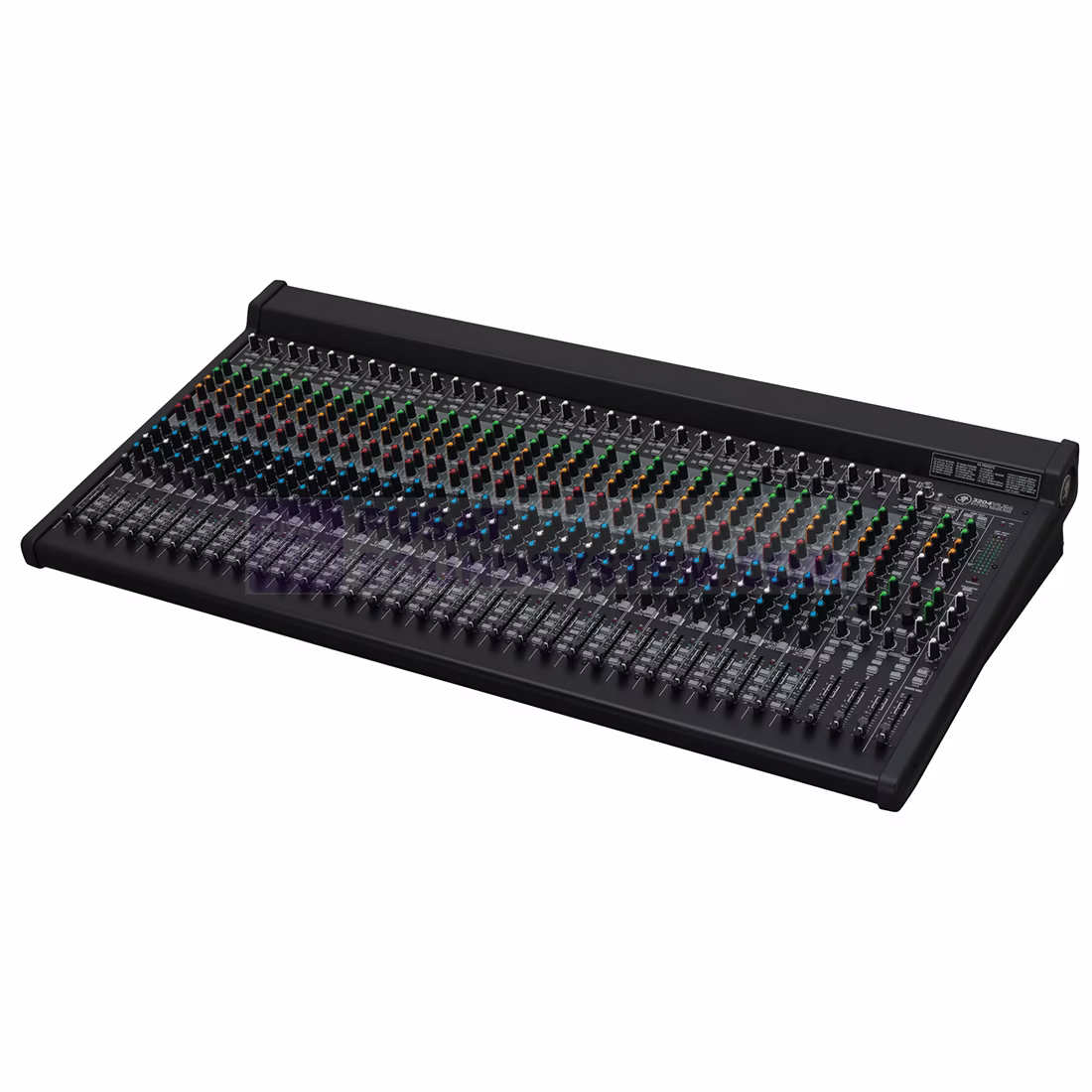

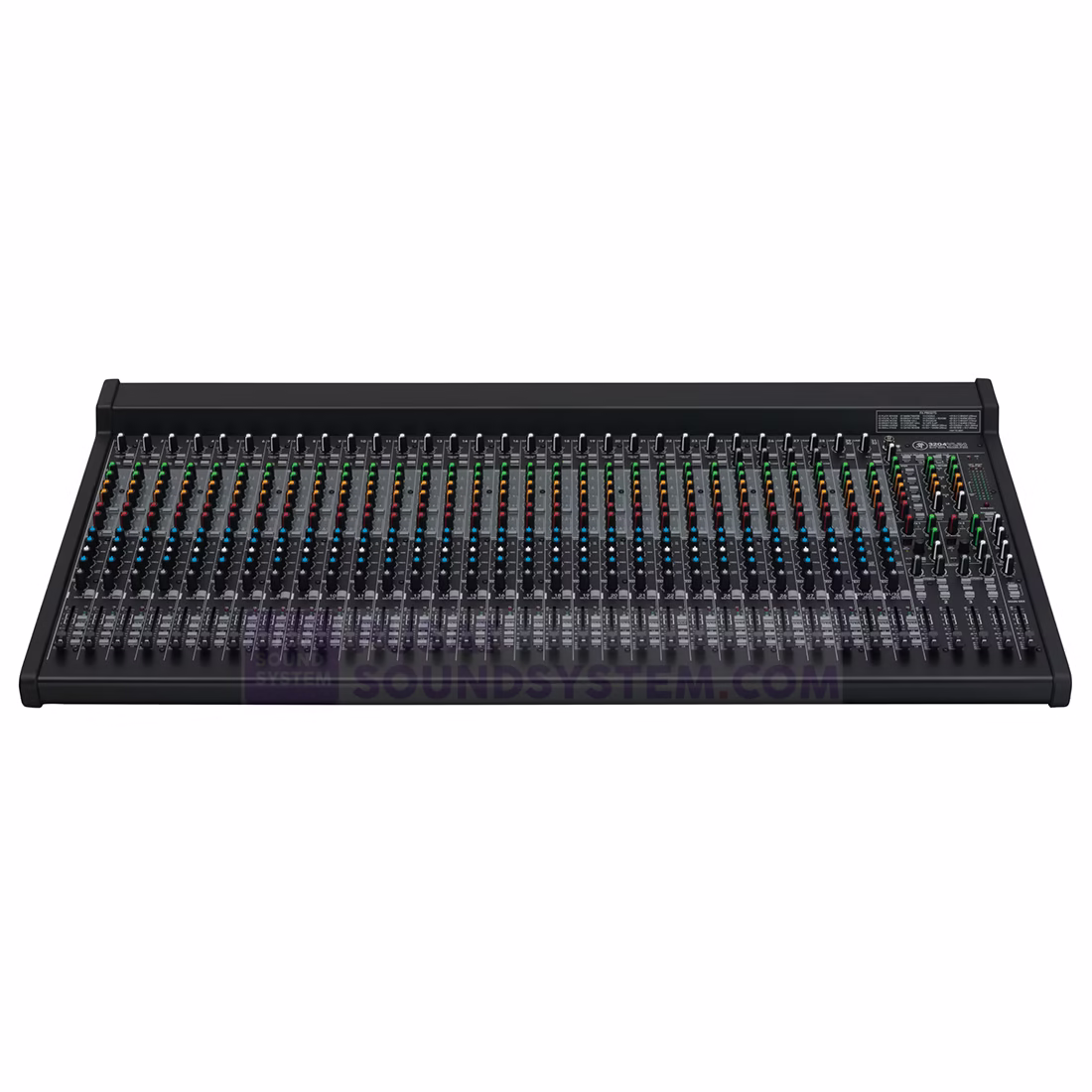

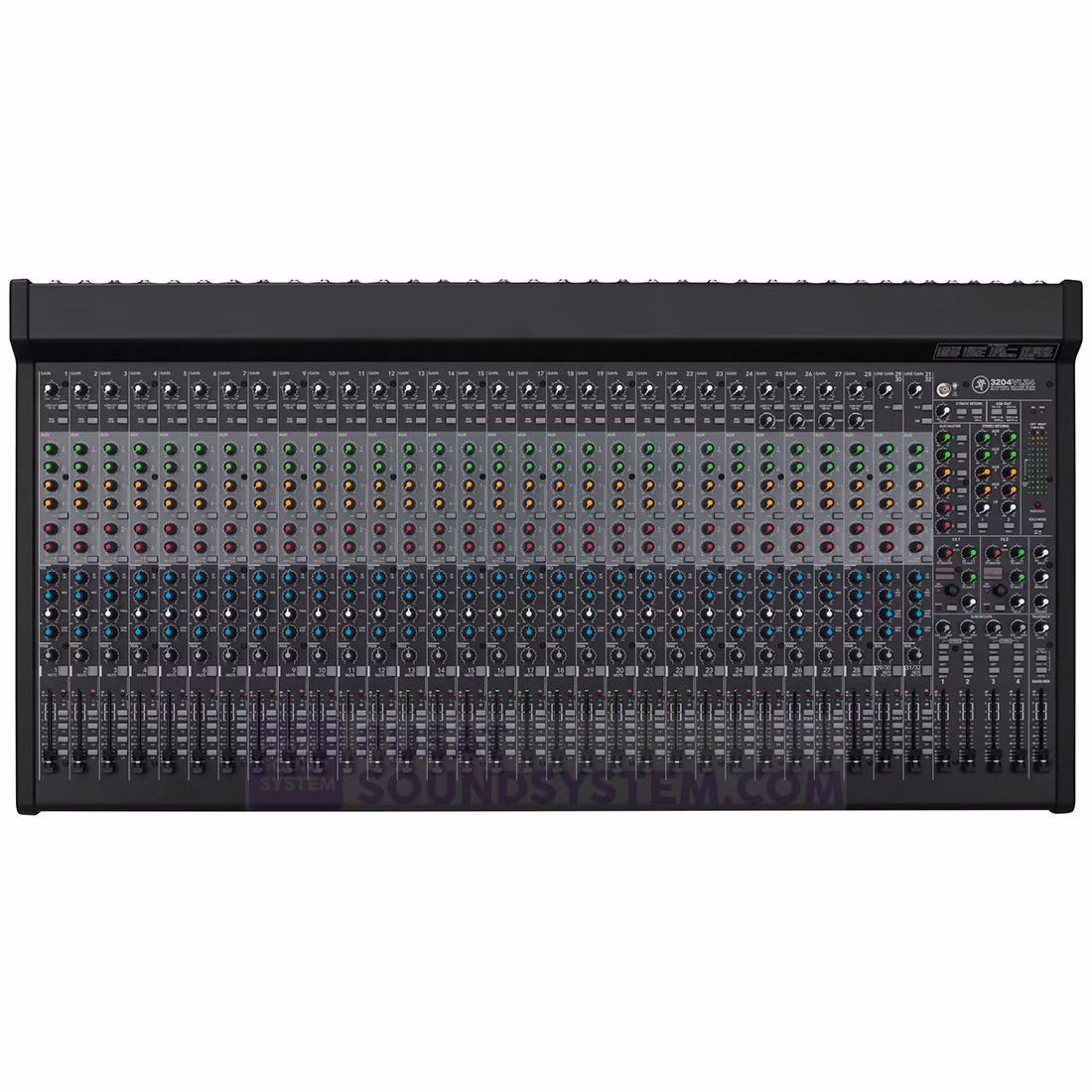

Mackie 3204VLZ4 Mixer Analog 32 Channel

32-ch Analog Mixer with 28 Onyx Mic Preamps, 6 x Aux Sends Per Channel, 4 x Mix Buses, Built-in Effects, and 4×2 24-bit USB Audio Interface

Cek Harga
Share atau Bagikan :

Description

Now featuring Mackie’s flagship Onyx mic preamps, the comprehensive Mackie 3204VLZ4 delivers the proven feature set, high-headroom/low-noise design and “Built-Like-A-Tank” construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.

VLZ
Each generation of VLZ mixers benefits from a reinvestment in performance, all without raising prices. By continuing to ignore the “race to the bottom,” VLZ4 benefits from generations of performance improvements like transparent EQ, class-leading negative summing bus architecture and custom-designed op-amps to ensure signal integrity from every input to every output. The result is a mixer that is at the peak of performance and is the obvious go-to compact analog mixer for engineers who demand professional results.

Onyx
The performance of Mackie’s Onyx mic preamps is more than proven. Just check all the amazing reviews and customer testimonials. Their boutique quality sound and unmatched performance rival any high-priced, boutique preamp on the market. Adding these flagship preamps to our VLZ4 Series compact mixers underlines our commitment to continually improving the performance of the VLZ line with each generation.

Shhh…
The VLZ4 design goal was simple: every VLZ4 mixer must have the highest headroom and lowest noise possible. Strict attention to component quality and tolerances has led to innovations like our custom M80 op-amps and class-leading negative summing bus architecture that add yet another level of assurance that a Mackie VLZ4 mixer is the right choice for your professional audio application.

Reliable
Mackie VLZ mixers are truly “Built-Like-A-Tank.” From beer spills to drops from moving vehicles, the testimonials are as endless as the applications Mackie mixers serve. The VLZ4 series is certainly no exception. With a nearly indestructible steel wrap-around chassis and features like grime-resistant rotary sealed pots, you can be sure that buying a Mackie VLZ4 mixer is a solid investment.

VLZ4’s new black powder coat finish, cockpit-inspired controls and high-contrast knobs not only optimize your mixer’s usability in low-light scenarios, it also means your mixer looks as good as it performs.

Mackie 3204VLZ4 24-channel Mixer Features:

  • Amazingly rugged analog mixer with 28 microphone preamplifiers
  • Onyx mic preamps offer up to 60dB of gain for great performance with any mic
  • Ultra-low-noise performance gives you clean, clear sound
  • High-resolution stereo meters give you fast, easy visual indication of your signal levels
  • Sealed rotary controls resist dust and grime
  • Four-bus design and intuitive routing make it easy to create submixes for easier, faster mixing
  • Dual FX processors make it easy to add studio-quality effects to your show
  • 4 x 2 USB audio interface makes it easy to capture high-quality 24-bit recordings
  • USB connection can also be used for computer audio playback, or even plug-in effects

Spesifikasi

Noise Main Mix Noise:
Main Mix Fader at Unity, Channel Faders Down: -84.5 dBu (-88.5 dB signal to noise ratio, ref +4 dBu)
Main Mix Fader at Unity, Channel Faders at Unity: -80 dBu
(20 Hz to 20 kHz bandwidth, 1/4″ main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
Total Harmonic Distortion (THD) Microphone In to Insert Send: <0.001%
Microphone In to Main Out: <0.005%
(1 kHz at 15 dB gain, 20 Hz to 20 kHz bandwidth)
Crosstalk / Attenuation Channel Mute Switch Engaged: -90 dBu
Channel Fader Down: -88 dBu
(1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4″ main out, gain at unity)
Frequency Response Microphone input to main output (gain at unity)
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz
Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain
Common Mode Rejection Ratio Better than -70 dB at 1 kHz
Maximum Level Microphone In: +21 dBu
All Other Inputs: +21 dBu
Main Mix XLR Out: +27 dBu
All Other Outputs: +21 dBu
Impedance Microphone In: 2.7 kΩ
Channel Insert Return: 2.5 kΩ
All Other Inputs: 10 kΩ or greater
Tape Out: <10 Ω
All Other Outputs: 120 Ω
Equalizer 3-Band EQ (Mono Channels):
High Shelving: ±15 dB at 12 kHz
Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
Low Shelving: ±15 dB at 80 Hz
Low Cut Filter: 18 dB/octave, -3 dB at 100 Hz4-Band EQ (Stereo Channels):
High Shelving: ±15 dB at 12 kHz
Hi Mid Peaking: ±15 dB at 2.5 kHz
Low Mid Peaking: ±15 dB at 400 Hz
Low Shelving: ±15 dB at 80 Hz
USB Format: USB 1.1
I / O: Stereo Input, 4-Channel Output
A / D / A: 24 bit, 44.1 kHz / 48 kHz
Power Consumption 65 W, 100 to 120 VAC, 50 to 60 Hz
Operating Temperature 32 to 104°F (0 to 40°C)
Dimensions Height:
Front: 1.8″ (46.3 mm)
Rear: 6″ (153 mm)W x D: 38.0 x 19.1″ (964.0 x 486.0 mm)
Weight 39.0 lb (17.7 kg)
Packaging Info
Package Weight 47.05 lb
Box Dimensions (LxWxH) 42.0 x 23.0 x 10.5″
