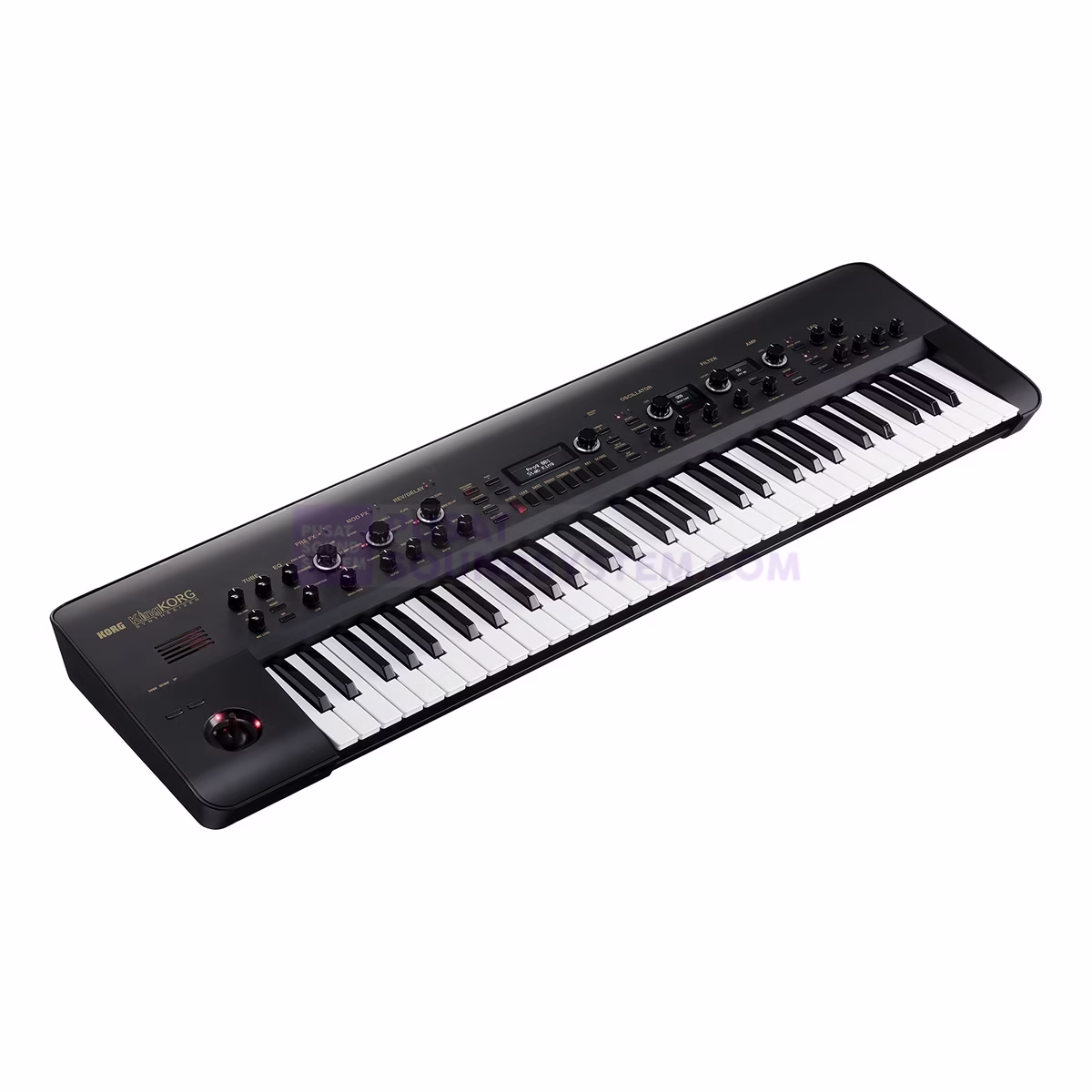

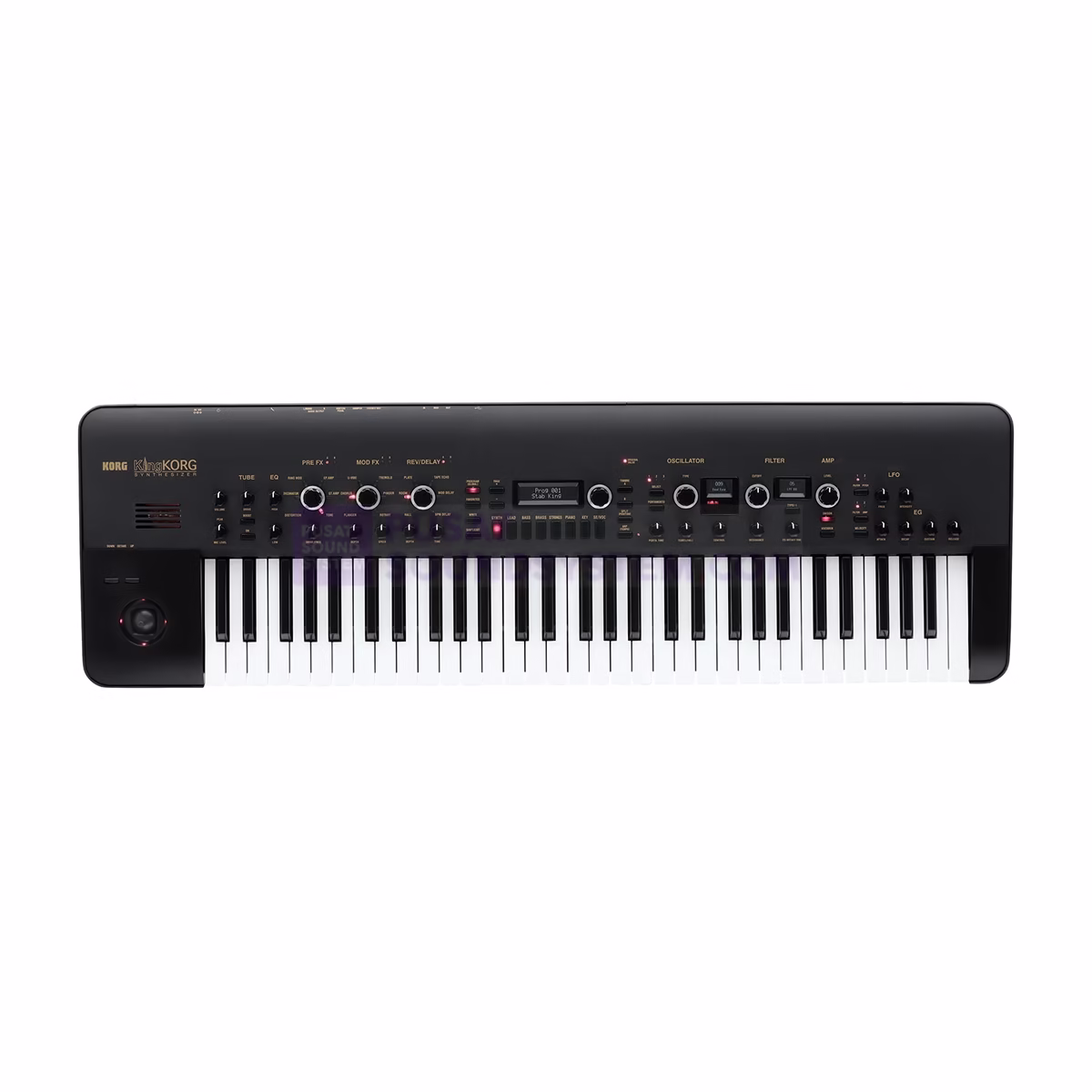

KORG KingKORG 61-key Analog Modeling Synthesizer
61-key analog modeling synthesizer with Tube Preamp, Vintage Effects, Vocoder, Arpeggiator, CV Control, Oscillators, Filters, and Modulation Controls – Black
Description
Features
- A full-fledged, 61-key analog modeling synthesizer designed for live performance
- Powerful oscillators that are understandable to the beginner, yet satisfying for the expert
- Modeling filters that reproduce the sound of classic instruments
- Three master effect sections (each with six effect types) add the finishing touch to your sound
- Vacuum tube driver circuit adds rich overtones and powerful distortion
- New panel layout designed for intuitive operation
- CV/GATE OUT jack lets you control a Korg monotribe or MS-20
- Support for librarian software that lets you manage programs
Spesifikasi
| Sound Generation | XMT (Xpanded modeling technology) |
| Programs | Number of Programs: 300 (200 preset + 100 user) Number of Categories: 8 Timbres: Max 2 timbres (layer/split) Maximum Polyphony: 24 voices maximum |
| Synth Section | Oscillator Structure: 3 x oscillators (choose from analog, noise, DWGS, PCM, and mic in types) Number of Types: 127 (32 analog and noise, 64 DWGS, 30 PCM, Mic In Filter Structure: 1 filter (choose from LPF, HPF, BPF) Number of Types: 18 (7 LPF, 5 HPF, and 6 BPF) Modulation Structure: EG, 2 units, LFO, 2 units Routing: Virtual patches, 6 sets |
| Effects | Sections: Program effects x 3 (PRE FX, MOD FX, REV/DELAY) + EQ (2-Band) + TUBE (Stereo) Types: PRE FX: 6 types (Distortion, Decimator, Ring Mod, GT Amp, EP Amp, Tone) Mod FX: 6 types (Flanger, Chorus, U-Vibe, Tremolo, Phaser, Rotary) Rev/Delay: 6 types (Hall, Room, Plate, Tape Echo, Mod Delay, BPM Delay) |
| Vocoder | 16-band vocoder, formant shift function, formant hold function |
| Arpeggiator | Up to 8 steps (number of steps can be changed), 6 types (Up/Down/Alt 1/Alt 2/Random/Trigger) |
| Audio Input | Mic Jack Connector: XLR 3-pin (balanced) Input Impedance: 6.8 kOhms Maximum Level: -12 dBu |
| Audio Output | (L/Mono, R) Jacks Connectors: 1/4″ (6.3 mm) TS phone jack (unbalanced) Load Impedance: 10 kOhms or higher Maximum Level: +8.2 dBu Headphone Jack Connector: 1/8″ (3.5 mm stereo mini-phone jack) Maximum level: 60 mW + 60 mW @ 33 Ohms |
| Displays | Main: 16 x 2-character OLED display Oscillator, Filter: 128 x 64-pixel OLED display |
| Keyboard | 61-note, semi-weighted keyboard (velocity sensitive) |
| Controllers | Internal: Joystick, octave up/down buttons, category/favorites buttons Inputs: Damper jack (half-damper not supported), switch/pedal jack Output: CV/gate out jack |
| External Connections | MIDI In, Out, USB Type-B connector |
| Power Supply | AC adapter jack (12 VDC, -ring, + tip) |
| Power Consumption | 10 W |
| Operating Temperature Range | 32 to 104°F (0 to 40°C) |
| Dimensions | 40.43 x 12.32 x 3.78″ (1027 x 313 x 96 mm) |
| Weight | 15.43 lb (7.0 kg) |
Packaging Info
| Package Weight | 10 lb |
| Box Dimensions (LxWxH) | 47 x 17 x 7″ |
