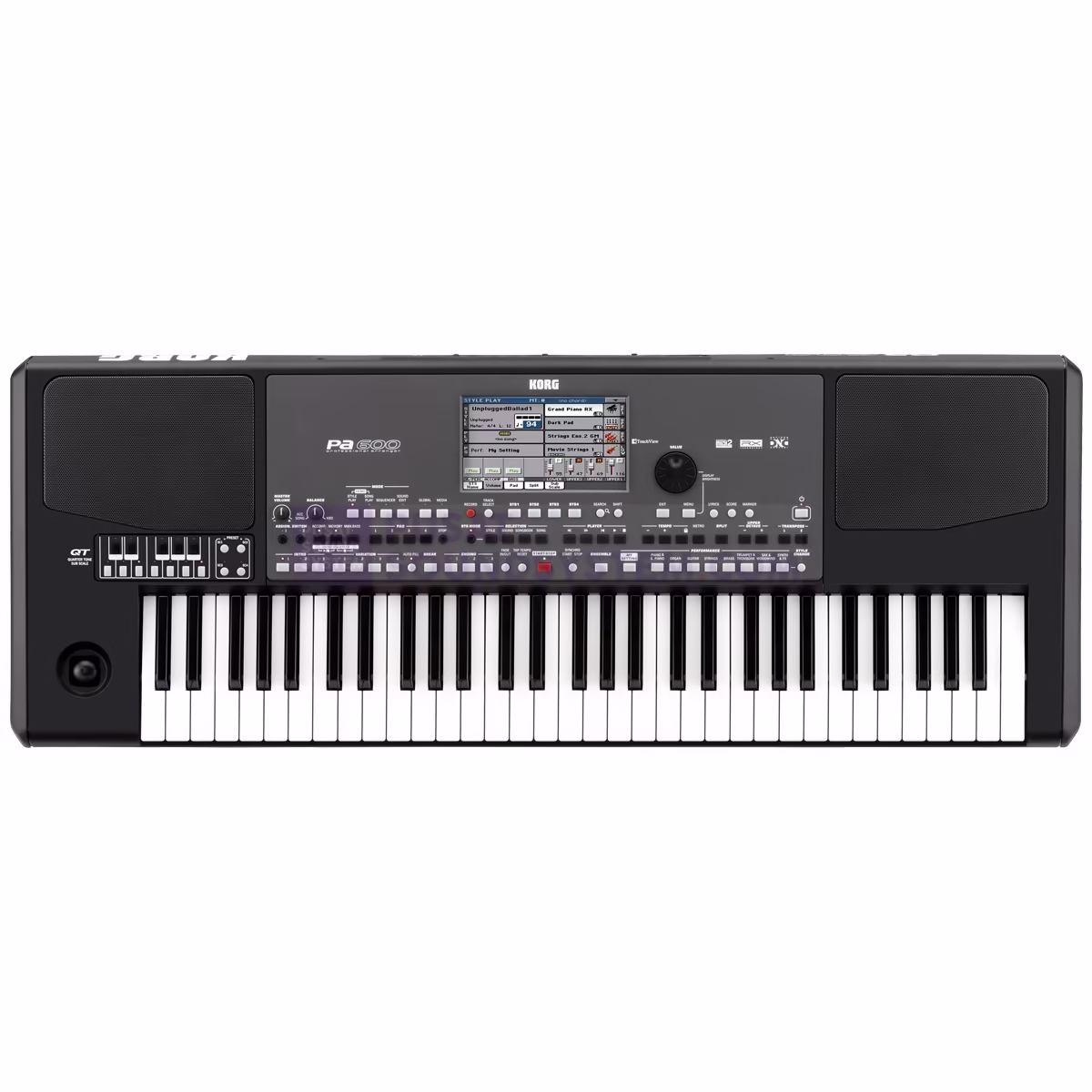

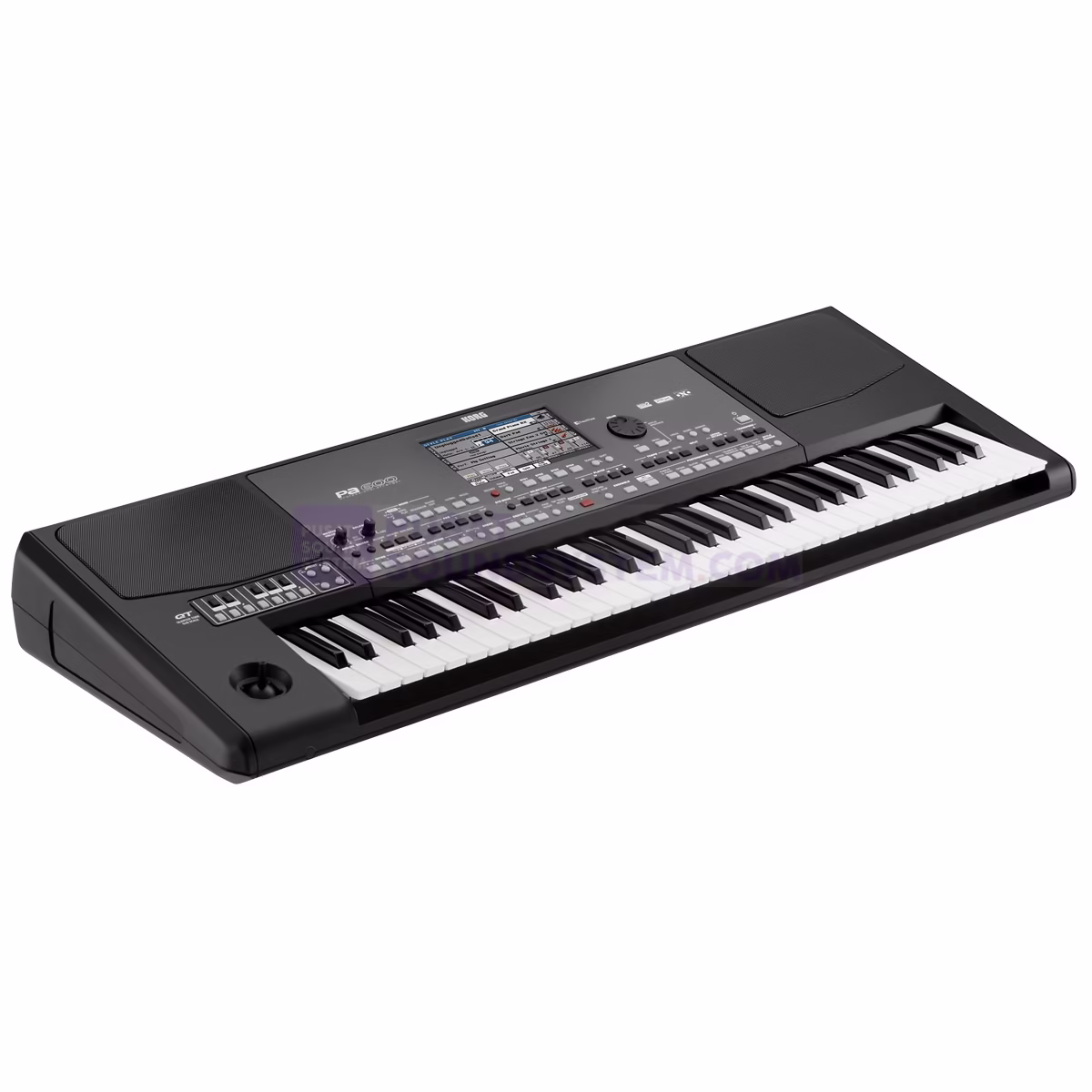

KORG Keyboard Arranger PA600QT
61-key Arranger Workstation with Quarter Tone Mini-keyboard, 360+ Music Styles, 950+ Sounds, Built-in MP3 Player w/Vocal Remover, and 15W Dual-speaker Sound System
Description
The Pa600QT is an affordable, compact, and powerful addition to Korg’s internationally acclaimed PA series. Providing you with the most up-to-date collection of quality sound and styles combined, the PA600QT is a perfect songwriting and performance partner. It even has the option to include custom sound and performance sets (sold separately) from around the world – a true first!
This Pa600QT (Quarter Tone) version contains all the functionality of the standard Pa600, and adds a mini-keyboard on the left side, which can be used to customize quarter tone scales and quickly access scale presets. Along with all the Sounds and Styles that are found on the standard Pa600, The Pa600QT also contains additional Sound and Style data that is specific to Middle Eastern music genres. Ouds, bouzuks, kanouns, various percussion instruments, and many more sounds are joined by dozens of extra Styles that are suitable for traditional and modern music.
Fitur
- Two versions of Pa600 are available: International and Quarter Tone button variations. Both feature an elegantly designed and compact cabinet, including a pristine amplification system.
- Enhanced RX (Real eXperience) and DNC (Defined Nuance Control) sound engine offers improved realism and vivid sound.
- Massive internal Factory PCM provides an extraordinarily powerful wave memory, delivering amazingly high quality sounds.
- Two assignable switches and a four-way joystick ensure total control for the many available levels of sound articulation (DNC).
- Large, bright, backlit TouchView™ color TFT display (800×480).
- Easy layout and intuitive graphical interface with new Search function for easy retrieval of any musical resource or file.
- New resource selection feature with copy/paste, rename and delete.
- Over 360 factory Styles, each including three Intros/Endings, four variations and four Fill In + Break, plus ten Favorite and three User banks for storage of your favorite customized or user created Styles.
- Enhanced Guitar Mode 2 for even more realistic guitar parts, plus synchronized pads.
- Chord Sequencer function that can record any chord progression on-the-fly.
- Improved General Midi set for Standard Midi Files, compatibility with popular lyric formats including graphical (+G), plus Text Viewer, Marker and Score.
- MP3 player with Transpose and Tempo Change.
- 4 Stereo Master Effects (125 FX algorithms).
- Fully programmable SongBook database based on Styles, SMF, karaoke, and MP3, with instant recall of any song setting and user-definable custom lists.
- Localized Pa600 and Pa600QT data (sold separately) provides Sounds and Styles relevant to specific countries and regions.
Spesifikasi
Model
- 2 versions
- “Pa600QT -Quarter Tone”
“Pa600 – Standard”
Keyboard
- Keyboard
- 61 keys with Velocity
Sounds
- Factory
-
It comes preloaded with sounds and styles to suit a variety of Middle Eastern music tastes including Persian, Arabic and Turkish.
More than 950 (including Stereo Piano and GM 2 Sounds)
64 Drum Kits
- User
-
256 Sounds
128 Drum Kits
- Tone Generator
- 128 Oscillators (max polyphony 128 voices) – Filters with Resonance
- PCM User Memory
- 96 MB
Styles
- Factory
- More than 360 preloaded Styles, freely reconfigurable
- User
- Up to 1,200 available Style locations including the Favorite/User banks
- Structure
- Eight Style tracks, 4 Single Touch Settings and one Style Performance per Style
- Style controls
- 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Autofill, Synchro Start/Stop, Tap Tempo/Reset, Manual Bass, Bass Inversion, Memory, Accompaniment Mute, Snare & Kick Designation, STS Mode – Chord Sequencer
- Others
- Guitar Mode 2
Parallel and Fixed NTT, Style Record with Step Record, Track and Event Edit functions
- Effect
- Effects & EQ
- 4 Stereo Master FX / 125 Effects types
Three band EQ for each track – Articulations
Limiter – Master 4 band Parametric EQ
- Others
- Dynamic Nuance Control (DNC) Technology
Full editing of Sounds and Drum Kits
Realtime sound control using Assignable Switches
- Controllers
- Joystick – 2 Assignable Switches
- User Sampling
- No Exist
- Performance/STS
- 320 Realtime Performance locations
STS: Memorize Realtime tracks
Up to 4 x Styles, up to 4 x SongBook entries
My Setting special Performance
- Realtime Tracks
- Four Keyboard tracks (Upper 1, 2, 3, Lower)
- Pads
- 4 Pad tracks + Stop button – Pad Record
- Song Play
- Single Player with Select, Start/Stop, Home, Rewind and Fast Forward controls
Jukebox function – Compatible with SMF (formats 0 and 1) and MP3 with Vocal Remover –
Lyrics (compatible with CDG), Score, Marker
- Display
- 7” 800 x 480 TFT Graphical Color TouchView
- Sequencer
- Quick Record (Backing Sequence), Multitrack and Step Record functions
Full featured sequencer – 16 tracks – Up to 100.000 events – SMF format
- Song Book
- Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes – User-definable custom lists – Filtering options
- Search
- Yes for Style, Song, Performance, SongBook, Sound and Lyrics TXT
- Compatibility for Sound Data
- “i-Series”: Styles only
“Pa series”: Style, Performance, Sound, PCM, Song, SongBook and Pad
- General Controls
- Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose,
Master Transpose, Fade In/Out, Tempo Lock, Style Change – Quarter Tone Arabic Scale,
User Scale memorized inside Performance/STS, Search, Lyrics, Score, Maker, Dial, Tempo, Metronome, Split

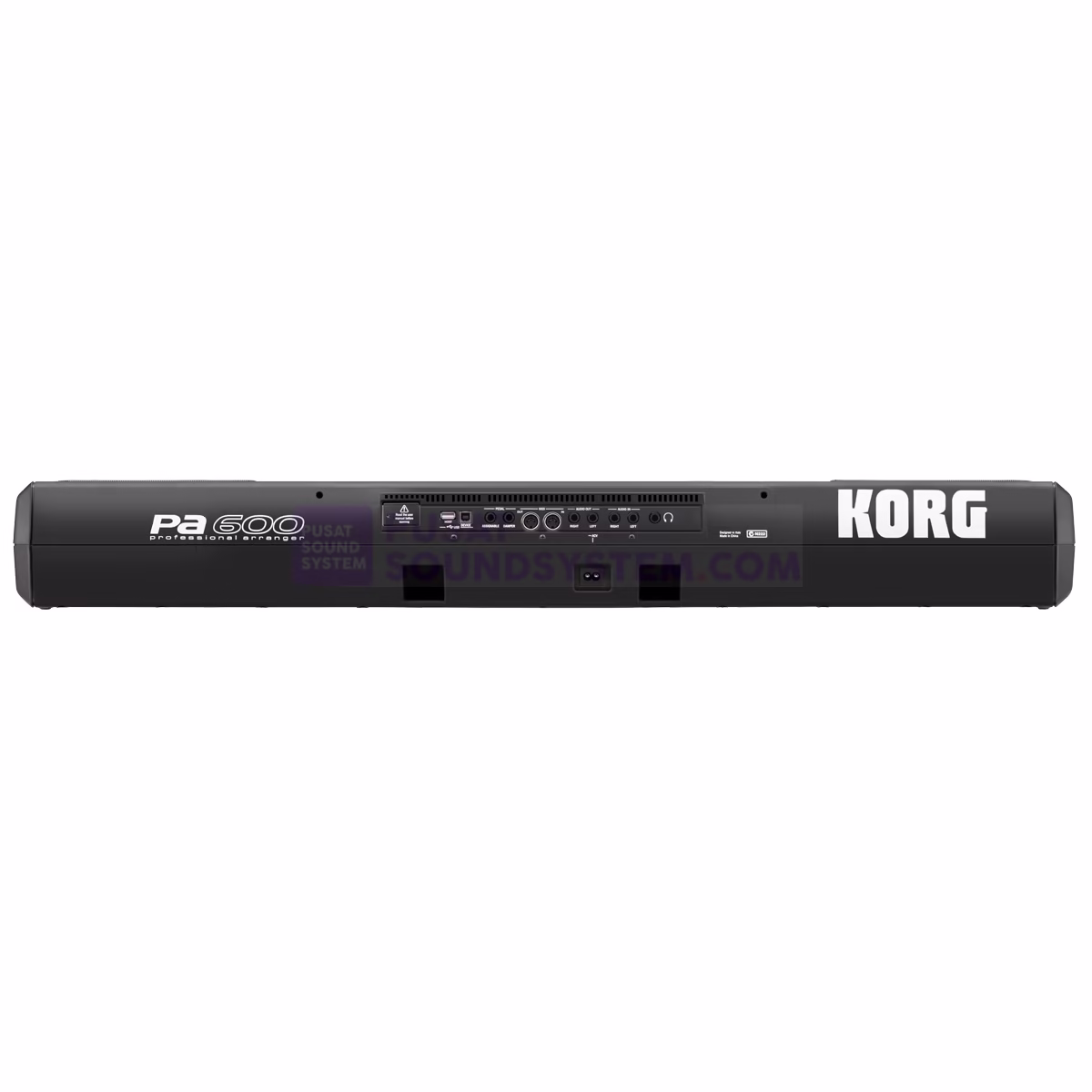

- Connections
- Control Inputs
- Damper Pedal, Assignable Pedal/Footswitch
- Line Out
- Unbalanced Jack Left/Mono, Right, Headphones
2 Unbalanced Line In Jacks
- MIDI
- In, Out MIDI connectors – USB to Midi using the USB Device port Individual track assignment – 8 user definable MIDI Preset
- USB
- Type A (TO DEVICE) x 1: 2.0 Hi Speed
Type B (TO HOST) x 1: 2.0 Hi Speed
- Speaker System
- Amplification
- 15W x 2
- Speakers
- 100 mm x 2 Double Cone Speakers in Bass Reflex Box
Power
- Power Supply
- AC 100-240 V
- Power Consumption
- 20 Watt
- Dimensions
(W x D x H) - 1,030 x 378 x 127 mm (without music rest)
- Weight
- 11 kg (without music rest)
- Accessories
-
Owner’s Manual, Music Stand, AC Cable
*Accessory Disc including Video manuals, PDF manuals, USB-MIDI Drivers has been removed since June 2020.
Please see here for the video manuals.
https://www.korg.com/us/products/synthesizers/pa600qt/page_4.phpFor other items, please download from here.
https://www.korg.com/us/support/download/product/0/305/
- Options
- Expression/Volume Pedal (KORG EXP-2, KORG XVP-10)
Damper Pedal (KORG DS-1H)
Switch Pedal (KORG PS-1, PS-3)
