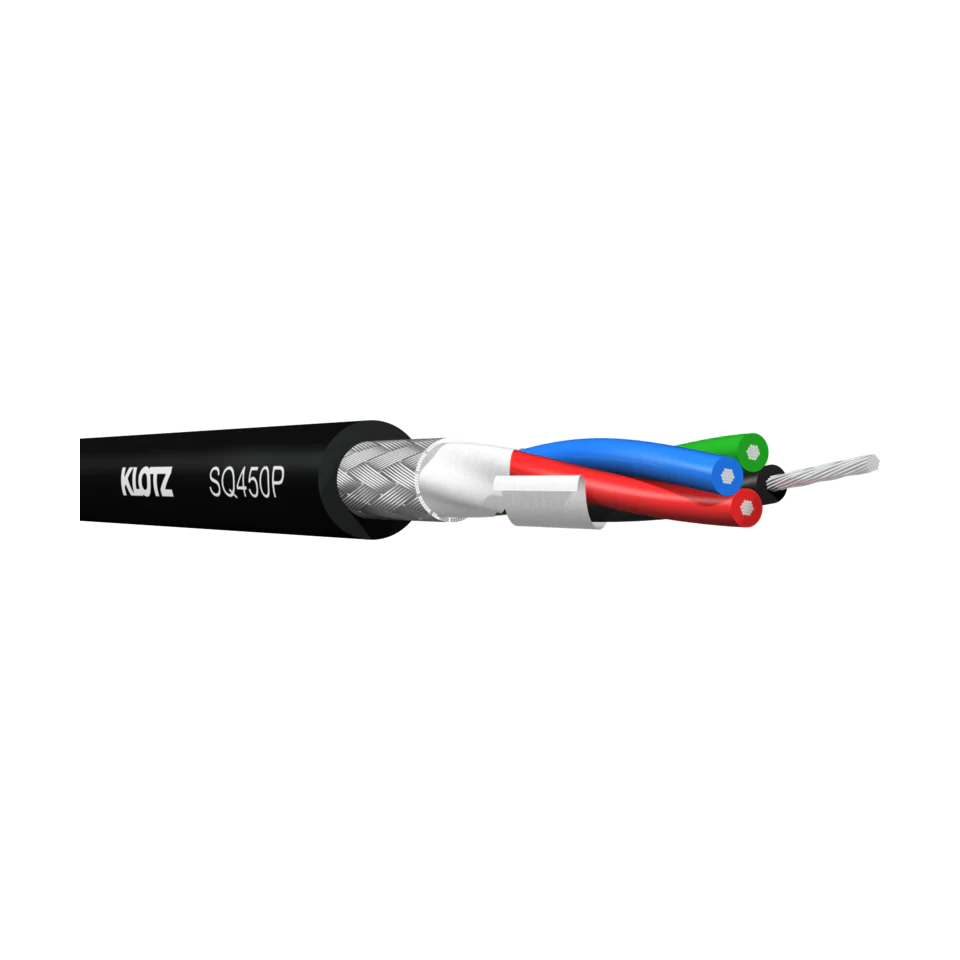

KLOTZ StarQuad SQ450P StarQuad pro audio cable 4 x 0.50 mm² - PUR

KLOTZ StarQuad SQ450P StarQuad pro audio cable 4 x 0.50 mm² – PUR

StarQuad pro audio cable 4 x 0.50 mm² – PUR

Chat Penjual
Category: Tag: Brand:
Klotz
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

This 4-conductor cable with its extremely dense braid screen allows interference-free transmission of signals even over long distances. Low capacitance and a large conductor cross-section ensure low high-frequency losses and low attenuation levels. The special PUR outer jacket provides exceptional characteristics: robust, halogen-free, flexible and suitable for drum winding even down to temperatures of -40 °C.

Fitur

  • 0.50 mm² conductor cross section (AWG 20)
  • quad connection: 2 x 1.0 mm² (AWG 18)
  • very dense tinned copper braid screen
  • extreme robust PUR jacket
  • high interference resistance
  • ideal for long distances
  • ¹ quad connection: two diagonally opposite conductors are attached to one conductor
  • ² each pair from two diagonally opposite conductors forms one transmission path



Spesifikasi

design

cond. construction: stranded tinned copper, 16 x 0.20 mm
cond. cross section: 0.50 mm²
insulation: polyethylene (PE)
core arrangement: 4 cores twisted to a star quad
shielding: tinned copper braid, >90% coverage
outer jacket: PUR, black
overall diameter: 6.4 mm



mechanics

min. bending radius: 35 mm
working temperature: -40°C / +85°C



electric

conductor resistance: 35 Ω/km
shield resistance: 15 Ω/km
insulation resistance: > 30 GΩ x km
capacitance:
cond./cond.¹: 160 pF/m
cond./shield¹: 200 pF/m
cond./cond.²: 65 pF/m
cond./shield²: 130 pF/m
