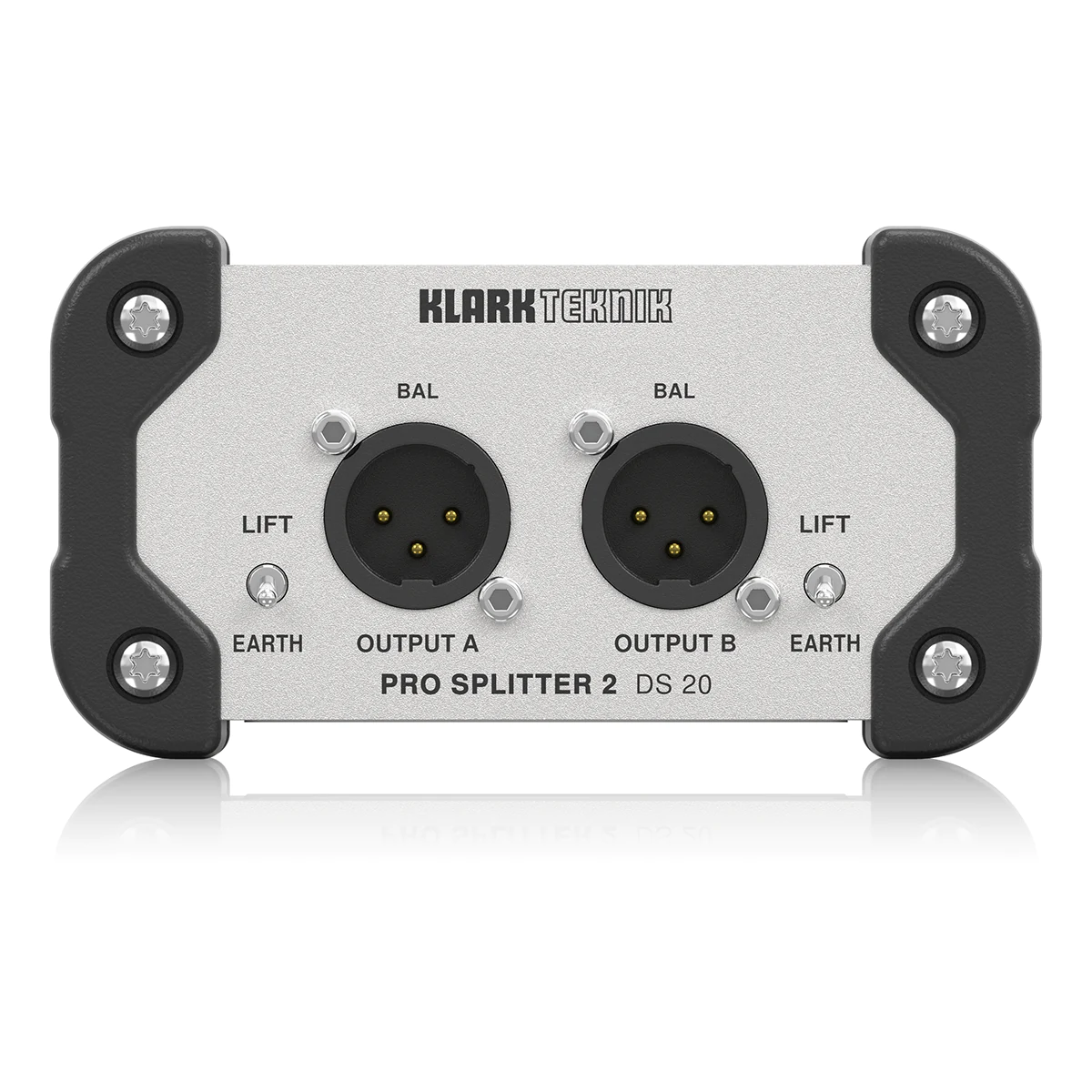

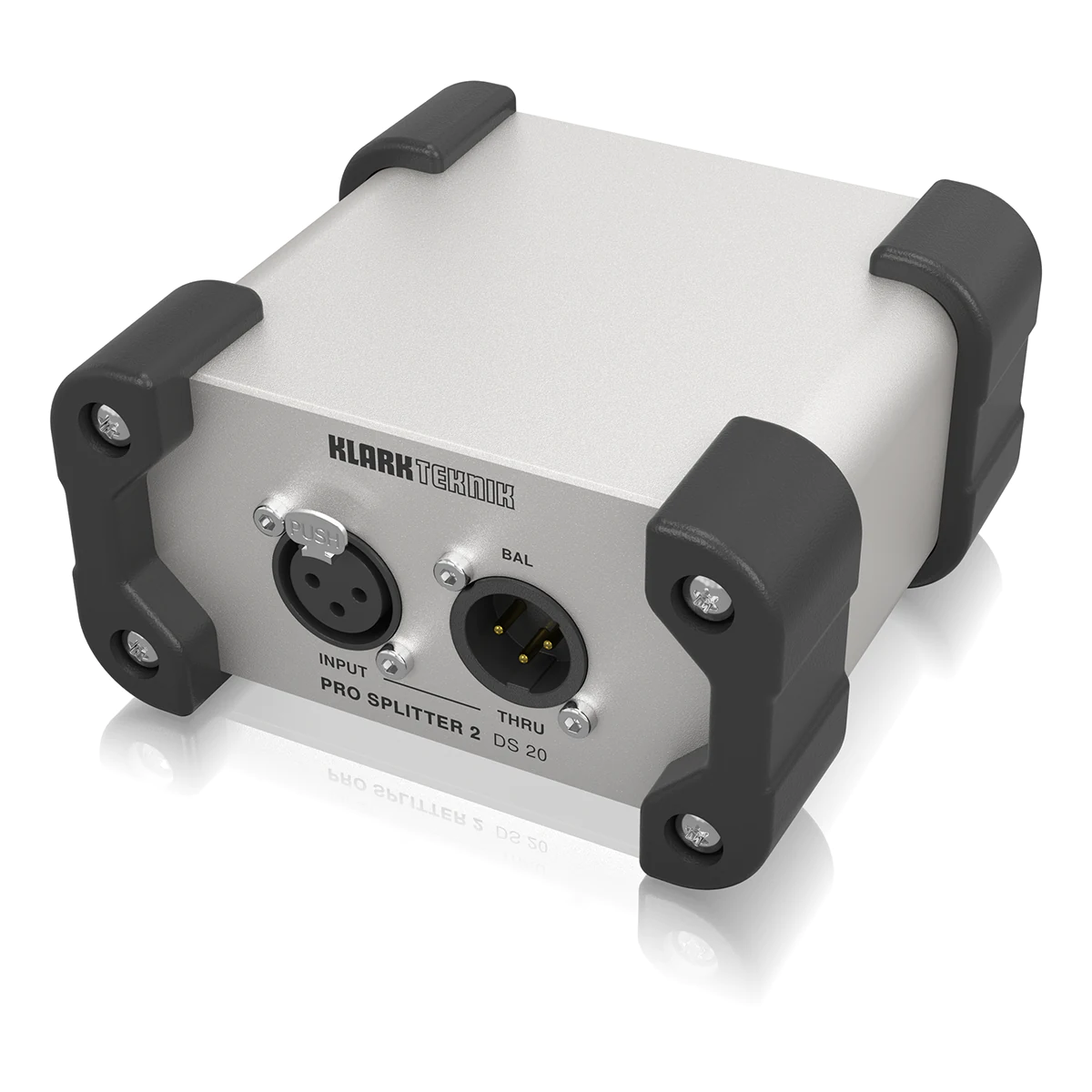

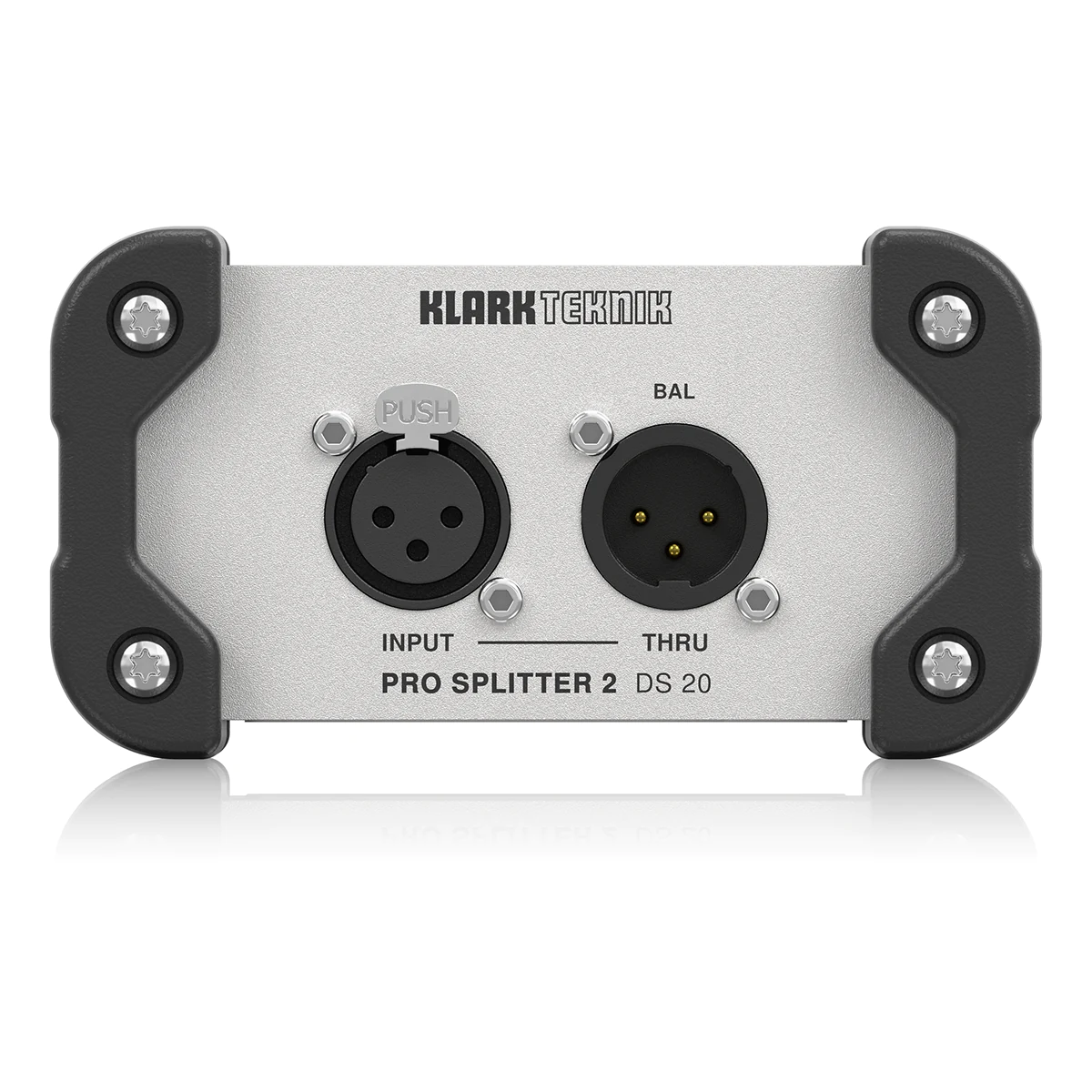

Klark Teknik DS 20 Splitter Audio Pasif 1 Input 2 output
Klark Teknik DS 20 Splitter Audio Pasif 1 Input 2 output - Image 2
Klark Teknik DS 20 Splitter Audio Pasif 1 Input 2 output - Image 3

Klark Teknik DS 20 Splitter Audio Pasif 1 Input 2 output

Passive 1-In/2-Out Signal Splitter with Midas Transformer and Extended Dynamic Range

Chat Penjual
Category: Brand:
Klark Teknik
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

Product Features

  • Line level splitter sends single input signal to 2 outputs
  • Custom-built Midas transformer for highest signal integrity
  • High headroom design offers superior sound quality
  • Passive design does not require any power supply
  • High quality Neutrik* XLR connectors
  • Earth Lift switches for each output eliminates ground loop problems
  • Fully transformer-isolated design ensures electrical separation
  • Ultra-low noise and ultra-linear system for highest signal integrity
  • Aluminium extrusion casing with protective rubber corners
  • Compact and rugged design
  • Designed and engineered in the U.K.



Spesifikasi

Audio Connections
Input 1 x XLR, balanced
Input impedance 1.9 kΩ, balanced
Thru  1 x XLR, balanced
Output A/B 2 x XLR, balanced
System
Frequency response 30 Hz to 45 kHz, ±3 dB
Dynamic range  +124 dB
THD+N < 0.03 % @ 1 kHz, +4 dBu
S/N ratio > 100 dB @ +4 dBu
Dimension / Weight
Dimensions (W x D x H)  118 x 120 x 64 mm

(4.6 x 4.7 x 2.5″)
Weight 0.6 kg (1.3 lbs)

Additional information

Konektor Output
Channel Input
Channel output
