Klark Teknik DI 20P DI BOX Pasif 2 Channel
Passive Stereo DI Box with Midas Transformer and Extended Dynamic Range
Description
Product Features
- Passive stereo DI Box for general purpose applications
- Custom-built Midas transformer for highest signal integrity
- High headroom design offers superior sound quality
- Passive design does not require any power supply
- Stereo inputs on 1/4″ TS connectors
- Through connectors on 1/4″ TS connectors
- Switchable input attenuation for guitar, line and speaker levels
- High quality Neutrik* XLR connectors
- Earth Lift switch eliminates ground loop problems
- Fully transformer-isolated design ensures electrical separation
- Ultra-low noise and ultra-linear system for highest signal integrity
- Aluminium extrusion casing with protective rubber corners
- Compact and rugged design
- Designed and engineered in the U.K.
Spesifikasi
Inputs

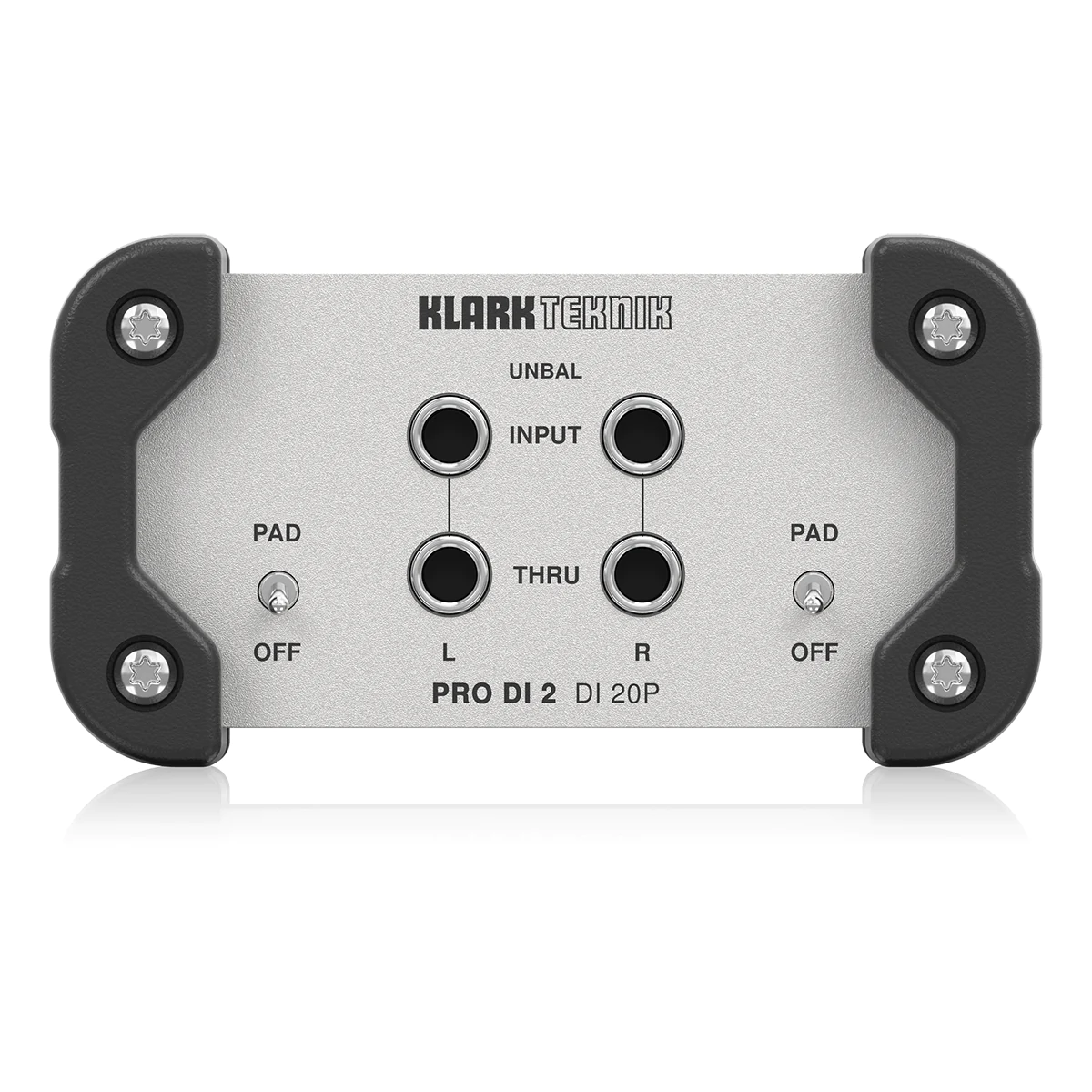

| Connectors | 2 x ¼” TS unbalanced |
| Impedance | 10 kΩ/PAD , 500 kΩ/off |
| Max. input level | 30 dBu @ 1 kHz |
Outputs

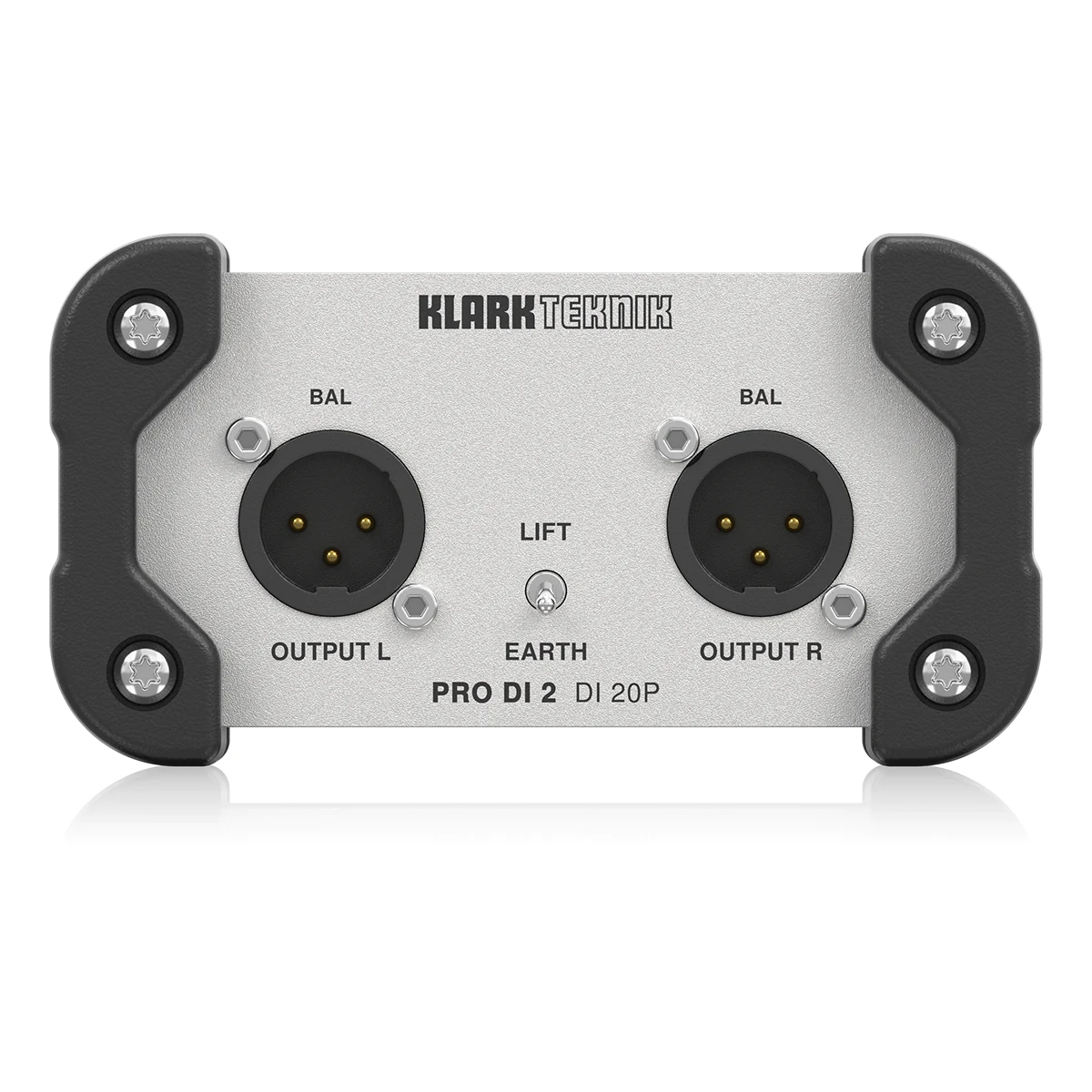

| Connector | 2 x XLR, balanced |
| Impedance | 150 Ω, 1 kHz |
| Max. output level | 8.5 dBu @ 1 kHz |
System
| Frequency response | 20 Hz to 30 kHz (± 1 dB) |
| THD + N (distortion) | 0.01% @ 1 kHz, 0 dBu |
| Signal-to-noise ratio | 108 dBu |
| Input pad | -15 dB |
| Power requirement | Passive |
Physical
| Dimensions (WxDxH) | 118 x 112 x 64 mm
(4.6 x 4.4 x 2.5″) |
| Weight | 0.54 kg (1.2 lbs) |
