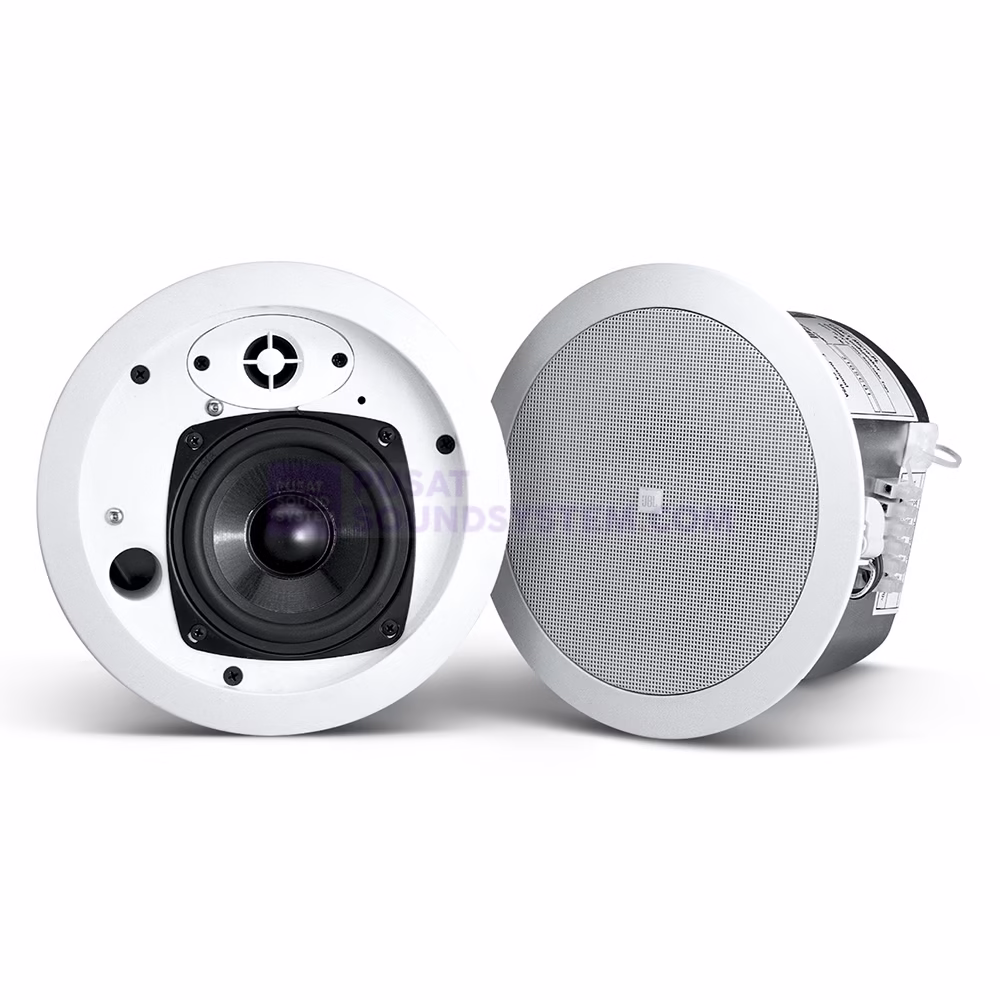

JBL Control 24 CT Speaker Ceiling Pasif 4.5 Inch 2 Way 16 Ohm 30 Watt (High Impedance)
Background/ Foreground Ceiling Loudspeakers
Description
The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
These speakers feature multi-tap transformers for use with 70-volt or 100-volt audio systems, and 16 ohm nominal impedance allows plenty of power distribution options as well. The 4″ woofer with butyl rubber surround and 3/4″ titanium tweeter dish out clear sound and are built to last.
Features
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Product highlights:
- coaxially mounted 4″ woofer with butyl rubber surround and 3/4″ titanium tweeter
- handles up to 80 watts continuous program power
- frequency response: 80-20,000 Hz
- maximum SPL: 102 dB
- sensitivity: 86 dB
- 16 ohm nominal impedance

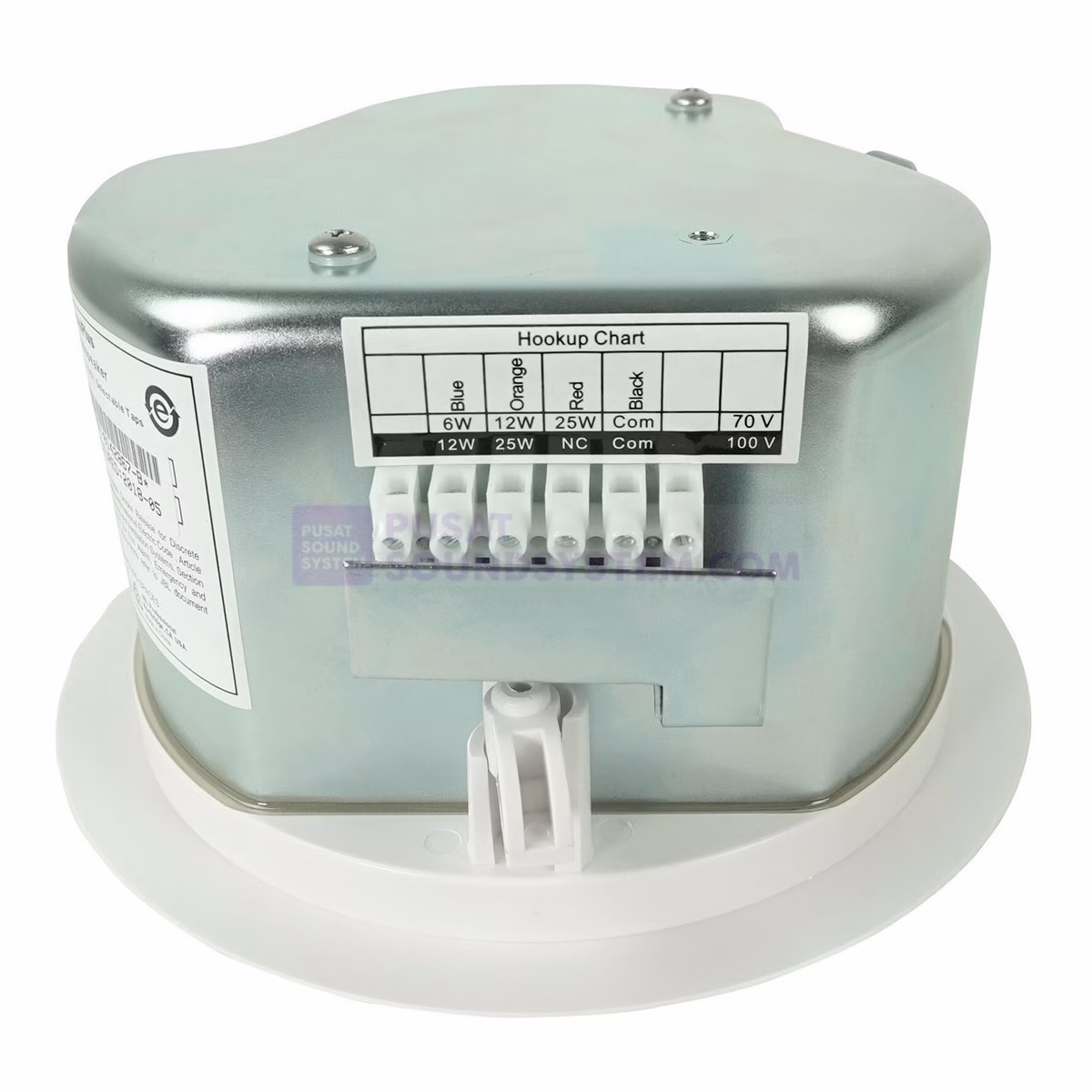

- multi-tap transformer for 70V or 100V systems
- does not have 8-ohm bypass, must be used with 70/100-volt amplifiers
- formed steel back enclosure
- step-by-step mounting instructions included
- 6-5/8″ cutout diameter
- 7-1/4″ mounting depth
- weight: 8 lbs.
- MFR # Control 24CT
