Description
Percaya Transparansi
Dengan Speaker Monitor Referensi JBL 104, mendengar kejelasan dan detail, tanpa warna. Seri 104 mengantarkan high yang segar dan bass yang penuh seperti yang diinginkan. Dioptimalkan untuk penempatan desktop, dengan performa low-frequency yang netral. Dan response off-axis yang halus berarti bisa memonitor dengan keyakinan dalam sweet spot yang luas.
Performa Profesional, Disesuaikan dengan Ukuran
Studio rekaman dan artis touring terbaik dunia mengandalkan speaker monitor JBL Professional untuk mengantarkan ketepatan dan performa yang tidak tertandingi. Mengoptimalkan teknologi itu dalam faktor bentuk paling kecil. Desain coaxial driver baru yang inovatif Speaker Monitor Referensi 104 menonjolkan high-frequency driver selaras dengan woofer cone yang berkontur dengan tepat untuk mengantarkan response yang akurat, detail yang luar biasa dan performa off-axis yang impresif, untuk presentasi paling netral dan akurat, desktop ke desktop, ruangan ke ruangan. Low-frequency port berkontur dengan tepat di kabinet bekerja dengan driver untuk memberikan bass yang akurat di semua level mendengarkan. Dan dengan tambahan low frequency hingga 60 Hz, terkesan dengan bass yang didapat, bahkan tanpa subwoofer.
Lantang dan Jelas
Speaker monitor Referensi JBL 104 menawarkan performa tingkat tinggi, bahkan di level playback yang lantang. Dicapai melalui amplifikasi Class D 60-watt yang bersih dan terintegrasi yang mendistribusikan 30 watt per speaker. Dan dengan desain yang efisien, speaker Seri One bisa didorong ke 104db SPL (peak), tanpa distorsi yang ditemukan di speaker monitor lain di kelasnya.
Features
- Host and extension speaker sold as one set
- Coaxial 4.5-inch (118 mm) contoured LF driver with integrated 7.5-inch (19 mm) soft-dome HF driver
- Contoured low-frequency port
- Integrated 60-watt Class D power amplifier; 30 watts distributed to each speaker
- Acoustically optimized for desktop placement
- Three sets of inputs allow connection with professional equipment, personal music players and consumer-level devices

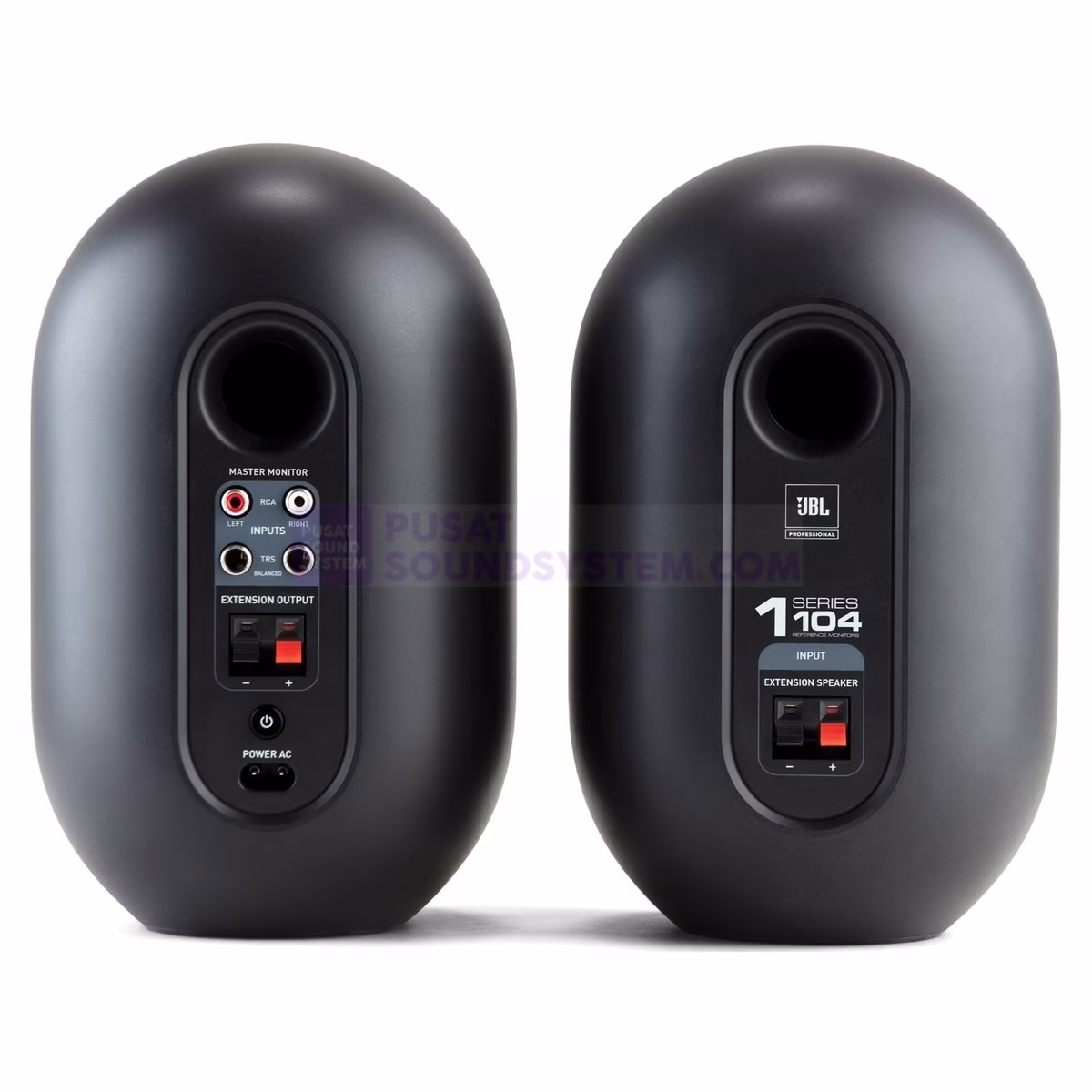

- Host monitor includes electronics for the extension monitor, minimizing wiring and clutter
- Front-panel volume control
- Front-panel headphone jack with speaker mute feature
- Integrated power supply
Spesifikasi
| LF Driver | 4.5 in (118 mm) |
| HF Driver | 0.75 in (19 mm), soft dome |
| Crossover | 1725 Hz, 1st order |
| Input Sensitivity | 87 dB / 1 m |
| Power Amp | 60 W (30 W each speaker), Class D |
| Maximum Continuous SPL @ 1 meter | 89 dB |
| Maximum Peak SPL | 102 dB |
| Maximum SPL (1m) | 104 dB (momentary peak) |
| MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) | +6 dBV / +20.3 dBu |
| Frequency Response (±3 dB) | 60 Hz – 20 kHz |
| SYSTEM DISTORTION CRITERIA | <10% THD at maximum output with full compressor / limiter engagement |
| ELECTRICAL DISTORTION CRITERIA | <0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output |
| Signal to Noise Ratio | 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF |
| Coverage Angle | 120º x 120º |
| Dimensions (H x W x D) | 9.72 in x 6.02 in x 4.88 in (247 mm x 153 mm x 124 mm) |
| ENCLOSURE TYPE | Ported |
| Enclosure | ABS with metal grille |
| ENCLOSURE FINISH | Matte black acrylic paint |
| Audio Output Connectors | 1 x 3.5 mm (1/8″) stereo headphone with auto speaker mute |
| Input Connectors | 2 x 1/4-inch (6.5 mm) balanced (+4 dBu); 2 x RCA (-10 dBV); 1 x 1/8-inch (3.5 mm) unbalanced (-10 dBV) |
| AC INPUT VOLTAGE | 100 – 240 VAC (± 10%), 50/60 Hz |
| Current Draw | 85 watts |
| LF Driver Power Handling | 30W, Class D |
| Maximum Continuous SPL | 92 dB |
| Net Weight (each) | Host Monitor = 4.54 lb (2.06 kg); Extension Monitor = 3.81 lb (1.73 kg) |
