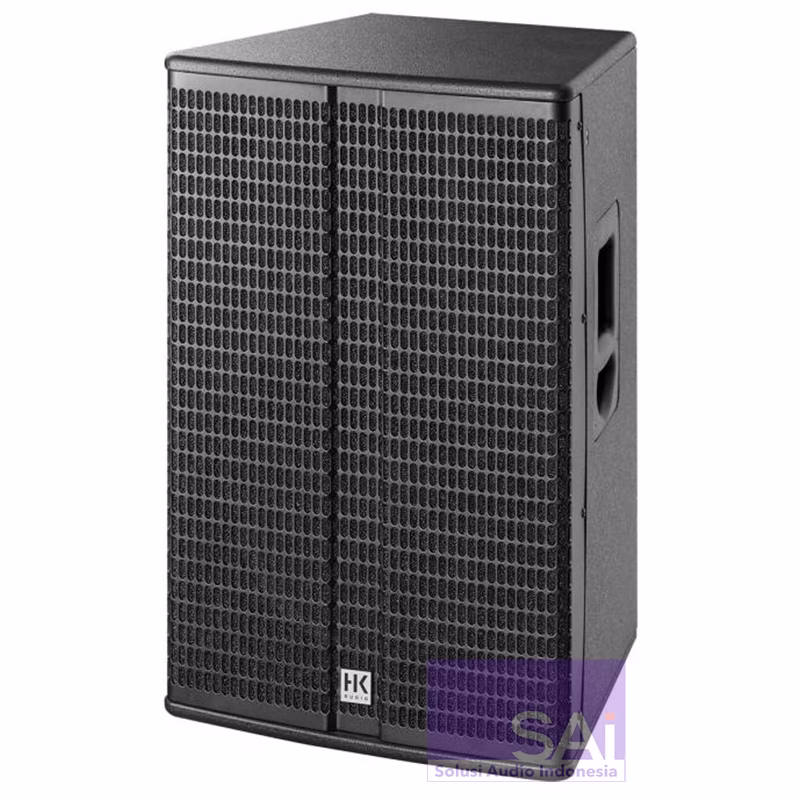

HK Audio L3 115 FA 15″ Full Range Active PA Speaker
Powered, 1000W , 15”/ 1”, 137 dB max. SPL, plenty of sound-shaping options with four EQ presets — Bass Boost, Flat (LF), Flat (MHF) and Contour
Description
The L3 115 FA is part of HK Audio’s Linear 3 series, delivering phenomenal sound with effortless operation. Combining a powerful 1200W bi-amped class-D design with high-performance drivers, the L3 115 FA packs a serious punch. This active 15”/1” fullrange mid/high unit delivers 1,200 watts of class D power, and functions either as a standalone speaker or in combination with subwoofers from the LINEAR SUB series. Four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – allow the LINEAR 3 112 FA to deliver outstanding performance and easy handling in any situation.
Designed to go big
Power isn’t everything, but it definitely helps. Combining HK’s incredible 1200W class-D power amp design with excellent sensitivity, the L3 115 FA is capable of producing a maximum SPL of up to 135dB. Perfect for large audiences, a Linear 3 PA system is the perfect choice for both portable and installed setups.
If you want to build impressive speaker stacks, simply combine your L3 115 FAs with HK Audio’s Linear series active subwoofers. Thanks to precision-engineering, intelligent designs, and class-leading DSP, these high-end speakers produce high-end sound no matter what stage you’re on. Stacked or stand-alone, Linear 3 loudspeakers mean business…
Adapt your sound with ease
Tired of frantically searching for the sweet spot on your PA’s controls? The L3 115 FA puts an end to all of that. Your Linear 3 system’s sound is easy to control and shape, even when you’re on stage. Four different EQ presets (Bass Boost, Flat – LF, Flat – MHF, and Contour) give you quick and easy access to your speaker’s voicing. There’s no need for sophisticated audio skills, the built-in advanced DSP technology delivers first-class high-definition sound every single time.
HK Audio L3 115 FA Features
- Packs the muscular bi-amped punch of a 1,200 W class D power amp
- Beautifully balanced, high-definition audio
- 135 dB SPL—that”s plenty of sound pressure for audiences of up to 500 (with the suitable L SUB 1500 A or L SUB 1800 A subwoofers)
- No need for sophisticated audio skills: advanced DSP technology serves up top-notch sound every time
- Intelligent Multiband Limiter ensures tonal integrity at every volume level
- FIR crossover filtering for transparent midrange
- Plenty of sound-shaping options with four EQ presets—Bass Boost, Flat (LF), Flat (MHF) and Contour
- Very low total harmonic distortion, so no listening fatigue
- System”s sound is easy to control and shape, even from the stage
- On-target, directional PA aiming to reduce reflections off walls and ceilings
Additional information
| Warna | Hitam |
|---|
Spesifikasi
| Max SPL peak | 135 dB half space (@ 10% THD) |
| Frequency response +/- 3 dB | 58 Hz – 16 kHz |
| Frequency response -10 dB | 49 Hz – 18 kHz |
| Power Rating | 1200 W |
| Amplifier | Class D – bi-amped |
| Active protection circuits | Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters |
| Low/Mid Speaker | 1x 15″ |
| HF Driver | 1″ |
| Horn characteristics | 90° x 55° CD horn |
| Cut-off Frequency active | 2.3 kHz FIR X-Over with 72 dB/oct. |

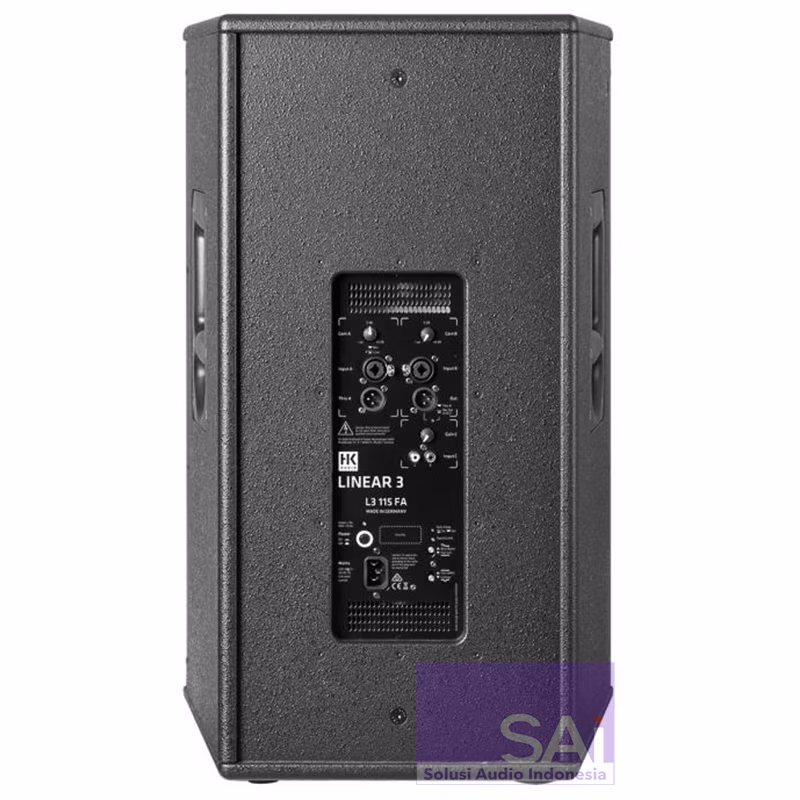

| Connections | 2x XLR Combo In bal., 1x Stereo RCA In, 2 x XLR Thru bal., 1x XLR Mix Out |
| Input Sensitivity | +4 dBu @ Gain center-notched |
| Sensitivity switch | Line/Mic Input A |
| Equalizer | 2 EQ switches: Bass Boost/Flat & Flat/Contour |
| Pole mount | HK Audio DuoTilt 3/7 |
| Rigging points | 4x M8 |
| Handles | 2x HK Audio MultiGrip |
| Enclosure | 16 mm MDF |
| Grille | 2 mm metal grille backed with black acoustic foam |
| Finish | Acrylic enamel, black |
| Optional accessories | Cover, Stereo Pole Add-on M20, Speaker Stand Add-on, Tilt bracket (TB-N, TB-NQ), Attachment point (AP-8), Tilt-Unit |
| Dimensions (WxHxD) | 44 x 69 x 44,5 cm |
| Weight | 27,9 kg / 61,5 lbs. |
