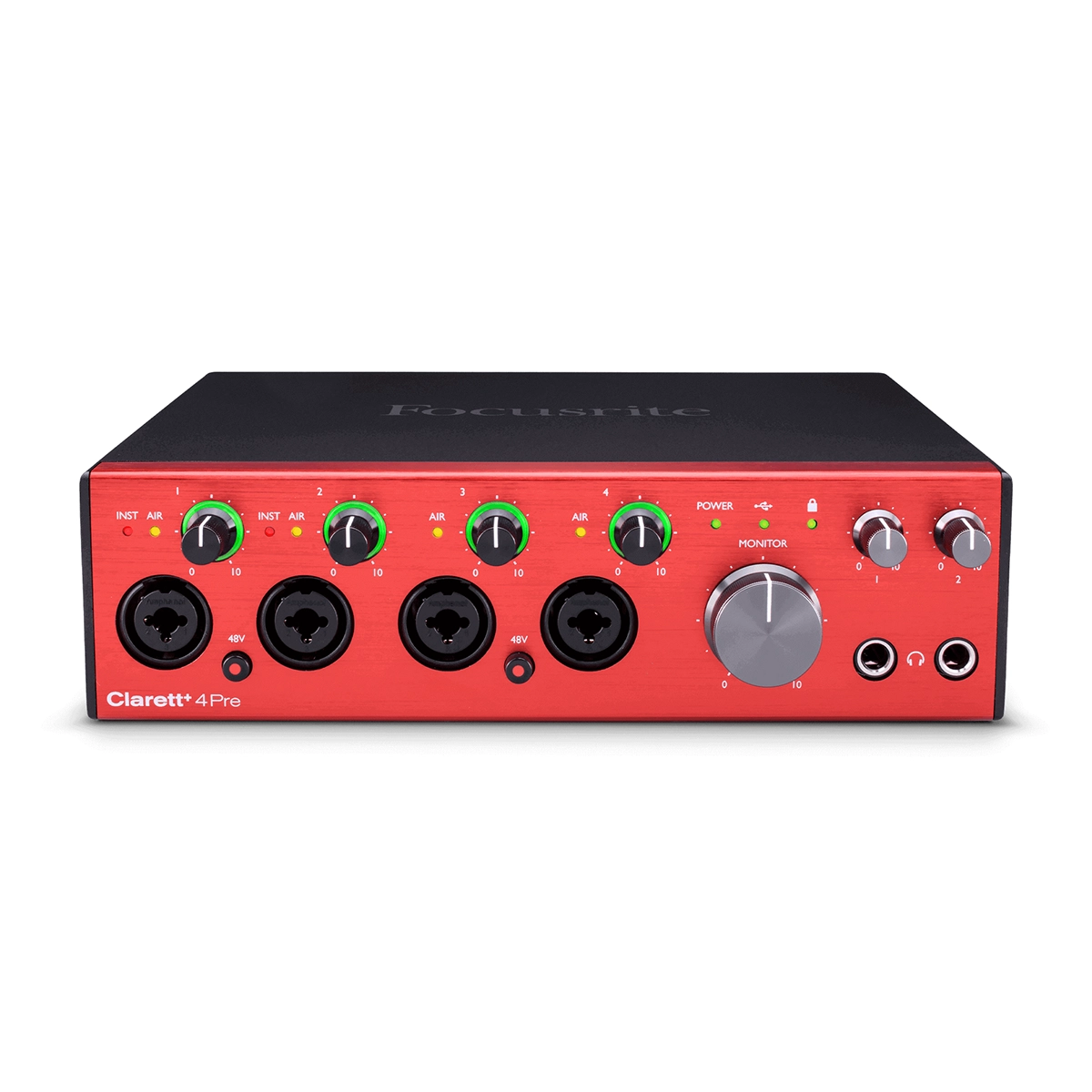

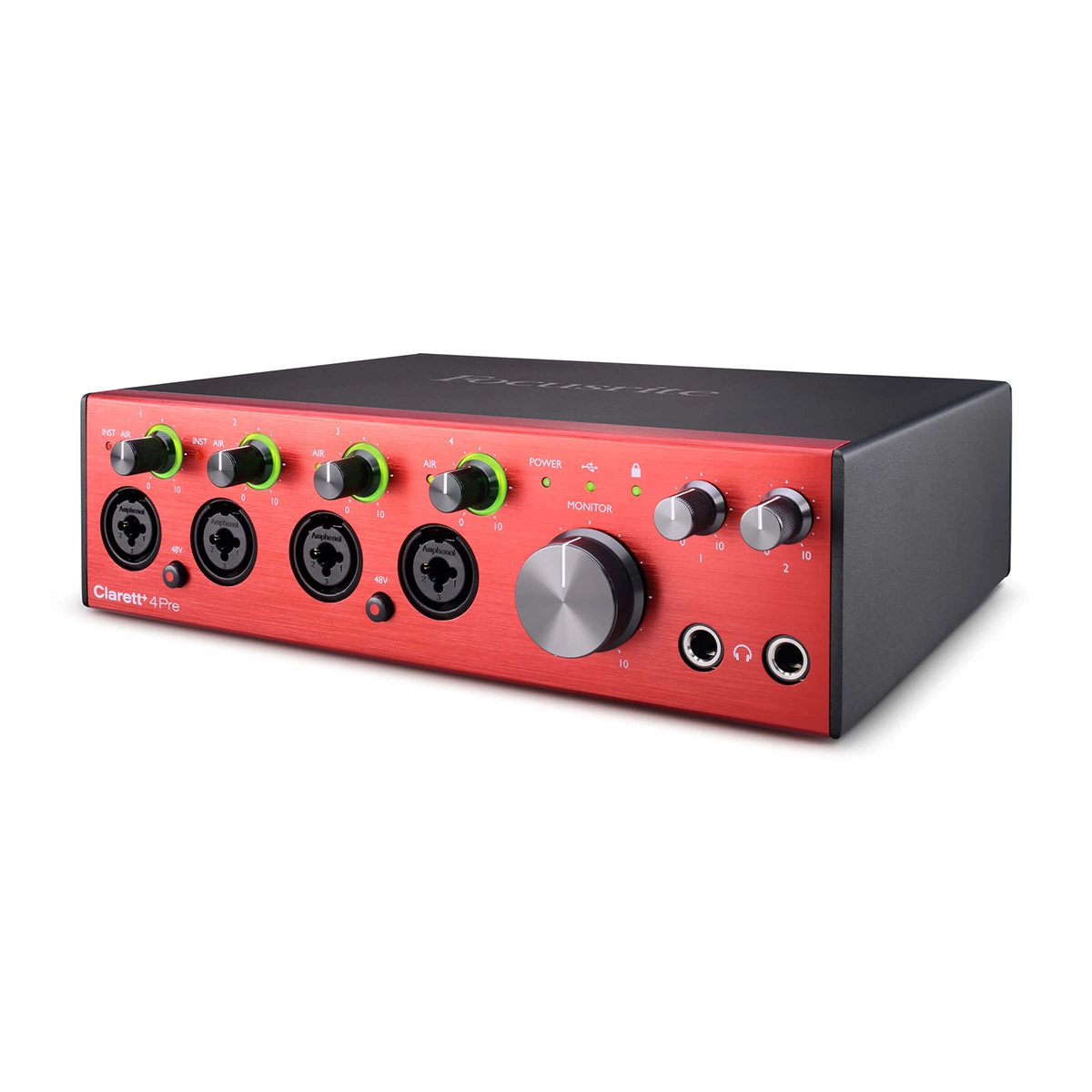

Focusrite Clarett+ 4Pre USB 18×8 Audio Interface
Versatile and sonically true 18-in/8-out audio interface for the complete creator
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Clarett+ 4Pre is the compact, flexible interface designed to bring pure analogue sound to all your instruments.
The four Clarett preamps have been meticulously engineered to bring authentic large-format studio sound to any recording space. All-analogue Air mode, with impedance switching, recreates the legendary effect of Focusrite’s ISA mic pres, adding clarity and presence to any recording. Two high-impedance JFET instrument inputs preserve your guitar’s true character and feel just like an amp. Independent A-D and D-A converters offer ultra-low distortion and up to 124dB dynamic range. Four balanced outputs are hum-free for pristine monitoring, mixing and mastering with studio monitors. Eight input channels of ADAT allow 4Pre to expand for any recording session. And it comes with some of the best-loved tools in the business – with plugins from legendary Auto-Tune® creators Antares®, Brainworx®, Softube®, Landr, XLN Audio®, Relab and more.
Features
- Eight inputs, four outputs; four Clarett mic pres, two Hi-Z JFET instrument inputs, four fixed line inputs, four balanced outputs and eight input channels over ADAT.
- All-analogue Air mode, with impedance switching, adds presence and clarity to your recordings, recreating the legendary character of the ISA.
- Low distortion, 24-bit/192 kHz converters with up to 124dB dynamic range deliver incredible sound quality.
- Two powerful, flat-response headphone outputs make mixing easy in any environment, with any headphones.
- USB-C connectivity, compatible with MacOS, Windows and iPadOS.
- Includes Ableton Live Lite, three months of Pro Tools Artist, and the Hitmaker Expansion, with plugins from Antares, Softube, Landr, XLN Audio and more.
- Three-year warranty and award-winning customer support for life.
Specifications
Mic inputs
- Frequency Response 20-20kHz:± < 0.03dB
- Frequency Response 20-35kHz:± < 0.15dB
- Dynamic Range (min gain):118dB
- THD+N (-1dBFS, +20dB gain):-110dB
- Noise EIN:-129dBu
- Max input level:18dBu
- Gain range:+57dB
Instrument inputs
- Frequency Response 20-20kHz:± < 0.04dB
- Frequency Response 20-35kHz:± < 0.15dB
- Dynamic Range:116dB
- THD+N (-1dBFS, min gain):-96.5dB
- Max input level:15dBu
- Gain range:+57dB
Line inputs (variable)
- Frequency Response 20-20kHz:± < 0.05dB
- Frequency Response 20-35kHz:± < 0.15dB
- Dynamic Range (min gain):118dB
- THD+N (-1dBFS, min gain):-100dB
- Max input level:26dBu
- Gain range:+57dB
Line & monitor outputs
- Frequency Response 20-20kHz:± < 0.02dB
- Frequency Response 20-35kHz:± < 0.02dB
- Dynamic Range:124dB
- Max Output level:18dBu
- THD+N:-106dB
Line inputs (fixed)
- Frequency Response 20-20kHz:± < 0.05dB
- Frequency Response 20-35kHz:± < 0.15dB
- Dynamic Range:118dB
- THD+N (-1dBFS):-100dB
- Max input level:+18dBu
Headphone outputs
- Frequency Response 20-20kHz:<0.06db< span>
- Frequency Response 20-35kHz:<0.07db< span>
- Dynamic Range:118dB
- THD+N:-104dB
- Max Output level:16dBu
Spesifikasi
| Form Factor | Tabletop |
| Display | None |
| Channels of I/O | Analog: 8 Inputs / 6 Outputs Digital: 10 Inputs / 2 Outputs |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Number of Mic Preamps | 4 |
| Input Level Adjustment | 4 x Knob |
| Solo/Mute | None |
| Pad | None |
| High-Pass Filter | None |
| Expansion Slots | None |
Connectivity
| Analog Audio I/O | 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input (Front Panel) 4 x 1/4″ TRS Balanced Line Input 4 x 1/4″ TRS Balanced Line Output 2 x 1/4″ TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power | +48 V, Selectable On/Off (on 4 Channels) |
| Digital Audio I/O | 1 x TOSLINK Optical ADAT Input (S/MUX Support) 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 1 x USB Type-C (USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
| Memory Card Slot | None |
Performance
| Frequency Response | Mic, Line, Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB (Min Gain) 20 Hz to 35 kHz ±0.2 dB (Min Gain) |
| Gain/Trim Range | Mic/Line/Hi-Z Inputs: 57 dB |
| Max Input Level | Mic Inputs: +18 dBu Combo XLR-1/4″ Line Inputs: +26 dBu (Min Gain) 1/4″ Line Inputs: +18 dBu (Min Gain) Hi-Z Inputs: +14 dBu (Min Gain) |
| Max Output Level | Line Outputs: +18 dBu at 0 dBFS (Balanced) Headphone Outputs: +15 dBu (100-Ohm Load) |
| Dynamic Range | Mic Inputs: 118 dB Line Inputs: 118 dB Hi-Z Inputs: 117 dB Line Outputs: 118 dB Headphone Outputs: 115 dBA |
| THD+N | Mic Inputs: 0.0009% Line Inputs: 0.001% Hi-Z Inputs: 0.001% Line Outputs: 0.0006% Headphone Outputs: 0.0003% |
| EIN | Mic Inputs: < -128 dBu A-Weighted |
Digital Audio
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit (AD/DA Conversion) |
| Sync Sources | ADAT, Internal, S/PDIF |
Compatibility
| OS Compatibility | macOS 10.11 or Later macOS 11 Windows 7 or Later |
| Included Software | Ableton Live Lite |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Supported Drivers/API & Plug-Ins | Proprietary |
| Mobile Device Compatibility | iPad iPhone iPod Touch |
| Required Hardware | Available Thunderbolt 3 Port, USB 2.0 Port, or USB 3.0 / 3.1 Gen 1 Port USB Cable (Included) |
| Internet Connection | Required for Registration, Software/Driver Download |
Power
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 VDC at 2 A, Center-Positive (Included) |
Physical
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 8.74 x 7.56 x 2.5″ / 22.2 x 19.2 x 6.3 cm |
| Weight | 3.0 lb / 1.4 kg |
Packaging Info
| Package Weight | 5.61 lb |
| Box Dimensions (LxWxH) | 11.6 x 11.35 x 5.3″ |
