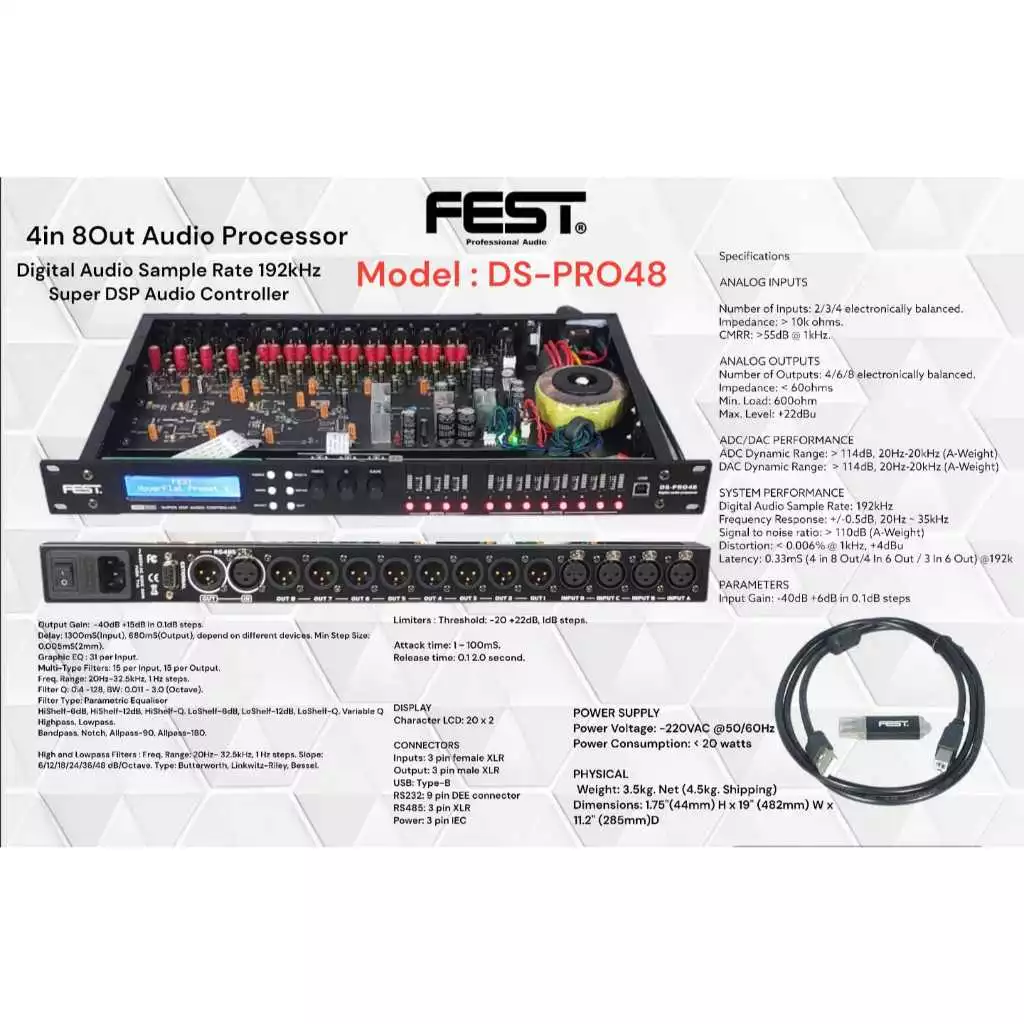

Fest Audio DS-PRO48 DLMS Speaker Mangement 4×8 (4 Input 8 Output)

Description

Number of inputs : 2/3/4 electronically balanced

Impedance : > 10k ohms

CMRR : >55dB @ 1kHz

ANALOG OUTPUTS

Number of outputs : 4/6/8 electronically balanced

Impedance : < 60ohms

Min.Load : 600ohm

Max.LEVEL : +22dBu

ADC/DAC PERFORMANCE

ADC DYNAMIC RANGE : > 114dB, 20Hz-20kHz ( A-WEIGHT )

DAC DYNAMIC RANGE : > 114dB, 20hZ-20kHz ( A-WEIGHT )

SYSTEM PERFORMANCE

Digital Audio Sample Rate : 192kHz

Frequency Response : +/-0.5dB, 20Hz ~ 35kHz

Signal to noise ratio : > 110dB ( A-WEIGHT )

Distortion : < 0.006% @ 1kHz, +4dBu

Latency : 0.33mS ( 4 IN 8 OUT/4 IN 6 OUT /3 IN 6 OUT ) @192k

PARAMETERS

Input Gain : -40dB + 6dB in 0.1dB steps

Output Gain : -40dB + 15dB in 0.1dB steps

Delay : 1300mS ( Input ), 680mS ( Output ), depend on different devices

Min Step Size : 0.005mS( 2mm )

Graphic EQ : 31 per input

Multi-Type Filters : 15 per input, 15 per output

FREQ. Range : 20Hz-322.5kHz, 1 Hz steps

Filter Q : 0.4 -128, BW : 0.011 – 3.0 ( Octave )

Filter Type : Parametric Equaliser

HiShelf-6dB, HiShelf- 12dB, HiSelf-Q. LoShelf-12dB, LoShelf-Q. Variable Q

Highpass,Lowpass

Bnadpass, Notch,Allpass-90, allpass-180

High and Lowpass Filters : Freq. Range: 20Hz~32.5kHz,1Hz steps

Slope : 6/12/18/24/36/48dB/Octave.Type : butterworth, Linkwitz-Riley, Bessel.

Limiters : Threshold : -20 +22dB, IdB steps

Attack Time : 1~100mS

Release Time : 0.12.0 second

Display

Character LCD : 20 x 2

Connector

Inputs : 3 pin female XLR

Outputs : 3 pin male XLR

USB : Type -B

RS232:9 pin DEE connector

RS485 : 3 pin XLR

Power : 3 pin IEC

POWER SUPPLY

Power Voltage : – 220VAC @50/60Hz

Power Consumption : < 20 watts

PHYSICAL

Weight : 3.5kg. Net ( 4.5kg. Shipping )

Dimensions : 1.75″(44mm) H x 19″(482MM) W x 11.2″(285mm) D
