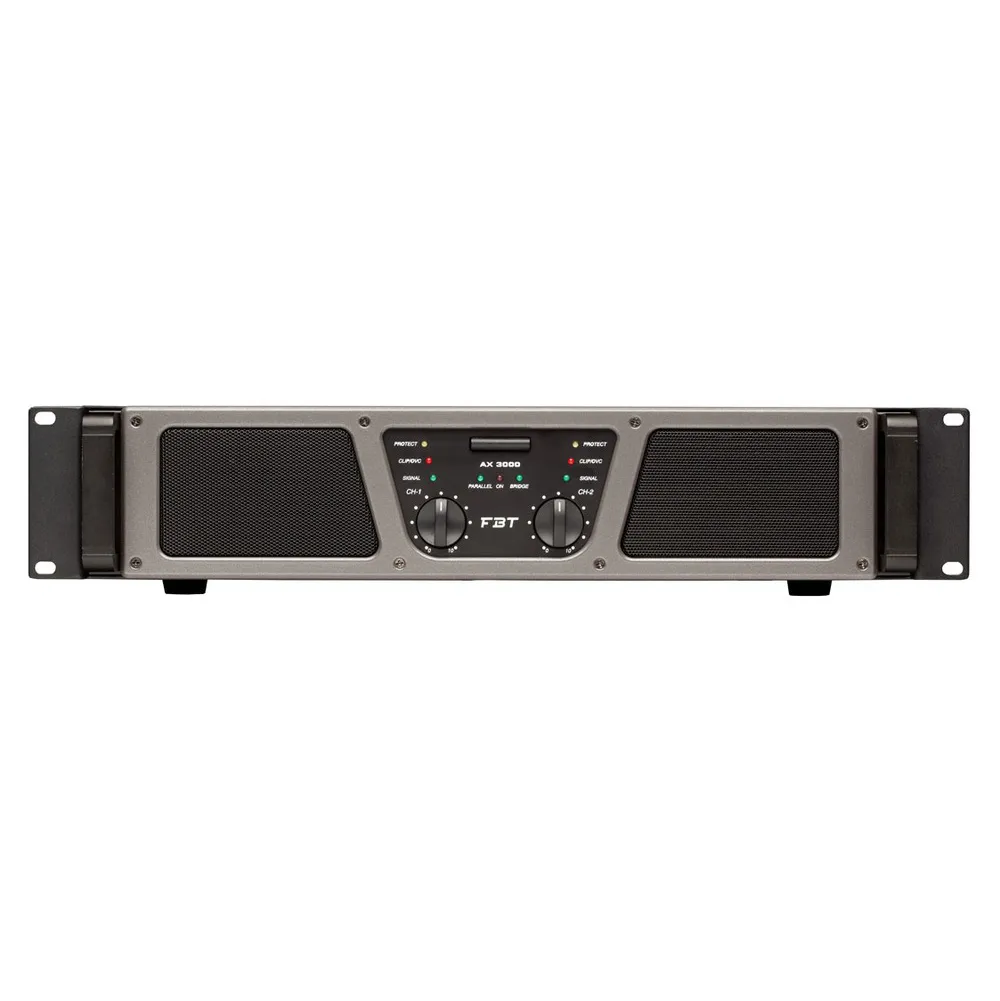

FBT AX 2000 Power Amplifier 2 Channel Class H 650 Watt
2 Ch. Power Amp – 2x1000Wrms (4ohm) – 2000Wrms (8ohm bridge)
Description
The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs.
APPLICATIONS Amplification for live sound reinforcement speaker systems in clubs, discos, piano bar, conference halls, houses of worship, sports arenas, schools, theatres, mobile D.J. use, recording studio monitors, foreground music reproduction, etc.
KEY FEATURES
Both channel driven 8 ohm 1% THD Continous/impulsive: 630/650W
Both channel driven 4 ohm 1% THD Continous/impulsive: 840/1000W
Bridge 8ohm 1% THD: 1680/2000W
Input impedance: 20K balanced
Signal to noise ratio S/N: >100dB
Total harmonic dist. (1kHz-4ohm): <0.03%
Frequency response: 20Hz-40kHz -6dB
Damping Factor: >400
Class: H – 2 step
Maximum power consuption: 2400va
Power supply voltage: 120 or 230 vac 50/60 Hz
Protections: Short circuit / thermal
Connectors: In: XLR/Jack out: Speakon/Binding post
TECHNICAL SPECIFICATIONS
CODE:39696
BOTH CHANNEL DRIVEN 8 OHM 1% THD CONTINOUS/IMPULSIVE:630/650
BOTH CHANNEL DRIVEN 4 OHM 1% THD CONTINOUS/IMPULSIVE:840/1000
BRIDGE 8OHM 1% THD:1680/2000
INPUT IMPEDANCE:20K balanced
SIGNAL TO NOISE RATIO S/N:>100dB
TOTAL HARMONIC DIST. (1KHZ-4OHM):<0.03%
FREQUENCY RESPONSE:20Hz-40kHz -6dB
DAMPING FACTOR:>400
CLASS:H – 2 step
MAXIMUM POWER CONSUPTION:2400va
POWER SUPPLY VOLTAGE:120 or 230 vac 50/60 Hz
PROTECTIONS:Short circuit / thermal
CONNECTORS:In: XLR/Jack out: Speakon/Binding post
NET DIMENSIONS (WXHXD):482x88x452 / 19”x3.5”x17.8”
NET WEIGHT:21/46.3
