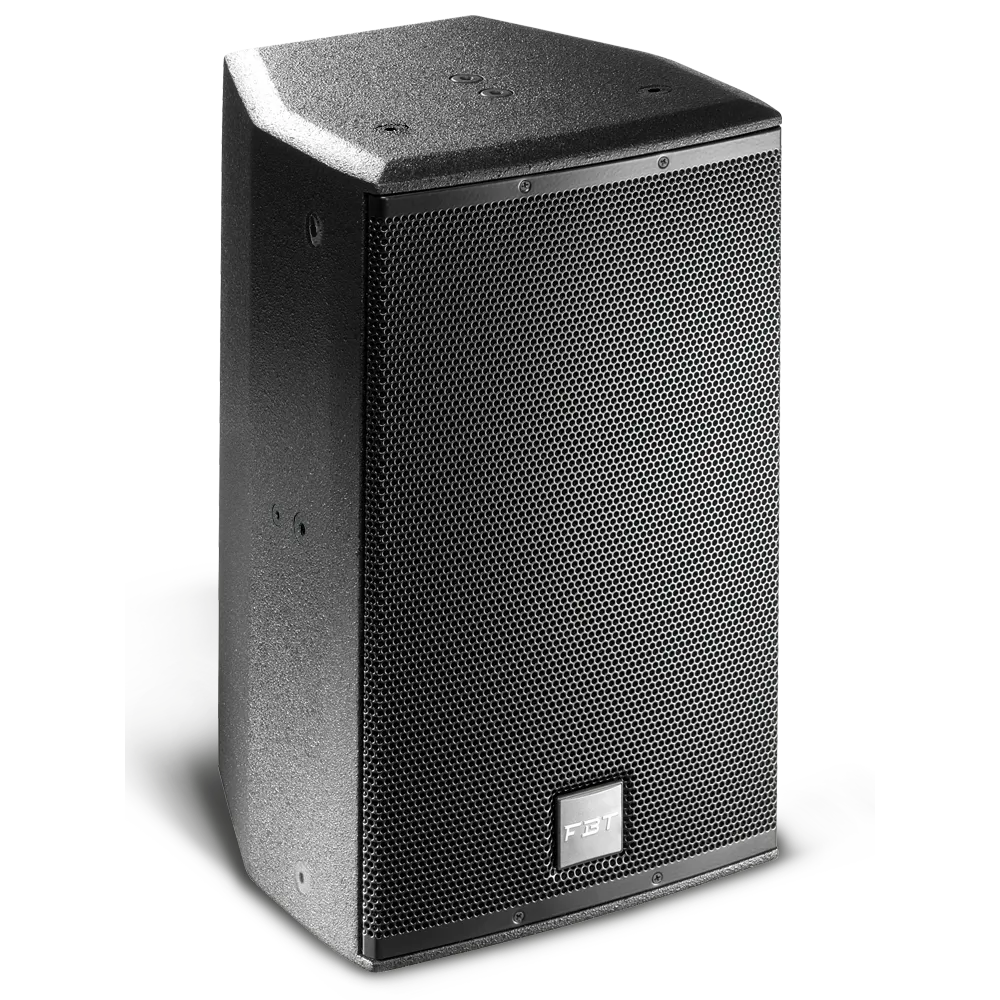

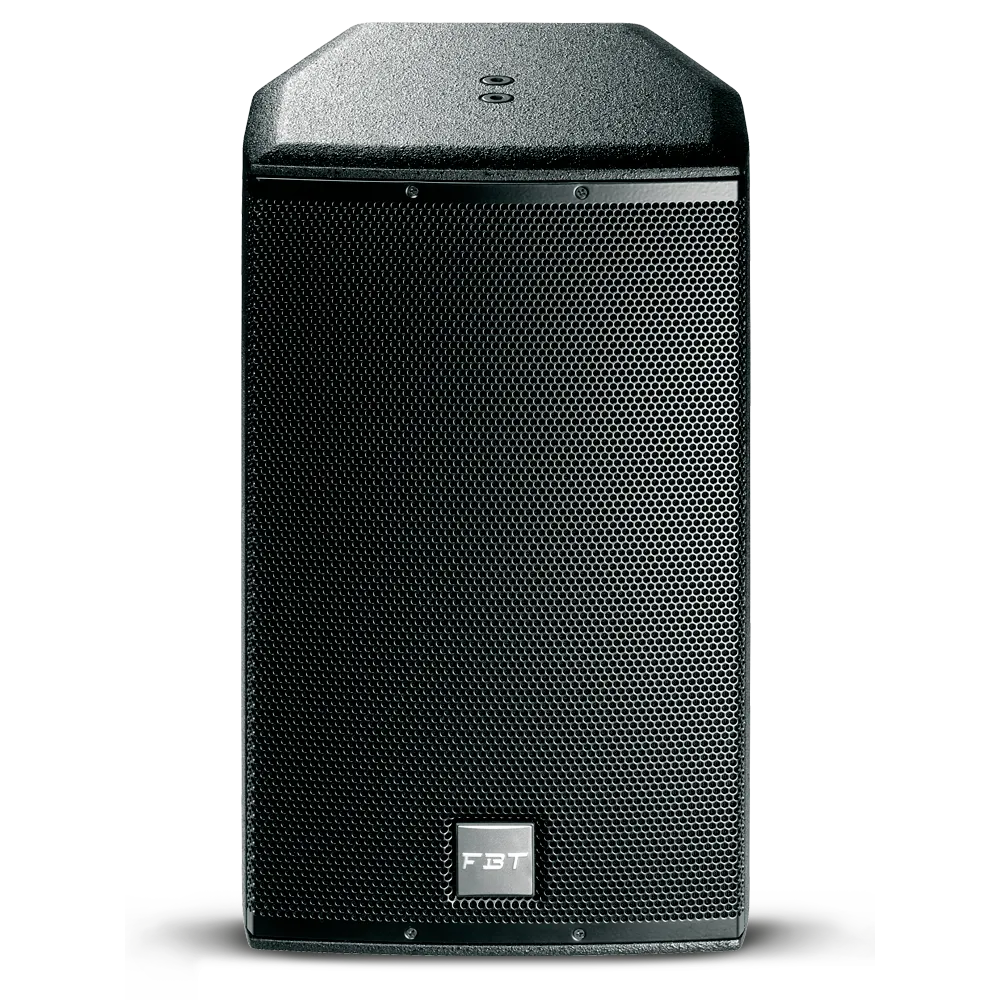

FBT ARCHON 110 Speaker Pasif 10 Inch 2 Way 8 Ohm 1400 Watt
PASSIVE SOUND REINFORCEMENT 700 W / 8 OHM – 129DB SPL
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
The Archon features are:
- Stylish architectural cabinet design
- Acoustically transparent steel grilles with protection cloth
- High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
- Baltic birch plywood cabinets available in black or white extra texture paint
- Choice of different RAL paint colours on order
- Choice of different paint finish: glossy, matt, textured and more, on order
- Custom designed low frequency woofers, made in Italy
- Custom designed high frequency compression drivers, made in Italy
- Rotatable horns for optimal horizontal or vertical sound dispersion angle
- Selectable bi-amp/full range crossover network
- Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
- Possibility to install line transformers for 100V/70V applications
- Possibility to order weatherproof versions for outdoor use
- Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)
- 1 x 10” (2.5” VC) B&C custom made high excursion LF woofer
- 1 x 1” (1.7” VC) B& C custom made HF compression driver
- 1 x 1” FBT rotatable 80° x 50° constant directivity horn
- 2-way, passive sound reinforcement systems
- 15mm (0.6”) baltic birch plywood cabinets
- B&C custom designed high excursion LF woofers
- B&C custom designed HF compression drivers
- Full range / bi-amp crossover networks with protection
- 2 x Neutrik NL-4 speakon connectors
- 1 x 4 Euroblock terminal speaker connector
- 12 x M10 threaded rigging points
- 2 x metal flange threads for U bracket wall mount
- Acoustically transparent steel grille and antidust protection cloth
- Rear pocket handle to ease lifting and installation of the cabinet
- 35mm (1. 3/8”) top hat for speaker stand
- New FBT rotatable logo badge following vertical or horizontal installation
- Optional mounting hardware
- Optional line transformer 200W
Technical Specifications
Code:36329
Configuration:2 way
Recommended amplifier:700 W RMS
Long Term power:350 W
Short term power:1400 W
Nominal impedance:8 ohm
Frequency response:60Hz – 18KHz -6dB
Low Frequency woofer:10 – 2.5 coil inch
High frequency driver:10 – 2.5 coil inch
Sensitivity (@1W/1m):97 dB
Maximum SPL cont/peak:125/129 dB
Dispersion:80°x50° HxV
Crossover Frequency:1.8 passive or active Bi-Amp KHz
Recommended HP filter:45hz – 24dboct
Recommended external filter:Digital Management with presents
Input connector:2 x Speakon NL 4 in & thru 4 x Euroblock
Net Dimension (WxHxD):320x550x325 – 12.59×21.65×12.79 mm/inch
Net Weight:15/33 kg/lb
