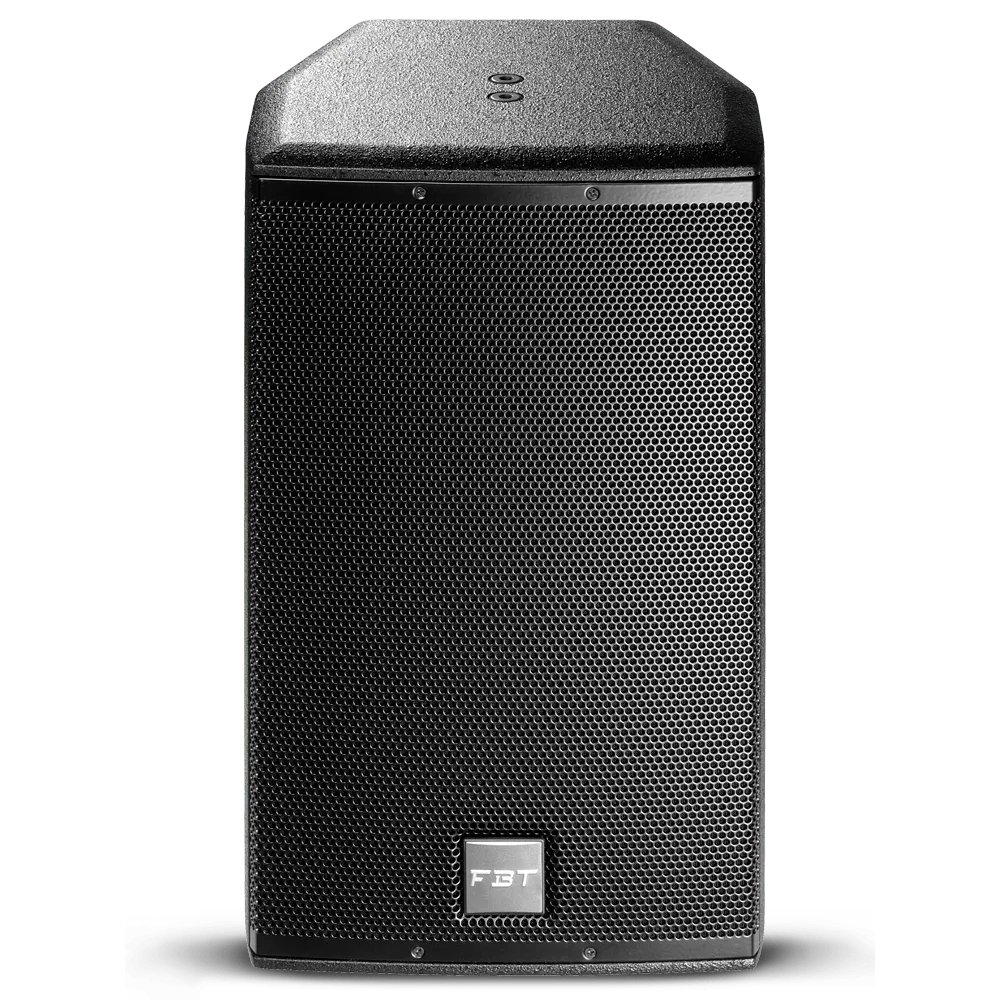

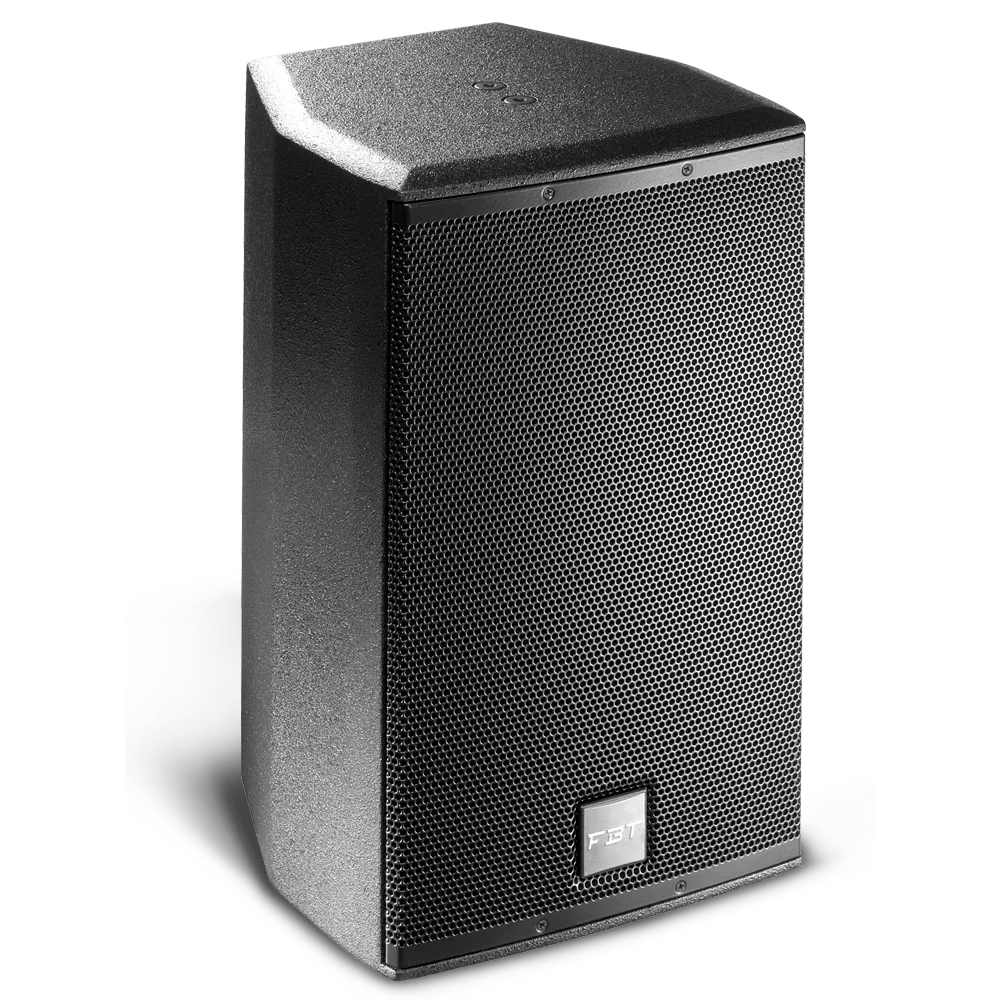

FBT ARCHON 108 Speaker Pasif 8 Inch 2 Way 8 Ohm 700 Watt
PASSIVE SOUND REINFORCEMENT 350W / 8 OHM – 121DB SPL
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
The Archon features are:
- Stylish architectural cabinet design
- Acoustically transparent steel grilles with protection cloth
- High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
- Baltic birch plywood cabinets available in black or white extra texture paint
- Choice of different RAL paint colours on order
- Choice of different paint finish: glossy, matt, textured and more, on order
- Custom designed low frequency woofers, made in Italy
- Custom designed high frequency compression drivers, made in Italy
- Rotatable horns for optimal horizontal or vertical sound dispersion angle
- Selectable bi-amp/full range crossover network
- Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
- Possibility to install line transformers for 100V/70V applications
- Possibility to order weatherproof versions for outdoor use
- Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)
Passive Sound Reinforcement 350W / 8 ohm – 121dB SPL
- 1 x 8” (1.5” VC) custom made LF woofer with
- rubber surround
- 1 x 1.5” HF high-end dome tweeter
- 8 x M5 threaded rigging points
- 2-way, passive sound reinforcement systems
- 12mm (0.47”) baltic birch plywood cabinets
- Custom designed LF woofers, made in Italy
- Custom designed HF dome tweeter, Made in Italy
- Crossover networks equipped with 4 x Euroblock speaker terminals; factory preset for optimal line transformer installation
- Multiple M5 threaded rigging points
- Acoustically transparent steel grille and antidust protection cloth
- New FBT rotatable logo badge following vertical or horizontal installation
- Optional mounting hardware
- Optional line transformer 100W
Technical Specifications
Code:36252
Configuration:2 way
Recommended amplifier:350 W RMS
Long Term power:175 W
Short term power:700 W
Nominal impedance:8 ohm
Frequency response:55Hz – 22KHz -6dB
Low Frequency woofer:8 – 1.5 coil inch
High frequency driver:1.5 – 1.5 coil dome inch
Sensitivity (@1W/1m):92.5 dB
Maximum SPL cont/peak:118/121 dB
Dispersion:90° HxV
Crossover Frequency:2 KHz
Recommended HP filter:40hz – 25dboct
Recommended external filter:
Input connector:4 x Euroblock
Net Dimension (WxHxD):248x411x248 – 9.76×16.18×9.76 mm/inch
Net Weight:6.5/14.3 kg/lb
