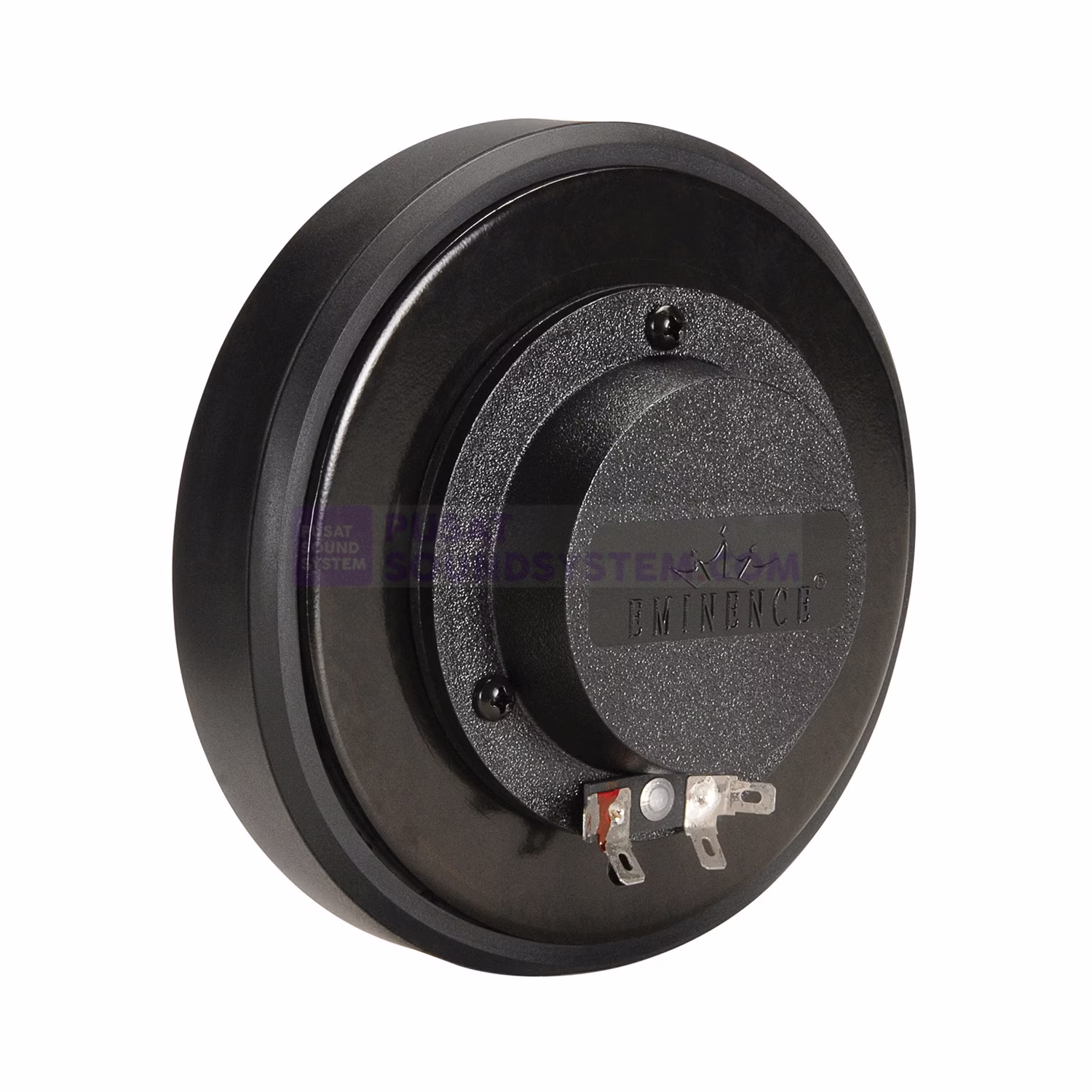

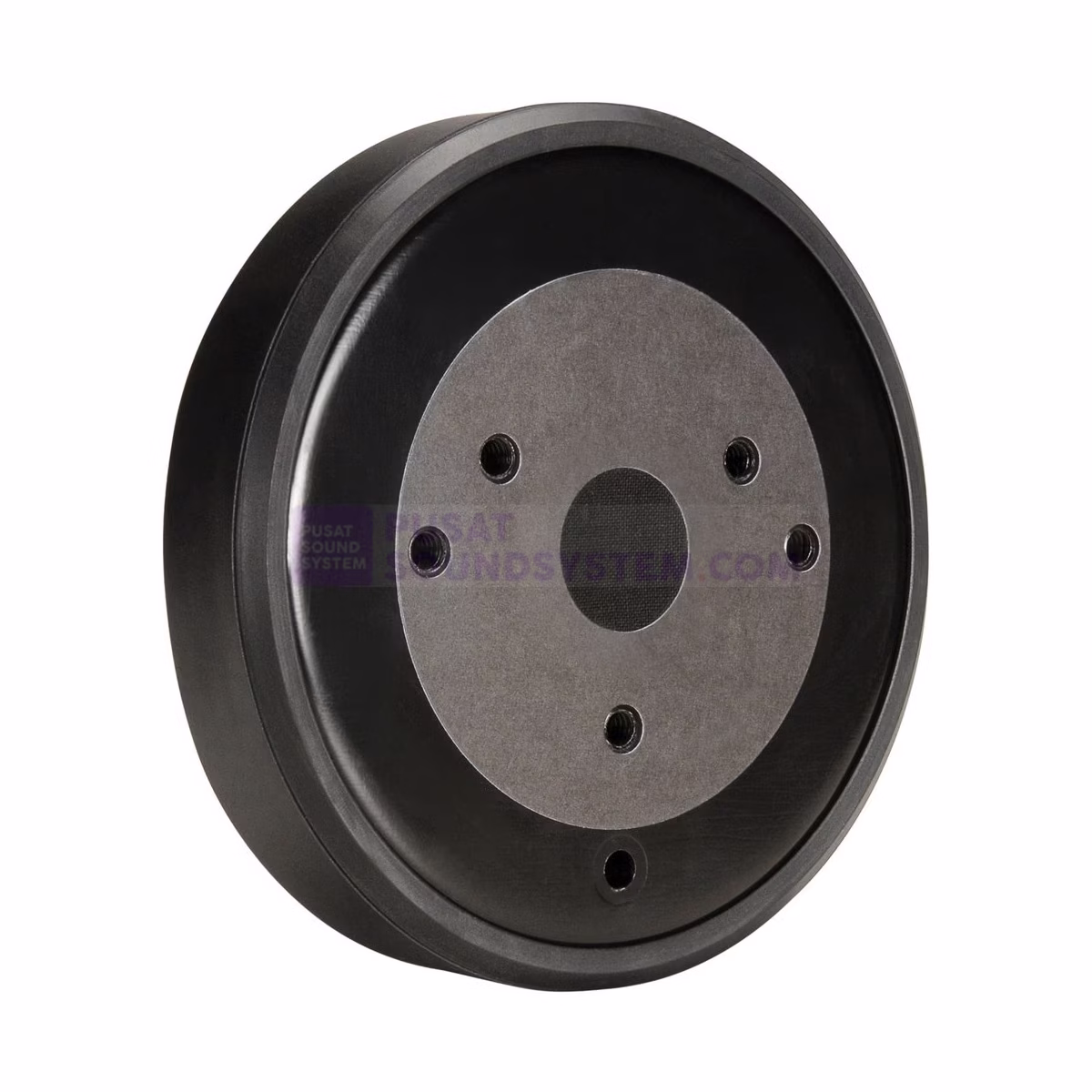

Eminence PSD 2002-16 Speaker Tweeter 1 Inch 16 Ohm 80 Watt
1-Inch Throat Size HF Device
Description
Eminence PSD:2002 1″ exit driver features a Polyimide former and titanium diaphragm. This 16 ohm model is compatible with 2-bolt and 3-bolt horn lenses. Also available in 8 ohms, as well as 1-3/8″-18 TPI screw-on versions.
Specifications: • Power rating: 80 watts (EIA426B specification, 1.6 kHz @ 18 dB) • VCdia: 2″ • Impedance: 16 ohms • Usable frequency response: 1,200-20,000 Hz • Recommended crossover: 1.2 kHz/18 dB or 1.8 kHz/12 dB • Magnet weight: 34 oz. • Fs: 550 Hz • Sensitivity: 105 dB (1W @ 1m on axis horn) • Mounting hole size and B.C.D: 2 x 1/4″-20, 3″ and 3 x M6, 2.25″ • Dimensions: 5.25″ dia. x 2.2″ D • Mfg. #PSD:2002-16.
