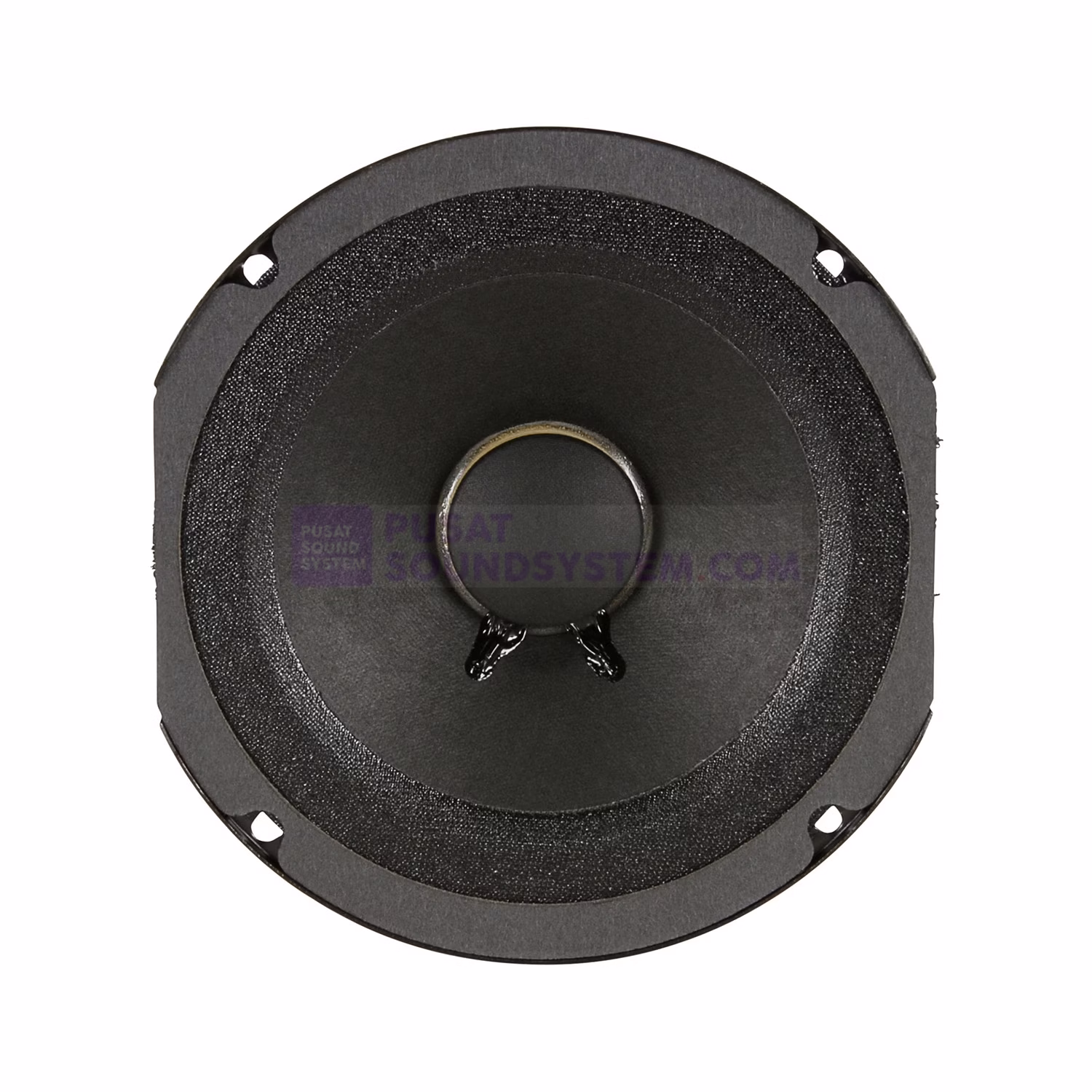

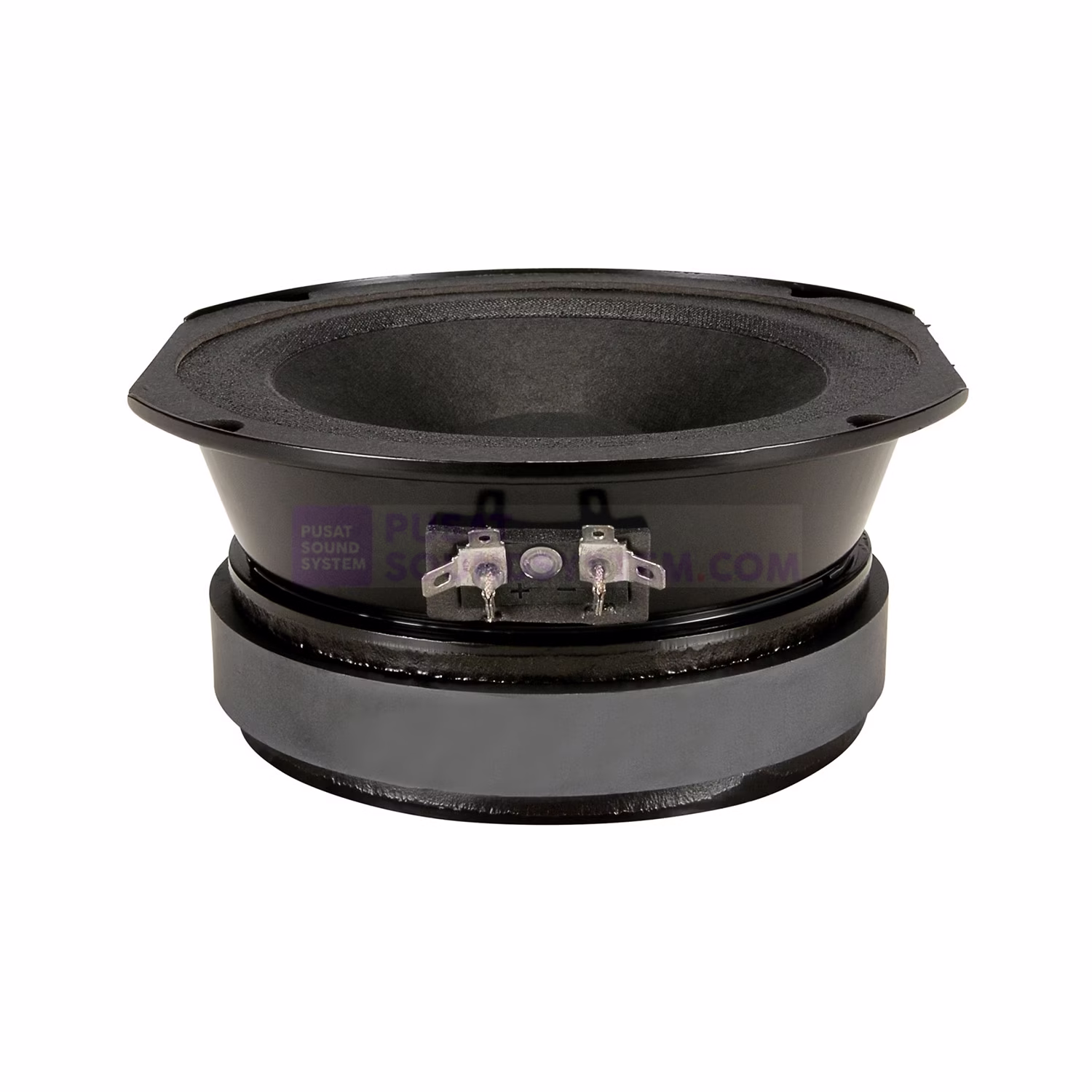

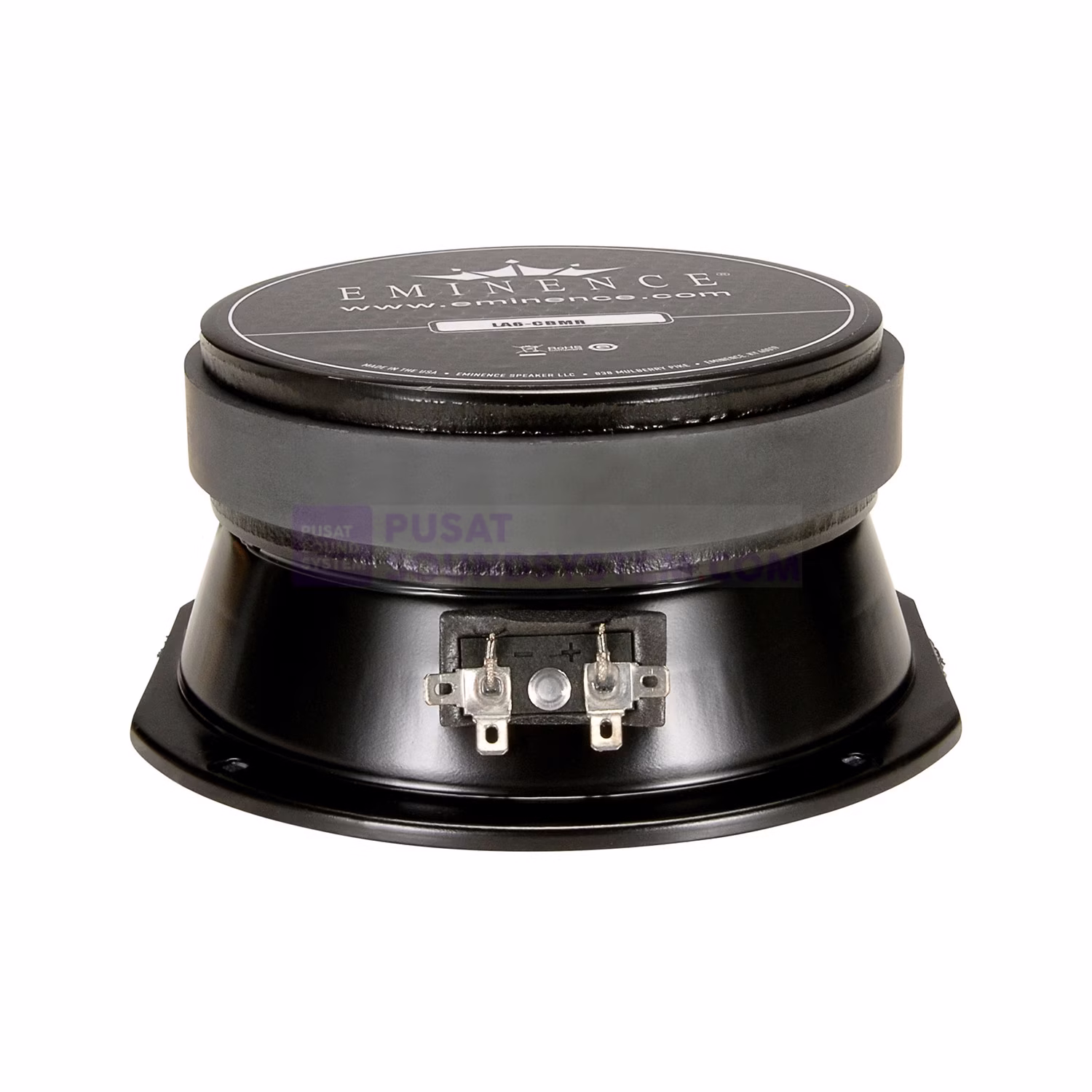

Eminence LA6-CBMR Speaker Midrange 6 Inch 150 Watt

8 ohm 6″ 150W Closed Basket Pro Audio Midrange

Cek Harga
Share atau Bagikan :

Description

Direkomendasikan untuk midrange audio profesional mulai 500 Hz-3 kHz. Keranjang ditutup. Keranjang terpotong dirancang untuk meminimalkan jarak pusat akustik dan pemodelan khusus untuk array garis.

Driver Loudspeaker Mid-Range Eminence LA6-CBMR adalah bagian dari American Standard Series mereka dan dirancang untuk dipasang pada kabinet speaker yang dibuat khusus atau prefabrikasi yang akan mengakomodasi driver mid-bass berdiameter 6,5 “(165mm).

Speaker akan memberikan daya hingga 300W pada 8 ohm dan akan cukup mereproduksi vokal, pertunjukan musik langsung, rekaman musik dan sinyal audio lainnya dalam aplikasi penguat suara profesional tingkat menengah. Beberapa dari banyak aplikasi termasuk speaker penguat suara untuk DJ, musisi, tempat kecil dan menengah, monitor panggung, dan banyak lagi.

Highlights
  • Designed to cover 500 Hz-3 kHz. Also practical for standard three-way designs.
  • Two-layer copper voice coil with Kapton coil former
  • Premium pressed steel basket for maximum strength
  • Vented and extended core
  • Paper cone with cloth cone edge



Fitur Eminence LA6-CBMR

  • EMINENCE LA6-CBMR IS A 6.5″ CLOSED BACK MIDRANGE SPEAKER
  • HANDLES 150 WATTS RMS & 300 WATTS PROGRAM POWER
  • DESIGNED TO COVER MID FREQUENCIES FROM 500 TO 5.4KHZ
  • CLEAR TRANSPARENT MIDRANGE HELPS SYSTEMS THAT LACK MID FREQUENCY CLARITY
  • CLOSED BACK DESIGN ALLOWS USER TO INSTALL IN THE SAME CABINET WITH A LOW FREQUENCY WOOFER W/OUT HAVING TO SEAL THE MIDRANGE
  • AVAILABLE IN 8 OHMS

Spesifikasi

SPECIFICATION
Nominal Basket Diameter 6″, 165 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 300 W
Watts 150 W
Resonance 460 Hz
Usable Frequency Range 500 Hz – 5.4 kHz
Sensitivity* 97.8 dB
Magnet Weight 38 oz.
Gap Height 0.31″, 7.9 mm
Voice Coil Diameter 1.5″, 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 460 Hz
DC Resistance (Re) 6.3 Ω
Coil Inductance (Le) 0.33m H
Mechanical Q (Qms) 3.13
Electromagnetic Q (Qes) 1.24
Total Q (Qts) 0.89
Compliance Equivalent Volume (Vas) 0.4 liters / 0.01 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 2.7 cc
Mechanical Compliance of Suspension (Cms) 0.01 mm/N
BL Product (BL) 11.1 T-M
Diaphragm Mass Inc. Airload (MMs) 9 grams
Efficiency Bandwidth Product (EBP) 371
Maximum Linear Excursion (Xmax) 0.2 mm
Surface Area of Cone (Sd) 133.1 cm2
Maximum Mechanical Limit (Xlim) 0.8 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented – liters / – cu.ft.
Driver Volume Displaced 0.022 cu.ft. / 0.62 liters
Major Diameter 6.59″, 167.4 mm
Flat to Flat Diameter 6″, 152.4 mm
Baffle Hole Diameter 5.65″, 143.5 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.23″, 5.8mm
Mounting Holes B.C.D. 6.06″, 153.9mm
Depth 2.77″, 70.4 mm
Net Weight 6.7 lbs, 3.04 kg
Shipping Weight 7.2 lbs, 3.27 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented and extended core
Basket Materials Pressed steel basket with truncated sides
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
