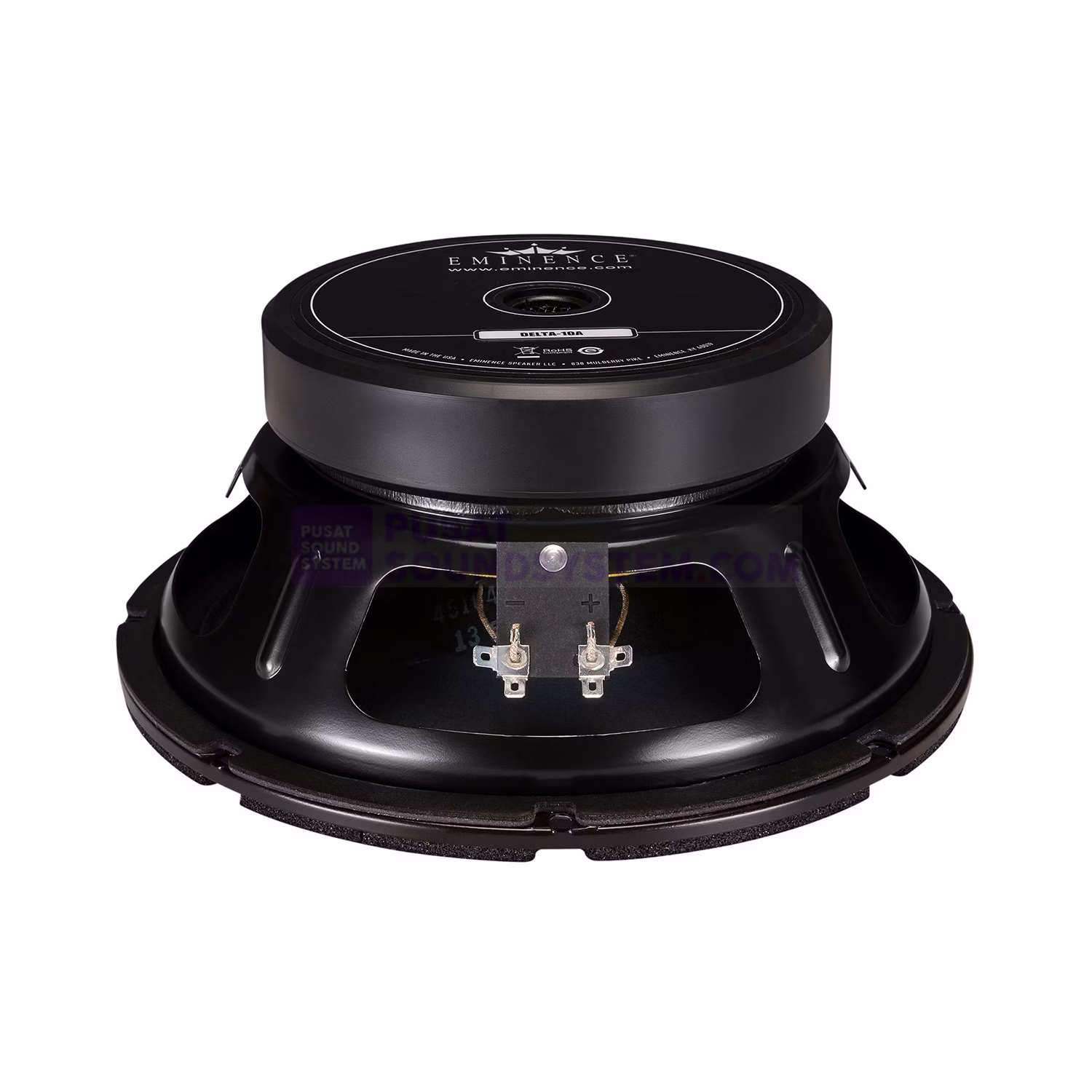

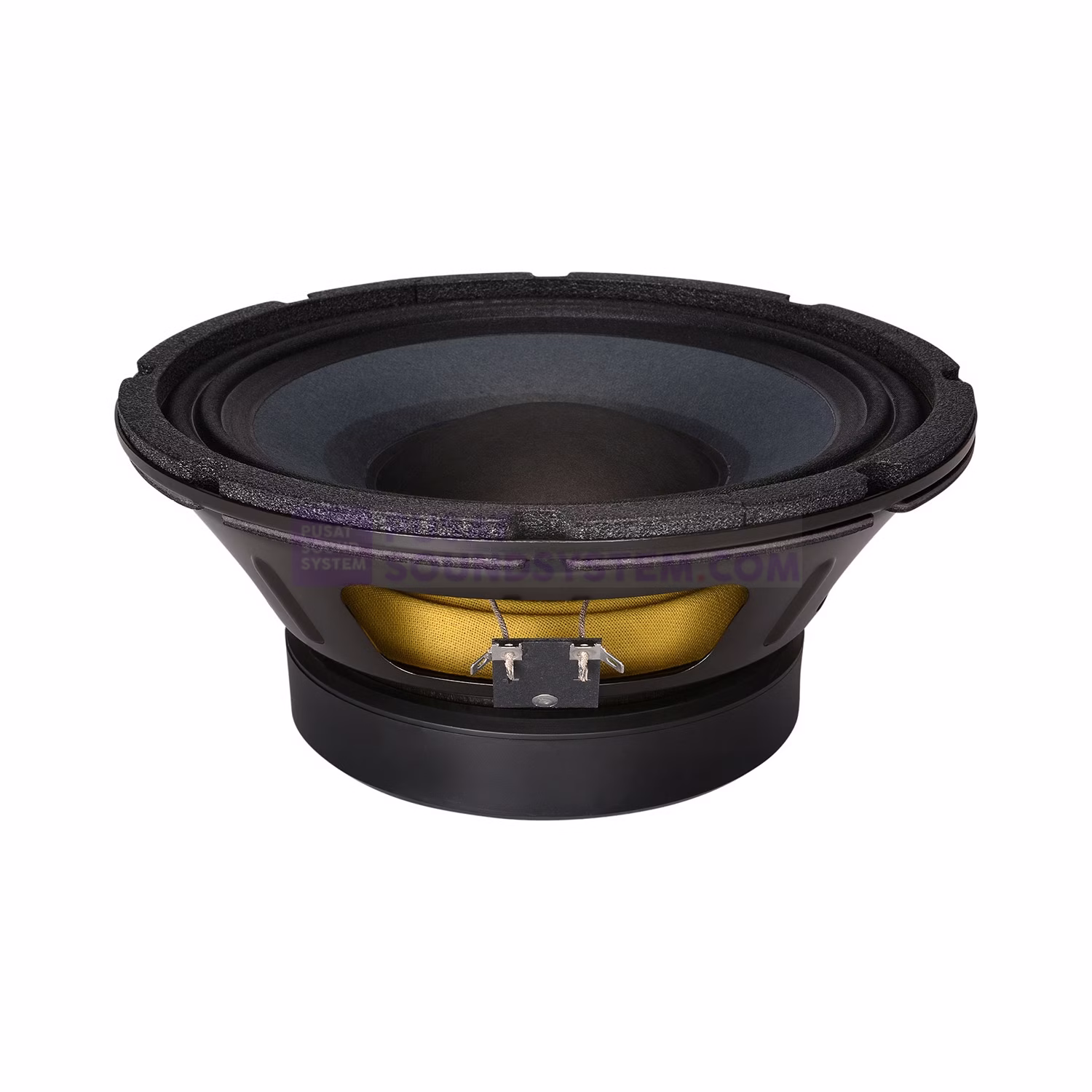

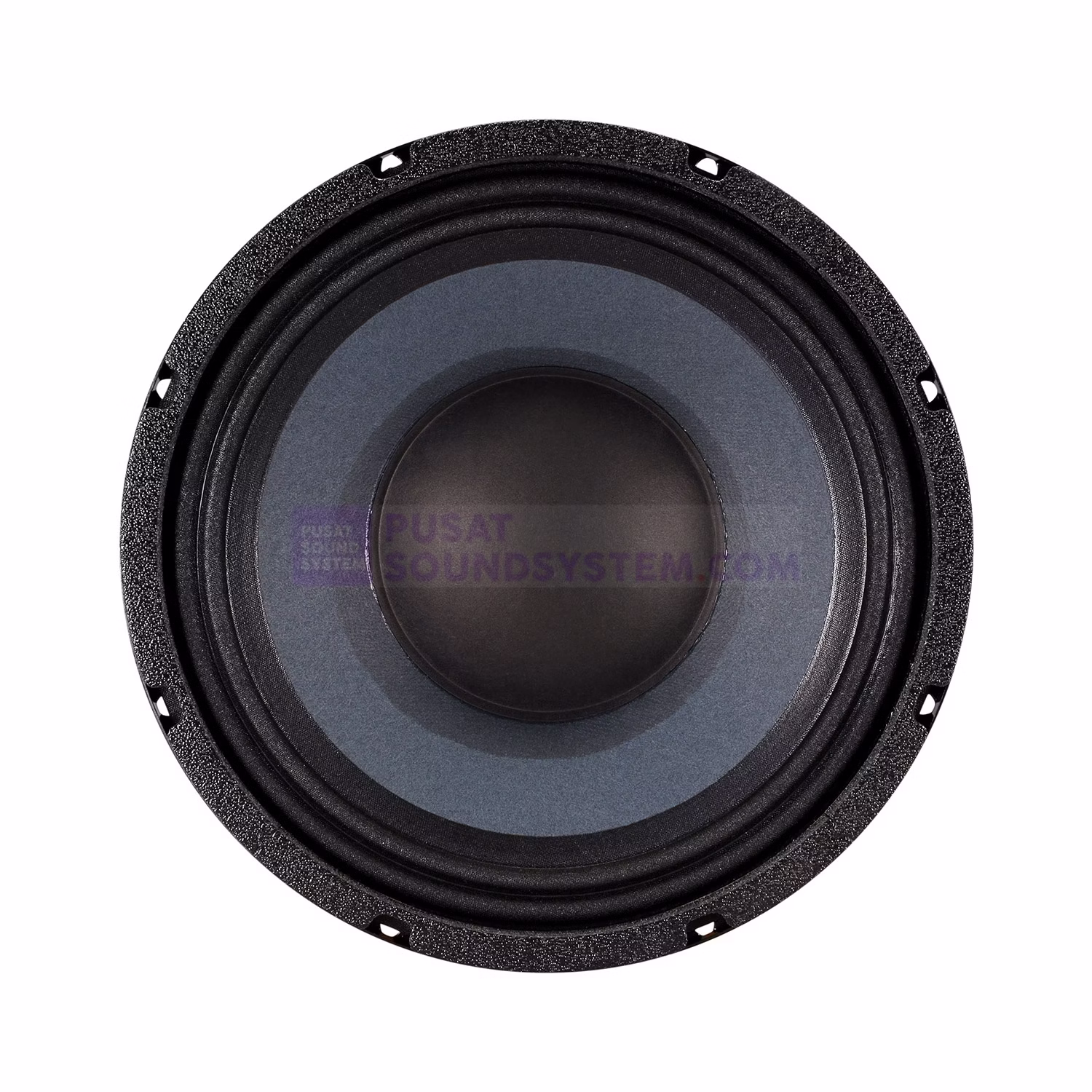

Eminence DELTA-10A Speaker Woofer Midrange 10 Inch 350 Watt

Cek Harga
Share atau Bagikan :

Description

Delta-10A 10 “Woofer adalah driver 8 Ohm 700 Watt yang ideal untuk digunakan dalam kabinet speaker penguatan suara, monitor panggung, dan lemari instrumen. Delta-10A memberikan audio rentang penuh yang mengesankan dan didukung oleh Eminence’s 7 garansi pabrik tahun.

Untuk kinerja midrange dan woofer yang hebat, cobalah speaker Eminence Delta-10A 10 “. Magnetnya besar, 56 oz. Magnet, koil suara 2-1 / 2”, dan komponen bergerak yang dioptimalkan dirancang untuk menjamin kesuksesan!

Speaker Eminence Delta-10A 10 “dioptimalkan untuk kinerja midrange yang luar biasa dalam sistem 3 arah, dan midbass dalam sistem 2 arah. Juga cocok untuk gitar bass, keyboard, sistem musik klub, dan monitor panggung. Dibuat di AS.

Highlights
  • 2-1/2″ vented voice coil and vented pole piece lowers power compression
  • Heat resistant Polyimide voice coil former improves power handling
  • Almost 99 dB effeciency ensures high output without alot of power
  • Excellent midbass performance in small vented enclosures



Fitur Eminence DELTA-10A

  • NEW & IMPROVED POWER HANDLING OF 350 WATTS RMS
  • THE EMINENCE DELTA-10A 10″ SPEAKER DELIVERS A VERY CLEAN CRISP SOUND
  • STRONG MIDDLE TO UPPER BASS AND CRISP ‘CLICKY’ MIDS
  • HIGH EFFICIENCY OF 98.8DB SPL & A 2.5″ EDGEWOUND ALUMINUM VOICE COIL
  • THE DELTA-10A IS OPTIMIZED FOR HIGH QUALITY MID-BASS SYSTEMS USED IN CONJUNCTION WITH A 12″, 15″ OR 18″ AS A SUBWOOFER
  • 8 OHMS

Spesifikasi

SPECIFICATION
Nominal Basket Diameter 10″, 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 700 W
Watts 350 W
Resonance 66 Hz
Usable Frequency Range 63 Hz – 3.7 kHz
Sensitivity* 98.8 dB
Magnet Weight 56 oz.
Gap Height 0.375″, 9.5 mm
Voice Coil Diameter 2.5″, 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 66 Hz
DC Resistance (Re) 5.42 Ω
Coil Inductance (Le) 0.74m H
Mechanical Q (Qms) 6.53
Electromagnetic Q (Qes) 0.35
Total Q (Qts) 0.33
Compliance Equivalent Volume (Vas) 30.5 liters / 1.08 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 121 cc
Mechanical Compliance of Suspension (Cms) 0.18 mm/N
BL Product (BL) 14.4 T-M
Diaphragm Mass Inc. Airload (MMs) 32 grams
Efficiency Bandwidth Product (EBP) 189
Maximum Linear Excursion (Xmax) 3.5 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 9.4 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 12.7-37.9 liters / 0.45-1.34 cu.ft.
Driver Volume Displaced 0.05 cu.ft. / 1.42 liters
Overall Diameter 10.09″, 256.3 mm
Baffle Hole Diameter 9.18″, 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25″, 6.4mm
Mounting Holes B.C.D. 9.66″, 245.4mm
Depth 4.25″, 108 mm
Net Weight 10.8 lbs, 4.9 kg
Shipping Weight 12 lbs, 5.44 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
