Electro Voice EVID COMPACT SOUND

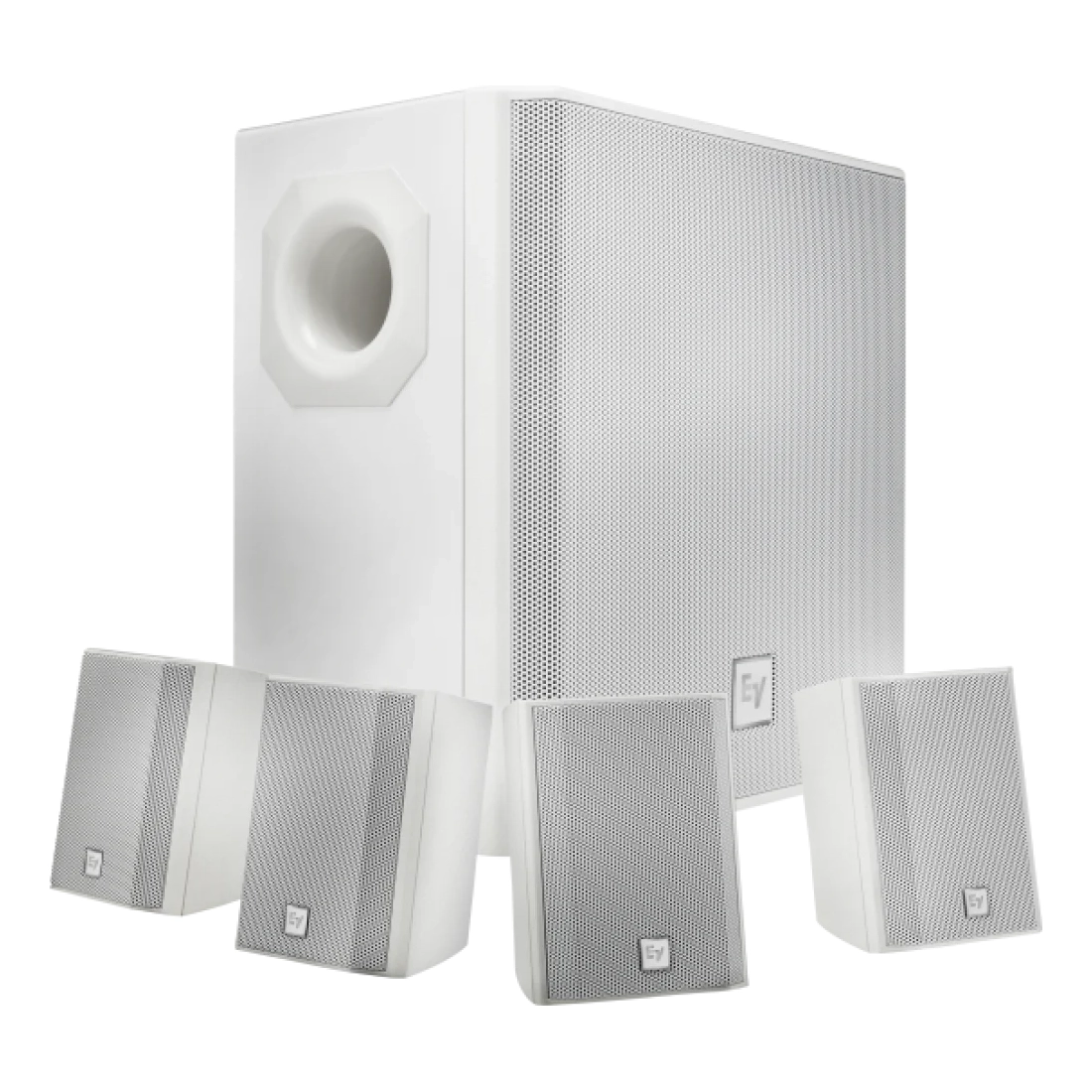

Electro Voice EVID COMPACT SOUND - Image 2

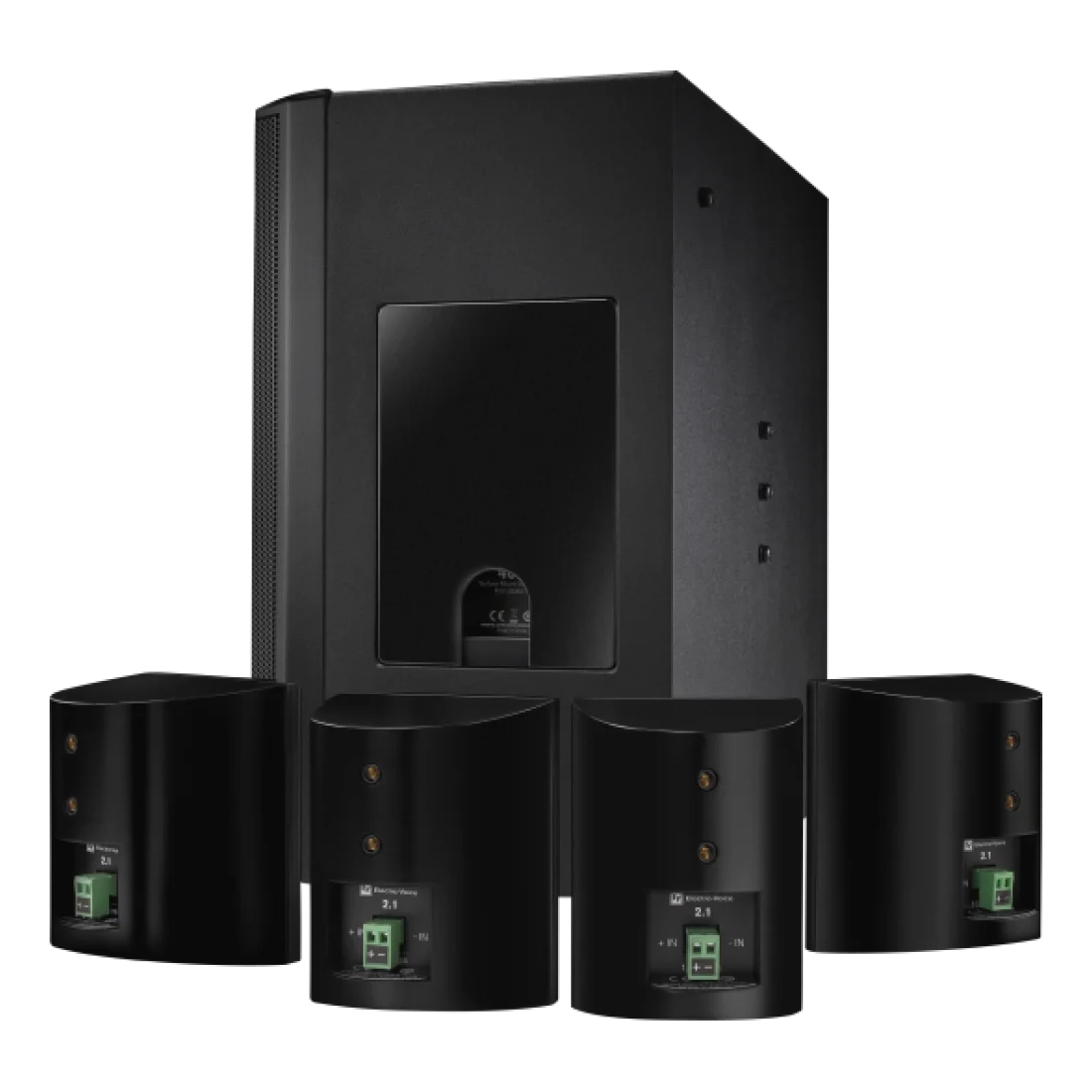

Electro Voice EVID COMPACT SOUND - Image 3

Electro Voice EVID COMPACT SOUND

Compact Full-Range Loudspeaker System

Chat Penjual
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Electro Voice
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen.

In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware provided), and is compatible with a variety of existing EV amplifier products, making it a great choice for contractors and end-users alike. Available in black or white finish.

Features

  • Subwoofer:
  • High-performance EV-engineered 8” transducer with high-efficiency multi-mode audio crossover network.
  • Compact, high-density wood enclosure with port for extended bass response, secure snapon speaker grille, and quick-mount slide-on bracket system.
  • Easy-access signal connections with Phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100 W / 70/100 V audio connections).
  • Satellite Speakers:
  • 2” wide-range mid/high-frequency driver designed for broad, even coverage.
  • Multi-angle compact mounting bracket system allows for a variety of speaker angles.
  • Rigid high-impact ABS enclosure for durability.
SPECIFICATIONS
Frequency Range (-10 dB) EVID 2.1: 180 Hz – 20 kHz; EVID 40S: 180 Hz – 20 kkHz
Weight Net EVID 2.1: 0.5kg; EVID 40S: 12.05kg
Depth EVID 2.1: 95mm; EVID 40S: 230mm
SPECIFICATIONS
Width EVID 2.1: 85mm; EVID 40S: 400mm
Height EVID 2.1: 115mm; EVID 40S: 400mm
Available Color Black or white
Bracket Adjustment Range EVID 2.1: 160° x 60° ; EVID 40S: Fixed
Connector Type Phoenix (2-pin)
Coverage, Music EVID 2.1: 100° x 100°; EVID 40S: Omnidirectional
Coverage, Voice EVID 2.1: 150° x 150°; EVID 40S: Omnidirectional
Enclosure Material EVID 2.1: ABS (fire rated); EVID 40S: Wood (MDF);
Impedance EVID 2.1: 16Ω; EVID 40S: Dual 8Ω / mono 4Ω
Included Accessories Wall bracket; hex wrench
Maximum SPL EVID 2.1: 100 dB; EVID 40S: 114dB
Passive Power Handling 200W peak
Power Handling (Continuous / Peak) EVID 2.1: 30 W; EVID 40S: 200W
Power Rating 200W
Sensitivity 1 W/1 m EVID 2.1: 84 dB; EVID 40S: 88dB
Shipping Weight 1 sub and 4 satellites: 18.26kg
Transducer EVID 2.1: 50 mm (1.97 in); EVID 40S: 200mm
Transformer Taps (Transformer Version Only) EVID 2.1: NA; EVID 40S: 100 W, 50 W, 25
