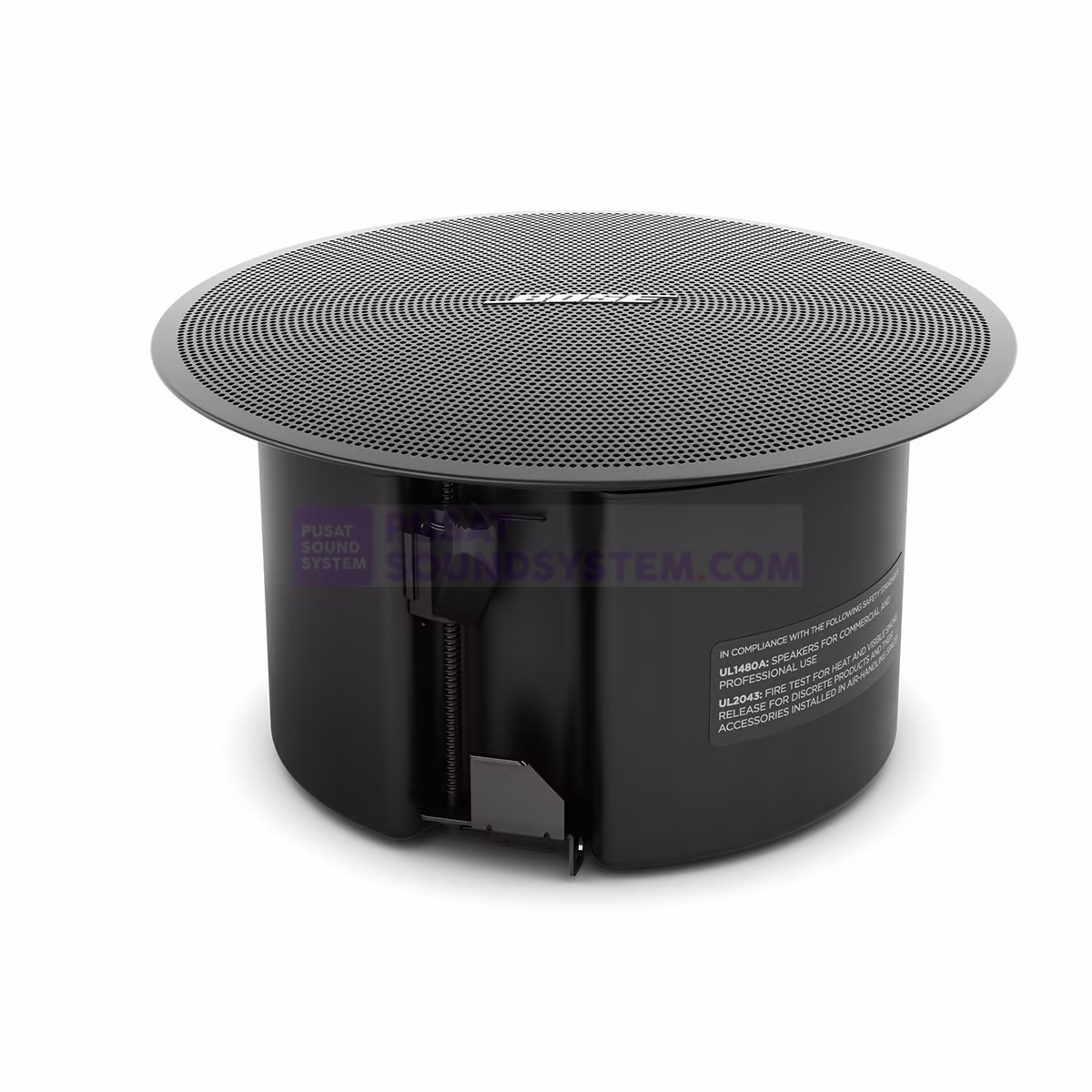

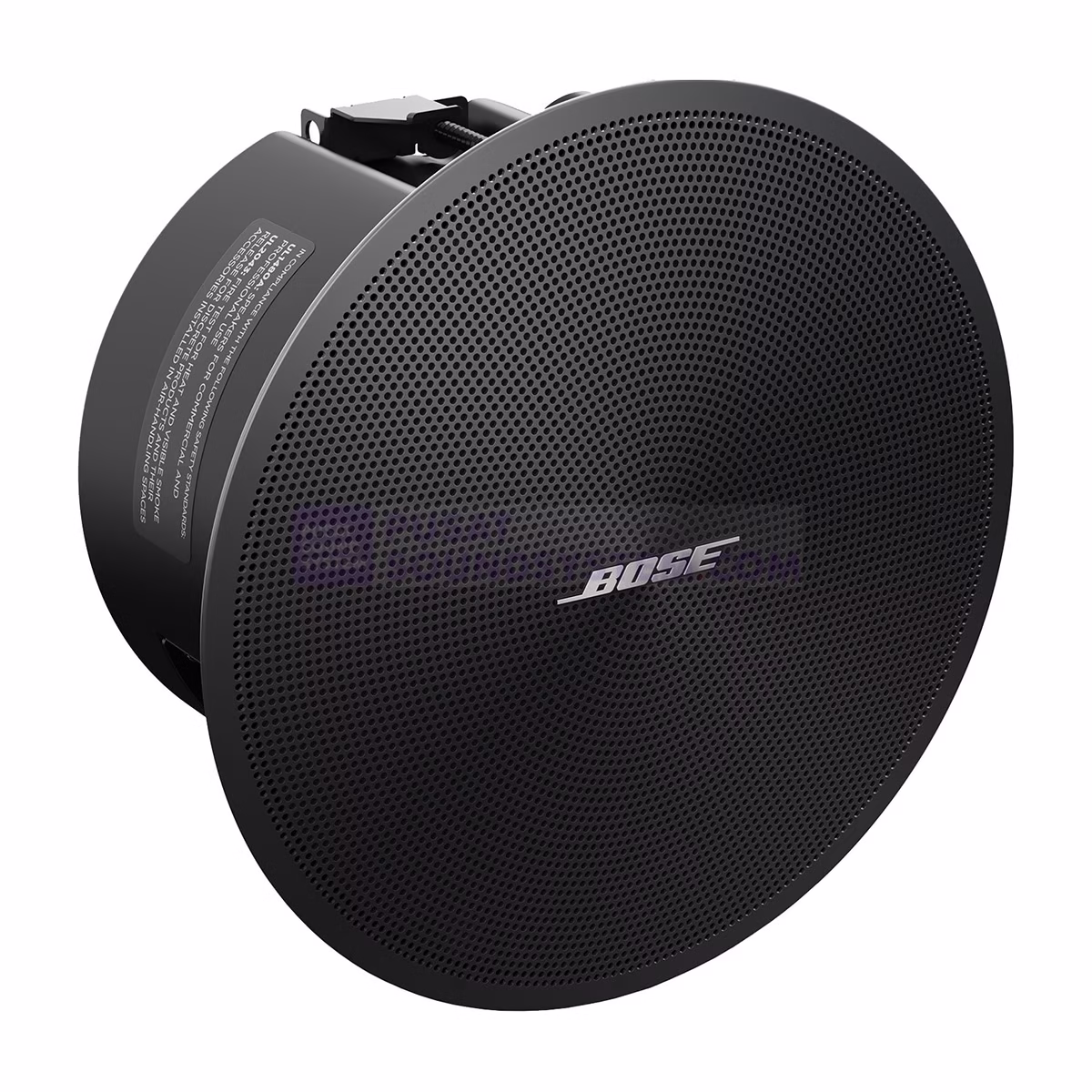

Bose DesignMax DM2C-LP Speaker Ceiling Full Range 2.25″ 80 Watt
Description
The Bose DesignMax DM2C-LP combines top-flight sound quality with appealing aesthetics. Tailor-made for background music, this 16-watt in-ceiling speaker contains a full-range 2.25-inch driver that meticulously reproduces the 85Hz to 19kHz frequency range — no DSP or EQ required. Beyond that, 180° conical coverage ensures a great listening experience for everyone in the room. Working with a confined space? No problem. The DM2C-LP boasts a low-profile backcan that fits anywhere, and its QuickHold mounting arms ensure easy installation. The DesignMax DM2C-LP works with a wide range of amplifiers, and its 16-ohm design allows for four units to be installed on a single low-impedance line. Plus, combined 70-volt/100-volt and low-impedance operation supply super-versatile operation.
Bose DesignMax DM2C-LP In-ceiling Loudspeaker Features:
- 16W, 16-ohm in-ceiling speaker
- Combines top-flight sound quality with appealing aesthetics
- Tailor-made for background music
- Full-range 2.25” driver meticulously reproduces 85Hz-19kHz without DSP or EQ
- 180° conical coverage ensures a great listening experience for everyone in the room

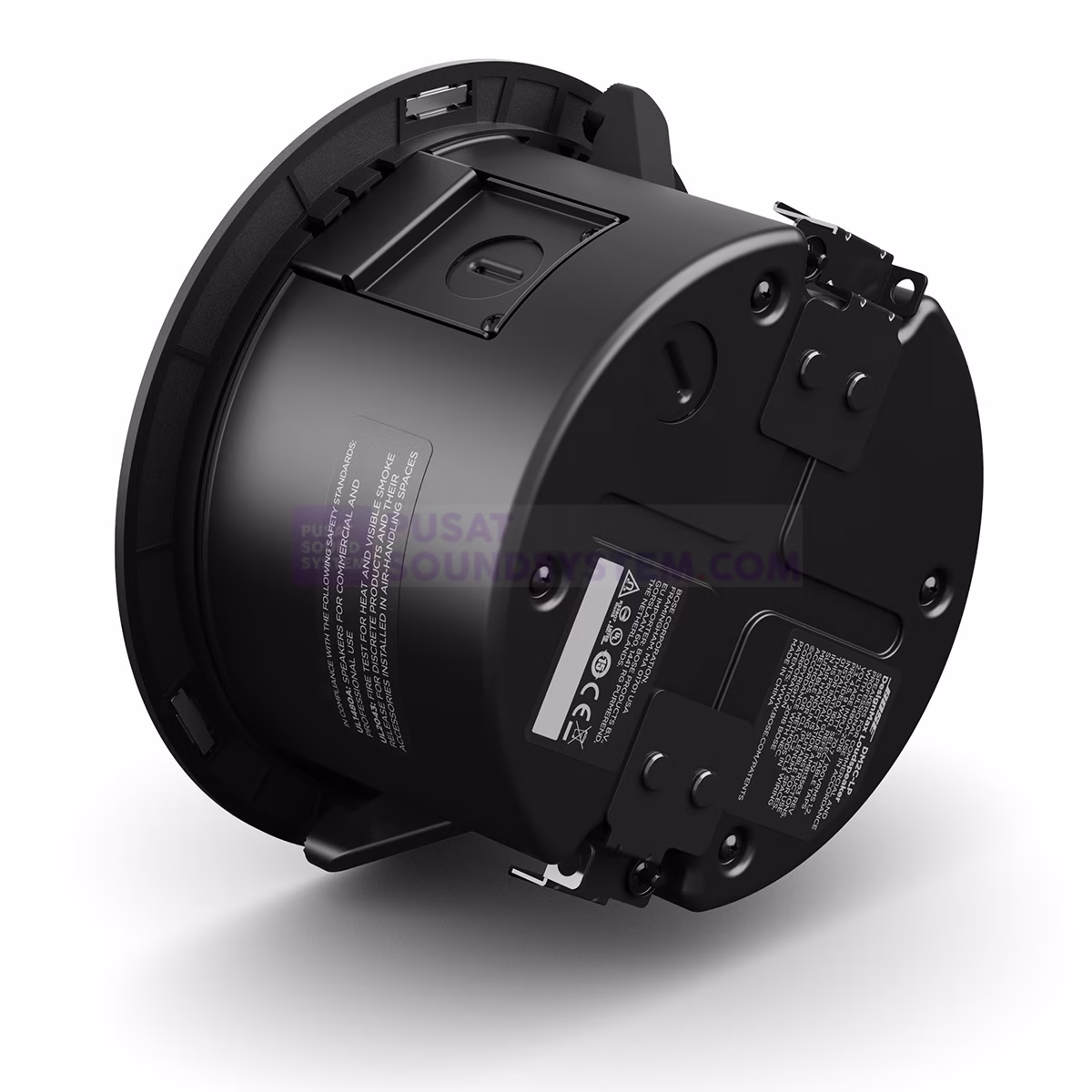

- Low-profile backcan fits anywhere
- QuickHold mounting arms ensure easy installation
- Works with a wide range of amplifiers
- 16-ohm design allows for four units to be installed on a single low-impedance line

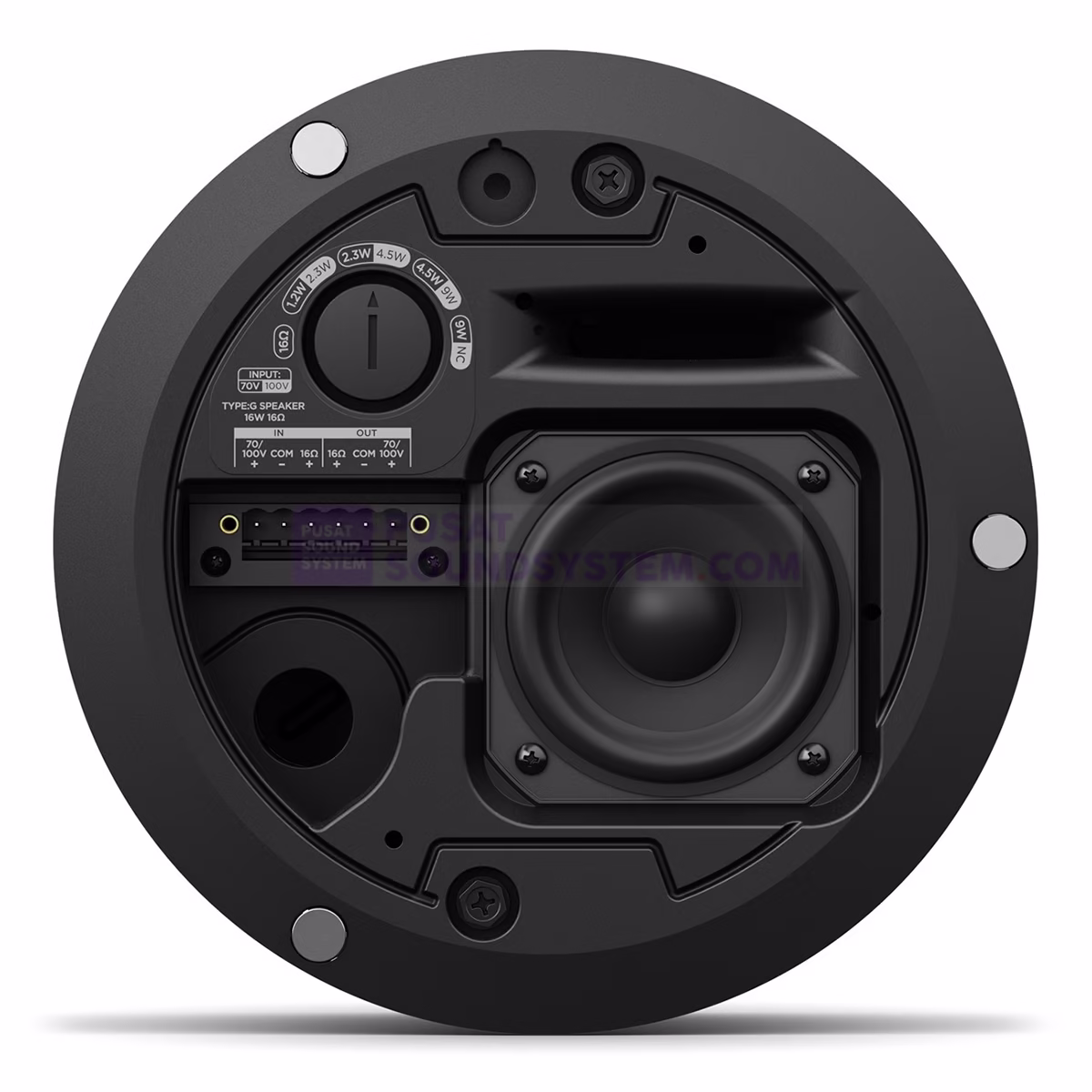

- Combined 70V/100V and low-impedance operation for added versatility
Applications
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Spesifikasi
Frequency Response (+/-3 dB)
95 – 18,000 Hz
Nominal coverage (H x V)
150° conical
Power Handling, peak
80 W
Maximum SPL @ 1m
97 dB
Frequency Range (-10 dB)
85 – 19,000 Hz
Power Handling, long-term continuous
20 W
Sensitivity (SPL/1W @ 1 m)
84 dB
Nominal Impedance
16 Ω (transformer bypass)
