d&b Audiotechnik KSLi8 Speaker Line Array Pasif 2×10 Inch 3 Way 8 Ohm 2800 Watt

Description

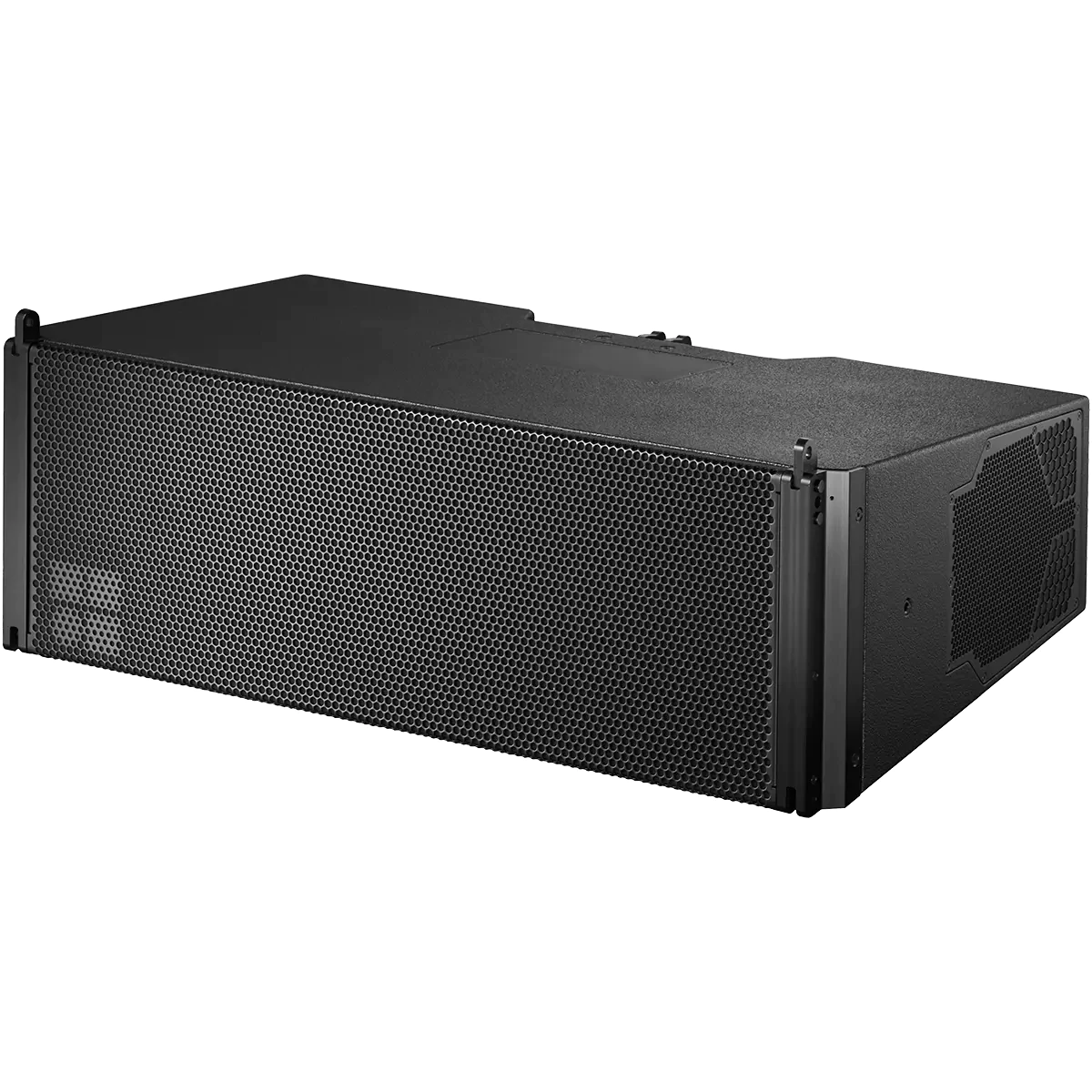

The KSLi8 is the installation variant of the KSL8 line array loudspeaker for medium to large scale sound reinforcement. The KSLi8 line array module produces an 80° constant directivity dispersion pattern in the horizontal plane over the entire operating bandwidth. The KSLi8 houses two 10″ neodymium forward facing LF drivers and two side firing 8″ neodymium LF drivers. A coaxial mid-high section contains an MF horn with an 8″ driver and two 1.4″ exit, 3″ voice coil HF compression drivers mounted to a dedicated wave shaping device. SL-Series flying hardware comes with a patented workflow with integrated tension rigging mode, allowing splay angles between cabinets from 0° to 10° in 1° increments. The loudspeakers are driven actively by two channels of an appropriate d&b amplifier. One channel powers the 10” LF drivers, the second channel powers all other components, which are passively crossed-over. This component geometry allows for a smooth crossover design with well-defined overlaps between adjacent bands providing consistent, even and very accurate horizontal dispersion. Due to the arrangement of the front and side firing LF drivers, seamless directivity control is maintained from the lowest frequencies the loudspeaker produces to above 18 kHz. Further expanding flexibility and catering for applications where smaller arrays are used and ArrayProcessing is not required, the KSLi8 includes the option to link two cabinets in Line or Arc mode. The cabinets are constructed from marine plywood and have an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and side panels incorporate rigid metal grills backed by an acoustically transparent and water repellent fabric.

Spesfikasi

• System data
  • Frequency response (-5 dB standard) 54 Hz – 18 kHz
  • Frequency response (-5 dB CUT mode) 75 Hz – 18 kHz
  • Max. sound pressure1 with D40/D80/40D) 145 dB
  • Cabinets per D40/D80/40D (ArrayProcessing) 2
  • Cabinets per D40/D80/40D (Line or Arc mode) 4
• Loudspeaker data
  • Nominal impedance front LF8 ohms
  • Nominal impedance side LF/MF/HF8 ohms
  • Power handling capacity front LF (RMS/peak 10 ms) 450/1800 W
  • Power handling capacity side LF/MF/HF (RMS/peak 10 ms) 250/1000 W
  • Nominal dispersion angle (horizontal) 80 °
  • Splay angle settings 0 … 10° (1° increment)
  • Components
    • 2 x 10″ front LF driver
    • 2 x 8″ side LF driver
    • 1 x 8″ MF driver
    • 2 x 1.4″ exit compression driver with 3″ voice coil
    • Passive crossover network

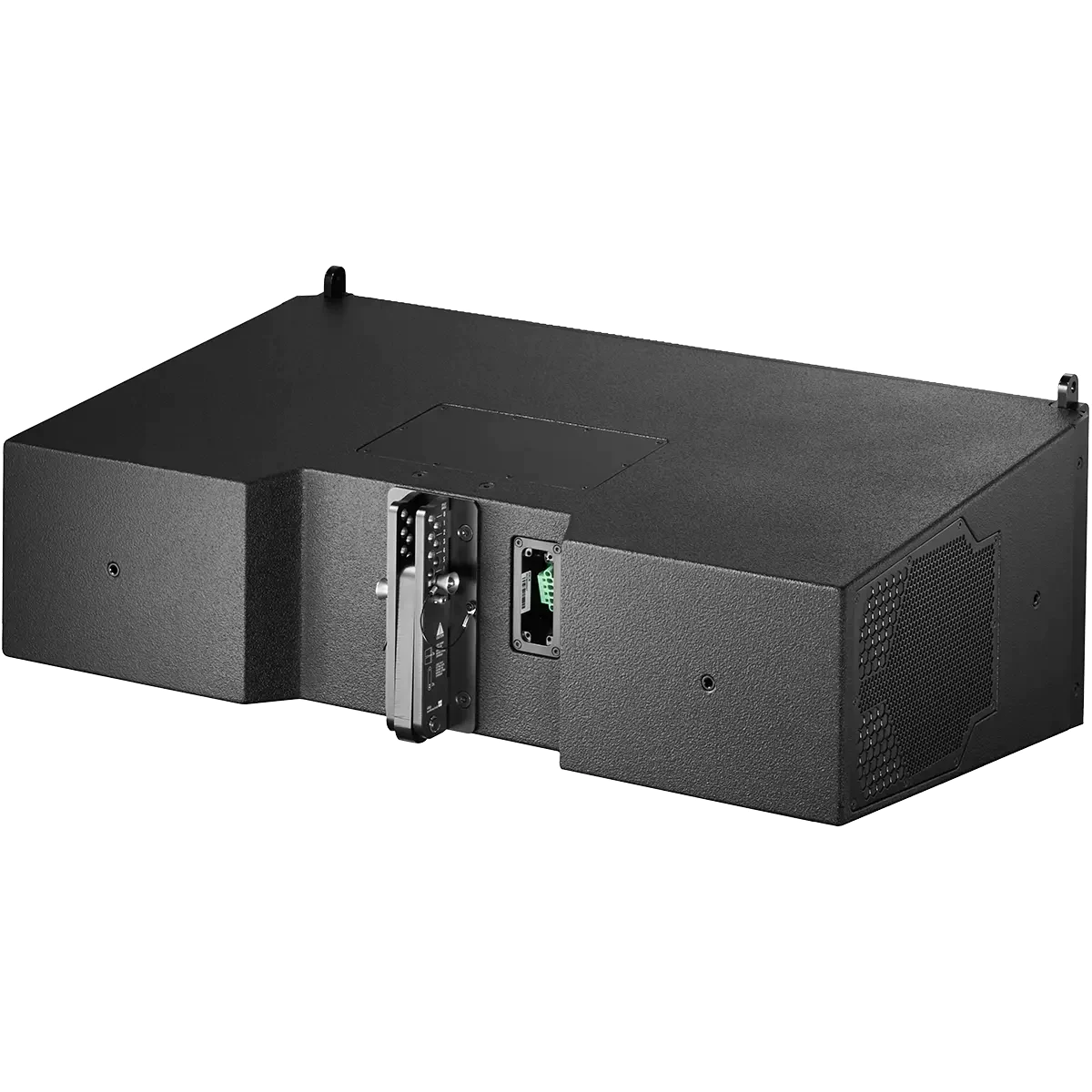

  • Connections
    • 2 x NLT4 F/M / Phoenix
• Dimensions / weight
  • Dimensions (H x W x D)
    • 330 x 1000 x 572 mm
    • 13 x 39.4 x 22.5″
  • Weight
    • 57 kg
    • 126 lb
