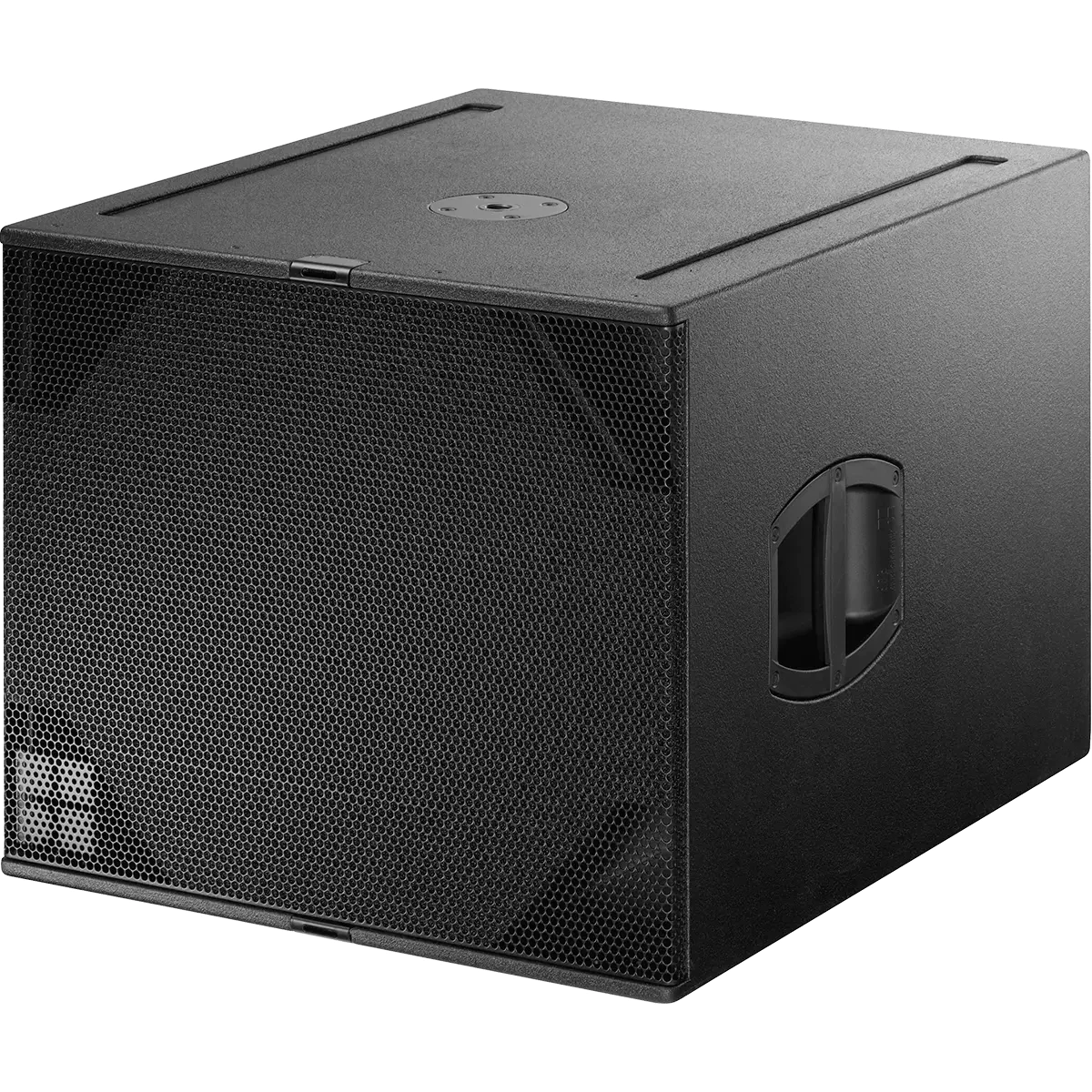

d&b Audiotechnik B6-SUB Subwoofer Pasif 18 Inch 8 Ohm 2000 Watt
High performance subwoofer
- Components 18″
- Dispersion Omni directional
- SPLmax 134 dB
- Weight 41 kg / 90 lb
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
The B6-SUB is a high performance subwoofer designed for ground stacked applications, housing a long excursion 18” driver built into a bass-reflex design. When three or any multiple of three B6-SUBs are used, they can be positioned in a Cardioid Subwoofer Array with one cabinet physically facing backwards and driven by an amplifier channel with CSA mode selected. This achieves exceptional directivity control in lower frequencies and significantly reduces the energy radiating towards to the rear. The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam, whilst the side panels incorporate two handles. Four wheels are mounted to the rear and the enclosure features two runners to protect the bottom panel from scratching. Two correspondingly shaped recesses are incorporated into the top panel of each cabinet to accept these runners, preventing cabinet movement when stacked. An M20 threaded flange in the top panel accepts the d&b Loudspeaker stand winder M20. An optional transport lid protects the front of the subwoofer during transit.
Spesifikasi
System data
- Frequency response (-5 dB standard) 37 Hz – 140 Hz
- Frequency response (-5 dB 100 Hz mode) 37 Hz – 110 Hz
- Frequency response (–5 dB INFRA mode)
- 35 Hz – 80 Hz
- Max. sound pressure1
- with 10D 128 dB
- with D20/30D 131 dB
- with D40/D80/40D 134 dB
- Cabinets per amplifier channel 2
- Configuration High performance subwoofer
- Nominal impedance 8 Ω
- Power handling capacity (RMS/peak 10 ms) 500/2000 W
- Components 1 x 18″ driver
- Connections
- 2 x NLT4 F/M
- optional 2 x NL4
- Dimensions (H x W x D)
- 490 x 580 x 7002 / 805 mm
- 19.3 x 22.8 x 27.52 / 31.7″
- Weight
- 41 kg
- 90 lb
1 1 m, free field, SPL max peak test signal: pink noise with crest factor 4, one speaker driven
2 dimensions without wheels
