d&b Audiotechnik AL60 Speaker Line Array Pasif 2×10 Inch 2 Way 8 Ohm 1800 Watt (Waterproof)
Medium format 2-way augmented array loudspeaker
- Components 2 x 10″ LF driver, 1 x 1.4” exit compression driver with 3″ coil
- Dispersion 60° x 30°
- SPLmax 139 dB
- Weight 23 kg / 51 lb
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description

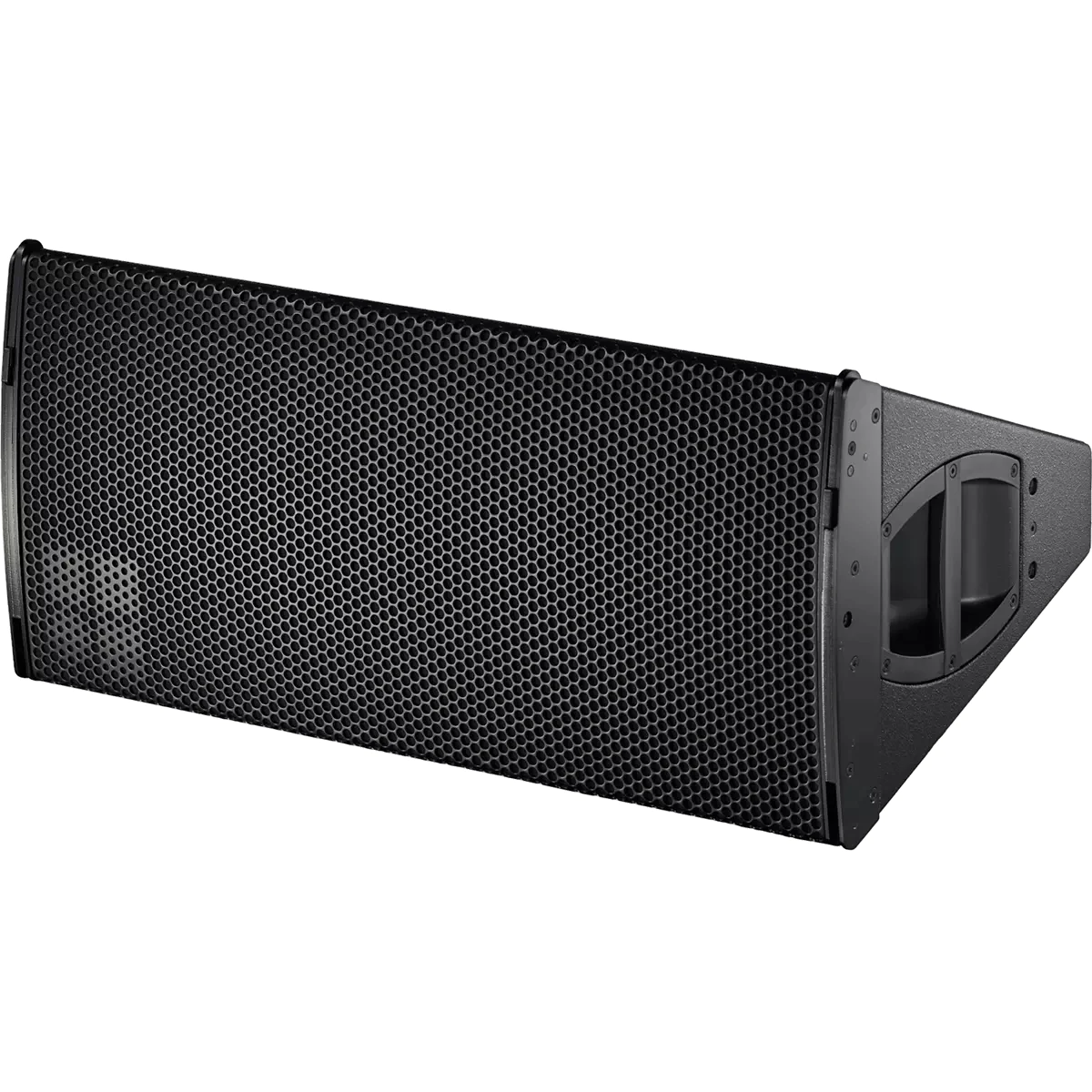

The AL60 is an augmented array loudspeaker for medium scale sound reinforcement. When the AL Flyingframe is used, up to four cabinet modules can be flown in vertical columns producing a 60° constant directivity dispersion pattern in the horizontal plane. The AL60 can also be applied as horizontal array of maximum four loudspeakers using the AL Flying adapter. The AL60 loudspeaker module is a passive 2-Way design housing two x 10″ neodymium LF drivers and one 1.4″ exit HF compression driver with a 3″ diaphragm mounted to a dedicated wave shaping device and a passive crossover network. The wave segments of each cabinet couple without gaps and sum up coherently. Splay angles between adjacent cabinets can be set in a range from 20° to 40° in 5° increments resulting in a total coverage of 50° up to 70° for two cabinets, with a maximum total coverage of 150° per array. All components are arranged symmetrically around the center axis of the cabinet to produce a perfect symmetrical dispersion pattern. Broadband horizontal dispersion control is maintained down to approximately 550 Hz. The cabinet is constructed from marine plywood with an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent fabric.
Spesifikasi
- System data
- Frequency response (-5 dB standard) 60 Hz – 18 kHz
- Frequency response (-5 dB CUT mode) 95 Hz – 18 kHz
- Max. sound pressure1
- with D20/30D 138 dB
- with D40/D80/40D 139 dB
- Cabinets per amplifier channel 2
Loudspeaker data
- Nominal dispersion angle (h x v – horizontal setup) 60 ° x 30 °
- Nominal impedance 8 ohms
- Power handling capacity (RMS/peak 10 ms) 400/1800 W
- Splay angle settings 20 … 40° (5° increment)
- Components
- 2 x 10″ LF driver
- 1 x 1.4″ exit compression driver with 3″ coil
- Passive crossover network

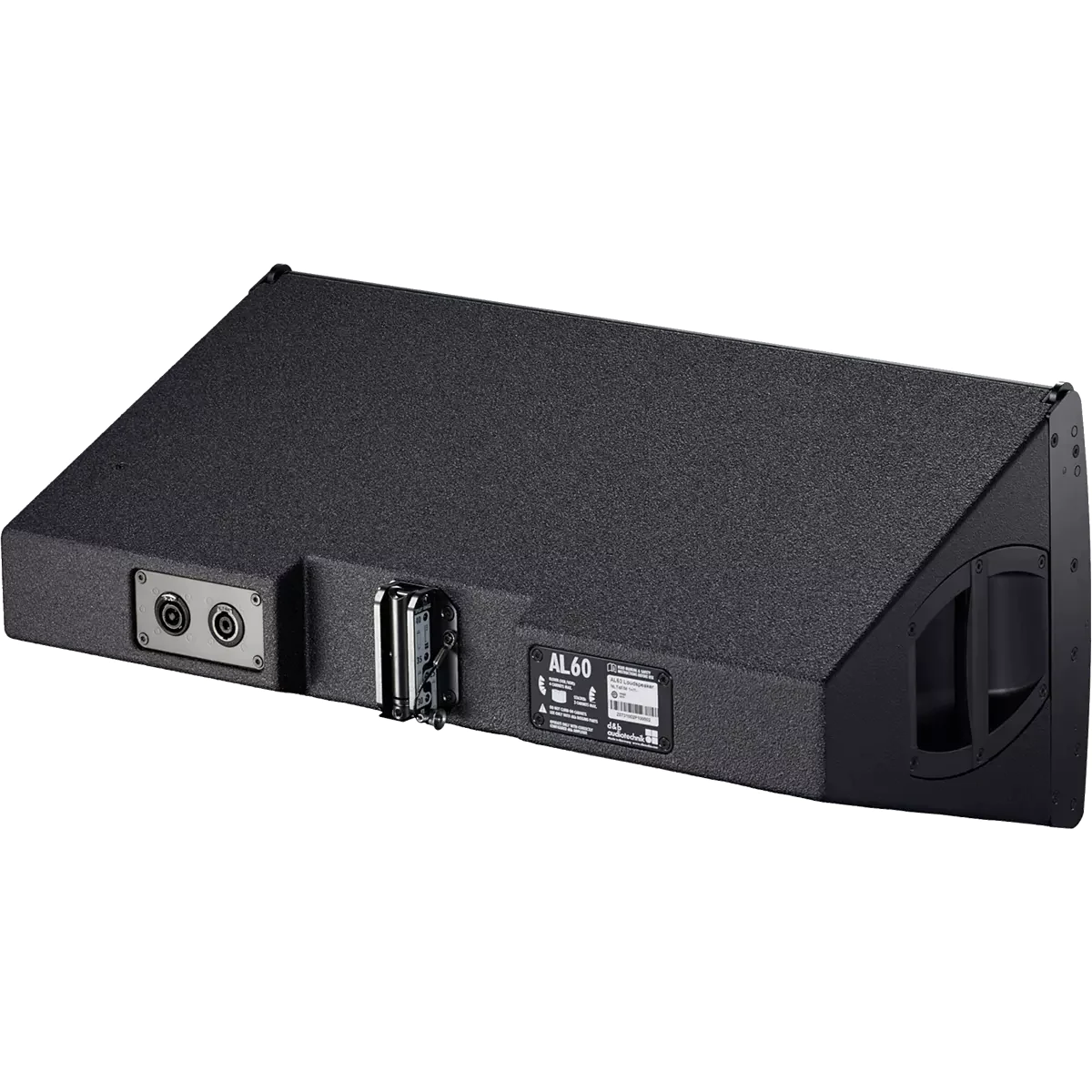

- Connections
- 1 x NLT4 F/M
Dimensions / weight
- Dimensions (H x W x D)
- 322 x 700 x 356 mm
- 12.7 x 27.6 x 14″
- Weight
- 23 kg
- 51 lb
1 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven
