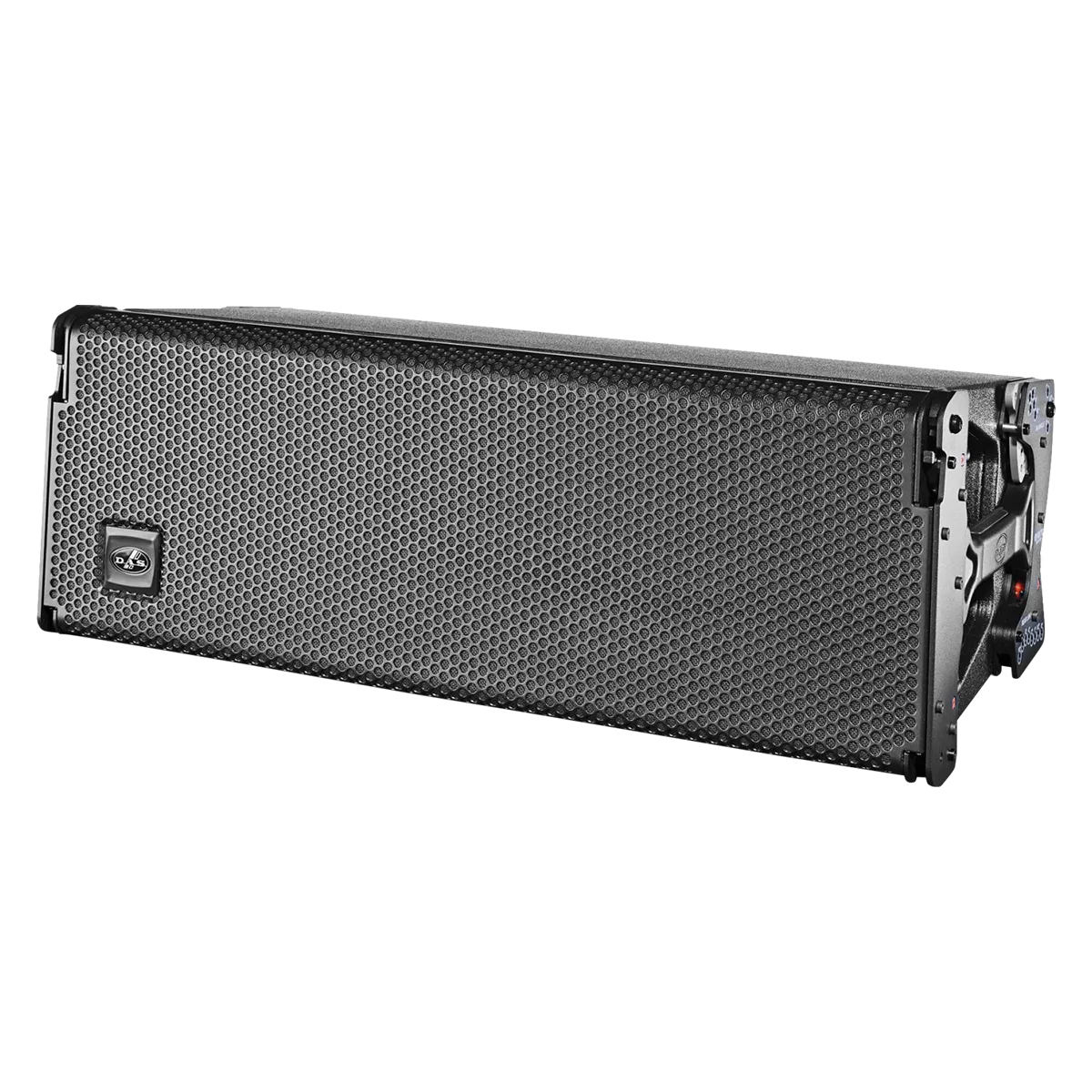

DAS EVENT-210A Speaker Line Array Aktif 2x10 Inch 3 Way 1080 Watt

DAS EVENT-210A Speaker Line Array Aktif 2×10 Inch 3 Way 1080 Watt

Powered, 180 W (LF)+180 W (MF)+180 W (HF), 2×10”, 3 way full-range, compact Line Array, 230 V, black

Chat Penjual
Category: Tags: , , , Brand:
DAS
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The EVENT-210A Line is a three-way powered line array in a double 10” “dual-band” configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.
The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

Features

Powered 3-way system
Light-weight Class D amplifier topology
Easy-DSP™ Interface
Durable ISO-flex finish
Robust “quick-rig” professional rigging hardware
Proprietary injected aluminium HF waveguide
DAS M-75 compression driver and cone transducers

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Live sound touring/Rental services

Spesifikasi

Performance
Frequency Range (-10 dB) 70 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage Splay Dependent
Maximum Peak SPL at 1 m 134 dB

Electronics and Connectors
Nominal Amplifier Power LF (continuous) 180 W
Nominal Amplifier Power LF (peak) 360 W
Nominal Amplifier Power MF (continuous) 180 W
Nominal Amplifier Power MF (peak) 360 W
Nominal Amplifier Power HF (continuous) 180 W
Nominal Amplifier Power HF (peak) 360 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 6.2 V (+18 dBu)
Audio Signal Input Connector 1 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
AC Output Connector powerCON NAC3FCB
Current Draw 230 V / 115 V 1.5 A/-
Certification Number NRTL US&CA SGSNA/19/SUW/00109
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging Captive Rigging System
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 275 x 735 x 370 mm
10,8 x 28,9 x 14,6 in
Net Weight 32,5 kg ( 71,7 lb )
Components
LF Driver 10MI4
MF Driver 10MI4
HF Driver M-75
Horn/Waveguide BPS-90AR
Shipping
Carton Dimensions ( H x W x D ) 800 x 320 x 410 mm
31,5 x 12,6 x 16,1 in
Shipping Weight 34,5 kg ( 76,1 lb )
