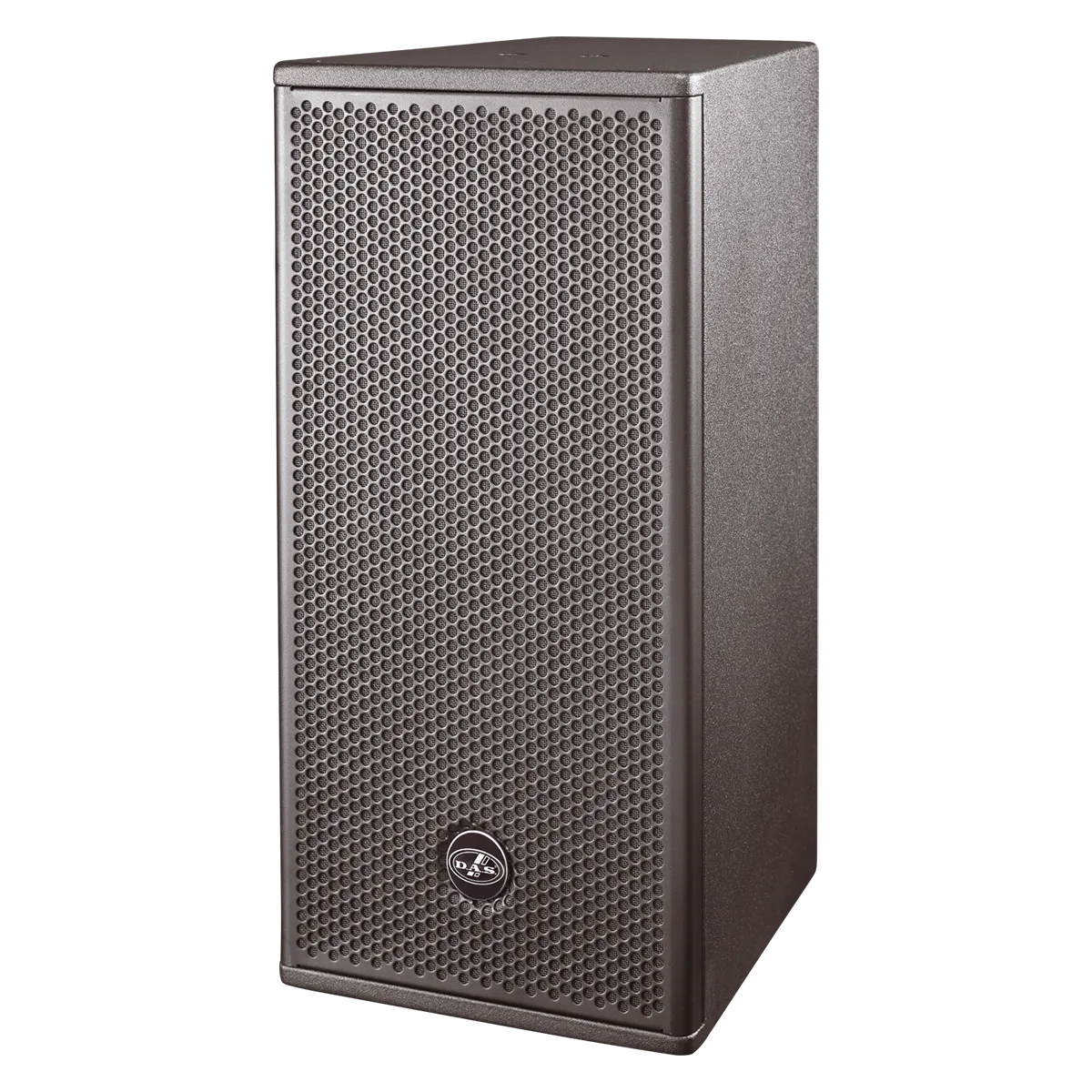

DAS ARTEC-310.96 Speaker Pasif 10 Inch 2 Way 8 Ohm 1000 Watt
DAS ARTEC-310.96 Speaker Pasif 10 Inch 2 Way 8 Ohm 1000 Watt - Image 2

DAS ARTEC-310.96 Speaker Pasif 10 Inch 2 Way 8 Ohm 1000 Watt

Passive, 250 W, 10″, 2 way full-range, 90×60 rotatable horn, black

Chat Penjual
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Das
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The ARTEC-310.96 is a compact 2-way full-range loudspeaker system comprised of one 10″ low frequency transducer and one M-34 compression driver with titanium diaphragm. The rotatable waveguide provides 90° x 60° coverage and allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
The cabinet is fitted with M10 threaded suspension points. Four VESA75/VESA100 standard threaded mounting points on the rear of the cabinet provide a secure fixing point for DAS mounting brackets. The cabinet is delivered with a U-bracket mount.

eatures

1 x 10MI low frequency loudspeaker, 2.5” VCD
1 x M-34 compression driver
VESA75/VESA100 standard threaded mounting points
Rotatable 90º x 60º horn
Vertical or horizontal positioning
AXU-A310 U-Bracket included

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

Spesifikasi

Performance
Frequency Range (-10 dB) 50 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 8 ohms
RMS Power Handling 250 W
Peak Power Handling 1000 W
On-axis Sensitivity 1W/1 m 96 dB SPL
Maximum Peak SPL at 1 m 126 dB
Recommended Amplifier INTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended Processor INTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004

Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 345 mm (13,6 in)
Dimensions ( H x W x D ) 610 x 295 x 345 mm
24,0 x 11,6 x 13,6 in
Net Weight 15,5 kg ( 34,2 lb )
Components
LF Driver 10MI
HF Driver M-34
Horn/Waveguide BC-916
Shipping
Carton Dimensions ( H x W x D ) 705 x 391 x 416 mm
27,8 x 15,4 x 16,4 in
Shipping Weight 19,5 kg ( 43,0 lb )
