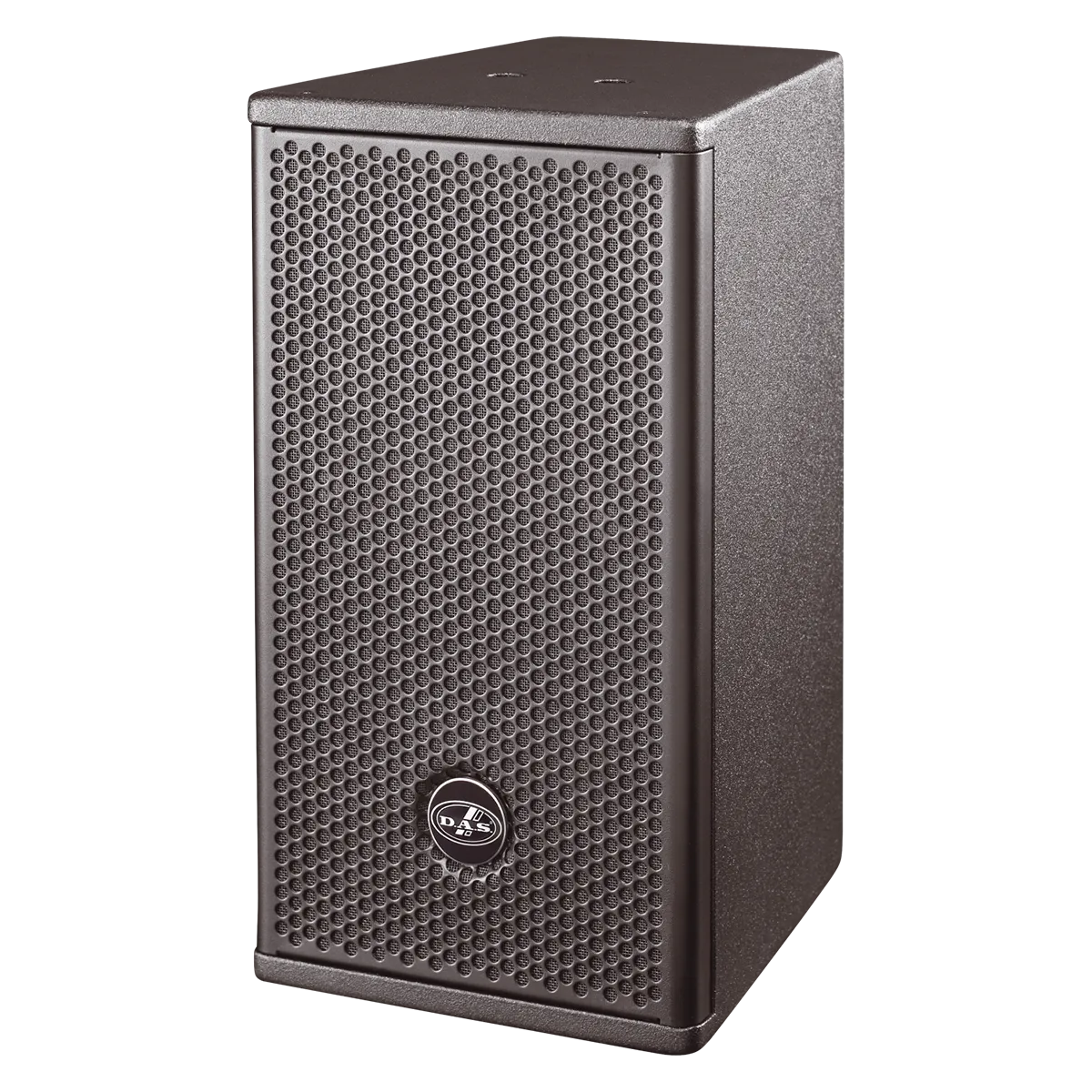

DAS ARTEC-308 Speaker Pasif 8 Inch 2 Way 8 Ohm 600 Watt (Waterproof)
DAS ARTEC-308 Speaker Pasif 8 Inch 2 Way 8 Ohm 600 Watt (Waterproof) - Image 2

DAS ARTEC-308 Speaker Pasif 8 Inch 2 Way 8 Ohm 600 Watt (Waterproof)

Passive, 150 W, 8″, 2 way full-range, 90×60 rotatable horn, black

Chat Penjual
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Das
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The ARTEC-308 2-way passive full range loudspeaker utilizes a 8″ low frequency transducer and the M-26 compression driver. The cabinet manufactured using top quality of Birch plywood and finished with a durable black paint finish. The 8″ woofer provides an exceptional bass response considering the cabinets reduced size.
The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.
A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics. The cabinet is delivered with a U-bracket mount.

Fitur

  • SPL Max: 120 dB
  • Dispersion: 90º x 60º
  • Weight: 10,0 kg ( 22,1 lb )
Performance
Frequency Range (-10 dB) 60 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 8 ohms
RMS Power Handling 150 W
Peak Power Handling 600 W
On-axis Sensitivity 1W/1 m 92 dB SPL
Maximum Peak SPL at 1 m 120 dB
Recommended Amplifier INTEGRAL-A402
INTEGRAL-A404
INTEGRAL-A1002
INTEGRAL-A1004
INTEGRAL-A1602
INTEGRAL-A1604
INTEGRAL-MA1004
INTEGRAL-MA1604
Recommended Processor INTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004

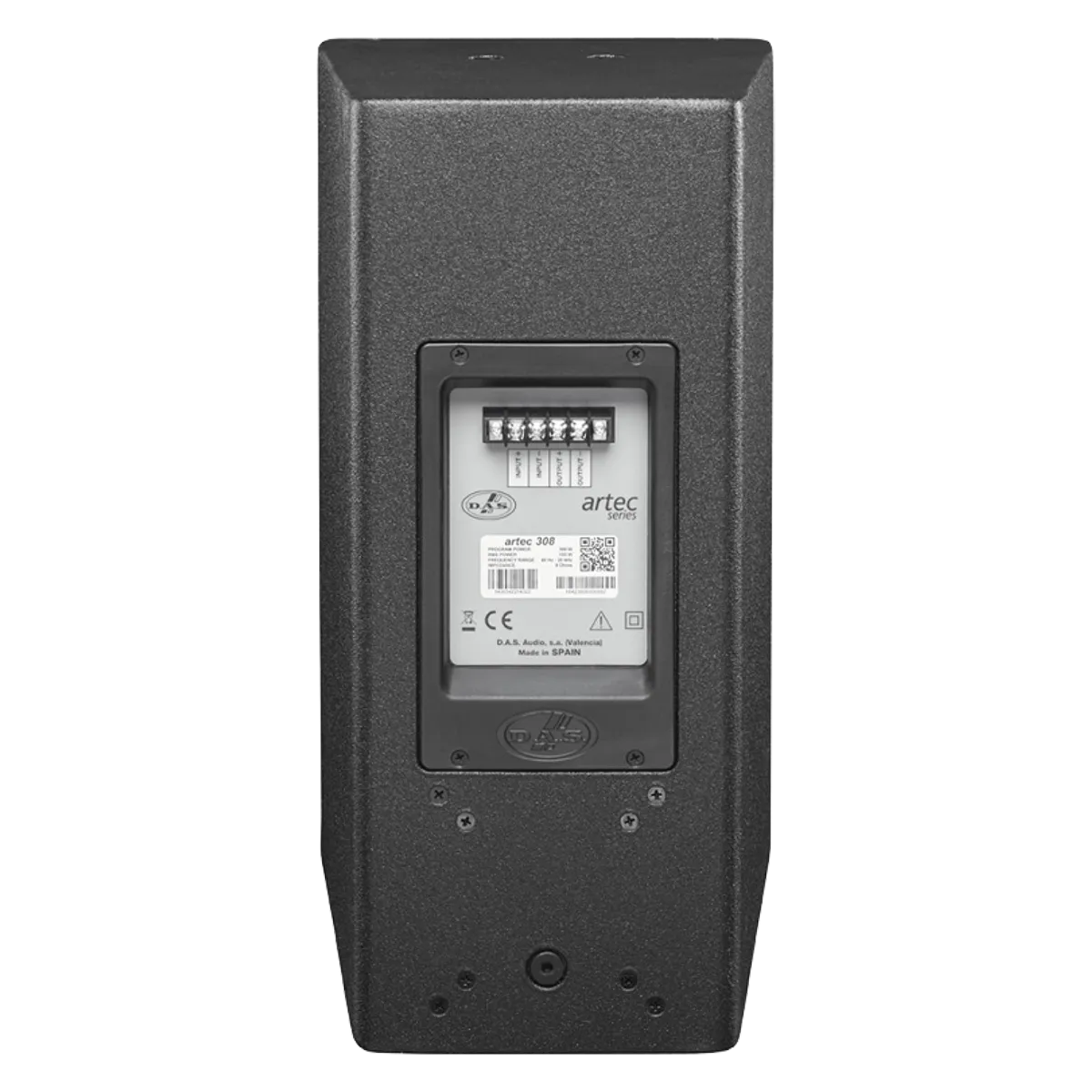

Connectors
Audio Input Connector Covered Barrier Strip Terminals
Audio Output Connector Covered Barrier Strip Terminals
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 290 mm (11,4 in)
Dimensions ( H x W x D ) 450 x 245 x 290 mm
17,7 x 9,7 x 11,4 in
Net Weight 10,0 kg ( 22,1 lb )
Components
LF Driver 8GV
HF Driver M-26
Horn/Waveguide BCT-96
Shipping
Carton Dimensions ( H x W x D ) 541 x 310 x 355 mm
21,3 x 12,2 x 14,0 in
Shipping Weight 13,5 kg ( 29,8 lb )
